T24-ACMm & T24-BB1
Acquisition Connectivity Module
And Battery Box
User Manual
www.mantracourt.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T24-ACMm and is the answer not in the manual?

Questions and answers

Summary of Contents for Mantracourt T24-ACMm

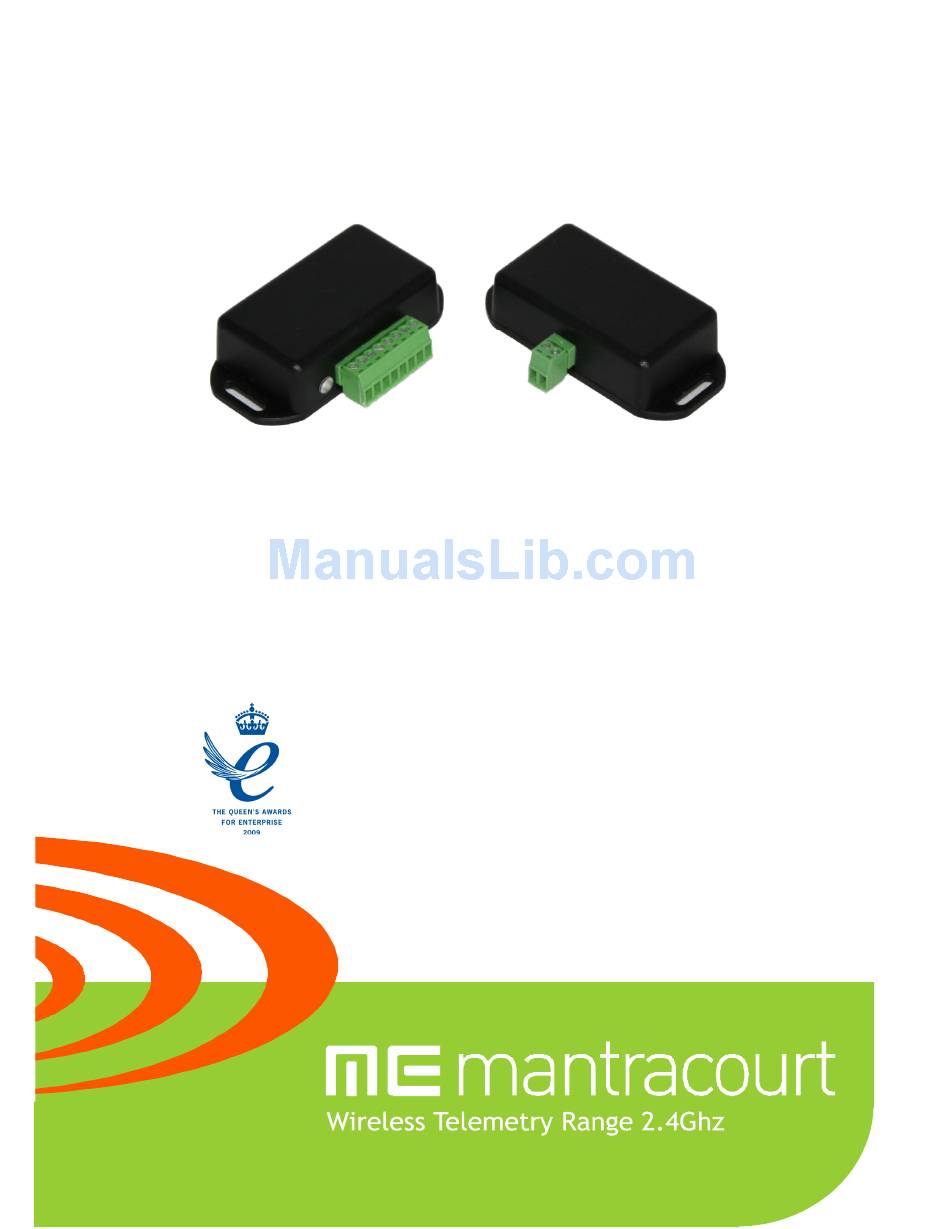

  • Page 1 T24-ACMm & T24-BB1 Acquisition Connectivity Module And Battery Box User Manual www.mantracourt.co.uk...
  • Page 2: Table Of Contents

    Getting Started ....................... 2 Opening the Case ..................... 2 Connecting Power..................... 2 LED Indicator ......................2 Connecting T24-BB1 toT24-ACMm .................. 3 Connecting Input Signals to T24-ACMm ................3 Using Completion Resistors ..................4 Half Bridge ......................4 Quarter Bridge......................5 Specifications ......................5 General Radio ......................
  • Page 3: Introduction / Overview

    Introduction / Overview The T24-ACMm provides a convenient way to connect to one of the range of T24 acquisition modules. The T24- ACMm also includes an LED for indicating when the device is transmitting. The T24-BB1 provides 3V DC power to the T24-ACMm via a pair of ‘AAA’ cells.
  • Page 4: Connecting T24-Bb1 Tot24-Acmm

    Screw Terminal Function -Excitation T24-VAi -V in (0-10V) +V in + Excitation Acquisition Module Screw Terminal Function -Excitation T24-IAi -I in (0-20mA 4-20mA +I in Calibrated) +Excitation Note Excitation Voltage 5V DC Mantracourt Electronics Limited T24-ACMm & T24-BB1 User Manual...
  • Page 5: Using Completion Resistors

    Using Completion Resistors The T24-ACMm has the option for users to add up to three completion resistors, these can be used to enable the T24-ACMm to accept half and quarter bridge strain input when a T24-SA (Strain Acquisition) module is fitted.
  • Page 6: Quarter Bridge

    Operating Temperature Range* +65* ° Storage Temperature Range Environmental protection IP54 *Check operating temperature batteries intended for use. The specifications for the actual fitted acquisition module are listed in the acquisition module manual. Mantracourt Electronics Limited T24-ACMm & T24-BB1 User Manual...
  • Page 7: Approvals

    (2) this device must accept any interference received, including interference that may cause undesired operation. CAUTION: If the device is changed or modified without permission from Mantracourt Electronics Ltd, the user may void his or her authority to operate the equipment.
  • Page 8: Industry Canada

    Section 15.247 (emissions). Acquisition modules have been certified by the FCC for use with other products without any further certification (as per FCC section 2.1091). Changes or modifications not expressly approved by Mantracourt could void the user’s authority to operate the equipment.
  • Page 9 The CE marking must have a height of at least 5mm except where this is not possible on account of the nature of the apparatus. The CE marking must be affixed visibly, legibly, and indelibly. Mantracourt Electronics Limited T24-ACMm & T24-BB1 User Manual...
  • Page 10: Declaration Of Conformity

    Radio and Telecommunications Terminal Equipment Directive 1999/5/EC, FCC CFR Title 47 part 15c BS EN 61000-4-2 and BS EN 61000-4-3 following the provisions of the EMC Directive 2004/108/EC and Low Voltage Directive 2006/95/EC. December 2007 Brett James FCC ID:VHARAD24 Development Manager Mantracourt Electronics Limited. Mantracourt Electronics Limited T24-ACMm & T24-BB1 User Manual...
  • Page 11: Worldwide Regional Approvals

    To Be Determined Important Note Mantracourt does not list the entire set of standards that must be met for each country. Mantracourt customers assume full responsibility for learning and meeting the required guidelines for each country in their distribution market. For more information relating to European compliance of an OEM product incorporating the T24 range of modules, contact Mantracourt, or refer to the following web site: www.ero.dk...
