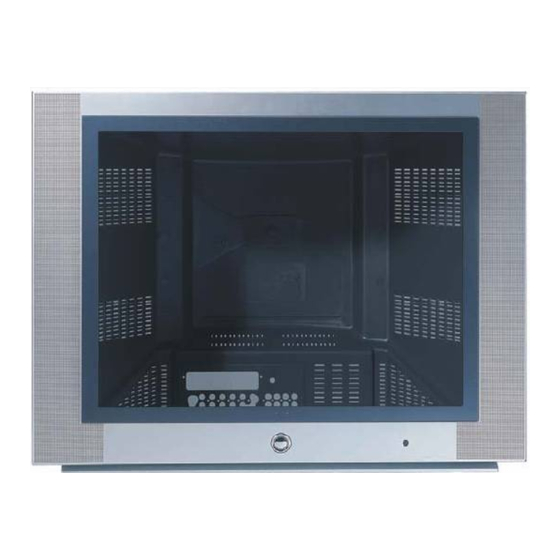

SERVICE MANUAL T-68T17 1. Caution……………………………………………………………2 2. Specification………………………………………………………6 3. BOM List ……………………… …………………………………9 4. Alignment Procedure…………………………………………….36 5. Block Diagram……………………………………………………40 6. Schematic Diagram……………………………………………….41 7. PCB Layout………….……………………………………………..42 8. Explode View Diagram…………………………………………….44 This manual is the latest at the time of printing, and does not include the modification which may be made after the printing, by the constant improvement of product.
Page 2
CAUTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UTION: TO REDUCE THE RISK OF CAUTION ELECTRICAL SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE RISK RISK OF OF ELECTRI ELECTRIC C PARTS INSIDE.
IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Save these instructions for later use. Follow all Warnings and Instructions marked on the audio equipment. 1. Read Instructions- All the safety and operating instructions should be read before the product is operated. 2.
Page 4
PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
Page 5
OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
Page 6
PFS2 FORMAT-1 Report Date:2004-9-23 16:08 ProductView..: Product: Report by....: T-68T17 Specs / Products MasterData TCL ELECTRONICS AUSTRALIA Customer Id PTY LTD. Version MURADI Status Brand Reception +Tuning - presets/channels +Tuning - technology +Tuning - Indication +Freq Bands HYPER BAND CATV 470MHz +Channels PICTURE 38.9MHz...
Page 7
Date:2004-9-23 16:08 ProductView..: Product: Report by....: T-68T17 Specs / Products +Local Controls Top +Indicators - screen +Indicators - front RC Recvd LED, SB LED +Numb of Loc Cont (incl Mains) +Number of Ind. (incl Mains) +Local Controls (Old) Remote Control...
Page 8
Date:2004-9-23 16:08 ProductView..: Product: Report by....: T-68T17 Specs / Products +Power in Standby for +Power in "OFF" for Weight (P)TV (incl. Packaging) Weight (P)TV (excl. Package) Weight AVUnit excl Packaging +INDICATION on BACKCOVER +Channel Final Equipment +Packaging - methods +Documents and manuals...
Page 36
TCLM113 chassis alignment instruction Enter factory mode in production line Simply press the D-mode key on the factory remote handset. Enter service mode Press and hold the VOLUME DOWN key tightly on the unit until minimum level and don’t release the VOLUMN DOWN key, then press the DISPLAY key on the remote handset.
Page 37
Vertical HITS(14) Input a NTSC Adjust HITS for vertical amplitude. geometry for VP60(00) cross hatch Adjust VP60 for vertical position. NTSC system VLIS(02) pattern. Adjust VLINS for vertical linearity. (Key 1) VSS(02) Adjust VSS for vertical S-correction VBLK(00) (normally use default value) VCEN(11) (normally use default value) OSDHS(1D)
Page 39
Key game OSD1(30) ---------- (all use default value) (other OSDF1(66) adjustment) OSD2(48) OSDF2(75) HAFC(09) NOIS(01) UCOM(00) Key 0 R CUT (80) Black and white 1. Measure the dark side of the picture with (White G CUT (80) pattern (PAL) a color analyzer and set RCUT to 80. balance B CUT (80) Then adjust BCUT and GCUT until the...
