RTI KX3 Quick Reference Manual

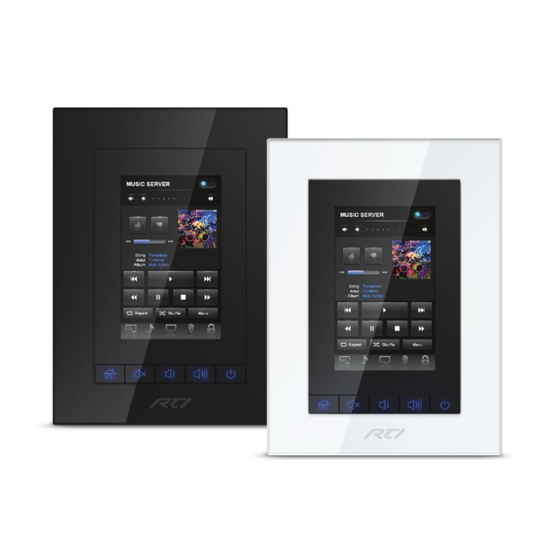

The technologically advanced design of the KX3 delivers an enhanced automation experience, delighting the user with
control simplicity, while offering tremendous power behind the scenes. Ensuring that anyone can effortlessly engage
with their surroundings the KX3 offers a completely customizable 3.5-inch color LCD, five hard buttons, video intercom
and room status LED's. However, the KX3 is not just a pretty interface, it is a unique hybrid device that combines the
capabilities of both a touchscreen controller and an advanced control processor in one cost-effective unit.
Featuring:
• May be utilized as an all-in-one, standalone automation solution for control over electronic systems or integrated as an in-
wall touchpanel in a larger RTI control system using optional processors and modules.
• Vivid 3.5" WVGA (480x800) color LCD, five hard buttons and room status LED's are completely customizable for the ultimate
in simple, intuitive control.
• Built-in control processor provides advanced capabilities including direct control of devices via IR, IP and RS-232, six sense
ports, four relays and an astronomical clock for time-based events.
• Proximity sensor wakes up the unit as a user approaches, and an ambient light sensor adjusts the backlighting.
• Integrated 10/100 Base-T (with PoE) and 802.11b/g/n wireless Ethernet for viewing video from network security cameras,
enhanced two-way feedback and remote programming updates.
• Camera, microphone and a speaker enable video intercom capability.
• Built-in 2.4 GHz ZigBee® antenna offers connectivity with RTI wireless remotes.
• Powered using power supply, CB8 connecting block or PoE (Power over Ethernet).
• Stylish low-profile faceplate available in white, black or brushed aluminum (ships with white).

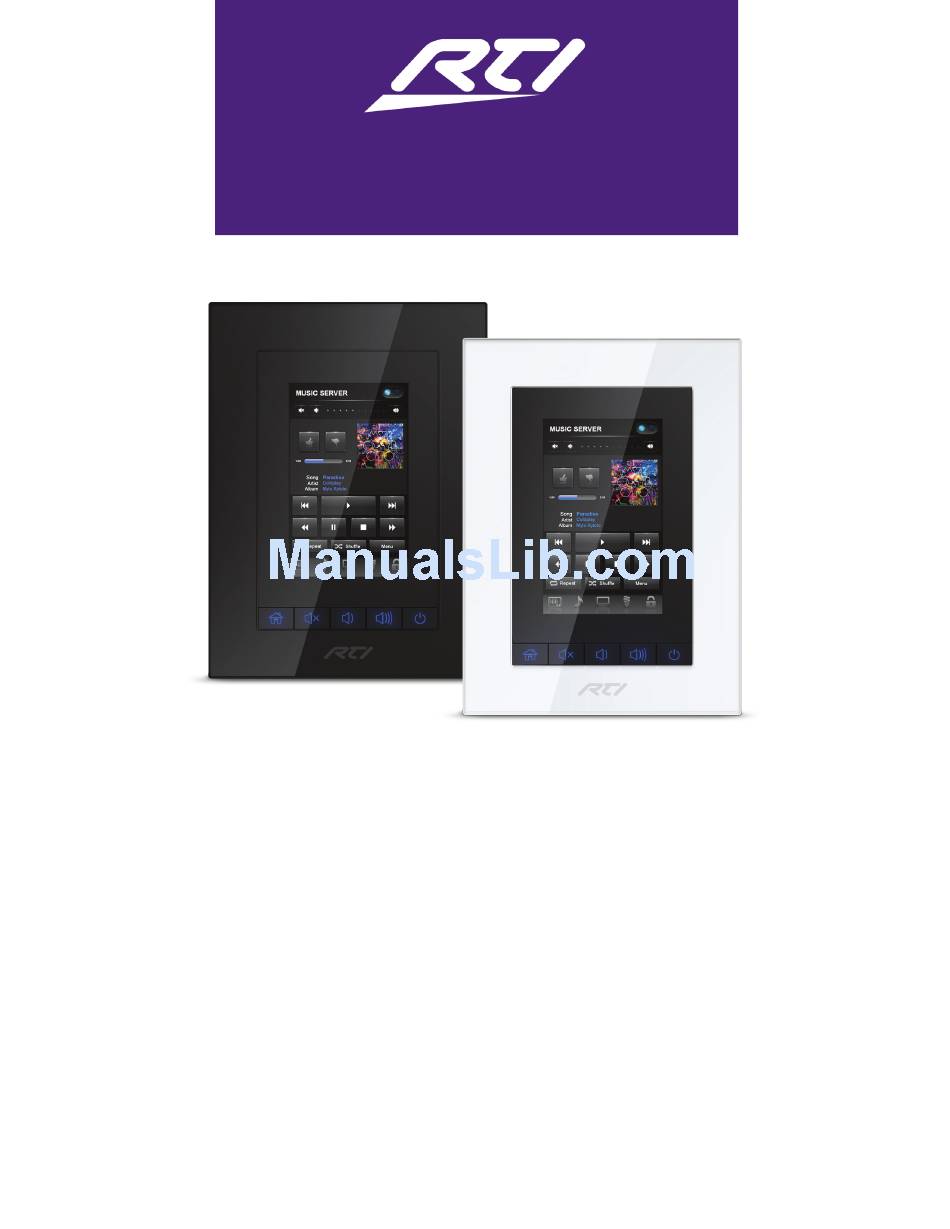

KX3
3.5" Advanced In-Wall Controller

Quick Reference Guide
