Summary of Contents for Mod.Cam MOD.01

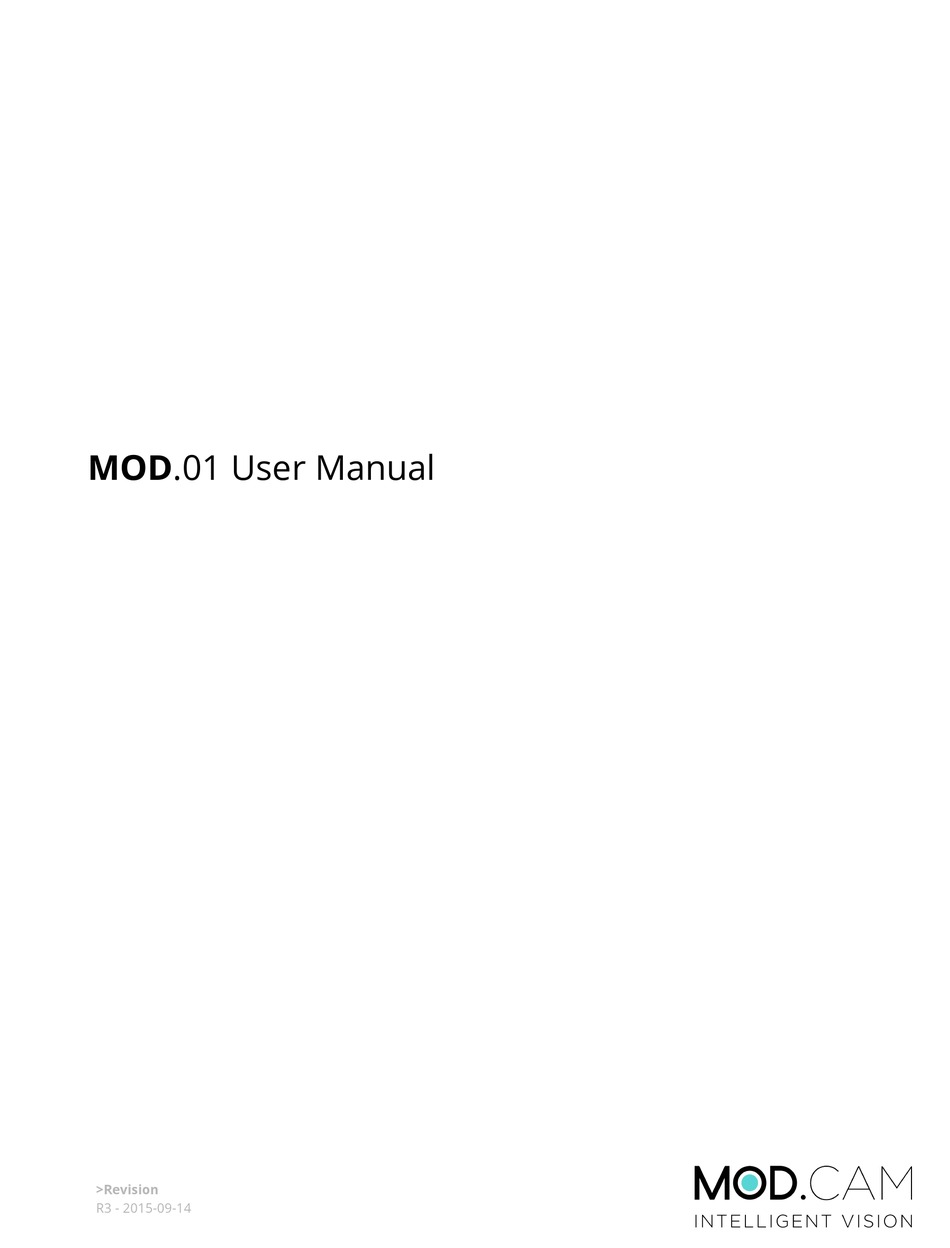

- Page 1 MOD . 01 User Manual >Revision R3 - 2015-09-14 ...
-
Page 2: Federal Communication Commission Interference Statement
Federal Communication Commission Interference Statement FCC Part 15 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 3 Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation.
-
Page 4: Industry Canada Statements
Industry Canada Statements This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. -
Page 5: R&Tte Compliance Statement
R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. -
Page 6: This Document
Introduction About Modcam Intelligent and open – the beginning of a new era in computer vision. Over the years, the hyper-growth in the mobile industry has pushed down cost of components immensely and opened up for a great developer community. At Modcam, we have used this opportunity and applied logics from the smartphone industry to develop a new solution for computer vision. Modcam provides an outstanding platform for intelligent computer vision applications. We have created a smart piece of hardware and an open software architecture to breed new exciting opportunities within computer vision. The platform enables videos and pixels to be translated into information, before being distributed to a network. Our platform is tailored for video content analytics applications through our unique knowledge about image processing and the interaction between software, hardware, and camera sensor. Modcam gives you the ability to see, understand and react. About the MOD.01 The MOD.01 is a powerful quad core ARMv7 platform with a 5 megapixel camera sensor, GPS, accelerometer, compass, microphone and enough storage and memory to run advanced computer vision applications without pause. It is physically built and adapted to be as versatile as possible with regards to mounting needs and environmental conditions and packaged in a sleek and non-intrusive design. It comes with full WiFi and Bluetooth 4.0 stacks and there are options for Ethernet adapters with PoE support for larger installation. While the MOD.01 is mainly designed to be continuously powered via it’s micro-usb connector, it comes with a 800mAh battery inside that will both allow it to retain operation during power outages and last for up to a full day where external power supply is limited. This document This document describes basic properties, usage and handling of the MOD.01 hardware product, including setup experience, installation and mounting options. >Revision ... - Page 7 General product handling Unpacking and general considerations Included with your MOD.01 device should be a three metres, charging-only, Micro-b to Type-A USB cable, a 1A USB Type-A power adapter for your region and a standard two-part MOD.01 ceiling mount intended for top-down coverage . Boot, shutdown and LED patterns The MOD.01 device will automatically boot whenever it receives power through its micro-b USB contact. This means that as a safe-guard against power outages, if power is inserted, it will automatically boot even when manual shutdown has been performed. Upon boot, the device will go through a series of patterns with the four LEDs situated around the camera lens of the unit. Shutdown To turn off the device, remove any power source and press the button for at least 6 seconds. During this time, the LEDs will show a countdown pattern (after a couple of seconds). The countdown ends with a four LED white flash, indicating that the shutdown is complete. Standard LED behaviour Blue lower right/left light - Pre-boot phase. Blue l ights, spinning - Booting. 3. Four o range lights, flashing - Not connected to network, scanning for QR code. 4. Four g reen...
-
Page 8: Installation
A for height H with the formula: A = 1 .78H If the sensor has the optional wide angle lens attached, the formula to use is A = 1 0.37H This means that for a ceiling height of 4 metres, the approximate floor coverage is ~28m , 2 or ~166m 2 with the wide angle lens. Applications For applications running on the MOD.01, please refer to the application-specific documentation. >Revision R3 - 2015-09-14 ... -
Page 9: Specifications
Specifications Application processor MOD.01 is built on a Broadcom chipset - BCM23550, compliant with ARM TrustZone® and GlobalPlatform for system-level security. Quad 1GHz A7 CPU with ARM® NEON TM technology ● High-performance VideoCore IV GPU ● Integrated image signal processor (ISP) with support up to 12 megapixels ● High quality H.264 full HD (1080p30) camcorder and video playback ● Power management techniques that increase efficiency and optimize performance ● based on workload demands Memory subsystem MOD.01 holds memory in package based on Samsung’s MCP (Multi Chip Package) technology that allows integration of multiple memory chips of different types, such as NAND flash, eMMC and mobile DRAM, in a single package. MCP-based memory enables the rest of the application to view the memory subsystem as a single, unified "block", letting the memory subsection offer the highest levels of performance for the device. Density: eMMC(4GB)+LPDDR2(1GB) ● Max speed: 1066 Mbps (LPDDR2) ● Sensor subsystem Camera MOD.01 is using a 5 megapixel camera with fixed focus. ... - Page 10 720p @60fps ○ VGA @90fps ○ Sensitivity: 600mV/Lux-sec ● Rolling shutter ● Accelerometer/Gyro MOD.01 is using a Bosch BMI055 ultra-small, 6 axis inertial sensor with very low-noise measurement of angular rates and accelerations in 3 perpendicular axes and thus senses tilt, motion, shock and vibration. digital, triaxial 12bit acceleration sensor ● digital, triaxial 16bit, ±2000°/s gyroscope. ● eCompass MOD.01 is using a Bosch BMM150 standalone geomagnetic sensor for consumer market applications. It allows programmable and flexible measurements of the magnetic field in three perpendicular axes with ultra-low voltage operation. Microphone MOD.01 is using an omnidirectional, high sensitivity - “Ultra‑Mini” SiSonic TM Microphone for sensing noise in the surrounding environment. ...
- Page 11 Further questions and support For further questions and support, please contact Modcam AB directly. contact@modcam.com >Revision R3 - 2015-09-14 ...
- Page 12 ...
- Page 13 ...
- Page 14 ...
- Page 15 ...
- Page 16 ...
- Page 17 ...
- Page 18 ...
- Page 19 ...
- Page 20 ...
- Page 21 ...
- Page 22 ...
- Page 23 ...
- Page 24 ...
- Page 25 ...
- Page 26 ...
- Page 27 ...
- Page 29 User Login: Please login at : dashboard.modcam.com User Interface and People count Depending on credentials and applications the user have bought the UI is looking as below – the user has the possibility to watch, compare, extract data for multiple sensors...
