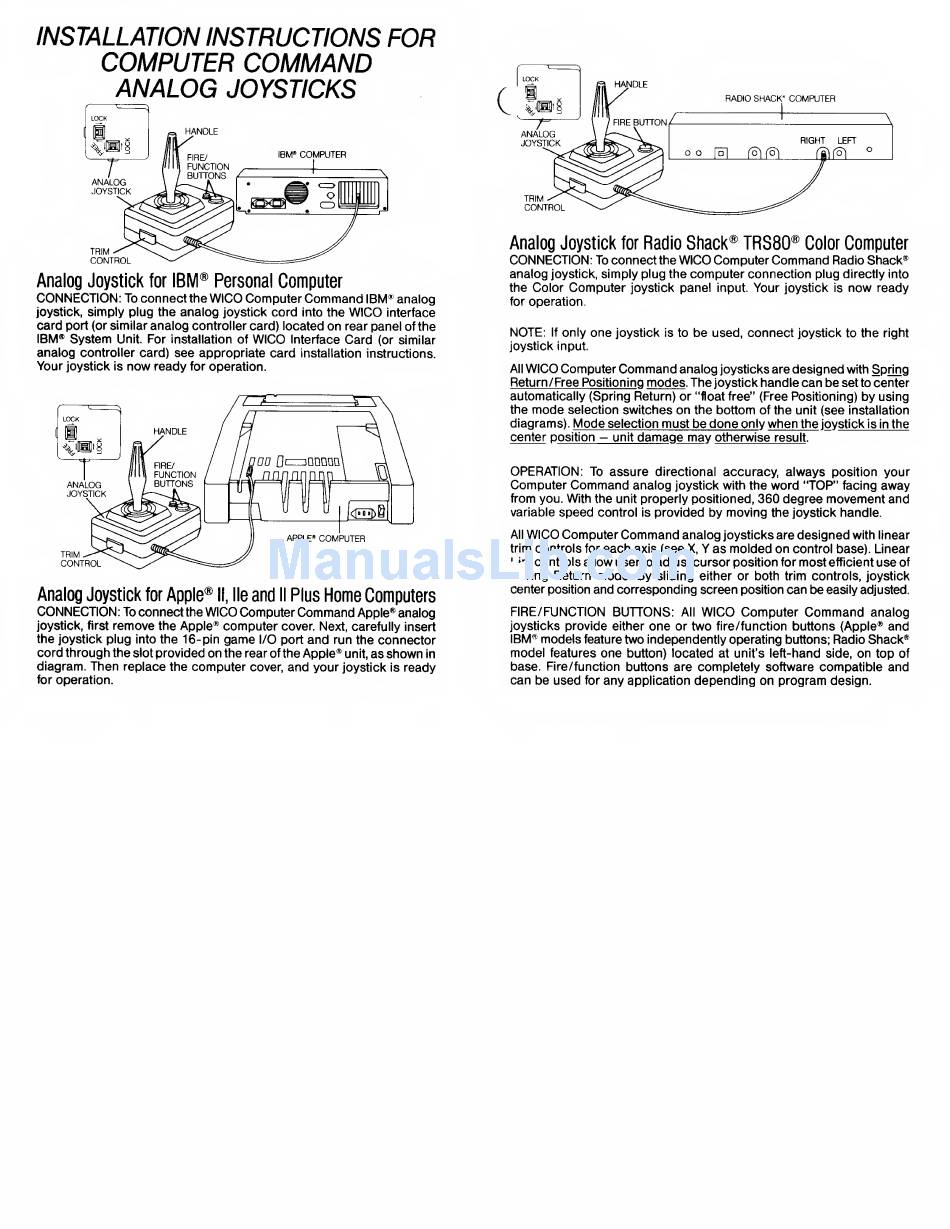

Wico Computer Command Installation Instructions

INSTALLATION INSTRUCTIONS
FOR
COMPUTER
COMMAND
ANALOG
JOYSTICKS
IBM*
COMPUTER
Analog
Joystick
for
IBM®
Personal
Computer
CONNECTION:
To connect the
WICO
Computer
Command
IBM®
analog
joystick,
simply plug the analog
joystick
cord
into
the
WICO
interface
card
port
(or
similar
analog
controller card) located
on
rear
panel
of the
IBM® System
Unit.
For
installation of
WICO
Interface
Card
(or similar
analog
controller card)
see
appropriate card
installation instructions.
Your
joystick
is
now
ready
for operation.
APPLE*
COMPUTER
Analog
Joystick
for
Apple®
II,
lie
and
II
Plus
Home
Computers
CONNECTION:
To connect
the
WICO
Computer
Command
Apple® analog
joystick,
first
remove
the Apple® computer
cover. Next, carefully
insert
the joystick plug
into
the 16-
pin
game
I/O port
and
run the connector
cord through the
slot
provided
on
the rear of the
Apple®
unit,
as
shown
in
diagram. Then
replace the
computer
cover,
and
your
joystick
is
ready
for operation.
HANDLE
RADIO SHACK* COMPUTER
RIGHT LEFT
TRIM
CONTROL
Analog
Joystick
for
Radio
Shack®
TRS80®
Color
Computer
CONNECTION:
To connect
the
WICO
Computer
Command
Radio
Shack®
analog
joystick,
simply plug the
computer
connection plug
directly into
the Color
Computer
joystick panel
input.
Your
joystick
is
now
ready
for operation.
NOTE:
If
only
one
joystick
is
to
be
used,
connect
joystick
to
the
right
joystick input.
All
WICO
Computer
Command
analog
joysticks
are designed
with
Spring
Return /Free
Positionin g
modes
.
The
joystick
handle can be
set to center
automatically (Spring Return) or
"float free" (Free Positioning)
by
using
the
mode
selection switches
on
the
bottom
of
the
unit
(see
installation
diagrams).
Mode
selection
must be
done
onl y
when
the joy
stick
is in
the
center p
osition
-
unit
dama
g e
ma
y otherwise
result
.
OPERATION:
To assure
directional
accuracy, always
position
your
Computer
Command
analog joystick with the
word "TOP"
facing
away
from you. With
the
unit
properly positioned,
360
degree
movement
and
variable
speed
control
is
provided by
moving
the joystick handle.
All
WICO
Computer
Command
analog
joysticks are
designed
with
linear
trim
controls
for
each
axis (see X,
Y
as molded on
control base). Linear
'
iw
r\
controls allow user
to
adjust cursor position
for
most
efficient
use
of
ring
Return mode. By
sliding either or both trim controls, joystick
center
position
and
corresponding screen
position
can be
easily adjusted.
FIRE/FUNCTION BUTTONS:
All
WICO
Computer
Command
analog
joysticks
provide
either
one
or
two
fire/function
buttons (Apple® and
IBM® models
feature
two independently
operating buttons; Radio
Shack®
model
features
one
button) located
at unit's
left-hand
side,
on
top
of
base. Fire/function buttons are completely software compatible and
can be used
for
any
application
depending on program
design.
