Summary of Contents for Teksun 5B089BT

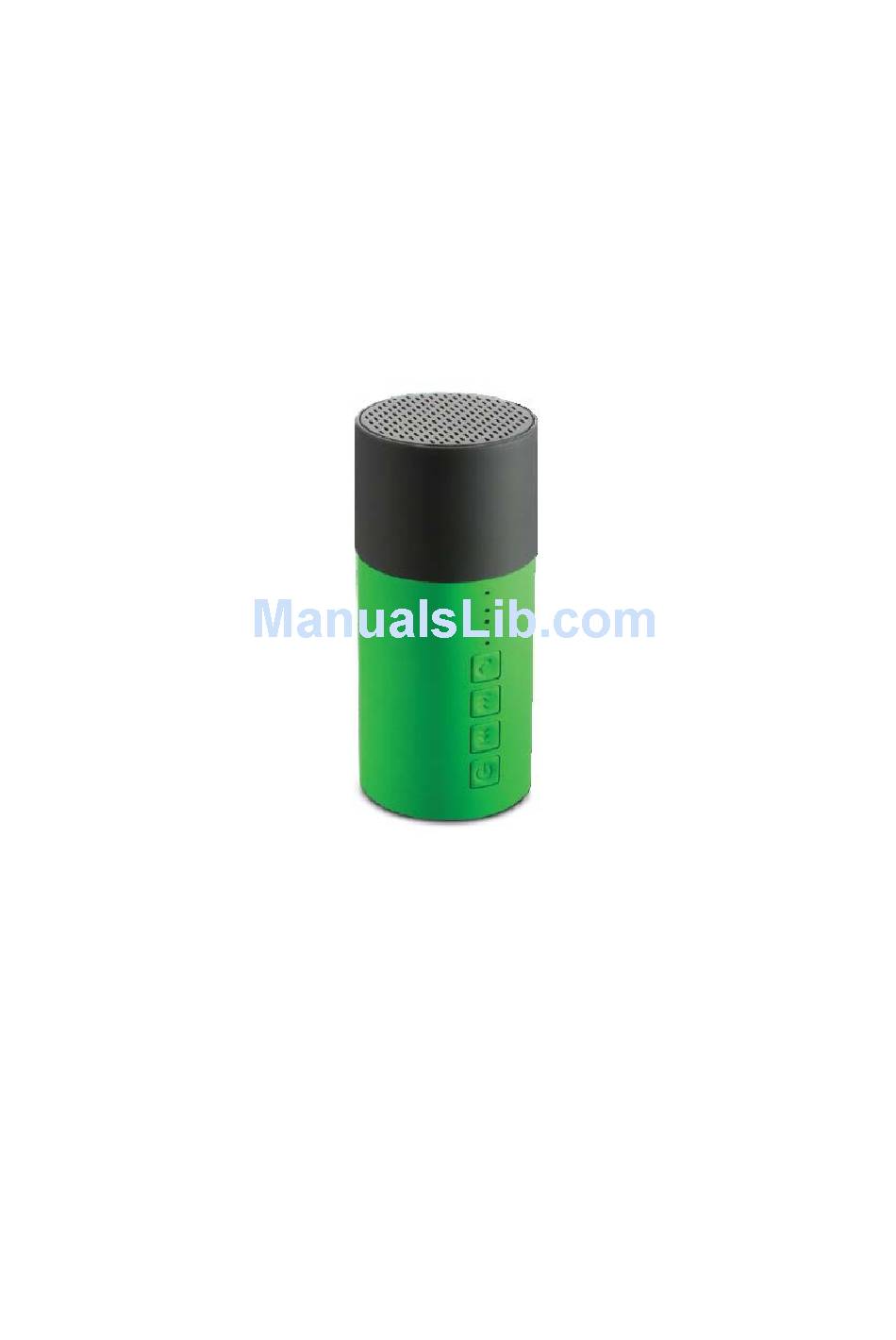

- Page 1 5B089BT POWER BANK SPEAKER INSTRUCTION MANUAL PLEASE READ ALL INSTRUCTIONS CAREFULLY AND RETAIN FOR FUTURE USE 1 ...
- Page 2 Getting Started Remove the device from the box. Remove any packaging from the product. Please retain all packaging until you have checked and counted all the parts and the contents against the parts list. Package Contents Power Bank Speaker USB rechargeable cable Instruction Manual Key Features Charge any mobile device on‐the‐go with built‐in charger Wirelessly stream music from up to 30‐33 feet away Connects via Bluetooth to most smartphones, tablets, computers and other Bluetooth enabled devices Perfect for travel use, outdoors or anywhere you go Built‐in microphone for hands‐free‐calls USB rechargeable battery Battery Level Indicators ‐ Short press the Power ON/OFF Button to see SAFETY INSTRUCTIONS Keep the unit away from heat sources, direct sunlight, humidity, water and any other liquids. ...
- Page 3 Description of Parts Buttons Function Operation 1 Speaker Sound output 2 Charging Port (Micro USB) DC Charging Port – To charge the speaker 3 USB Charging Port Use this USB Charging Port to charge your smart phones and other mobile devices 4 Power ON/OFF Button Turn On/Off the speaker 5 Short press will return to the previous track, or long press will decrease the volume level 3 ...
- Page 4 6 Short press will skip to the next track, or long press will increase the volume level 7 Play / Pause button Short press will pause or restart the music. Phone button Call Answer / Call End / Reject Call button. 8 LED Light Indicator Indicates the Charging or Bluetooth Status 9 Built‐In Mic For Hands‐Free Conversation INSTRUCTIONS FOR USE Turning ON/OFF the Speaker – Before Turning ON the device, please ensure that the unit is fully charged. Press the On/Off button to turn ON/OFF the speaker. Connect using Bluetooth Technology manually Turn On the device. You would hear a beep tone indicating that you are now in Bluetooth Pairing Mode and Blue LED Light keeps flashing. Activate the Bluetooth function on your Bluetooth Device (Mobile Phone or Tablet). Please refer to manufacturer’s instructions for instructions on enabling Bluetooth on your device. Once you have activated Bluetooth on your device, select the device “SL PB SPEAKER” from the list of available Bluetooth devices. If required, enter the password ‘0000’ to confirm to finalize pairing. (Password is required only during pairing devices for the first time) Once paired successfully, the LED light flashes slowly. Choose music from your Bluetooth® device and play music wireless through the speakers. ...
-
Page 5: Specifications
Listening to Music via Bluetooth Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speaker to stream music wirelessly. Once it is paired, play music from your device. Function Operation Button Volume Increase Playing music Long press on the button will increase the volume (Short press to skip to next track) Volume Decrease Playing music Long press on the button will decrease the volume (Short press to skip to previous track) Pause Playing music Short press on the ‘Play / Pause’ button will pause the music Play Pausing Short press on the ‘Play / Pause’ button will resume the music [Note: An indication tone will alert you when the volume is adjusted to the maximum or minimum level.) Recharging External Devices (through this speaker) Use the USB Charging port located at the back of the speaker to charge your external devices like smart phones etc. Using this saves you from having an extra charger to keep your devices powered. Charging the speaker The device has built‐in rechargeable battery. When the battery is drained out, device would turn OFF automatically. You would have to recharge the battery. Plug the included USB cable into the charging port. Plug the other end into a USB port on your computer or other devices made for USB charging. The Blue LED Light will flash indicating that the device is being charged. ... - Page 6 Charging Time: 5 to 6 Hours USB Charging Port – 5V / 1A (Max) Output (Note: Battery life, Working time & charging time may vary based on usage & types of devices used.) Care and maintenance Read the following recommendations before using the product. Following these you will be able to enjoy the product for many years. Do not expose the unit to liquid, moisture or humidity to avoid the product’s internal circuit being affected. Don’t use abrasive cleaning solvents to clean the unit. Do not expose the unit to extremely high or low temperature as this will shorten the life of electronic devices, destroy the battery or distort certain plastic parts. Don’t dispose of the unit in fire as it will result in an explosion. Don’t expose the unit to contact with sharp objects as this will cause scratches and damage. Don’t let the unit fall down onto the floor. The internal circuit might get damaged. Don’t attempt to disassemble the unit as it may get damaged if you are not professional. ...
- Page 7 The device has been evaluated to meet general RF exposure requirement. The device can be used in port able exposure condition without restriction LIMITED WARRANTY This manufacturer's product warranty extends to the original consumer purchaser of the product. Neither the retailer nor any other company involved in the sale or promotion of this product is a co‐warrantor of this manufacturer warranty. WARRANTY DURATION: All materials and workmanship are warranted to the original consumer purchaser for a period of ninety (90) days from the original purchase date. WARRANTY COVERAGE: This product is warranted against defective materials or workmanship. This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of defects in materials or workmanship. This warranty doesn’t cover the following which may be supplied with this product, including but not limited to; LCD Screens, glass parts, lenses, bulbs etc. This warranty is effective only if the product is purchased and operated in USA and Canada, and does not extend to any units which have been used in violation of written instructions furnished by manufacturer or to units which have been altered or modified or, to damaged products or parts thereof which have had the serial number removed, altered, defaced or rendered illegible. WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to assume for manufacturer any other liability in connection with the sale of our products. There shall be no claims for defects or failure under any theory of tort, contractor commercial law including but not limited to, negligence, gross negligence, strict liability, breach of warranty and breach of contract. Under no circumstances will Manufacturer’s / Distributor’s maximum liability exceed the retail value of the product. WARRANTY PERFORMANCE: During the above 90 day warranty period, a product with a defect will be either repaired or replaced with a reconditioned comparable model (at manufacturer's option). The repaired or replacement product will be in warranty for the balance of the 90 day warranty period and an additional one‐month period. No charge will be applicable for such repair or replacement. SERVICE AND REPAIR: If service is required for this product, you should first contact Midwest Trading Group Customer Service at info@mtradinggroup.com or by calling 1 (866) 815‐4714, Monday to Friday 10am to 6pm EST. NOTE: Manufacturer cannot assume responsibility for loss or damage during incoming shipment. As a precautionary measure, carefully package the product for shipment, and insure it with the carrier. Be sure to enclose the following details with the product: your full name, return address and daytime phone number, a note describing the problem you experienced, a copy of your sales receipt or other proof of purchase to ...
