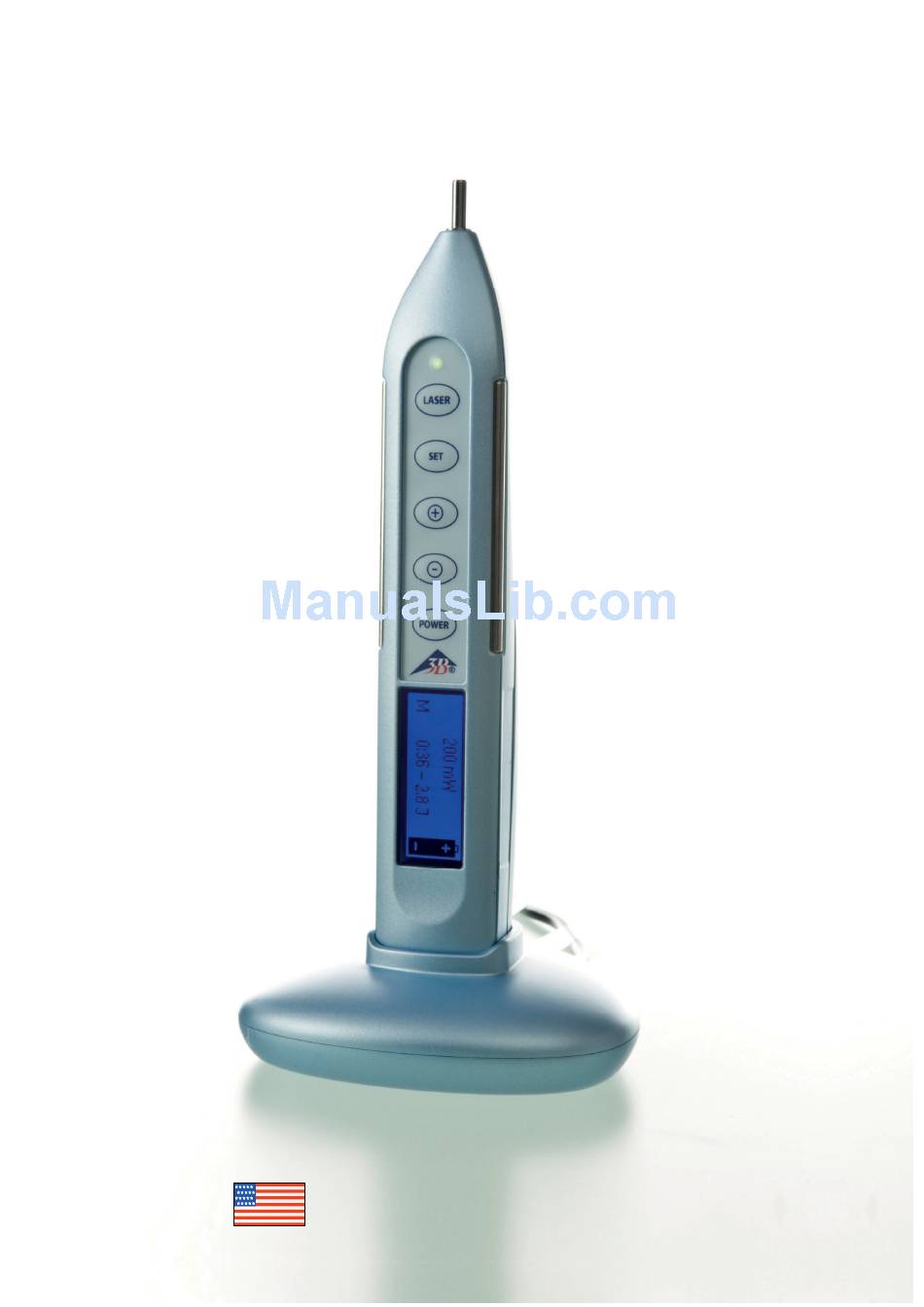

3B LASER PEN 500

Operating Instructions

Last revised September 26th, 2017

Table of Contents

Summary of Contents for 3B LASER PEN 500

Page 1 3B LASER PEN 500 Operating Instructions Last revised September 26th, 2017...
Page 2: Table Of Contents
Installing and Charging the Batteries ..............................15 Safety Information ....................................... 15 Manufacturer’s Labels and Warning Signs............................ 16-17 Accessories ........................................18 Technical Data for 3B LASER PEN 500 ............................19 Appendix 1: Therapy Frequencies / Therapy programs........................ 20 Scope of Delivery The following units are included in the delivery: •...
Page 3 In order to achieve the success you are looking for and to ensure that you have many years of use from your 3B LASER PEN, we would ask you to read the following usage information carefully.
Page 4 • Be sure to read all instructions for operation before treating a patient. Observe the regulations for handling the 3B LASER PEN. • Do not drop the unit, accessories on hard surfaces. Do not submerge the unit, accessories in water. All of these conditions will damage the unit.
Page 5: Function Keys And Display Elements
The values selected with the SET key can be changed with these keys. The values can be selected and stored with this key. POWER The 3B LASER PEN is switched on and off with this key. Display The selected laser power level, operation mode, point search mode, therapy time, and dose rate as well as information about the battery charge are shown on the display screen.
Page 6: Display And Led Displays
Display and LED Displays This screen appears during the booting process after the laser unit has been tur- 3B LASER PEN ned on. The first line shows the specific model, and the second line the software status of the unit.
Page 7: Operation
Operation You may only use the 3B LASER PEN with inserted wave guide. Never use the 3B LASER PEN without wave guide. Insert the red key pin into the red connector on the left (8) and turn on by pressing the POWER key (4). The display...
Page 8: Changing The Laser Parameters
You can turn around the display (right-handed/left-handed users) with the “+” key (2). The sound (which is issued every 20 s during laser discharge) can be turned on and off with the “-” key (2). When the loudspeaker icon is crossed out, the sound is turned off.
Page 9 For therapy programs and frequencies, see Appendix 1 (page 20) A single frequency can be selected as follows: When the value on the display flashes, go to the respective frequency program by pressing the “+” or “-”key. Then press the SET key for 2–3 sec. This gets you into the setting mode for the specific frequency. Use the “+/-” key to select the desired frequency and confirm it with the SET key.
Page 10: Using The Laser
Possible settings for the dose are depending on the specific model and are : 3B LASER 500 / 1 J–60 J max. Once all laser parameters have been set, this is shown in the display. The different values are now no longer flashing and you can start with the laser treatment –...
Page 11 The tip may be disinfected in an autoclave or via spray-and-wipe disinfection with a 70% alcohol . The 3B LASER PEN works with a maximum laser output of 500 mW. At maximum power (500 mW in CW mode) and a fully charged battery, the battery time is approx. 1 h.
Page 12: Searching For Acupuncture Points
If you find a point with a higher conductivity as the stored value then this is seen in the bar-display. If the 3B LASER PEN is not moved, and the actual measured value is stable for 2 seconds and greater than the stored value, the 3B LASER PEN automatically switches on.
Page 13: Application
60 This method allows you to locate the acupuncture point relatively accurately. To search for another point, first remove the 3B LASER PEN from the skin. The laser switches to the automatic status again, the measured value remains stored.
Page 14: Use
• Move the 3B LASER PEN over the skin slowly and uniformly, and only activate it when it is in treatment position. • Only apply creams or lotions after the laser treatment has been finished. Clean the laser beam outlet using 70 % ethanol following each contact with skin and for each new patient.
Page 15: Maintenance And Care
• Do not expose the unit to direct sunlight. • The housing may be cleaned with a mild detergent and a damp cloth. The 3B LASER PEN must be disconnected from the charging station for cleaning. Disconnect the power cord before cleaning.
Page 16: Safety Information
Important: The 3B LASER PEN may not be stored with empty rechargeable batteries. We recommend removing the rechargeable batteries if you are not intending to operate the unit for a period of >1 month. Rechar- geable batteries that have been removed must be charged at least every three months. The battery charge control takes the memory effect into account, so you can charge the device after each treatment without having to worry.
Page 17: Manufacturer's Labels And Warning Signs
The manufacturer is only responsible for safety and reliability if the laser device is used in accordance with the operating instructions. Operate the 3B LASER PEN only in closed rooms at room temperature. The laser warning sign which has been supplied must be attached to the door. Manufacturer’s Labels and Warning Signs...
Page 18: Accessories
Labels Observe the operating instructions Observe the disposal regulations Name of manufacturer livetec GmbH 79539 Lörrach Germany Production date 20xx CE symbol Notified body 0197 Accessories • Protective Glasses – Therapist • SoftCap Protective Glasses – Patient • Rechargeable AA-size NiMH batteries min. 2.400 mAh •...
Page 19: Technical Data For 3B Laser Pen 500
Name of manufacturer Livetec GmbH, Marie-Curie-Str. 8, 79539 Lörrach, Germany Conformity CE 0197 WEEE reg. no. FE 59335168 Soldy by American 3B Scientific, 2189 Flintstone Dr., Suite O, Tucker, GA 30084, USA phone 1.678.405.5807, cell 1.770.310.5886, fax 1.678.405.5728 Last revised 2017-09-26...
Page 20: Appendix 1: Therapy Frequencies / Therapy Programs
Appendix 1: Therapy Frequencies / Therapy programs Program Frequency Continuous wave Multi-frequency: 200Hz bis 3,5 kHz Alpha-frequency: 10 Hz Nogier A: 2,28 Hz Nogier B: 4,56 Hz Nogier C: 9,12 Hz Nogier D: 18,25 Hz Nogier E: 36,5 Hz Nogier F: 73,0 Hz Nogier G: 146,0 Hz...
Page 21 Guidance and Manufacturer’s declaration - electromagnetic emissions The 3B Laser is intended for use in the electromagnetic environment specified below. The customer or the user of the 3B Laser should assure that it is used in such an environment.
Page 22 Guidance and Manufacturer’s declaration - electromagnetic immunity The 3B Laser is intended for use in the electromagnetic environment specified below. The customer or the user of the 3B Laser should assure that it is used in such an environment. Immunity test...
Page 23 RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the 3B Laser should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the 3B Laser.
Page 24 Recommended separation distances between portable and mobile RF communications equipment and the 3B Laser. The 3B Laser is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the 3B Laser can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the 3B Laser as recommended below, according to the maximum output power of the communications equipment.
Page 25 American 3B Scientific 2189 Flintstone Dr, Suite O Tucker, GA 30084 Tel: +1.678.405.5807 Cell: +1.770.310.5886 Fax: +1.678.405.5728...
