Professional LCDs

User Manual

Version 2.00

The use of diagrams and illustrations in the manual are for reference only. The actual product may be different.

Product design and specifications are subject to change without notice

Table of Contents

Need help?

Do you have a question about the DI551ST2 and is the answer not in the manual?

Questions and answers

Summary of Contents for DS DI551ST2

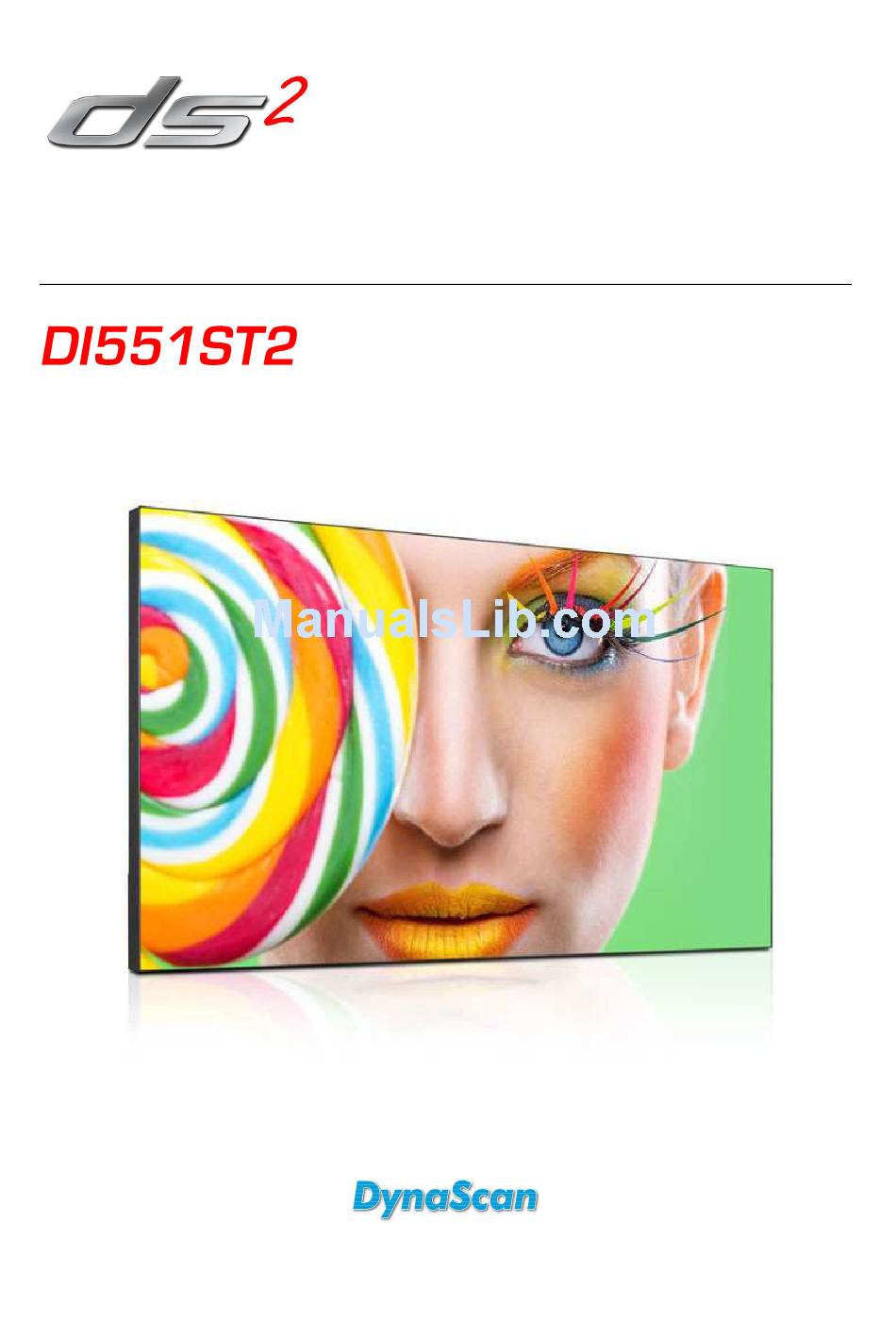

Page 1 Professional LCDs User Manual Version 2.00 The use of diagrams and illustrations in the manual are for reference only. The actual product may be different. Product design and specifications are subject to change without notice...
Page 2: Table Of Contents
Using the Rear Panel Controls ......................17 Navigating the On Screen Display (OSD) Menu .................. 18 Specifications ............................22 Input Mode............................23 Pin Assignments........................... 24 Digital RGB Input (DVI-D): DVI ......................24 RS-232 Input ............................ 24 Troubleshooting............................ 25 About DSM365 ............................. 26 DI551ST2 User Manual...
Page 3: Material Contents Declaration
When replacing old appliances with new one, the retailer is legally obligated to take back your old appliances for disposal at least for free of charge. DI551ST2 User Manual...
Page 4: Declaration Of Conformity
End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Declaration of the Manufacturer We hereby certify that the Professional LCD DI551ST2 is in compliance with Low Voltage Directive 2014/35/EU...
Page 5: Safety Precautions
This phenomenon is known as image burn-in and is not covered by the manufacturer's warranty. In order to avoid burn-in, avoid prolonged display of static or fixed images on the screen. DI551ST2 User Manual...
Page 6: Important Safety Information
Do not use any of the following solutions to clean the casing as they may damage the paint and cause it to crack or peel: benzene solution, alkaline solution, alcohol-based cleaning solution, glass cleaner, wax, polisher, or detergent. DI551ST2 User Manual...
Page 7: Getting Started
Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products. • • DI551ST2 Professional LCD. Power cable x1 pc. • •...
Page 8: Installation
Do not install the wall mount while the power is turned on as it may cause serious injury due to electrical shock. Screw Model Number VESA (mm) Screw Length Number Specification Greater than 10mm Smaller than 12mm DI551ST2 (A * B) 400 * 400 (not including wall mount thickness) DI551ST2 User Manual...
Page 9 Ensure the LCD is secured in such a manner that it cannot be easily removed by the general public. • Leave clearance around the outer edge of the LCD (or video wall matrix) from other objects to DI551ST2 User Manual...
Page 10 Inspect the fasteners regularly for signs of loosening or deformation. Please perform appropriate corrective measures when a problem is identified. Neglecting the problem may worsen the situation. • Increase the inspection frequency on areas where previous maintenance had occurred to ensure the problems do not occur again. DI551ST2 User Manual...
Page 11: Wall Mounting
Connect the power cable to a 110-220 volt, 50 / 60Hz AC power outlet. Insert the plug completely into the socket. A loose power connection may cause damage to the display and/or lead to a fire hazard. DI551ST2 User Manual...
Page 12: Connecting An External Video Source
Connect the other end of the DVI cable (or DP cable, HDMI cable) to the DVI output (or DP output, HDMI output) of the video source. Refer to your video device’s manual for additional information. DI551ST2 User Manual...
Page 13: Connector Positions
Power Switch Audio (OUT) Thermal Sensor DP (IN) HDMI (IN) ○ ○ ○ ○ ⑫ DVI (IN) RS-232 (IN) RJ-45 SD card USB port DI551ST2 ⑫ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ DI551ST2 User Manual...
Page 14: Input / Output Terminals
RS-232 (IN): RS232C network input connection for remote control from PC. 10. RJ-45 (IN): RJ45 network input connection. 11. SD card: Support for up to 32GB, FAT32/NTFS format is supported. 12. USB port: Support for USB flash drive storage, mouse and keyboard. DI551ST2 User Manual...
Page 15: Operating Instructions
When using the remote control, aim the remote at the IR receiver on the display. The IR receiver on the DI551ST2 model is at the rear of the display with a receiving angle of 100 degrees. The IR receiver configurations of the model are shown in the figure below.
Page 16 DI551ST2 DI551ST2 User Manual...
Page 17 Move the cursor up or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DOWN Move the cursor down or change the setting of selected item. Enter (for DSM365 only) BACK Return to the last page. (for DSM365 only) DI551ST2 User Manual...
Page 18: Using The Rear Panel Controls
OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item. DI551ST2 User Manual...
Page 19: Navigating The On Screen Display (Osd) Menu
Selects the black level to adjust the screen gray scale. "Limited" for video source uses Black Level RGB Full 16 to 235 levels for R/G/B, such as HDMI. "RGB Full" for video source uses all levels from 0 to 255 levels. DI551ST2 User Manual...
Page 20 Range 0 – 100. High Level Time HH:MM Set high level time. Low Level Time HH:MM Set low level time. Adjusts the contrast. High is the highest Local Dimming contrast. Off is the lowest contrast. (Off, Low, Medium and High) DI551ST2 User Manual...
Page 21 ITEM 1 ITEM 2 DEFAULT DESCRIPTION Resolution Input resolution. Model DI551ST2 The display’s model. Serial Number The display’s serial number. Information 1 Hardware The H/W version. Firmware The F/W version. Color Depth The color depth of current input. DI551ST2 User Manual...
Page 22 100% and Over Heat Protection is disabled. Some functions may not be available for all models. *Adjusted value: Each R/G/B value for this product has been individually adjusted during production to a preset color temperature of 6500K. DI551ST2 User Manual...
Page 23: Specifications
10%~80% RH Non-Condensing DVI-D IN *1 (support HDMI) IN *1 HDMI IN *1 RS-232 IN *1 I/O Ports Audio OUT *1 RJ-45 SD card USB port Fuse 2.5A Design and specifications are subject to change without notice. DI551ST2 User Manual...
Page 24: Input Mode
60 Hz 40 MHz 1024 60 Hz 65 MHz 50 Hz 1280 74.25 MHz 16:9 60 Hz 1280 60 Hz 79.5 MHz 1360 60 Hz 85.5 MHz 16:9 50 Hz 1920 1080 148.5 MHz 16:9 60 Hz DI551ST2 User Manual...
Page 25: Pin Assignments
Shield (RX0 / RX5) DDC-Serial Clock +5V power Shield (RXC) DDC-Serial Data Ground RXC+ Hot plug detect RXC- RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7 DI551ST2 User Manual...
Page 26: Troubleshooting
Cannot control the display Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance. DI551ST2 User Manual...
Page 27: About Dsm365
Press the MENU button on either the rear panel control or remote control to show the OSD. • Use the navigation arrows to select and adjust the Input Source. [Input Source → Main → DSM365] ITEM DESCRIPTION APPS Show the Installed APPS. SETTINGS Enter the setting menu. DI551ST2 User Manual...
