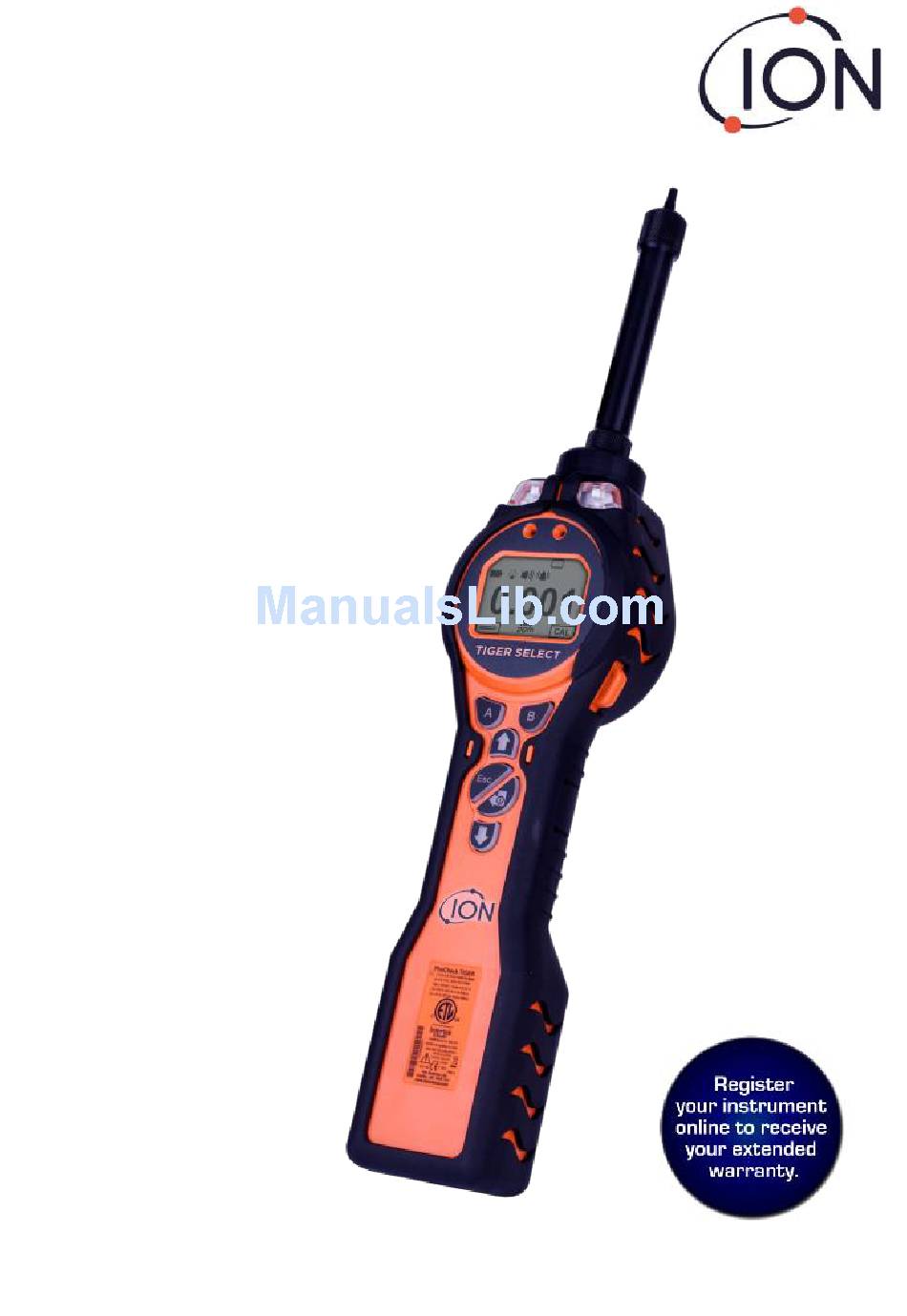

Tiger Select
Instrument User Manual V3.0
Unrivalled Gas
Detection.
ionscience.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tiger Select and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ION Tiger Select

Summary of Contents for ION Tiger Select

  • Page 1 Tiger Select Instrument User Manual V3.0 Unrivalled Gas Detection. ionscience.com...
  • Page 2 Thank you for purchasing your Ion Science instrument. The standard warranty of your instrument can be extended to up to five years on Tiger and two years on other Ion Science instruments. To receive your extended warranty, you must register your instrument online within one month of purchase ( terms and conditions apply.)

  • Page 3: Table Of Contents

    TIGER SELECT MANUAL Ion Science Ltd Contents Statements ................................ 5 Responsibility for Use ............................. 5 IMPORTANT ..............................5 Quality Assurance ............................5 Disposal ................................5 Calibration Facility............................5 Legal Notice ..............................5 Introduction ............................... 6 Lamp output ..............................7 Filter tubes ................................ 7 Safety Advice –...
  • Page 4 TIGER SELECT MANUAL Ion Science Ltd Procedure ..............................19 Preparing the pre-filter tube .......................... 20 Fitting the pre-filter tube ..........................20 PID custom calibration routine ........................21 TAC mode routine ............................22 Select / Tube mode routine ........................... 23 Tube Mode measurement routine......................... 23 Advanced: Tube Mode ..........................

  • Page 5: Statements

    IMPORTANT It is essential that the TIGER Select is always used with a supplied 0.5 micron PTFE Filter Disc fitted to the front of the instrument. Without a filter, particles of debris and dust can be drawn into the detector inhibiting the function of the instrument.

  • Page 6: Introduction

    The Tiger Select has been developed to give an accurate and repeatable measurement of benzene gas specifically to sub ppm levels. The Tiger Select has two methods of operation; standard TAC operation which identifies the presence of Total Aromatic Compounds (which include benzene), and Tube operation which then identifies the specific benzene content.

  • Page 7: Lamp Output

    10.6 eV lamp window Additional 10.0 eV lamp window mounted in the electrode stack Important Always recalibrate the Tiger Select after servicing, particularly if the lamp or electrode stack is cleaned or replaced. Filter tubes Benzene Pre filter tubes absorb many VOC gases however the benzene content passes through. The gas sample must be drawn through the tube to condition it before the absorption level becomes stable.

  • Page 8: Getting Started

    We recommend that alarm levels are set to user specifications as soon as possible before the Tiger Select is used for the first time. Please see the ‘Using your Tiger Select section of the manual for details of how to set alarm levels.

  • Page 9: Understanding The Keypad

    TIGER SELECT MANUAL Ion Science Ltd Understanding the keypad General Description The keypad comprises two soft keys (A and B), Up and Down arrow keys, an Escape (Esc) key, and an Enter / On/Off button. In general, setup and application settings are selected and adjusted via the soft keys. Options are selected by the arrow keys and confirmed by the Enter key, or relevant soft key.

  • Page 10: Understanding The Display Screen

    TIGER SELECT MANUAL Ion Science Ltd Understanding the display screen Screen Display The display is divided into four sections: Fixed LCD Status icons fill the top of the screen offering instrument status at a glance. The icons display only when a function is selected.

  • Page 11: Understanding The Display Screen

    Basic Mode start up Basic mode has been designed to incorporate the core functions for total aromatic compound (TAC) detection, for greatest efficiency and ease of use when using the Tiger Select. The default settings for Selects in this mode are as follows: 10.0eV lamp...

  • Page 12: Button A

    2. PID calibration: Factory: Users can set their instruments to operate using the factory calibrated values, however, the actual calibration function cannot be carried out by the user. The instrument must be returned to Ion Science Ltd or an authorised service centre.

  • Page 13: Advanced Mode Start Up

    2. PID calibration: Factory: Users can set their instruments to operate using the factory calibrated values, however, the actual calibration function cannot be carried out by the user. The instrument must be returned to Ion Science Ltd or an authorised service centre.

  • Page 14: Data Logging

    Up and Down keys scroll through the gases starting with that letter to find the subject gas. Press Enter to select the chosen gas. If a tick appears, press Enter again and TIGER Select will use the relevant data for the chosen gas from the gas table for alarms and response factor etc.

  • Page 15: Health & Safety

    TIGER SELECT MANUAL Ion Science Ltd Health & Safety* Press the Health and Safety (H&S) soft key to display the H&S symbol with a question mark to ask if the user wishes to proceed: Press Enter to start the calculation. The STEL (Short Term Exposure Level) and TWA (Time Weighted Average) values are shown.

  • Page 16: Alarms

    TIGER SELECT MANUAL Ion Science Ltd Alarms Upper and Lower alarm settings are displayed. Select the subject alarm using the Up and Down keys and press Enter. The arrow(s) on the chosen alarm will flash. Adjust the level using the Up and Down keys and press Enter.
  • Page 17 Features*. An icon will appear for each feature available * These functions are optional and can be purchased either during initial sale, or via remote upgrade post-sale. For further information on upgrading your Tiger Select, please contact info@ionscience.com or your local distributor.

  • Page 18: Calibration

    The frequency at which the Tiger Select is calibrated can vary considerably. Changes in environmental conditions, frequency of use or the gas being detected can all affect the accuracy of the instrument. Ion Science suggests customers carry out weekly calibrations but then extend this time as confidence is gained and any environmental effects identified.

  • Page 19: Tube Calibration Routine

    The Tiger Select relies on a two point calibration to create its calibration factor. Both Zero and Span are set with one single stage. The Zero is set using the initial sample of clean air passing through a pre-filter tube, with the Span being set later.

  • Page 20: Preparing The Pre-Filter Tube

    Ion Science Ltd Preparing the pre-filter tube: Fitting the pre-filter tube: a. Unscrew the tube holder from the Tiger Select filter clamp b. Insert the prepared tube with the arrow pointing towards the instrument ensuring the orange section is visible through the slot in the tube holder.

  • Page 21: Pid Custom Calibration Routine

    Prior to carrying out custom calibration, the calibration parameters can be configured TIGER Select allows you to custom calibrate using any gas from the Gas Table at a concentration from 10ppm. You will need a cylinder of the selected gas at each of the chosen concentrations. Each cylinder should be regulated for a flow rate above 250ml/min.

  • Page 22: Tac Mode Routine

    TIGER SELECT MANUAL Ion Science Ltd TAC mode routine The TAC soft key is used to ENTER and EXIT from TAC mode. To select TAC mode press the TAC soft key then press then press the ENTER key to continue.

  • Page 23: Select / Tube Mode Routine

    TIGER SELECT MANUAL Ion Science Ltd Select / Tube mode routine Tube Mode measurement routine Basic: Tube Mode The Basic Tube Mode consists of a single point benzene reading only. The initial benzene test has a test time which varies with temperature. This test time is required to condition the tube which thereafter offer a proportional output relating to the benzene being sampled.

  • Page 24: Tube Mode Procedure

    “>200” in the bottom left corner of the screen. IMPORTANT: Pre-filter tubes should be used for one single reading and one STEL test only. Ion Science recommend that a new tube is used with each tube measurement for best accuracy and performance.

  • Page 25: Tiger Pc Software

    TIGER PC Software must be used in conjunction with a PC or laptop using Windows XP, Windows Vista or Windows 7. Installation of TIGER PC Software Download the TigerPC software from the Ion Science website: http://www.ionscience.com/customer-support/media-centre/instrument-software/ Alternatively, the TigerPC software can be purchased on a memory stick, part number: A-861268 When the memory stick is plugged into a USB socket the following screen (below) should appear.

  • Page 26: Connecting Tiger To A Pc

    TIGER SELECT MANUAL Ion Science Ltd Connecting TIGER to a PC Double click the TIGER icon on your desktop and open TIGER PC. The Home page should appear: 2. The Help Screen This screen will show you if a new version of PC software is available. You can then install the upgrade if required.
  • Page 27 Ion Science Ltd Tiger PC software Switch Tiger Select on and when fully booted up connect to a USB socket on your PC using the USB cable supplied. If the ‘Found New Hardware’ screen appears, follow the prompts to install your instrument on your PC.
  • Page 28 ’TIGER PC Software’). Features Screen The ‘Features’ screen indicates which of the available features have been added to your Tiger Select. Should you wish to purchase additional features, contact Ion Science Ltd or your Distributor. Some updates may be available on the website www.ionscience.com. Once the transaction is complete and confirmed, click on ‘Update’...

  • Page 29: Backlight

    TIGER SELECT MANUAL Ion Science Ltd Tiger PC software Configuration Screen Use this screen to configure your Tiger Select. Backlight Choose from ‘Permanently Off’, ‘Permanently On’, ‘On in low ambient Light’, or ‘On For Limited Time’. The Backlight Timeout can be set from 1 to 99 seconds.

  • Page 30: Zeroing

    Tiger PC software Tiger Select The Tiger Select Tube gas selection settings can be configured via this section. There is also a tick box to enable the STEL option to appear at the end of the initial Tube Mode measurement.

  • Page 31: Log Full

    Select to a PC’ above. If the ‘Summary’ screen for your Tiger Select appears, visit the configuration screen again. If not, repeat the entire procedure. If your PC still fails to read or write to your Tiger Select seek advice from your distributor or from Ion Science Ltd.

  • Page 32: The Gas Table Screen (Including Setting Alarm Levels)

    Tiger PC software The Gas Table Screen (including setting alarm levels) Connect your Tiger Select to your PC as described previously. Select ‘Gas Table’ from the menu to display the Gas Table. You are now able to modify this table and then download it to your instrument.

  • Page 33: The Firmware Screen

    Tiger PC software The Firmware Screen This screen displays the current firmware version installed on your Tiger Select. It also provides a facility to download updated versions to your Tiger Select. At this point you can also check the ‘View Release Notes’ information which is a description of the changes in the new version.

  • Page 34: Unrivalled Gas Detection. Ionscience.com

    Tiger PC software IMPORTANT: Do not attempt to operate your Tiger Select during the update process. The firmware on your Tiger Select will be updated and the new version will be shown on the ‘Firmware’ screen. A bar at the bottom of the screen will indicate the progress of the update.

  • Page 35: Downloading Data Logged Readings

    Ion Science Ltd Tiger PC software Downloading Data Logged Readings Connect your Tiger Select to your PC as described previously. Any fresh data-logged readings will be downloaded as the software ‘reads’ your Tiger Select. Go to the datalog screen and a list of the datalog sessions is presented.

  • Page 36: The Health Safety Screen

    The Health Safety Screen This screen displays the latest Health and Safety readings held on your Tiger Select. Click ‘Menu’ then ‘Export’ to save this data to a file on your computer. The next readings will overwrite the data on your Tiger Select.

  • Page 37: Software Disclaimers

    Ion Science Ltd entire liability and the original Licensee’s exclusive remedy under this agreement are at the discretion of Ion Science Ltd, to either (a) return of payment as evidenced by a copy of the Receipt, or (b) replacement of the memory stick that does not meet Ion Science Ltd limited warranty and which is returned to Ion Science Ltd with a copy of the Receipt.

  • Page 38: Batteries

    Recharging Batteries Ensure the Tiger Select is charged for at least 7 hours before using it for the first time. To ensure optimum charging the Tiger Select should be switched off during charging. If left on, the Tiger Select will take longer to charge, but should not suffer any damage.

  • Page 39: Replacement / Exchange Of Battery Packs

    To replace the Rechargeable Battery Pack (A2), proceed as follows: Ensure Tiger Select is switched Off; Remove the Instrument Boot (8) from your Tiger Select (this is most easily achieved by starting at the front end of the instrument (step 4 below));...

  • Page 40: Replacement Of Non-Rechargeable Batteries In Battery Pack

    Never replace primary Alkaline battery cells while in a potentially explosive or hazardous location. Use only Duracell Procell Alkaline batteries MN1500. Ensure Tiger Select is switched Off. Remove the AA Battery Pack (A3) as in (b) and (c) on page 34; Remove the screws retaining the battery cover and lift it off.

  • Page 41: Diagnostics

    Diagnostics Basic faults or diagnostics are presented as symbols. Should a fault occur most can be corrected by pressing Enter or Esc to clear the fault message. All fault conditions cause the Tiger Select to alarm. Pump failure Pump blocked or pump failure The flow of gas through the instrument has fallen below 50cc/minute.

  • Page 42: Maintenance

    TIGER SELECT MANUAL Ion Science Ltd Maintenance Inlet Probe assembly All component parts of the probe assembly can be replaced if they become damaged or contaminated with use. PTFE Filter Disc The Filter Disc should be changed after every 100 hours of use. This frequency should be increased for dusty or moisture laden environments or whenever the filter appears ‘dirty’.

  • Page 43: Pid Sensor/Lamp Replacement And Cleaning

    In normal use the lamp should be cleaned after every 100 hours of use (based on 30 ppm for 100 hours). Reduce this if Tiger Select is used in heavily gas contaminated environments. Please note that some esters, amines and halogenated compounds may accelerate window fouling; in these cases cleaning may be required after every 20 hours of use.

  • Page 44: Lamp Cleaning

    The Tiger Select lamp is fragile. Handle with great care! First ensure that the Tiger Select is turned off and that you are in a clean environment such that the sensor parts will not be contaminated by dust, oil or grease.

  • Page 45: Pid Sensor Access And Batteries

    TIGER SELECT MANUAL Ion Science Ltd Parts list PID sensor access and batteries PART ITEM DESCRIPTION NUMBER Instrument body A-8611274 Rechargeable battery pack A-861240 AA battery pack A-861241 Charge cradle A-861220 Sensor cover A-861259 MiniPID 2 sensor MP6SX60XU2 Sensor gasket...

  • Page 46: Parts List

    (Terms and Conditions apply). To register your Tiger Select instrument, simply fill in the online form. You will need to enter your instrument serial number. The serial number is located on the front label of the instrument, towards the bottom end of the unit.

  • Page 47: Contact Details

    TIGER SELECT MANUAL Ion Science Ltd Contact details Head Office (UK) US Corporate HQ German Office Ion Science Ltd Ion Science Inc Ion Science Messtechnik The Hive, Butts Lane, 4153 Bluebonnet Drive, Stafford GMBH Fowlmere Texas Laubach 30 Cambridge 77477...

  • Page 48: Technical Specification

    TIGER SELECT MANUAL Ion Science Ltd Technical specification Response time: 130 seconds at 20 C (variable) Detectable 0 ppm up to 20,000ppm (for specific gases) Range: 0 to 200 ppm benzene in Tube mode Minimum PPM model: Resolution: Standard running mode 0.1 ppm TAC 0.01 ppm...

  • Page 49: Manual Log

    Disclaimer: Information in this [manual, document…] is subject to change without notice and does not represent a commitment on the part of Ion Science. No claims, promises or guarantees are made about the accuracy, completeness, or adequacy of the information contained herein.
