Summary of Contents for Tin Knocker TK 2236

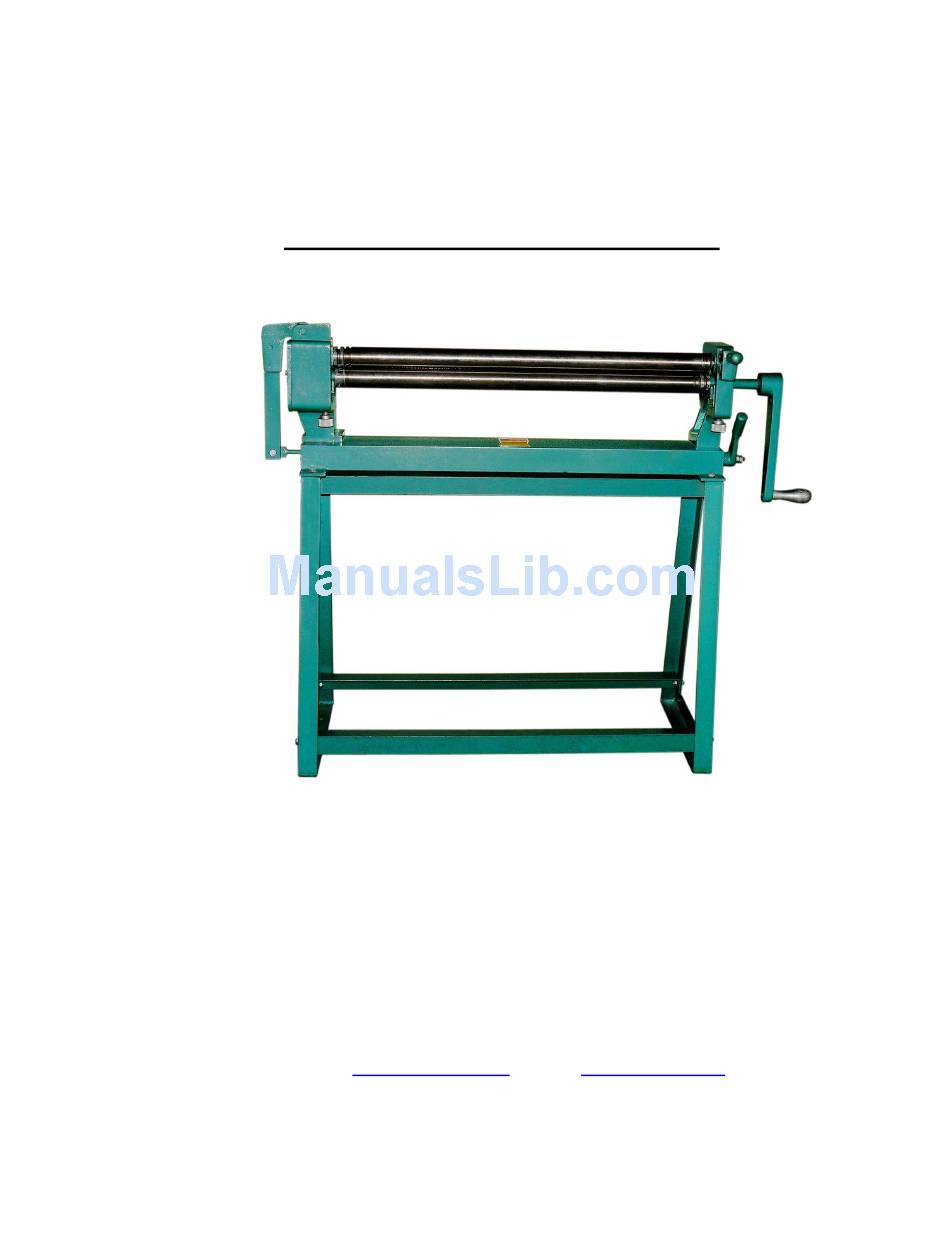

- Page 1 TIN KNOCKER TK 2236 MANUAL ROLLS INSTRUCTIONS & PARTS DIAGRAMS Shown with Optional Stand TAAG MACHINERY CO. (Master Distributor) 1257-B Activity Dr. Vista, CA 92081 Tel: (800) 640-0746 Fax: (760) 727-9948 Website: www.tinknocker.com * Email: taag@sbcglobal.net 121106 mod 1...
- Page 2 TIN KNOCKER SAFETY RULES TK 2236 MANUAL ROLLS 1. Never use a machine or tool for anything other than its intended purpose. Use the proper tool and equipment for the task. 2. Do not remove, paint over, alter, or deface any machine-mounted warning and instruction plates and signs.
- Page 3 Pinch rolls can be adjusted for stock thickness by screws on front of end housings. The capacity ratings of Tin Knocker forming machines are based on forming mild steel, fully annealed, the full length of the rolls and are considered as standard by the sheet metal trade for forming rolls of a specified diameter and length.
- Page 4 INSTRUCTIONS CAUTION: Be sure that the machine is securely bolted onto pedestal or to customer supplied bench. Pedestal or workbench should be bolted to floor. 1. Adjust Lower Roll (11) to grip the metal firmly and evenly but without straining the machine. Lower Roll (11) is adjusted up or down with the two lower Adjusting Screws (29).
- Page 6 VIEW A-A...
- Page 7 Parts For 2236 ROLLS Fine No. Part No. Description No. REQ"D. ROLL001 Lift Lever ROLL002 Cover Plate ROLL003 Bolt M8 x 25 ROLL004 Bolt M10 x 40 ROLL005 Rocking Box ROLL006 Set Screw M6 x 25 ROLL007 Roll Gears ROLL008 Rocking Box Pin ROLL009 ROLL010...
