Summary of Contents for Yukyung Technologies Viliv S5

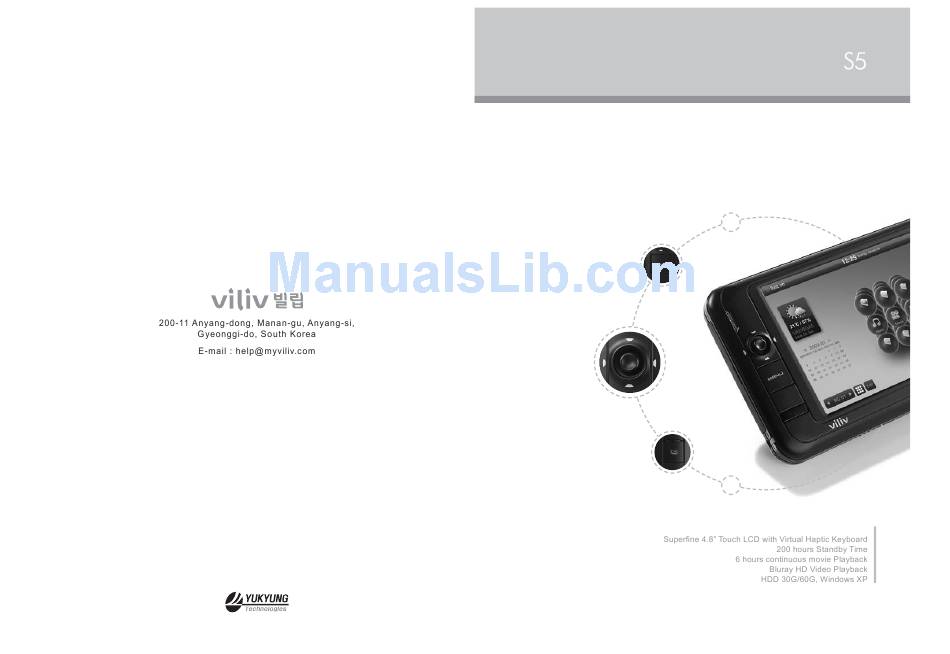

- Page 1 Quick Start Guide Intel Atom Silverthorne 1.33Ghz This guide is subject to change for product improvement without prior notice.
-
Page 3: Table Of Contents
Contents... Copyright Yukyung Technologies Corp. has the copyright for this guide. Safety Precautions for Use..... .4 The contents of this guide may not be copied for use in any way without prior authorization from Yukyung Technologies Corp. -
Page 4: Safety Precautions For Use
Safety Precautions for Use Safety Precautions on Use The following precautions are provided to protect you from possible danger and to prevent any Different models have different features. damage to property. Please observe them. Read the precautions related to the features included before using the device. Precautions on Power Precautions for GPS minutes in a wide open place. -
Page 5: Names Of Parts
Names of Parts Names of Parts The pictures of the components below may differ from the actual components, and some components may be changed depending on the situation. Basic Components Front View The main body The standard slip-in/out battery A hand strap and a stylus pen in one Ab AC/DC power adapter A USB cable... -
Page 6: Top View
Names of Parts Names of Parts Top View Left/Right View Emits heat generated by the device. Reset button If the heat emission hole is blocked, the device can overheat, Used for Component/ S-VIDEO output. Heat emission hole which can be dangerous. Take care not to allow this to be blocked. Used to connect an external device to the device through USB Take care not to allow water into this hole. -
Page 7: Back View
Names of Parts Installation and Cable Connection Back View Connection of Earphones and External Speakers The picture above shows the main body without the battery. (Refer to page 15 for the battery separation/ placement.) Notice When connecting external speakers, be sure to connect the standard 3.5-pi stereo cable of the speakers to Battery recharging contact Lift the battery up in the direction indicated in the picture;... -
Page 8: Multi-I/O Jack
Installation and Cable Connection Installation and Cable Connection External devices may have different connecting parts depending on products. Multi-I/O Jack USB Host Connection This can be used to connect an LCD monitor or a digital TV. This is used when connecting an external device such as a digital camera or an external HDD. (The icon on the back of a monitor may be different depending on the product.) Yellow Composite (Video) -
Page 9: Power Connection (With Rechargeable Adapter For Home)
Installation and Cable Connection Battery Separation/Placement Power Connection (with Rechargeable Adapter) Battery Separation Turn the battery separation/placement button on the right side of the device toward Open as of the device. in the illustration below. Then, separate the battery. Rechargeable Adapter Notice Make sure that the power of the device is off before separating the adapter. -
Page 10: Directions To Insert/Remove Usim Card
Battery Separation/Placement Basic Operations Directions to Insert/Remove USIM Card Power On/Off To insert : Place the front part of the USIM card into the USIM card slot, and insert it in the direction of the arrow until it clicks. (When inserting a USIM card, pushing it too hard may damage the card.) Turning the Power On To take out With the power off, push the power button on... -
Page 11: Volume Control
Basic Operations Basic Operations Volume Control Turning On/Off the LCD Screen Volume Control Turning off the LCD Screen When it is on, press and hold the [OK] button; then the on the upper area of the device. screen goes off. Turning on the LCD Screen When it is off, press and hold the [OK] button;... -
Page 12: Virtual Keyboard
Basic Operations Check them before contacting Customer Service. Virtual Keyboard The power does not come on, and nothing appears on the LCD screen. Running the Virtual Keyboard Check that the power is connected. If it is not connected, check the charge status of the battery. - Page 13 - Additional Page - Caution Modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received.
- Page 14 FCC RF Exposure Information In August 1996 the Federal Communications Commission(FCC) of the United States with its action in Report and order 96-326 adopted an updated safety standard for human exposure the ra-dio frequency electromagnetic energy emitted by FCC regulated transmitters. Those guidelines are consistent with the safety standard previously set by both U.S. and international standards bodies.
