Arcadyan FXT-850W Manual

Fixed wireless terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
MOTOROLA
Fixed
Wireless Terminal
FXT-850W
July 2010
MRV7517PW22-B1
FW R01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FXT-850W and is the answer not in the manual?

Questions and answers

Summary of Contents for Arcadyan FXT-850W

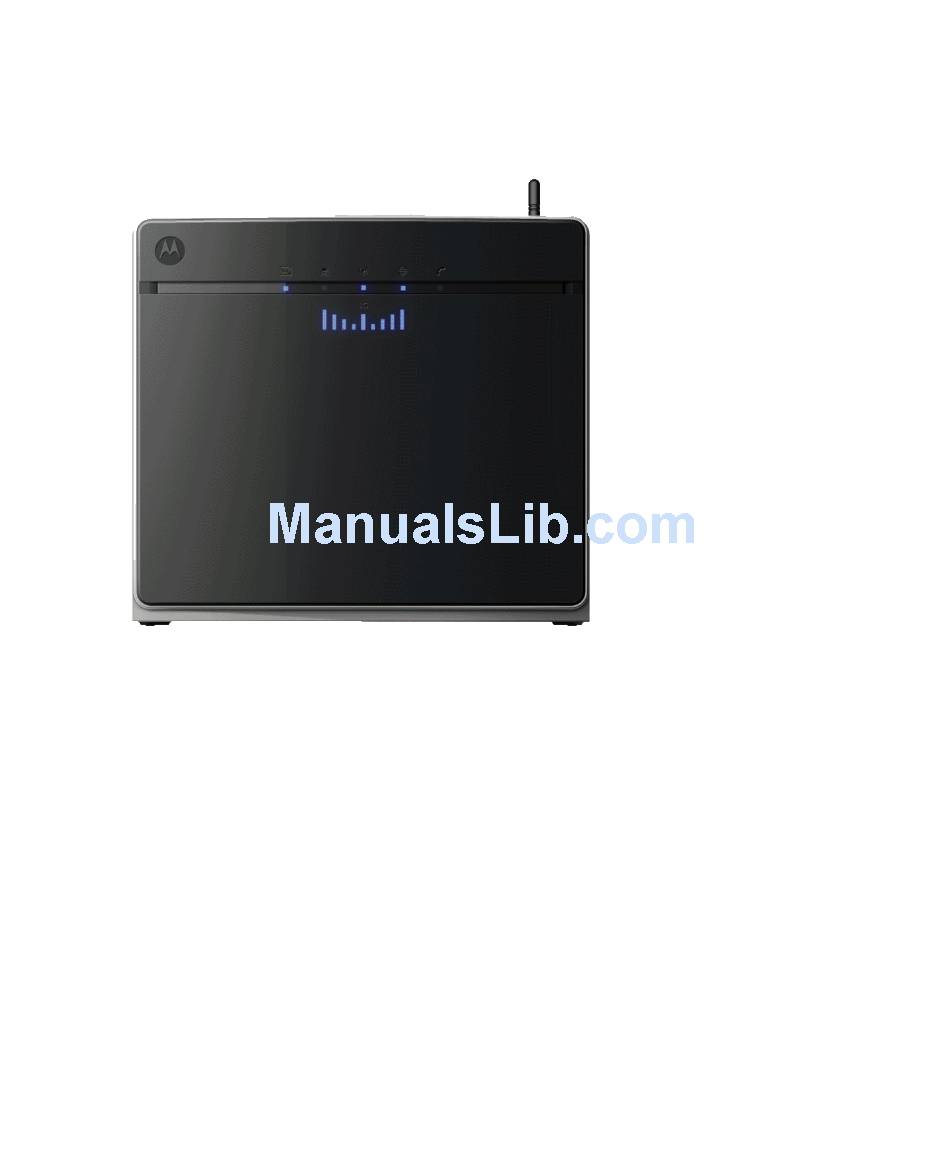

  • Page 1 MOTOROLA Fixed Wireless Terminal FXT-850W July 2010 MRV7517PW22-B1 FW R01...
  • Page 2 Copyright Notice Copyright of all the contents and materials published in the manual is owned by Arcadyan. None of the materials provided on this manual may be duplicated, reproduced or transmitted, either partially or completely, in any form or by any means.

  • Page 3: Table Of Contents

    Table of Contents CHAPTER 1 Introduction ..........1 About the Broadband Router.
  • Page 4 Table of Contents LAN ........... 32 Data.

  • Page 5: Introduction

    Introduction CHAPTER 1 Thank you for your purchase of the Fixed Wireless Terminal. We are proud to provide you with a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. For those who want to surf the Internet in the most secure way, this Broadband Router provides a convenient and powerful solution.

  • Page 6: Features And Benefits

    Introduction multiple-out) technology to deliver incredible speed and range. With wireless speeds up to 300Mbps - five times faster than 802.11g, the Broadband Router provides sufficient bandwidth to listen to digital music, play online games, transfer large files and surf the Internet simultaneously.

  • Page 7: Applications

    Introduction VPN transparent pass-through (IPSec-ESP Tunnel mode, L2TP, • PPTP) User-definable application sensing tunnel supports applications • requiring multiple connections Easy setup through a web browser on any operating system that • supports TCP/IP Compatible with all popular Internet applications •...
  • Page 8 Introduction Virtual Server • If you have a fixed IP address, you can set the Broadband Router to act as a virtual host for network address translation. Remote users access various services at your site using a constant IP address. Then, depending on the requested service (or port number), the Broadband Router can route the request to the appropriate server (at another internal IP address).

  • Page 9: Installation

    Installation CHAPTER 2 Before installing the Broadband Router, verify that you have all the items listed under “Package Contents.” If any of the items are missing or damaged, contact your local distributor. Also be sure that you have all the necessary cabling before installing the Broadband Router. After installing the Broadband Router, refer to “Web Management”...

  • Page 10: System Requirements

    Installation After unpacking the Broadband Router, check the contents of the box to be sure you have received the following components: Fixed Wireless Terminal Power adapter One CAT-5 Ethernet cable (RJ-45) One documentation CD Immediately inform your dealer in the event of any incorrect, missing, or damaged parts.

  • Page 11: Hardware Description

    Installation Hardware Description The Broadband Router connects to an Ethernet connection using it’s RJ-45 LAN port. It can be connected directly to your PC or to a local area network using the Fast Ethernet LAN ports. The Broadband Router contains an integrated modem and connects to the Internet or to a remote site using its RJ-11 port.
  • Page 12 Installation The LED indicators on the top panel are illustrated by the following table. Status Description Signal Shows the strength of the connection of Quality 3G mobile network. Flashing Browsing mobile network. Voice Mail Flashing Got voice mail message. No message. Flashing The Broadband Router is establishing an mobile network link.
  • Page 13 Installation The LAN port LED indicators on the rear panel are illustrated by the following table. Status Description LAN 1~4 Ethernet link. Flashing The LAN port is sending or receiving data. No Ethernet link. Network Connectivity The Broadband Router contains the following ports on the rear panel: FIGURE 2.
  • Page 14 Installation LAN Ports Fast Ethernet ports (RJ-45). Connect devices on your local area network to these ports (i.e., a PC, hub, switch or IP set top box). Reset Button Use this button to reset the power and restore the default factory settings. To reset without losing configuration settings, see “Reboot”...

  • Page 15: Isp Settings

    Installation ISP Settings Please collect the following information from your ISP before setting up the Broadband Router: ISP account user name and password • PIN code and UMTS account information • Protocol, encapsulation and VPI/VCI circuit numbers • DNS server address •...
  • Page 16 Installation FIGURE 4. Application Diagram Connect the Phone Line Connect the phone line (RJ-11) cable from the port labelled Phone on the Broadband Router to your telephone. When inserting the plug, be sure the tab on the plug clicks into position to ensure that it is properly seated.

  • Page 17: Software Installation

    Installation Use RJ-45 cables to connect any of the four LAN ports on the Broadband Router to an Ethernet adapter on your PC. Otherwise, cascade any of the LAN ports on the Router to an Ethernet hub or switch, and then connect your PC or other network equipment to the hub or switch.

  • Page 18: Window Xp

    Installation To access the Internet through the Router, you must configure the network settings of the computers in your LAN to use the same IP subnet as the Router. The default IP settings for the Router are: IP address: 192.168.2.1 Subnet mask: 255.255.255.0 Window XP On the Windows desktop, click Start/Control Panel.
  • Page 19 Installation The LAN or High-Speed Internet window will open. Double-click the connection for this device. On the connection status screen, click Properties. Double-click Internet Protocol (TCP/IP). If Obtain an IPv6 address automatically and Obtain DNS server address automatically are already selected, your computer is already configured for DHCP.
  • Page 20 Installation Select Use the following DNS server addresses. Enter the IP address for the Wireless Broadband Router in the Preferred DNS server field. This automatically relays DNS requests to the DNS server(s) provided by your ISP. Otherwise, add a specific DNS server into the Alternate DNS Server field and click OK to close the dialog boxes.

  • Page 21: Macintosh Computer

    Installation Macintosh Computer You may find that the instructions here do not exactly match your operating system. This is because these steps and screen shots were created using Mac OS 10.2. Mac OS 7.x and above are similar, but may not be identical to Mac OS 10.2.

  • Page 22: Web Management

    Web Management CHAPTER 3 After you have configured TCP/IP on a client computer, you can configure the Broadband Router using your web browser. To access the Broadband Router’s management interface, enter the default IP address in your web browser: http://192.168.2.1. Enter the user name and password, then click Login.

  • Page 23: Navigating The Web Browser Interface

    Web Management Navigating the Web Browser Interface The Broadband Router’s management interface contains four main sections: Start (on page 20) • Data (on page 35) • Extras (on page 61) • Logout - click this to log out of the management interface. •...

  • Page 24: Start

    Web Management Start On the left-hand side of the screen, the first menu item is Start. Click on the Start menu, and the Status screen appears. Status The Status screen displays WAN/LAN connection status, firmware and hardware version numbers, illegal attempts to access your network, as well as information on DHCP clients.
  • Page 25 Web Management Start...

  • Page 26: Wlan

    Web Management WLAN The Broadband Router operates as a wireless access point, allowing wireless computers to communicate with each other. To configure this function, you need to enable the wireless function, define the SSID and the security options. Parameter Description SSID Specify a radio SSID (Service Set ID) to be used by the Broadband Router and all of its wireless clients.
  • Page 27 Web Management Settings Specify a common radio channel and SSID (Service Set ID) for the Broadband Router, and all of its wireless clients. Be sure to configure all of its clients to the same values. Parameter Description SSID Enable or disable the broadcasting of the SSID. Broadcast Disabling SSID broadcast will provide increased security by hiding the SSID of your wireless network.
  • Page 28 Web Management Parameter Description Channel The radio channel used by the wireless Router and its clients to communicate with each other. This channel must be the same on the Router and all of its wireless clients. The Router will automatically assign itself a radio channel, or you may select one manually.
  • Page 29 Web Management Security To make your wireless network safe, you should turn on the security function. The Broadband Router supports WEP (Wired Equivalent Privacy), WPA (Wi-Fi Protected Access) and WPA2 security mechanisms. This Router also supports WPS (Wi-Fi Protected Setup). Enable WPS Function: check this box to enable WPS.
  • Page 30 Web Management Authentication: this is the authentication method used by clients. If the Allowed Client Type is set to WPA/WPA2 or WPA2 Only or WPA Only, then you should set the authentication to 802.1X or PSK. WPA/WPA2, WPA2 Only, WPA Only (PSK) Wi-Fi Protected Access (WPA) combines temporal key integrity protocol (TKIP) and 802.1X mechanisms.
  • Page 31 Web Management WPA/WPA2, WPA2 Only, WPA Only with 802.1X If 802.1X is used in your network, you can configure the settings in this screen. Parameter Description Authentication Choose 802.1X authentication option. Session Idle Defines a maximum period of time for which the timeout connection is maintained during inactivity.
  • Page 32 Web Management Parameter Description Secret Key The secret key shared between the authentication server and its clients. NAS-ID Defines the request identifier of the Network Access Server. WEP-Dynamic If you want to use WEP to protect your wireless network, you need to set the same parameters for the Router and all your wireless clients.
  • Page 33 Web Management Parameter Description Session Idle Defines a maximum period of time for which the timeout connection is maintained during inactivity. Defines a maximum period of time for which the Authentication authentication server will dynamically re-assign a Period session key to a connected client. Quiet Period Defines a maximum period of time for which the Router will wait between failed authentications.
  • Page 34 Web Management WEP-Static Parameter Description WEP Mode Select 64-bit or 128-bit key to use for encryption. Select Static if there is only one fixed key for Provisioning encryption. Start...
  • Page 35 Web Management Timer You can also control the wireless function of the Broadband Router based on a time schedule. Check the day of the week, and enter the start/end time, and click on Add/Configure icon to set the schedule. For the existing entry, you can edit the parameters, or delete that entry. During the above times the wireless function will be: If you set this to activated, the wireless function will be on in the •...

  • Page 36: Lan

    Web Management The LAN settings screen allows you to change the default IP address of the Router and modify the DHCP server settings. Start...
  • Page 37 Web Management Parameter Description LAN IP: IP Address The IP address of the Router. IP Subnet The subnet mask of the Router. Mask Host Name Enter the name of the Router. DHCP Check this option to enable the DHCP server Server function on this Router.
  • Page 38 Web Management Parameter Description DHCP Server Parameters: Address Pool Specify the start IP address of the DHCP pool. Do not Start IP include the gateway address of the Router in the client address pool. If you change the pool range, make sure the first three octets match the gateway’s IP address, i.e., 192.168.2.xxx.

  • Page 39: Data

    Web Management Data The Advanced configuration section, on the left-hand side displays the main menu and the right-hand side shows descriptive information. The Data section contains the following menu items as described in the following table. Parameter Description Specifies the Internet connection settings. Firewall Configures a variety of security and specialized functions including: Access Control, URL blocking,...

  • Page 40: Firewall

    Web Management Parameter Description Configures address mapping, virtual server and special applications. Wireless Configures the radio frequency, SSID, and security for wireless communications. Firewall The firewall inspects packets at the application layer, maintains TCP Note: The firewall and UDP session information including time-outs and the number of does not signifi- active sessions, and provides the ability to detect and prevent certain cantly affect sys-...
  • Page 41 Web Management The firewall function is enabled by default. This feature does not significantly affect system performance, so we advise leaving this function enabled to protect your network. Access Control The following items are displayed on the Access Control screen. Parameter Description Enable...
  • Page 42 Web Management Access Control/Add PC To create a new access control rule: Click Add PC on the Access Control screen. The Access Control Add PC screen will appear. Define the appropriate settings for client PC services. Click OK and then click SAVE SETTINGS to save your settings. Data...
  • Page 43 Web Management MAC Filter The MAC Filter allows you to define what client PC’s can access the Internet. When enabled only the MAC addresses defined in the MAC Filtering table will have access to the Internet. All other client devices will be denied access.
  • Page 44 Web Management URL Blocking The VoIP Router allows the user to block access to web sites from a particular PC by entering either a full URL address or just a keyword. This feature can be used to protect children from accessing violent or pornographic web sites.
  • Page 45 Web Management Schedule Rule You may filter Internet access for local clients based on rules. Each access control rule may be activated at a scheduled time. Define the schedule on the Schedule Rule screen, and apply the rule on the Access Control screen.
  • Page 46 Web Management Edit Schedule Rule You can create and edit schedule rules on this screen. Click Add Schedule Rule icon on the Schedule Rule screen. The Edit Schedule Rule screen will appear. Define the appropriate settings for a schedule rule. Click Apply to save your settings.
  • Page 47 Web Management Intrusion Detection The Broadband Router’s firewall inspects packets at the application layer, maintains TCP and UDP session information including timeouts and number of active sessions, and provides the ability to detect and prevent certain types of network attacks such as Denial-of-Service (DoS) attacks.
  • Page 48 Web Management Network attacks that deny access to a network device are called DoS attacks. DoS attacks are aimed at devices and networks with a connection to the Internet. Their goal is not to steal information, but to disable a device or network so users no longer have access to network resources.
  • Page 49 Web Management IP with zero length, TCP null scan (Port Scan Attack), UDP port loopback, Snork Attack. Parameter Defaults Description Enable SPI and The Intrusion Detection feature of the Anti-DoS Router limits the access of incoming firewall traffic at the WAN port. When the protection Stateful Packet Inspection (SPI) feature is turned on, all incoming packets are...
  • Page 50 Web Management Parameter Defaults Description Stateful Packet This option allows you to select different Inspection application types that are using dynamic port numbers. If you wish to use Stateful Packet Inspection (SPI) for blocking packets, click on the Yes radio button in the “Enable SPI and Anti-DoS firewall protection”...
  • Page 51 Web Management Parameter Defaults Description Hacker Prevention Feature Discard Ping Discard Prevents a ping on the Router’s WAN from WAN port from being routed to the network. RIP Defect Enabled If the router does not reply to an IPX RIP request packet, it will stay in the input queue and not be released.
  • Page 52 Web Management Parameter Defaults Description TCP SYN wait 30 secs Defines how long the software will wait for a TCP session to reach an established state before dropping the session. TCP FIN wait 5 secs Specifies how long a TCP session will be managed after the firewall detects a FIN- exchange.
  • Page 53 Web Management Parameter Defaults Description Maximum Maximum number of incomplete TCP/ incomplete TCP/ UDP sessions from the same host. UDP sessions number from same host Incomplete TCP/ Length of time before an incomplete TCP/ UDP sessions msecs UDP session is detected as incomplete. detect sensitive time period Maximum half-...
  • Page 54 Web Management If you have a client PC that cannot run an Internet application properly from behind the firewall, you can open the client up to unrestricted two- way Internet access. Enter the IP address of a DMZ (Demilitarized Zone) host on this screen. Adding a client to the DMZ may expose your local network to a variety of security risks, so only use this option as a last resort.

  • Page 55: Dns & Ddns

    Web Management DNS & DDNS A Domain Name Server (DNS) is an index of IP addresses and web site addresses. If you type a web site address into your browser, such as www.abc.de, a DNS server will find that name in its index and find the matching IP address: 111.222.333.444.

  • Page 56: Nat

    Web Management Network Address Translation allows multiple users to access the Internet sharing one public IP. Enable NAT function : click on the checkbox to enable this function. • Data...
  • Page 57 Web Management Address Mapping Address mapping allows one or more public IP addresses to be shared by multiple internal users. This also hides the internal network for increased privacy and security. Enter a range of internal IPs that will share the global IP, and then enter the Public IP address you wish to share into the global IP field.
  • Page 58 Web Management Port Mapping You can configure the Router as a virtual server so that remote users accessing services such as the web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses.
  • Page 59 Web Management Data...
  • Page 60 Web Management Special Applications Some applications, such as Internet gaming, videoconferencing, Internet telephony and others, require multiple connections. These applications cannot work with Network Address Translation (NAT) enabled. If you need to run applications that require multiple connections, use the following screen to specify the additional public ports to be opened for each application.
  • Page 61 Web Management NAT Mapping Table NAT Mapping Table displays the current NAPT (Network Address Port Translation) address mappings. As the NAT mapping is dynamic, a Refresh button is provided to refresh the NAT Mapping Table with the most up-to-date values. The content of the NAT Mapping Table is described as follows: Protocol - protocol of the flow.

  • Page 62: Wireless

    Web Management Wireless WLAN The Router also operates as a wireless access point, allowing wireless computers to communicate with each other. To configure this function, all you need to do is enable the wireless function, define the SSID, and the security options. WLAN Function: select to enable or to disable the wireless function, •...
  • Page 63 Web Management Access Control Using the Access Control functionality, you can restrict access based on MAC address. Each PC has an unique identifier known as a Medium Access Control (MAC) address. With MAC filtering enabled, the computers whose MAC address you have listed in the filtering table will be able to connect (or will be denied access) to the Broadband Router.
  • Page 64 Web Management Selecting Deny means only the MAC addresses registered here will • be denied access to the Broadband Router. MAC Filtering Table: you can enter up to 32 addresses here in the • table. Click Enter for the Add currently associated MAC stations option to quickly copy the entry to the MAC Filtering table.

  • Page 65: Extras

    Web Management Extras The Broadband Router supports the following extra functions described in the table below: Menu Description HSPA Modem The high-speed packet access (HSPA) delivers 5.8 Mbps of the uplink and 14 Mpbs in the downlink. Password Sets the password for administrator access. Settings Time Settings Sets the local time zone, etc.

  • Page 66: Hspa Modem

    Web Management HSPA Modem UMTS-Stick Universal Mobile Telecommunications System (UMTS) is one of the third-generation (3G) mobile telecommunications technologies. It combines three different air interfaces, GSM’s Mobile Application Part (MAP) core, and the GSM family of speech codecs. The Broadband Router enables a connection with a UMTS-Stick for Internet and Voice over the UMTS mobile network.
  • Page 67 Web Management Click on Change PIN Code if required by your ISP. The following screen will appear. Click Apply to save your setting. See the following table for additional parameters that needs to be configured. Parameter Description Backup This sets how the UMTS connection is used connection primarily.
  • Page 68 Web Management Parameter Description Idle Time This is the time period in which there is no Internet (Minutes) connection activity before the mobile connection goes to automatic termination. User Name/ Enter user name and password. Password Confirm Enter your password again. Password The service information is displayed in the Network Operator section on the screen.

  • Page 69: Password Settings

    Web Management Password Settings Use this screen to change the password for accessing the management Note: If you lost the interface. Passwords can contain from 3~12 alphanumeric characters password, or you and are case sensitive. cannot gain access to the user inter- Enter a maximum Idle Time Out (in minutes) to define a maximum face, press the reset period of time for which the login session is maintained during...

  • Page 70: Time Settings

    Web Management Time Settings Select your local time zone from the drop down list. This information is used for log entries and client filtering. For accurate timing of log entries and system events, you need to set the time zone. Select your time zone from the drop down list. If you want to automatically synchronize the Broadband Router with a public time server, check the Enable Automatic Time Server Maintenance box.

  • Page 71: Remote Management

    Web Management Remote Management By default, management access is only available to users on your local area network. However, you can also manage the Broadband Router from a remote host by entering the IP address of a remote computer on this screen.

  • Page 72: Firmware Upgrade

    Web Management Firmware Upgrade Extras...
  • Page 73 Web Management Firmware Upgrade: this allows you to upgrade to the latest • firmware. To update the firmware: Download the upgrade file from company web site, and save it to your hard drive. Then click Browse... to look for the downloaded file. Click Apply to begin the upgrade.

  • Page 74: Diagnostic Utility

    Web Management Diagnostic Utility This tool allows you to test network connection status. You can specify a domain name or a valid IP address of the remote host for ping test. Extras...
  • Page 75 Web Management WAN Packet Capture: select the interface, start/stop capturing, then • download the file. Ping Test: enter the destination address, then click the execute • button. The result will be displayed on the Execution Result field. Extras...

  • Page 76: Reboot

    Web Management Reboot Click Reboot Router to reboot the Router, if the device becomes unresponsive. The reboot will be completed when the power LED stops blinking. Extras...

  • Page 77: Upnp

    Web Management UPnP The Universal Plug and Play architecture offers pervasive peer-to-peer network connectivity of PCs of all form factors, intelligent appliances, and wireless devices. UPnP enables seamless proximity network in addition to control and data transfer among networked devices in the office, home and everywhere within your network.
  • Page 78 Product Specifications IEEE Standards IEEE 802.3 10 BASE-T Ethernet IEEE 802.3u 100 BASE-TX Fast Ethernet IEEE 802.3, 802.3u, 802.11g, 802.1D Mobile Standards GSM 850, 900, 1800,1900 WCDMA 850, 900,1900, 2100 AWS Band HSDPA 7.2: Category 7 HSUPA 5.76 : Category 6 LAN Interface 4 RJ-45 10 BASE-T/100 BASE-TX ports: Auto-negotiates the connection speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, and the transmission mode to half-duplex or full-duplex...

  • Page 79: Product Specifications

    Product Specifications ATM Features RFC1483 Encapsulation (IP, Bridging and encapsulated routing) PPP over ATM (LLC &VC multiplexing) (RFC2364) Classical IP (RFC1577) Traffic shaping (UBR, CBR) OAM F4/F5 support PPP over Ethernet Client Indicator Panel Voice mail, Mobile, WLAN, Internet, Phone, LAN 1~4 (on the rear panel) Dimensions 188 x 185 x 33 mm (7.40 x 7.28 x 1.30 in) Weight...
  • Page 80 Product Specifications Radio Features Wireless RF module Frequency Band • 802.11n Radio: 2.4GHz • 802.11g Radio: 2.4GHz • 802.11b Radio: 2.4GHz • USA - FCC: 2412~2462MHz (Ch1~Ch11) • Canada - IC: 2412~2462MHz (Ch1~Ch11) • Europe - ETSI: 2412~2472MHz (Ch1~Ch13) • Japan - STD-T66/STD-33: 2412~2484MHz (Ch1~Ch14) Modulation Type OFDM, CCK Operating Channels IEEE 802.11n Compliant:...
  • Page 81 Product Specifications Humidity 5% to 95% (non-condensing) Vibration IEC 68-2-36, IEC 68-2-6 Shock IEC 68-2-29 Drop IEC 68-2-32...

  • Page 82: Compliance

    Compliance Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 83 Taiwan Headquarter Address: 4F., No.9 Park Avenue II, Science Park, Hsinchu, Taiwan TEL: +886 3 5787000 FAX: +886 3 5637326 Sales : sales_hq@arcadyan.com Press contact : press_hq@arcadyan.com Employment : hr_hq@arcadyan.com ..........................EU Sales Office Address: Hauptstrasse 30, 65760 Eschborn, Germany...
