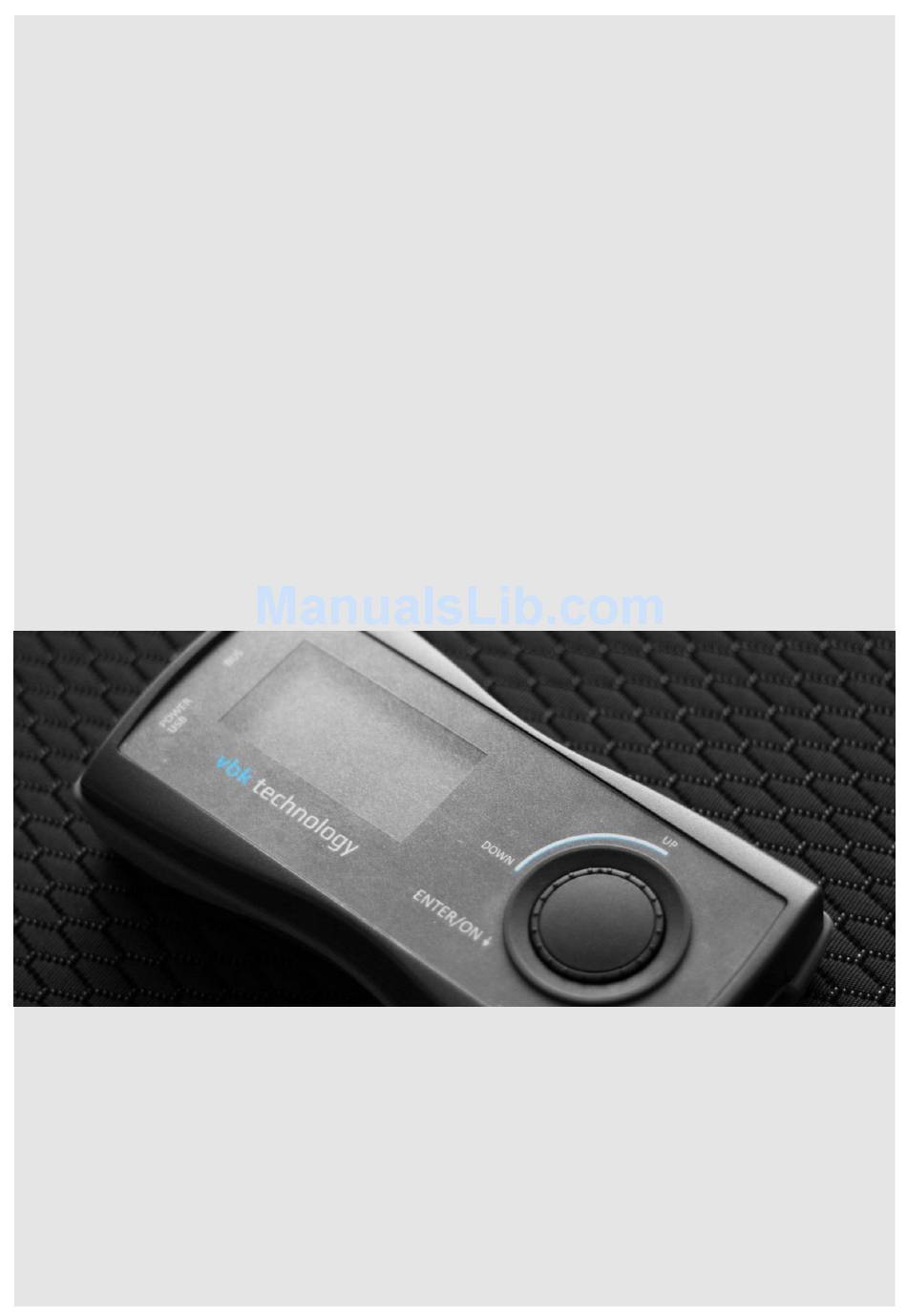

- Page 1 Manual - uniquom EN 2.04 2017-07...
- Page 2 Make sure that the warning labels are kept in good condition and replace missing or damaged labels. For further Information: vbk technology GmbH Verlängerte Goethestraße 9 08209 Auerbach Tel.: +49 (0)3744 / 22 47 914 Fax: +49 (0)3744 / 22 35 595 info@vbk-technology.de...
- Page 3 All Warnings, Cautions and Hints shown in this document are provided for your safety and as a means of preventing damage to the product. This section lists Warnings, Cautions and Hints, which apply generally when handling the uniquom, classified as General, Transport & Storage, Commissioning, Operation and Repair.
- Page 4 provided for your own personal safety and it will also help prolong the service life of your product. Warning This equipment controls potentially dangerous rotating mechanical parts. Noncompliance with Warnings or a miss to follow the instructions contained in this manual can result in loss of life, severe personal injury or serious damage to property.
- Page 5 Warning Repairs and Service on the device may only be carried out or technology. advised by Warning Li-Ion chargeable battery inside. The battery may explode when mistreated. Do not overload, shortcut, disassemble or dispose of in fire!
-
Page 6: Table Of Contents
Table of content Overwiew ..........................7 General Description ......................... 7 Operation ..........................7 Operating conditions ......................7 General Properties of the Device ..................8 Inputs and Outputs ......................9 Interface – General Information ..................9 Menu Structure ........................10 Software ......................... 10 Menustructure - Basisvariation .................. -
Page 7: Overwiew
1 Overwiew uniquom All devices of brand are battery-operated, electric handhelds to control special devices with RR 485-based interfaces (i.e. EC-Drives from different brands). 2 General Description A clear and simple menu guide has been realised bilingual (English/German). The amber lighted full graphic display is designed for comfortable use at all lighting conditions. -
Page 8: General Properties Of The Device
Electromagnetic Radiation Warning Do not use the device near sources of electromagnetic radiation. 3.2 General Properties of the Device Rechargeable Li-Ion battery; 3,7V – 2300mAh Voltage Supply USB-interface, incl. 5V power supply automatic charge state detection incl. safety switch- Battery Battery Battery fully charged... -
Page 9: Inputs And Outputs
3.3 Inputs and Outputs I/Os RS 485 - Fieldbus USB-Interface RS485 USB- Fieldbus Interface Fieldbus Phoenix Contact IC 2,5/3 USB-Interface for battery charge Mini USB Typ B and as data link 3.4 Interface – General Information Hardware Structure according RS485 Specification (Half duplex –... -
Page 10: Menu Structure
4 Menu Structure 4.1 Software Scan Line Network scan to find all connected devices with the chosen protocol Single Monitor Cyclic scan of single device and monitoring of requested data Single Control Control / Parameterizing of a single addressable device with feedback Broadcast Control / Parameterizing of all connected devices without feedback (broadcast) -
Page 11: Technical Data
5 Technical Data Li-Ion 3,7V – 2300mAh Operation Voltage USB Interface Protection Level IP20 (acc. EN 60529) 0°C … 40°C Temperature Storage and Operating Display Single colour full graphic display with background lighting Access easy access push encoder (IGR) Dimensions in mm Weight 350g... -
Page 12: Additionnel Hints
6 Additionnel Hints 6.1 Manufacturing uniquom All devices of series are manufactured according DIRECTIVE 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment 6.2 Packing and Shipping The shipping is realised inclusive power supply in fitting individual packings. -
Page 13: Service
6.3 Service uniquom Technical queries about under: vbk technology GmbH Verlängerte Goethestraße 9 08209 Auerbach Tel.: +49 (0)3744 / 22 47 914 Fax: +49 (0)3744 / 22 35 595 info@vbk-technology.de www.vbk-technology.de... -
Page 14: Notices
7 Notices... - Page 16 technology info@vbk-technology.de www.vbk-technology.de...
