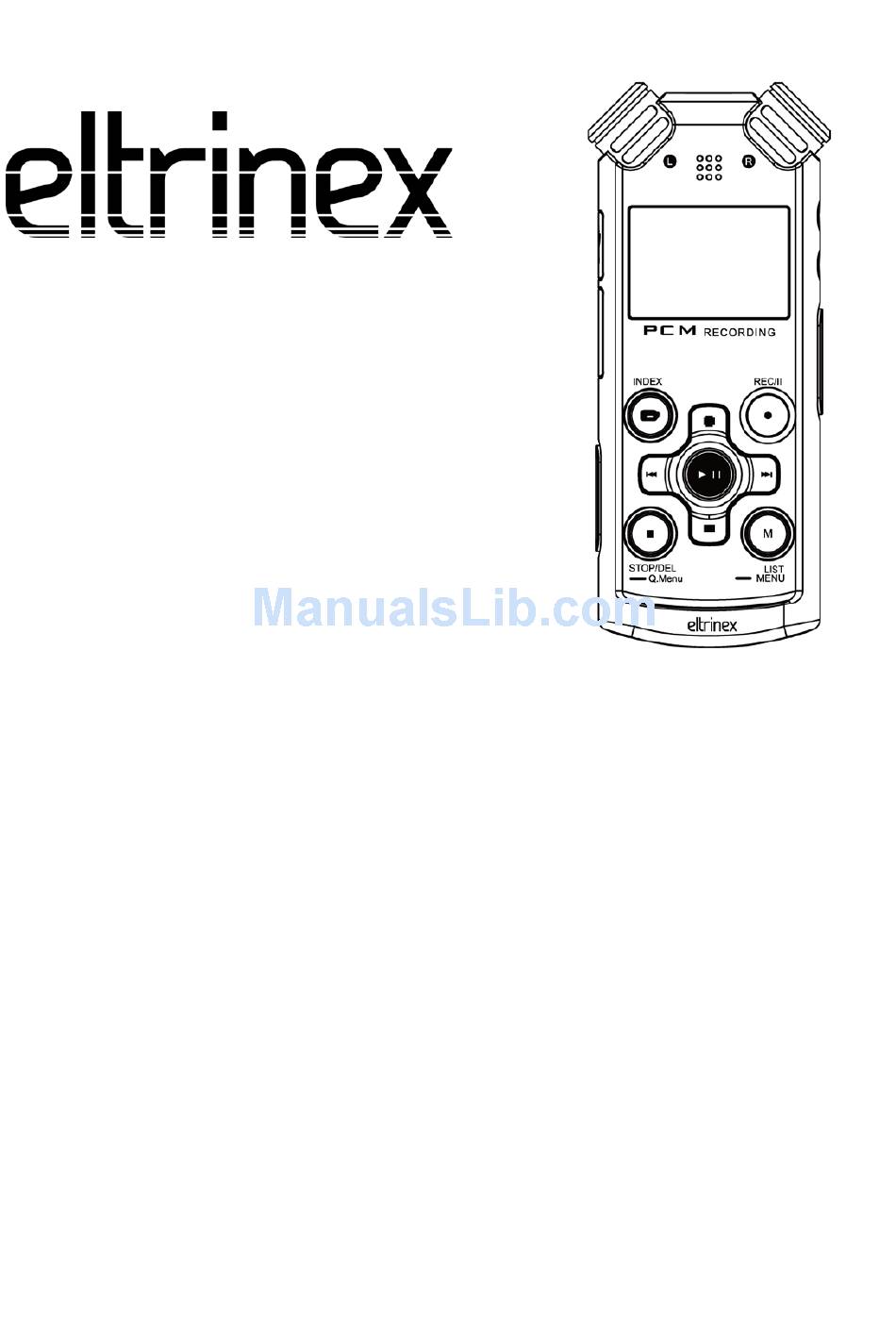

  • Page 1 V12Pro LS&S Model 221105...
  • Page 2 Instruction Manual Thank you for choosing Eltrinex V12Pro. Before you start using this product, please read the instruction manual carefully. Please pay attention to the following information. This Voice Recorder includes a Voice Guide, which has been specially developed for visually impaired users. If you like to switch the product to the version for sighted users, please contact your seller to get the proper firmware.

  • Page 3: Table Of Contents

    Content Content ..............3 Accessories ..............5 Power source ..............5 How to change batteries ..........5 Product description ............ 6 Basic operations ............8 Turn on / turn off ............8 Lock buttons ..............8 Changing mic. mode (meeting / interview) ..... 8 Recording ................
  • Page 4 Main Menu .............. 13 Context menu ..............18 Music ................21 FM Radio ............... 22 Bookmarks ..............23 Settings ................23 Recording ..............23 Playback ............... 27 Interface ..............28 Informations ..............30 More settings ............... 30 Additional informations ..........33 Filename structure of recorded file .......

  • Page 5: Accessories

    2 x AAA Manual Earphones Microphone Line-in covers Eltrinex V12Pro Power source Please use 2 AAA batteries – Alkaline, Ni-MH or Ni-CD. How to change batteries 1. Press the battery cover on the back side and slide down. (see picture 1).

  • Page 6: Product Description

    Product description...
  • Page 7 1 Earphones 2 Line-in 3 Built-in microphones 4 MENU button 5 STOP button 6 Speaker 7 RECORD button 8 INDEX button 9 LCD 10 Recording and playback indicator 11 Volume up / move cursor up 12 PLAY button 13 Move forward 14 Volume down / move cursor down 15 Move backward 16 MicroSD card...

  • Page 8: Basic Operations

    Basic operations Turn on / turn off Press and hold the PLAY button until the LCD start displaying starting logo. After that release the PLAY button and wait for the voice recorder to warm up. For turning off, use also the long press of PLAY button as well.

  • Page 9: Recording

    Recording Switch to the main mode and press the REC button. If the voice recorder is not powered on at that time, just press and hold the REC button. It will turn on and start recording autimatically. The beginning of the recording is announced by the double beep.

  • Page 10: How To Add Bookmarks (Indexes)

    How to add bookmarks (indexes) Press the INDEX button stortly while recording or playback of the file. The bookmark appears at that position and allows you to find this position very easily in the future. Change of information about recording Use short press of M button while recording to see all important informations abou the length of recording, remaining time of recording, etc.

  • Page 11: Playback Pause And Rewind

    between LCF (low frequency cut), VOC or NORMAL (no filter applied) Playback pause and rewind Press PLAY button shortly to pause the playback. To resume the playback, please press the PLAY button once again. Please press and hold the right or left arrow to rewind the actual position inside the file to a new one and release the button to continue playback.

  • Page 12: Loop Playback

    Loop playback Press M button shortly during playback to choose the starting point of the loop recording. Press the M button shortly again to choose the end point of loop recording. The loop automatically start to repeat. To reset this function, please press the M button again.

  • Page 13: Lcd Display

    LCD display Line-in Alarm Lock Indicator Recording mode Current folder Battery life Remaining time Recording format VOR mode Locked file L/R EQ SD card File name File Total Files Main Menu Press M button for approx 2 seconds to open the main menu. Use arrows to move the cursor and PLAY button to confirm your selection.
  • Page 14 Recording → A folder → Show content of A folder B folder → Show content of B folder C folder → Show content of C folder D foder → Show content of D folder Music → → List the Music folder FM Radio →...
  • Page 15 High Highest → VOR → Off Auto Lowest Low High Highest → Hidden rec. → Cancel → Timer → 5 presets for timer rec. → Auto.Divide → Off 10 min 30 min 60 min → Edit → Append Overwrite → Auto. Gain →...
  • Page 16 → Playback → Hidden → Cancel → Timer play. → Repeat M. → Disabled One file All files → Skip Forw. → Off 5, 10, 30s 5 minutes → Skip Back. → Off 5, 10, 30s 5 minutes → Interface →...
  • Page 17 → Language → Language of menu → Voice G. → Set the Volume volume of VoiceGuide → Info. → Memory → Internal SD Card → Information → Product information → Format → Cancel More settings → More set. → Power Off →...

  • Page 18: Context Menu

    → USB Power → Off → Hear. Aid → Cancel → Batteries → Batteries → Remote ctl. → Off → Firm. Upg. → Cancel Context menu In the main mode you can use the advantage of the context menu, which contains functions handling the currently selected file.
  • Page 19 Protect → Files → Select file to be protected against delete Undelete → Cancel → Return back → OK → Recovers the last deleted file Split → Cancel → Returns back → OK → Split actually selected file into two parts Label →...
  • Page 20 Protect – Mark the file as protected if you like to avoid a delete by mistake. The protected file cannot be deleted in the voice recorder. Undelete – the mistakenly deleted file in internal memory can be recovered. This function is only available immediately after delete and only in the internal memory.

  • Page 21: Music

    option will remove the original file after moving to the destination location. Paste – The file previously marked as copy or move will be placed into the currently seleted position. To change the folder simply escape the context menu and change the folder by short press of INDEX button.

  • Page 22: Fm Radio

    FM Radio For a good quality of radio playback we recommend to connect earphones. The wire of the earphones is used as an antenae. Turn on the radio by long press of M button and choosing the FM Radio item in the main menu. Confirm by PLAY button.

  • Page 23: Bookmarks

    Long press of STOP button in the preset mode deletes the actually selected preset. The short press of PLAY button saves the actually tuned frequency. Bookmarks Choosing this option show a list of all available bookmarks. Select the bookmark and confirm using the PLAY button. To move between bookmarks use the left and right arrow.
  • Page 24 PCM M wav / mono Higher quality(mono) 44/16b PCM S wav / stereo 44/16b PCM S wav / stereo 44/24b Highest quality (stereo) PCM S wav / stereo 48/16b PCM S wav / stereo 48/24b Input If external sound input is connected, you can set the type. Microphone –...
  • Page 25 Voice Operated Recording (VOR) Turn this function on to activate the voice operated recording. If this function is set to ON, the voice recorder pauses recording when the silence is detected. When any sound occures it resumes recording again. This function is good for very long recordings and its main benefits are saving the memory space and removing unneeded silent parts in the recording.
  • Page 26 Timer Set up to 5 presets of the recording at the requested time. First of all, choose the preset using the +/- buttons and confirm by right arrow. Then choose the source of recording. You can choose beween FM Radio or Microphone. The FM Radio choice is only available if there are FM Radio presets tuned already.

  • Page 27: Playback

    recorder starts to write new recording exactly at the paused position and previous recording is overwritten. If you set this to Append, the previous rerding is kept and new recording will be appended at the end of previous recording. Please be carefull while setting the Overwrite option.

  • Page 28: Interface

    Repeat Set the repeat mode for playback of files. Skip forward and backward For playing long files it can be very useful to set the Skip forward and Skip backward function. Please choose the value of the distance which will be skipped by press of right or left arrow during playback.
  • Page 29 Backlight Set the value for how long the LCD backlight will be activated after every button press. The setting of higher values causes lower battery life. Off – the backlight is off 1 Sec. – backlight activated for 1 second after every button press.

  • Page 30: Informations

    Information Memory Switch between the internal memory and external memory (SD Memory card) Information Shows the informations about the hardware and firmware of the voice recorder. Format Formatting of the currently selected memory. Warning: All your data will be deleted using this function. More settings Power Off Automatically power off the voice recorder after some time...
  • Page 31 Date/Time For correct behaviour of the voice recorder i tis needed to set date and time correctly. Please open this menu and set the current values according to your time zone. Set Default All settings will be changed back to default values. This function has no effect on the data (recorded files will not be deleted).
  • Page 32 Batteries Please set the type of batteries which are currently inserted in the voice recorder. The correct setting will bring the optimal battery performance. You can choose between alkaline for non-rechargable and rechargable batteries. Remote control After connecting the remote control (for example a foot switch), please set this option to ON to activate the remote control function.

  • Page 33: Additional Information

    finish. The end of process is indicated by a beep. Please take out batteries for a few seconds and return back. Turn on the voice recorder, open the menu and set Settings – More Settings – Set defaults. Now the firmware upgrade process is finished.

  • Page 34: Technical Parameters

    Technical parameters Supported MPEG 1/2/2.5 LAYER3/WMA/Linear formats Display graphical, with backlight, 1.4" MP3, WAV (4 kbps/5 kHz ~ 2304kbps / Recording format 48.1 kHz) MP3 (8-320 kbps), WMA (23-192) Playback format without DRM Memory 12 GB (8 GB int. + 4 GB SD) Microphone stereo Distortion...
