Summary of Contents for Mslighting MHLED 36F
-
Page 1: User Manual

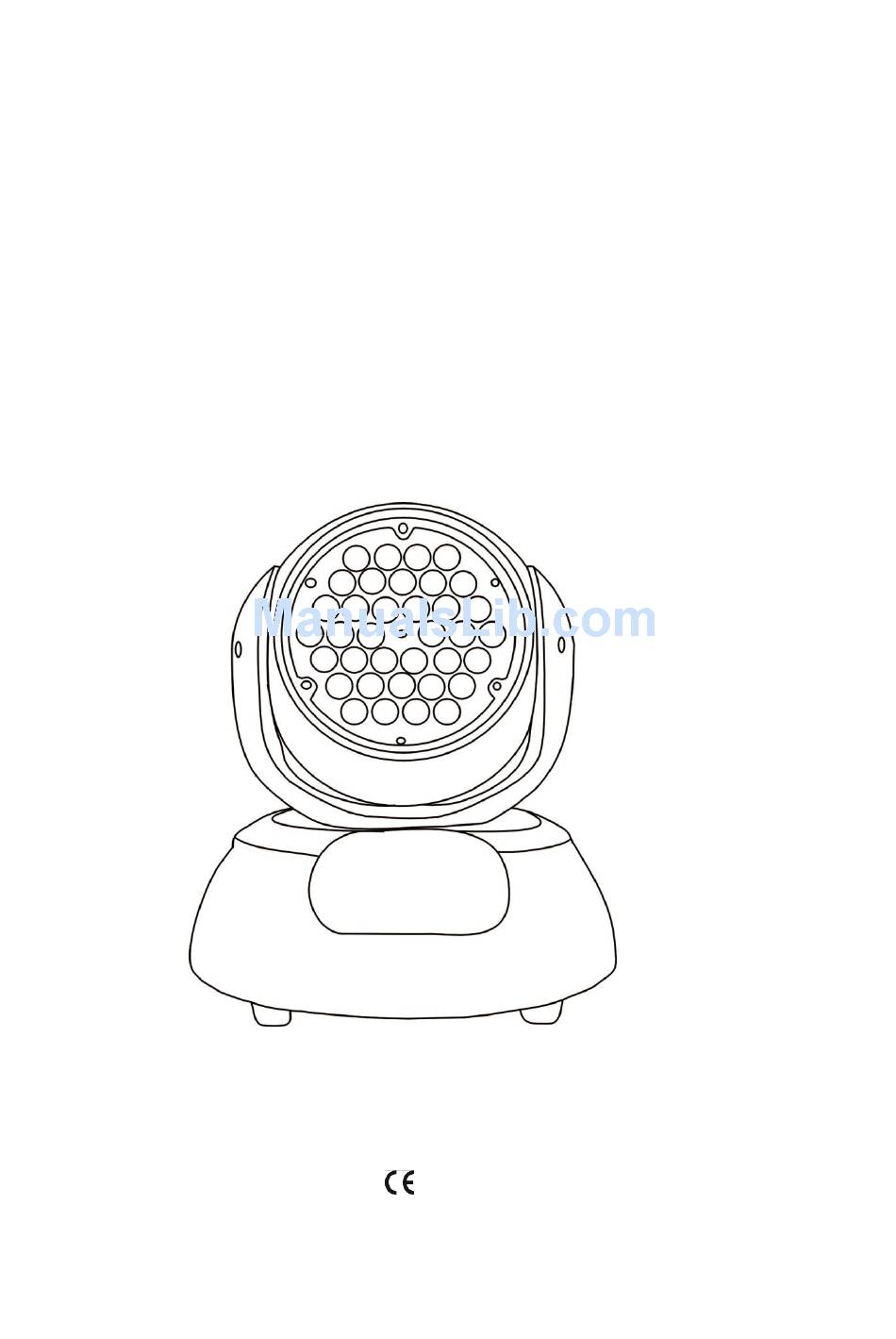

USER MANUAL LED MOVING HEAD LIGHT Model: MHLED 36F (12*15W RGBWA 5IN1 DMX 512 14CH) Please read over this manual before operation the light... -
Page 2: Table Of Contents
CONTENTS Contents…………………………………………………………..…… Important notice ……………………………………………………… Attention ………………………………………………………………. I. Product Illustration………………………………………………….. 2 II .The installment of led moving head …………………..……… 2 III. The connection of control correspond wire ………………..…… 3 IV. Clean maintenance …………………………………………….… 3 V. Warning ……………………………………………………..……… 3 VI. Difficult processing …………………………………………..…… 4 VII. -
Page 3: Important Notice
Important notice: · In this instruction for use contains about the installment and the use aspect important information of the LED moving head. When installing and using, you need to look this usage instruction strictly. · Before open the LED moving head and if you want to do the repair work, please make sure the power source is at the separation condition. -
Page 4: The Connection Of Control Correspond Wire
Warning: Do not use the hand of the LED moving head to up and down or fix. III. The connection of control correspond wire The connection of controller between the led moving head lamp and respectively led moving head lamp should use the twin core shielded cable, and the diameter of each core at least be 0.3mm. -
Page 5: Difficult Processing
VI. Difficult processing Question Answer The LED moving head lamp can not Inspects the fuse on the rear panel. start. Although shines, but the LED moving Check the digital start address (sees head lamp accept 09th) and also check the connection instruction of the controller. -
Page 6: Panel Operation
mix the color tone Strobe: 1-25/second high speed strobe, but single color mixes the color strobe IX. Panel operation This control display panel menu especially for the many kinds of models computer lamp design, provided the many kinds of functions control mode, the control has been simple. -
Page 7: Test
Nod.1: Normal channel digital control. Nod.2: Less channels digital control. 2.3 Must accept when the host synchronization (namely subsidiary pattern) must establish in advance DMX as “nod.1”. 3. TEST Outside this function allows you not to need to connect under the controller condition to carry out the internal demonstration formula .This establishment is also preserved, does not withdraw from the test procedure when you each time start all automatically enters the test formula. -
Page 8: Audi
4. Audi (Voice control stimulation) This function allows you to use the sound to stimulate the test formula. According to "UP" Or "DOWN" the key will glance over other function tables. Enters according to "ENTER", again presses "UP" either "DOWN" the choice "ON" or "OFF"... -
Page 9: Reset
2--100 Strobe slow - fast 101--199 Random Strobe slow - fast 208--217 Reset (After 3sec.) 218--255 Open 0--255 Dimmer Dark to Light 0--2 Red & White 5--7 Red & Green 8--9 Green & Blue 10--12 13--14 15--17 18--19 20--22 23--24 CH 5 25--27 28--29... - Page 10 0--255 R, Dimmer Dark to Light 0--255 G, Dimmer Dark to Light 0--255 B, Dimmer Dark to Light 0-255 W, Dimmer Dark to Light CH10 0-255 A, Dimmer Dark to Light 0--5 RGBW, Color is decide by CH5 6--127 RGBW Graduated, Speed adjustment, from slow to fast CH11 R,RG,G,GB,B,RB,RGB,RGBW RAINBOW...
