Albuquerque DX2-EDM Operating Instructions Manual

6.0 S
PECIFICATIONS
Calibration According to factory
Accuracy* ± 1% full scale (FS) or ± 1 graduation on scale
Scale diameter 41 mm
Temperature range 45 to 115 °F (10 - 45 °C)
Air humidity 85% RH, max.
Housing material Die-cast aluminum
Housing dimensions 8.6 in x 3.5 in x 1.7 in (188 x 85 x 45mm)
(L x W x H)
Weight (net) Approx. 1.04 lb. (470 g)
Guide rollers V-grooved
Line Speed 2000 m/min max.
Roller Material Standard hardcoated
* Using factory standard materials and procedures. Special calibration using customer sample is available.
Specifications subject to change without notice.

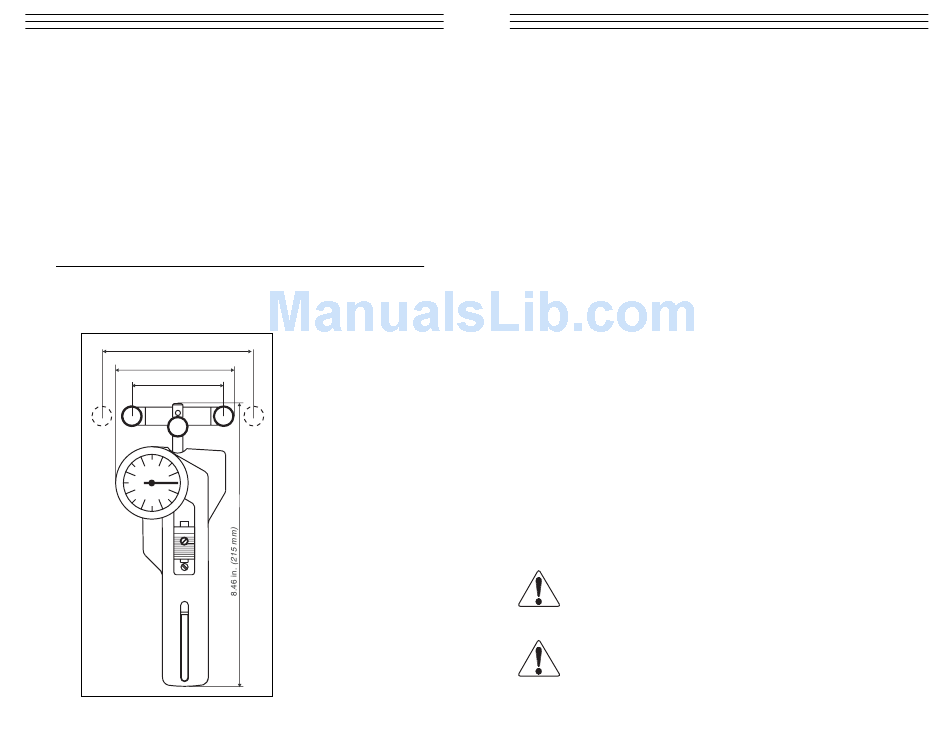

6.1 Dimensions

3.94 in. (100 mm) 4000 g range only
3.54 in. (90 mm)
2.95 in. (75 mm)
procedureeeeeeeeeeeeeee
aluminiummmm mmmmmmmmm
6.2 Spare Rollers
You should regularly inspect
the rollers to assure that they
are running easily and smooth-
ly. You can replace the rollers
yourself, as necessary. When
ordering spare rollers, please
indicate the tension meter
model and the serial number
(on the rear side of the tension
meter).
Standard rollers: P/N R1000
8
CONTENTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.1 Complete Kit
1.2 Unpacking
1.3 Tension Ranges
2.0 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2.1 Operating Elements
2.2 Mounting Special Finger Support
3.0 Taking A Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.0 Verifying Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1 Frequency Of Calibration Verification
4.2 Nist Calibration
5.0 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.1 Air Dashpot Damping
5.2 Memory Pointer
6.0 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6.1 Dimensions

6.2 Ordering Spare Rollers

7.0 Warranty
The device must not be operated in explosion hazard areas
and must not come into contact with aggressive substances.
WARNING
Tensions that exceed the tension range of the instrument by
more than 100 % may cause permanent damage to the
movement and must be avoided under any circumstances.
WARNING
1
Page
02
03
04
05
07
8
