Trend-tech Technology Co., Limited
Add: Room 205, Building No. 5, YaoXing HuaYuan, XinHuiDaDao No. 45, XinHui District, JiangMen City,
GuangDong Province, China 529100
Telephone: 0086.750.6336733 | Website: www.trend-tech.net.cn

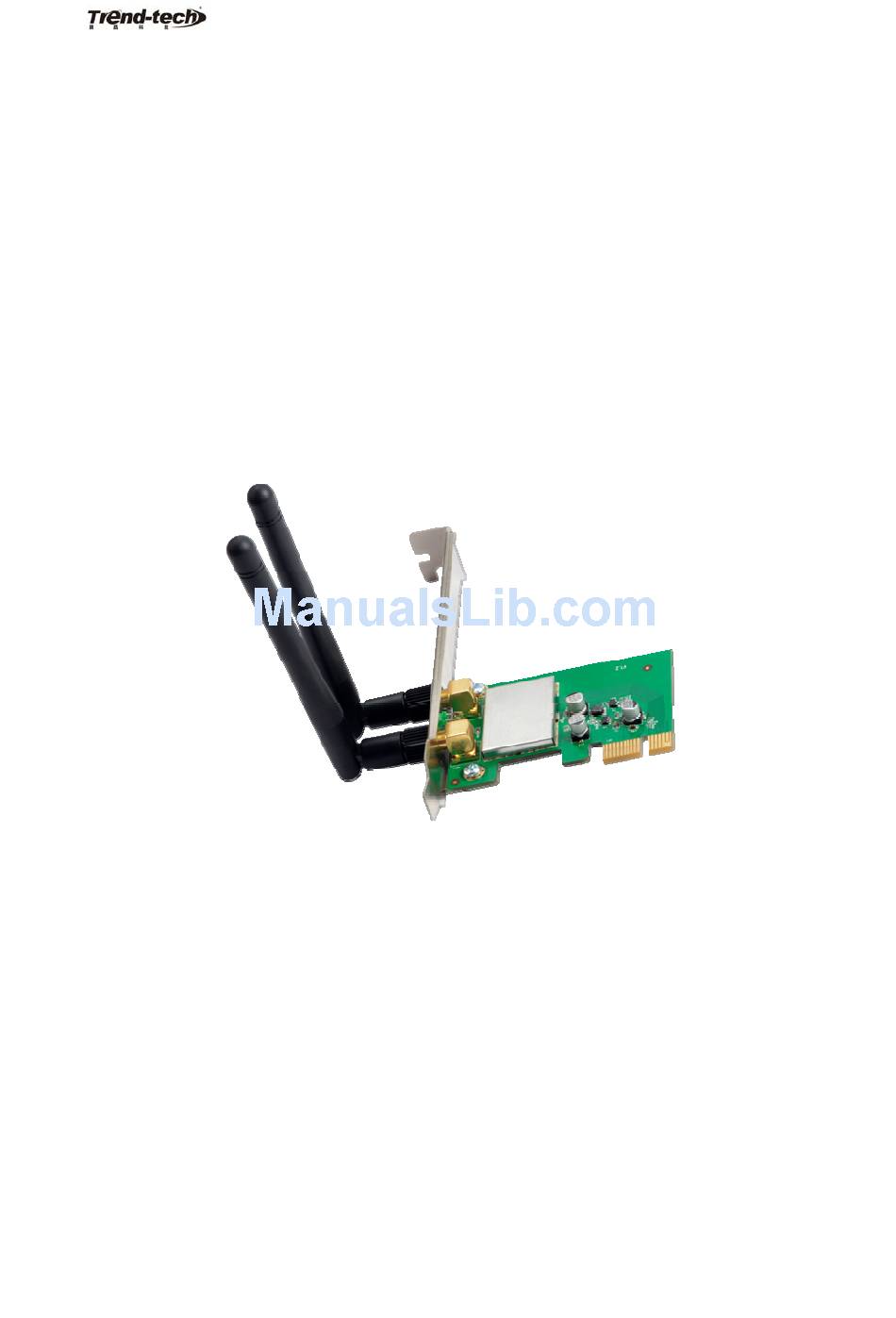

Trend-tech AC1200 Dual-band
Wireless PCI-e Adapter
Model No. WNA015
User Manual
Version 1.0 | 6/11/2015
Advertisement
Table of Contents
Summary of Contents for Trend-tech WNA015
- Page 1 Trend-tech Technology Co., Limited Add: Room 205, Building No. 5, YaoXing HuaYuan, XinHuiDaDao No. 45, XinHui District, JiangMen City, GuangDong Province, China 529100 Telephone: 0086.750.6336733 | Website: www.trend-tech.net.cn Trend-tech AC1200 Dual-band Wireless PCI-e Adapter Model No. WNA015 User Manual Version 1.0 | 6/11/2015...
-
Page 2: Table Of Contents
11AC Dual-band Wireless PCI-E Adapter Table of Contents Chapter 1 Product Introduction ....................1 1.1 Product Overview ......................1 1.2 Product Features ......................1 1.3 Security Warning ......................1 1.4 LED’s Description ......................1 1.5 Package Contents ......................2 Chapter 2 Installation Guide ...................... 3 Chapter 3 Connect Wireless Network .................. -
Page 3: Chapter 1 Product Introduction
11AC Dual-band Wireless PCI-E Adapter Chapter 1 Product Introduction Congratulations on your purchasing of the AC1200 Dual-band Wireless PCI-E Adapter. Before you install and use this product, please read this manual carefully for full exploiting the functions of this product . 1.1 Product Overview The product is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE 802.11ac and IEEE 802.11a/b/g/n... -
Page 4: Package Contents
11AC Dual-band Wireless PCI-E Adapter 1.5 Package Contents 11AC Dual-band Wireless PCI-E Adapter Use CD-ROM Warranty card... -
Page 5: Chapter 2 Installation Guide
11AC Dual-band Wireless PCI-E Adapter Chapter 2 Installation Guide This section will teach you the process of installing the network adapter software package with including software CD. Take Windows XP Operating system as an example, installation steps for other operating systems are similar. - Page 6 11AC Dual-band Wireless PCI-E Adapter Figure 3 Figure 4...
-
Page 7: Figure
11AC Dual-band Wireless PCI-E Adapter Figure 5 Figure 6 Click on “Finish”. The setup is already done. (Figure 7) Figure 7... -
Page 8: Chapter 3 Connect Wireless Network
11AC Dual-band Wireless PCI-E Adapter Chapter 3 Connect Wireless Network This section will teach you how to use Windows Built-in Wireless Configuration to connect to the wireless network. Please refer to the following steps: 1. Right click “Local Area Connect” icon in the Task bar, and select “View Available Wireless Networks”.(Figure 8) Figure 8 2. -
Page 9: Figure
11AC Dual-band Wireless PCI-E Adapter 3. The Wireless Network Connection box will appear. Enter the Network Key and click Connect.(Figure 10) Figure 10 4. When it shows “Connected” as the picture below, then you can enjoy wireless access to Internet now.(Figure 11) Figure 11... -
Page 10: Appendix: Technical Specifications
11AC Dual-band Wireless PCI-E Adapter Appendix: Technical Specifications IEEE 802.11AC, IEEE 802.11n, IEEE 802.11b, Standards and Protocols IEEE 802.11g, IEEE 802.11a PCI Bus PCI EXPRESS X1 5G_11ac VHT80M_MCS8:-55dBm @10% PER HT40M_MCS7: -63dBm @10% PER HT20M_MCS7: -66dBm @10% PER Sensitivity @PER 11N_2.4G HT40M_MCS7: -67dBm @10% PER HT20M_MCS7: -69dBm @10% PER...
