Summary of Contents for Demco SP7

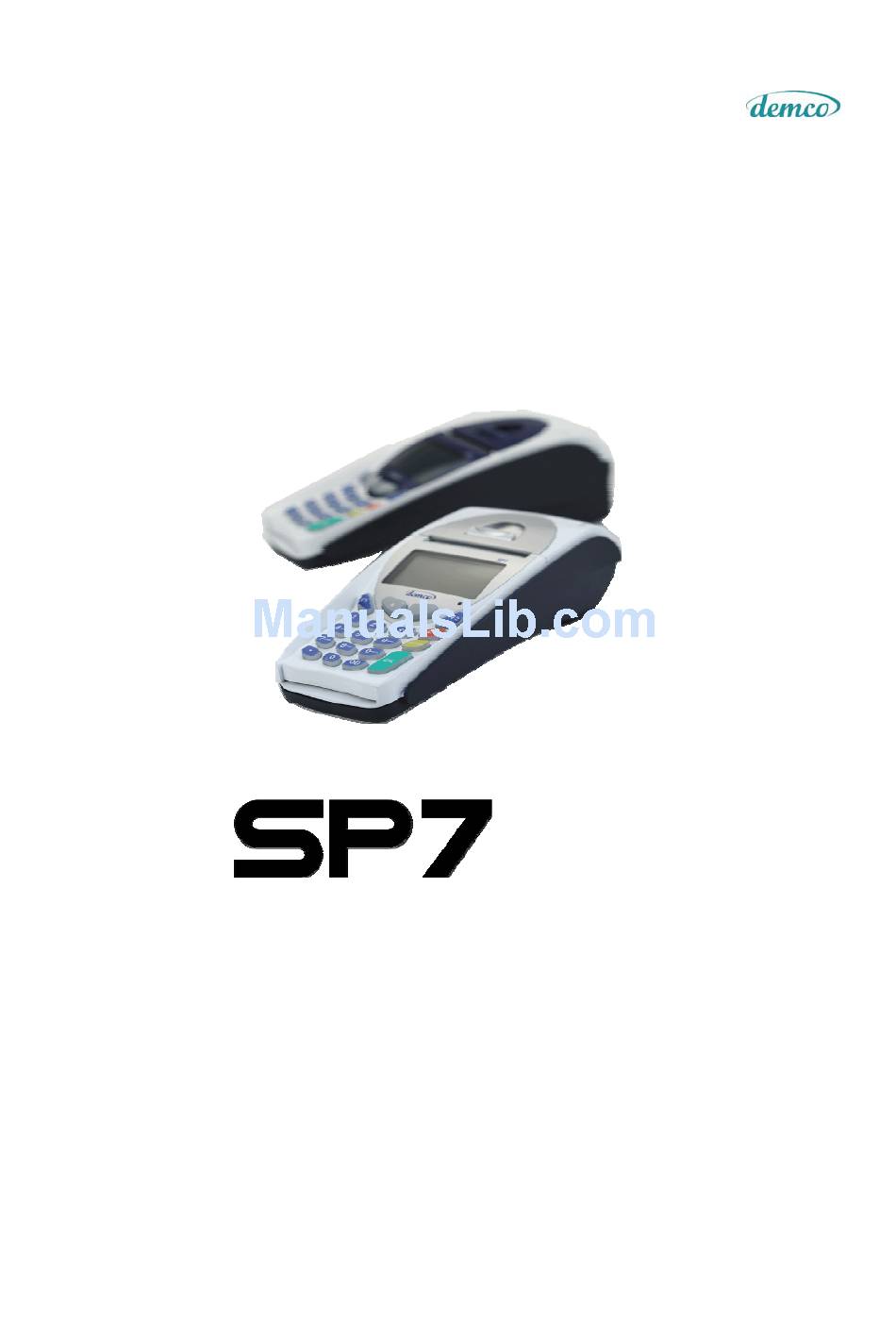

- Page 1 User’s Installation Guide - V1 EFT-POS Terminal Always pay right ! Stylish, Powerful & Trusted Pay-Way Demco corp.
-
Page 2: Table Of Contents
CONTENTS Introduction ……………………………... …………………………………………………………………………………2 Getting started 2.1 Unpacking the shipping carton ......................3 2.2 SP7 at a glance …………………………………………………………………………………………………4 2.3 Keypad and functionality ………………………..................4 Card Reading & Paper loading 3.1 Card reading ..........................5 3.2 Cutting the paper ........................5 3.3 Installing paper roll …………………....................6... -
Page 3: Introduction
Thank you for choosing Demco’s SP7 EFT-POS terminal! This manual will guide you from basic setup to operation of SP7. It will help you to familiarize yourself with SP7 terminal and will be useful for anyone installing and using SP7 terminal. -
Page 4: Getting Started
2. Getting Started 2.1 Unpacking the shipping carton In the original shipping carton of SP7 EFT-POS terminal, there are 4 contents, a SP7 EFT-POS terminal, a power supply unit, and a user’s manual. Inspect carefully if there is any damaged or missing components. -
Page 5: Sp7 At A Glance
SP7 at a glance Internal thermal printer Large graphic LCD Display 18 key backlit keyboard Magnetic Card Reader Smart card reader 2.3 Keypad and functionality This chapter describes the key functions for a terminal with no specific application. Function of keys can vary depending on application. -
Page 6: Card Reading & Paper Loading
3. Card reading & Paper loading Before any card reading or any use of the terminal, make sure that a paper roll is installed in the printer. 3.1 Card reading Magnetic stripe card ① Place a magnetic card with the stripe down and facing toward LCD&... -
Page 7: Installing Paper Roll
3.3 Installing the paper roll SP7 features an "easy loading" printer, for easy paper roll replacement. Don’t touch the printer mechanism. Take care the paper cutter is very sharp and the printer could be very hot! Prepare for a roll of thermal sensitive paper with 57mm wide ②... -
Page 8: Location Of The Terminal
4. Installation & Maintenance 4.1 Location of the terminal It is highly recommended to place SP7 terminal on flat table or surface near an power outlet. Do not use the terminal in excessive heat, humidity, moisture area. Avoid areas with direct sunlight or electromagnetic radiation The terminal is not waterproof or dustproof so any mal-function from the exposure may void warranty. - Page 9 Do not connect the power supply until any peripherals are connected. Maximum length of cable : 2.50 m 4.2.1 Connection to the Ethernet LAN Connect SP7 terminal to an Ethernet LAN, using a standard direct Ethernet cable and make sure the connector is fully seated into ports.
- Page 10 4.2.3 Connection to power supply Insert the round barrel connector into the power port on the terminal. Place the terminal upside down on a clean and flat surface for unwanted scratch or damages. Guide the cable through the cable holder to secure the power cord from unwanted disconnection.
-
Page 11: Installing A Sam Card
It is recommended to clean the terminal with a dry or slightly damp cloth. Cleaning with water, solvent, or detergent cleaning is also prohibited. Do not spray any cleaners on the keypad. ② Smart Card reader Do not clean the smart card reader. If you have to, contact your installer or SP7 distributor. -
Page 12: Trouble-Shooting
For both cases, it is recommended to perform a test transaction using other magnetic or smart cards just to ensure the problem is not a defective card. If the problem is still present after above action, contact your local SP7 representative for any help. - Page 13 4.2 Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions ; (1) this device may not cause harmful Interference, and (2) this device must accept any interference received, Including interference that may cause undesired operation. •...
- Page 14 Demco corp. Demco reserves the exclusive rights of the contents of this documentary. Any reproduction, transmission or translation of this documentation is not allowed without prior written permission of Demco Corp. The information in this document is subject to change without notice. There may be errors or omissions in this document although Demco used its best effort to be accurate.
