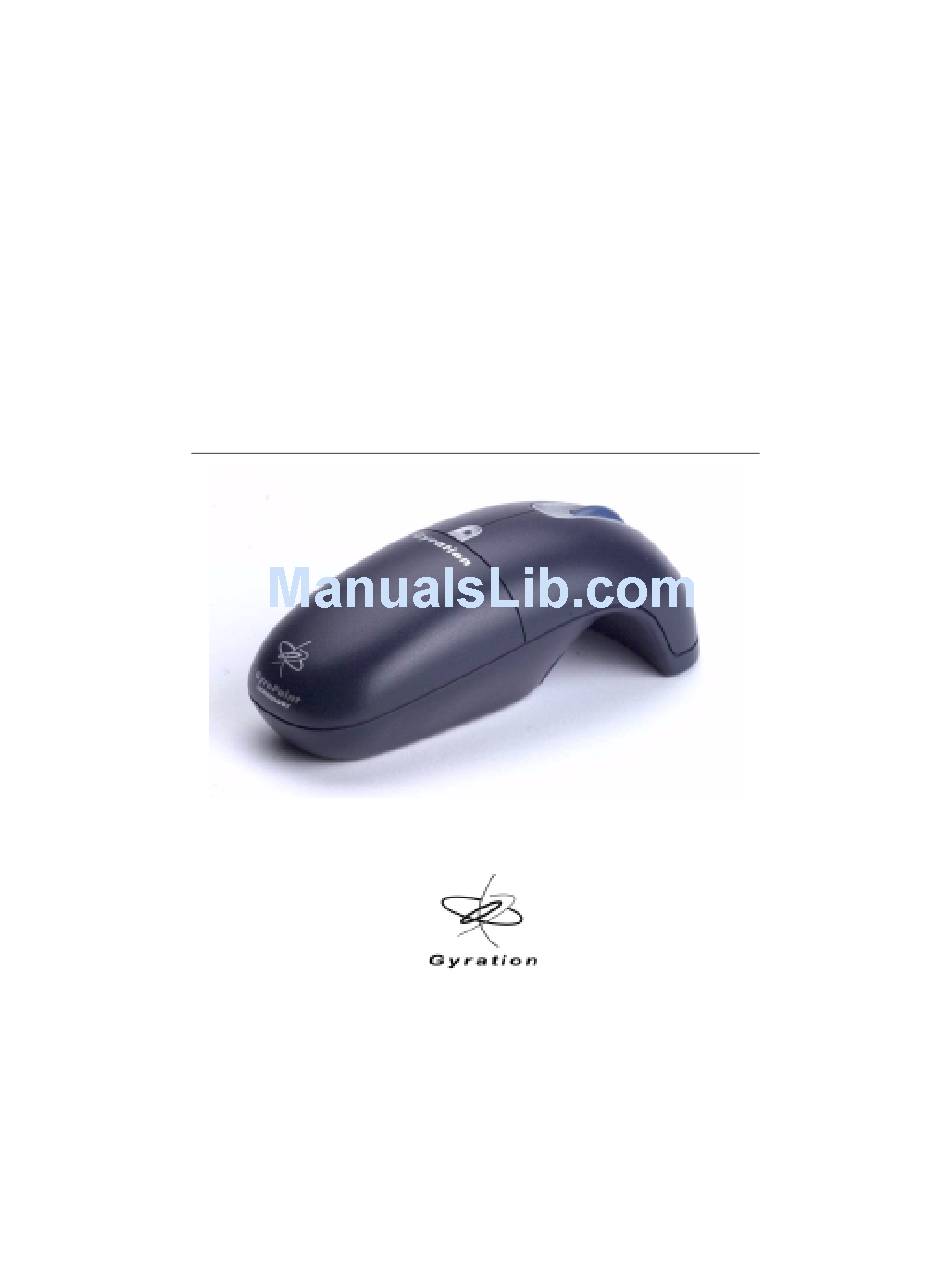

- Page 1 Gyration Ultra Cordless Optical Mouse User Manual...
-
Page 2: Product Specifications
Product Specifications Spec Ultra Cordless Optical Mouse RF Receiver System Require- Full functionality on Mac and IBM compatible PCs running Windows 2000, ME, XP or higher ments Available USB port CD ROM drive (for GyroTools installation) Microsoft or Mac compatible mouse driver Size 4.8”L x 2.0”W x 1.8”H (12.2cm x 5.1cm x 5”L x 4”W x 2”H... -
Page 3: Identifying The Parts
Gyration Ultra Cordless Optical Mouse Identifying the Parts Included with your mouse are the following components: Ultra mouse - Consumer: mouse handset, charging station, RF receiver, NiMH battery pack, AC adapter Ultra mouse - Professional: mouse handset, charging station, RF receiver,... - Page 4 partment. This clear plastic tab prevents the battery from discharging until you are ready to use your mouse. Press release button on the end of the mouse and lift battery pack off. Remove and discard plastic tab. Replace battery pack by snapping into place. Important! Your mouse must be charged for 8 hours prior to first use.
- Page 5 Receiver for 2 seconds. Otherwise, after five minutes, Learn Mode will automatically time out. If more than one Gyration device is being installed on the system, place the Receiver into Learn Mode (step 3 above) only once, then “Teach” each device before exiting Learn Mode.
- Page 6 Determining Which Channel Ultra Mouse is Using The Ultra mouse has eight individual channels available to it. To determine which channel a device is currently using: Press and quickly release the CHANNEL button on the bottom of the mouse handset. Count the number of times the red LED on the bot- tom of the handset or the green LED on the top of the handset flashes.
- Page 7 and its optical sensor allows for precise tracking on virtually any surface (for optimal performance, avoid highly reflective glass or mirrored surfaces). To use on the desktop: Set up and synchronize the mouse with the Receiver (see page 3). Remove the fully charged mouse from the charging cradle and place it on a flat surface.
-
Page 8: Fine-Tuning Cursor Control
While becoming familiar with your mouse and getting a feel for the GyroPoint method of cursor control, Gyration recommends adjusting your mouse driver to the following settings: Pointer Speed – Average. Some new users prefer this setting to be slightly slower than average. - Page 9 coverage with the cursor. Acceleration – Low or Off. Ultra Mouse Troubleshooting Tips Symptom Reason Solution Mouse LED comes on Mouse and Receiver Perform a Teach/Learn sequence. not Synchronized (See “Getting Started” on page 1.) when activate button is pressed, but receiver is unresponsive Cursor is visible but...
-
Page 10: Learn Button
Gyration RF Receiver Learn Button Pressing the LEARN button for 2 seconds puts the receiver into “Learn Mode” allowing you to synchronize one or more devices with the receiver. After devices have been synchronized, pressing the LEARN button again for 2 seconds takes the receiver out of Learn mode. -
Page 11: Keyboard Status Leds
Lock, Caps Lock and/or Scroll Lock features activated. Conflict LED If an unrecognized Gyration device is attempting to operate on the same channel as a device that has been synchronized, the red “Conflict” LED on the receiver will flicker and input control may be intermittent. - Page 12 #1 and the keyboard can be used simultaneously, but mouse #2 and the keyboard cannot. Note: Gyration carries both a consumer and professional line of RF products. Please note that a low-power consumer device (i.e. Ultra mouse with 25-ft. range) should not be used simultaneously with a high-power professional device (i.e.
-
Page 13: Regulatory Information
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Contact Gyration, Inc., 12930 Saratoga Avenue, Bldg. C, Saratoga CA 95070. Technical Support phone: 408-973-7086. These devices comply with Part 15 of the FCC Rules. -
Page 14: Canadian Radio Interference Regulations
these devices may not cause harmful interference, and these devices must accept any interference received, including interference that may cause undesired operation. The mouse operates in the frequency band of 49.82 to 49.9 MHz with RF output power of less than 30 MicroWatts EIRP (Effective Isotropic Radiated Power). -
Page 15: Contacting Gyration
Gyration products come with a one-year hardware warranty. Gyration, Inc., (Gyration) warrants products against defects in material and workmanship for a period of one year from the date of purchase from Gyration or an authorized Gyration agent. This warranty applies only to the original purchaser and is not transferable. - Page 16 Gyration. This warranty does not apply if the product has been damaged by accident, abuse, misuse, or misapplication, nor as a result of service to the product by anyone other than by Gyration. Gyration is not responsible for any lost profits, lost savings or other incidental or consequential damages arising out of the use of, or inability to use, this product.
- Page 17 Gyration Ultra Cordless Optical Mouse User Manual Gyration, Inc. 12930 Saratoga Avenue, Bldg. C Saratoga, CA 95070 1.800.316.5432 www.gyration.com...
