Summary of Contents for Sensorio LZR-U905

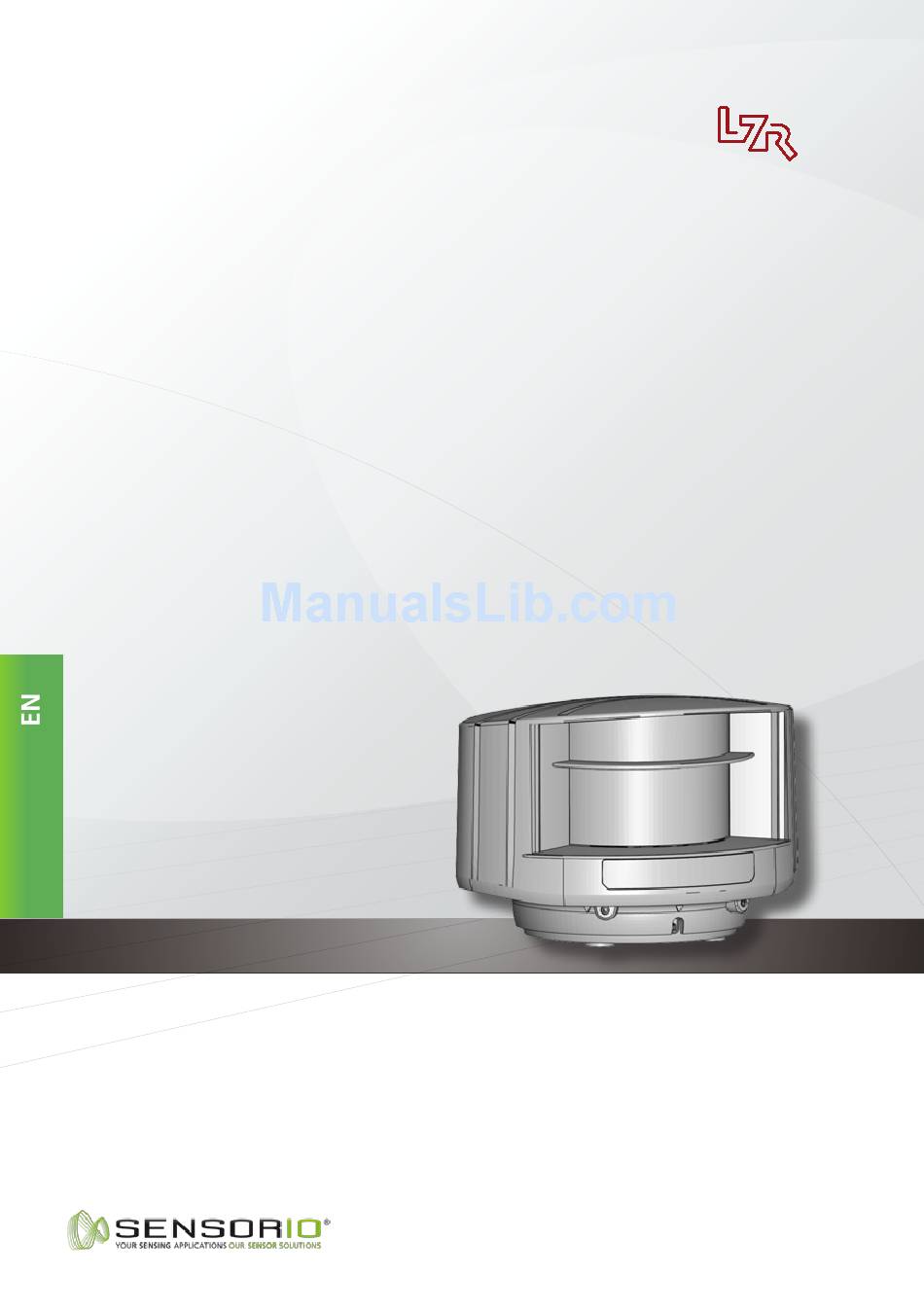

- Page 1 ® - U905 LASER MEASUREMENT DEVICE User’s Guide for product version 0300 and more...
- Page 2 LASER MEASUREMENT DEVICE Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer. The manufacturer cannot be held responsible for incorrect installations or inappropriate adjustments of the sensor. DESCRIPTION laser sweep emission protection cover laser sweep reception notch for tilt angle adjustment (2)
- Page 3 SAFETY Do not look into the laser The warranty is void if Only trained and qualified emitter. unauthorized repairs are personnel may install and made or attempted by adjust the sensor. unauthorized personnel. CAUTION! Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.
- Page 4 INSTALLATION STEPS MOUNTING Pass the cable +/- 10 cm Use the adhesive mounting Drill 4 holes as indicated though the cable opening. template to position the on the mounting template. sensor correctly. The grey Make a hole for the cable if If drilling an opening is area indicates the detection possible.
- Page 5 WIRING + 24 V DC GREEN GND PWR BROWN WHITE YELLOW RS485B RS485A GREY POSITIONING Adjust the lateral position of Adjust the tilt angle of the Lock the position of the the detection field. detection field with the hex mounting bracket to avoid key.
- Page 6 TECHNICAL SPECIFICATIONS Technology: laser scanner, time-of-flight measurement Measurement range: max 65 m 9 m @ 2% remission factor Number of planes: Number of points/plane: Angular resolution: 0.3516 ° Angular coverage: 96.3281 ° Rotating speed: 900 turns/min Remission factor: > 2 % Laser emission characteristics: wavelength 905 nm;...
-
Page 7: Troubleshooting
TROUBLESHOOTING There is no power. No blue LED Check cable and connexion. The polarity of the power Check the polarity of the power supply. supply is inverted. The orange LED The power supply voltage Check the power supply voltage. is exceeding the acceptable is on. - Page 8 A DIVISION OF BEA SA | LIEGE SCIENCE PARK | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] T +32 4 361 65 89 | F +32 4 361 28 58 | INFO@SENSORIO.BE | WWW.SENSORIO.BE BEA hereby declares that the LZR -U905 is in conformity with the basic requirements and the other relevant ®...
