Summary of Contents for MOHOC MHDBK

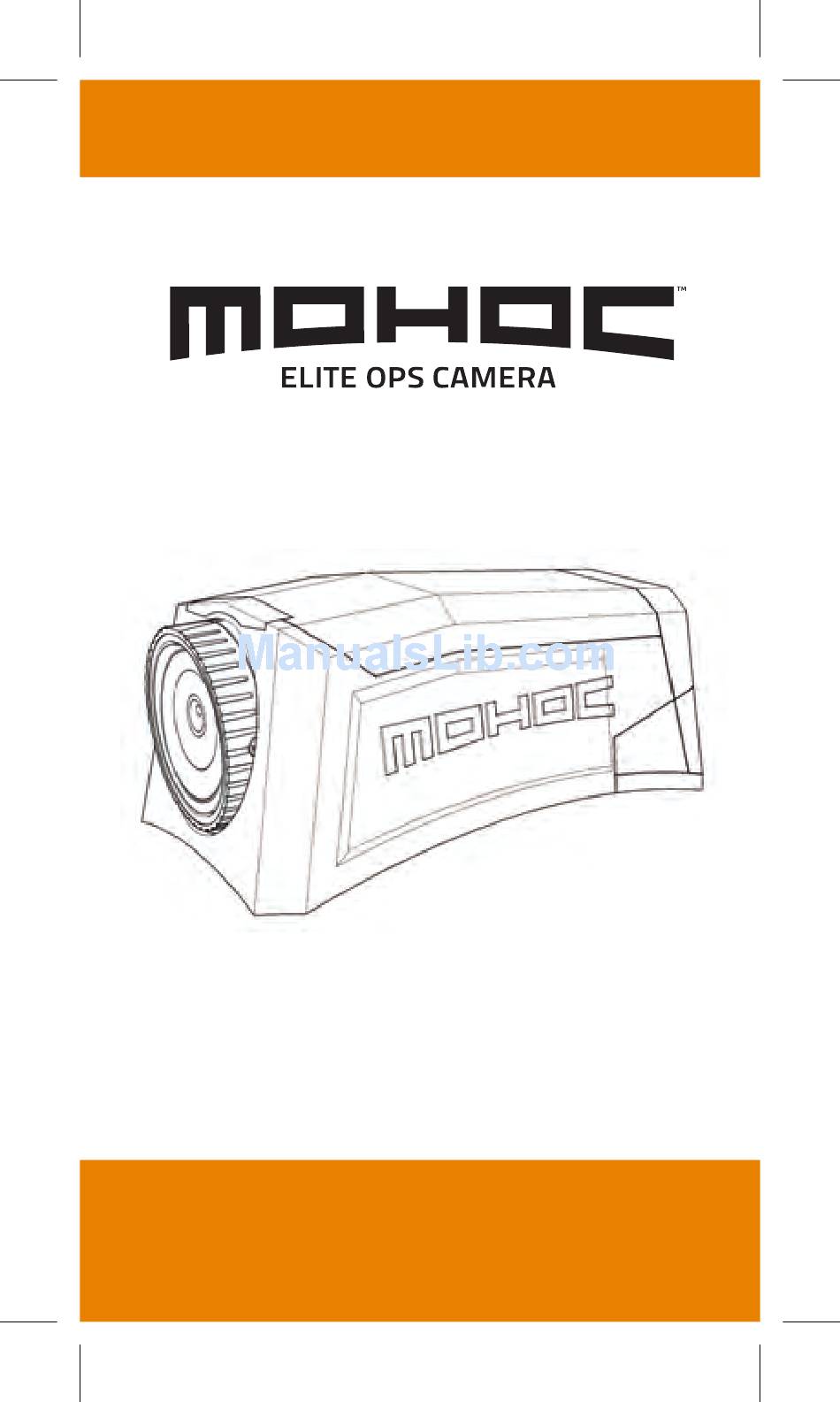

- Page 1 QUICK START GUIDE...
- Page 2 OVERVIEW Included in the box: • 1 MOHOC camera • 1 Li-Ion Rechargeable battery • 1 Lanyard • 1 Micro USB cable • 2 Velcro mounting patches • 1 MOHOC microfiber bag • 1 MOHOC sticker The MOHOC Camera Door...
- Page 3 OVERVIEW...
- Page 4 INSTRUCTION TO OPEN DOOR 1. Squeeze both latch releases 2. Pull the lower latch out. 3. Release the upper latch and pull the door upwards. 4. The door is now open.
- Page 5 MICRO SD & BATTERY INSERT Micro SD Card Insert micro SD Card (Class 10, UHS-1 or higher required). Sold separately. Li-Ion Rechargeable Battery Insert rechargeable battery and connect micro USB to charge. CR123 Battery Insert 2 CR123 batteries (positive terminals to the right).
-
Page 6: Camera Operation
CAMERA OPERATION Rotate Toggle to desired position: ON, OFF, or Record 1. Powers ON and starts recording. 2. Powers ON in standby mode. 3. Turns camera OFF. 4. Photo Button: With toggle in either ON or Record position press the photo button to capture still images. -
Page 7: Vibration Response
VIBRATION RESPONSE 3 Short Vibrations Powers ON (•••) Starts Recording/ 1 Short Vibration Photo taken (•) 2 Short Vibrations Stops Recording (••) 1 Long Vibration Powers OFF (---- ) 5 Short Vibrations WARNINGS* (•••••) *Open door and view display screen for specific warning message... -
Page 8: Camera Settings
CAMERA SETTINGS Changing Camera Settings Turn Camera to ON position to change camera settings. Open door and use display to view setting. Press menu to scroll through the settings options. Hold menu for 3 seconds to return to STANDBY. Menu/Back Scroll Left Scroll Right Select... - Page 9 OFF, 10 MINUTE, MAX NORMAL, UPSIDE DOWN, or AUTO ADJUST ON or OFF ON or OFF MODEL # Your MOHOC and SERIAL #, FACTORY RESET SD CARD DETAILS, ERASE, or FORMAT SD CARD SET DATE and TIME TURN ON DATE/TIME STAMP...
-
Page 10: Camera Mounting
CAMERA MOUNTING Apply Velcro mounting patch to desired position on helmet. Firmly attach MOHOC to Velcro mounting patch. Rotating Camera Lens MOHOC lens rotates up to 180⁰. If required, rotate lens barrel to maintain horizontal field of view. Use level lens indicators as a guide. -
Page 11: Video/Photo Playback
VIDEO/PHOTO PLAYBACK Connecting To Other Devices • Connect micro USB to computer • Download directly to computer with micro SD card • Connect to TV with micro HDMI connector • Connect to MOHOC App... - Page 12 Contact info@mohoc.com or visit the FAQ page on www.mohoc.com for assistance, additional product information and features. +1.208.806.1391 info@mohoc.com www.mohoc.com...
- Page 14 Canada, avis d'Industry Canada (IC) Cet appareil numérique de classe B est conforme aux normes canadiennes ICES-003 et RSS-210. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui peuvent affecter son fonctionnement.
