Summary of Contents for FantinoCosmi Intellicomfort CH180RF
- Page 1 Intellicomfort SYSTEM CONFIGURATION MANUAL...
- Page 2 ATTENTION! The documentation refl ects the characteristics of the product, however for regulatory commercial developments, recommended that customers verify availability of updates relating to this documentation on the Fantini Cosmi website: pdf.fantinicosmi.it For a quick guide to the basic operation of this system, Fantini Cosmi video tutorials are avail- able in the dedicated section.
-
Page 3: Table Of Contents
Index The devices ............................p. 4 The confi gurator ........................... p. 5 Language selection ..........................p. 6 Creating a new network ........................p. 7 Inclusion ............................... p. 8 Union ..............................p. 10 Signal repeater ............................. p. 11 Saving the confi guration to the master device ................. p. 12 Device operation check ........................ -
Page 4: The Devices

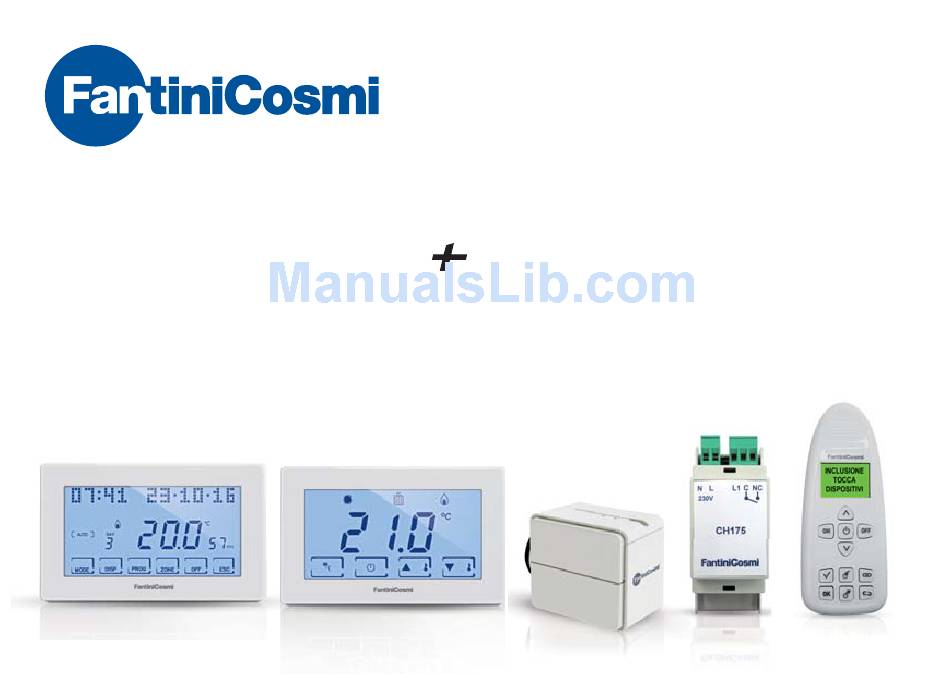

The devices Intellicomfort CH180RF CH120RF “MASTER” wireless weekly programmable thermostat Wireless thermostat O60RF CH175 Wireless radiator actuator Wireless actuator with 1 relay... -
Page 5: The Confi Gurator
The confi gurator The device is confi gured using the function keys of confi gurator 1590880 and touching the device with the tip of the remote control; subsequently the display can be used to select additional operations using the scroll keys or will provide informative messages about the operation. -
Page 6: Language Selection
Language selection The language used on the confi gurator can be changed by pressing ON and selecting LANGUAGE SELEC- TION with the ▼▲ keys. Press OK and select the desired language. To confi rm the selection press OK. LANGUAGE SELECTION ITALIANO ITALIANO ENGLISH... -
Page 7: Creating A New Network
Creating a new network The fi rst thing to do is to create a new radio network. This operation is essential to prevent devices in nearby apartments from interfering with each other. Turn the confi gurator on and using the ▼▲ keys select NEW NETWORK on the display, press OK, select CONFIRM and then press OK again. -
Page 8: Inclusion
Inclusion Inclusion is the operation indicating which devices should be part of the radio network. To include a device, turn the confi gurator on, press the key and touch the device to be included in the contact area. A message will confi... - Page 9 If the CH175 is included, pay attention when selecting the correct mode among: • GEN HEAT+COOL • GEN SUMM-WINT • ZONE DEH • GEN HEAT • ZONE HEAT+COOL • ZONE SUMM-WINT • GEN COOL • GEN HEAT • AUX1 • GEN DEH •...
-
Page 10: Union
Union In order to work, the devices must be coupled with the CH180RF by assigning the number of the zone to which they belong and the progressive number for interaction. To perform the union, turn the confi gurator on, press fi... -
Page 11: Signal Repeater
Signal repeater CH175 devices can be enabled to work as signal repeaters to increase the radio network coverage. To include this function, turn the confi gurator on, press the key and touch the device in the contact area. Using the ▼▲ keys, select the desired menu items, ENABLE or DISABLE and confi... -
Page 12: Saving The Confi Guration To The Master Device
Saving the confi guration to the master device After completing the confi guration of the entire system, it is recom- mended to save the network con- fi guration to the CH180RF. This is important because it allows you to make changes in the fu- ITEM SELECTION ture. -
Page 13: Device Operation Check
Device operation check To check the correct operation of a device and its confi guration on the confi gurator, turn the device on with the ON key, press touch the device to be checked. A message appears on the display O60RF indicating operating... -
Page 14: Saving The Confi Guration To The Confi Gurator
Saving the confi guration to the confi gurator After completing the confi guration of the entire system, the network confi guration can be saved to one of the 10 memories available in the confi gurator. To save the confi guration, turn the confi gurator on and using the ▼▲ keys select SAVE WITH NUMBER and press OK. -
Page 15: Loading The Confi Guration From The Master Device
Loading the confi guration from the master device To load the confi guration of an existing network turn the confi gurator on and with the ▼▲ keys select LOAD FROM MASTER, confi rm with the OK key and touch the CH180RF. A confi rmation message will indicate that the operation has been successful. -
Page 16: Loading The Confi Guration From The Confi Gurator
Loading the confi guration from the confi gurator To load the confi guration of an existing network on the confi gurator, use the ▼▲ keys to select RECALL NUMBER. Confi rm with OK. Using the ▼▲ keys, select the desired number and press OK. A confi rmation message will indicate that the operation has been successful. -
Page 17: Separation
Separation Turn the confi gurator on and press , fi rst touch the actuator to be separated and wait for the message “TOUCH SECOND DEVICE” to appear on the confi gurator display. Perform the operation by touching the CH120RF zone thermostat or the CH180RF master programmable thermostat with the confi gurator (refer to the SYSTEM SHEET to check the associations). -
Page 18: Exclusion
Exclusion On the confi gurator, press , touch the device to be excluded and wait for the message confi rming the operation to appear on the display DEVICE 16 DELETION O60RF TOUCH DEVICES EXCLUDED... - Page 19 If the device is not part of the confi gurator network, the situation will be the following: ion will be the following: INCORRECT NETWORK DEVICE 17 DELETION 1371080453-17 O60RF TOUCH DEVICES O60RF EXCLUDED OK DELETE NOTE: after the EXCLUSION procedure, wait 10 seconds before the next operation. Otherwise WAIT will appear on the display and every key will be inhibited.
-
Page 20: Removing A Device From The Network
Removing a device from the network When you want to remove a device from an existing network, in order to prevent fault messages, you must fi rst perform the SEPARATION procedure (see page 16) and then the EXCLUSION procedure (see page 17). In order to carry out operations, the network must fi... -
Page 21: Replacing A Device In An Existing Network
Replacing a device in an existing network If a device needs replacing in an existing network (for example due to a failure), fi rst of all load the confi guration from the master device and then follow the INCLUSION procedure (see page 7) and UNION procedure (see page 9) by entering the same zone number and progressive number of the device to be replaced as indicated on the SYSTEM SHEET. - Page 23 Waste disposal The symbol of the crossed-out wheeled bin indicates that the products must be collected and disposed of separately from household waste. The batteries and integrated accumulators may be disposed of together with the product. They will be separated at the recycling facilities. A black bar indicates that the product was placed on the market after August 13th, 2005. Participating in the separate collection of products and batteries contributes to the correct disposal of these materials and therefore avoids possible negative consequences for the environment and human health.
- Page 24 FANTINI COSMI S.p.A. Via dell’Osio, 6 20090 Caleppio di Settala, Milano - ITALY Tel. +39 02 956821 Fax +39 02 95307006 | info@fantinicosmi.it EXPORT DEPARTMENT Ph +39 02 95682229 export@fantinicosmi.it www.fantinicosmi.com...
