U S E R M A N U A L

Storm

™

Outdoor Television

TV SIZES 42" 55" 65" 84"

w w w. s eur a .c o m

Table of Contents

Need help?

Do you have a question about the Storm STRM-55.3-S and is the answer not in the manual?

Questions and answers

Summary of Contents for Séura Storm STRM-55.3-S

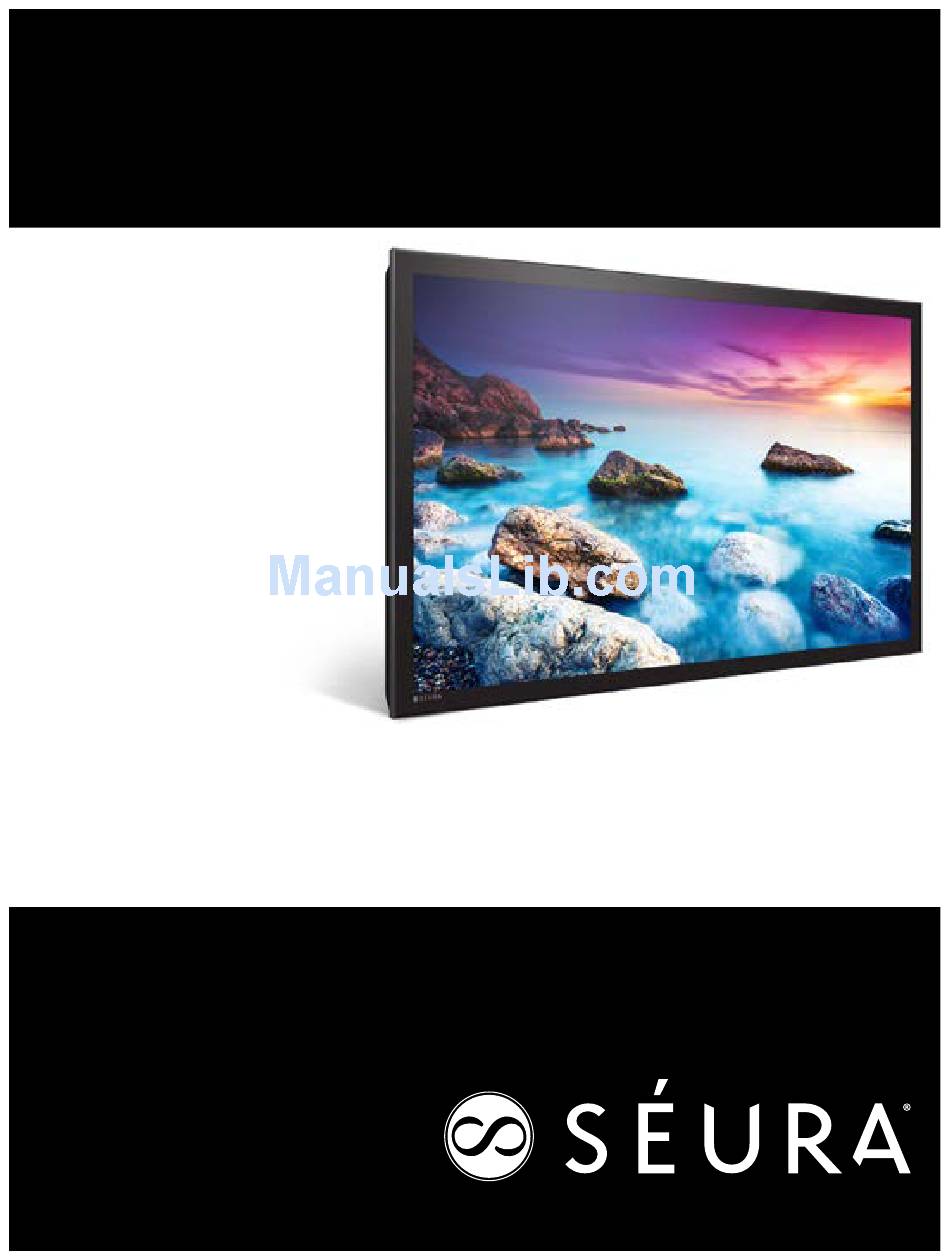

Page 1 STRM-42.3-S | STRM-55.3-S | STRM-65.4-S | STRM-84.4-S U S E R M A N U A L Storm ™ Outdoor Television TV SIZES 42" 55" 65" 84" w w w. s eur a .c o m...
Page 2: Important Safety Precautions
Warnings WARNING ATTENTION Never place a television set in an unstable location. A television set may fall, Ne placez jamais un téléviseur dans un endroit instable. Un téléviseur peut tomber causing serious personal injury or death. Many injuries, particularly to children, et causer des blessures graves ou mortelles.
Page 3 Important Safety Instructions Apparatus shall not be exposed to dripping or splashing and no objects filled with Servicing is required when the apparatus has been damaged in any way, such as liquids, such as vases, shall be placed on the apparatus. power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, WARNING –...
Page 4 Warnings Please keep this manual for future reference. Information in this manual is subject to change without prior notice. FCC Information This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 5 Avertissements S’il vous plaît garder ce manuel pour référence future. Les informations contenues dans ce manuel sont sujettes à modification sans préavis. Informations de la FCC Cet équipement a été testé et déclaré conforme aux limites d’un appareil numérique de classe B , conformément à la partie 15 des règles de la FCC.
Page 6 Warnings WARNING: READ ALL INSTRUCTIONS BEFORE ATTEMPTING TO INSTALL OR SERVICE THIS PRODUCT. When installing and during use of this product, basic safety precautions should always be followed to reduce the risk of fire, electric shock and/ or injury to persons including the following: •...
Page 7 Avertissements AVERTISSEMENT: LIRE TOUTES LES INSTRUCTIONS AVANT D’INSTALLER OU SERVICE CE PRODUIT. Lors de l’installation et pendant l’utilisation de ce produit , les précautions de sécurité de base doivent toujours être suivies pour réduire le risque d’incendie , de choc électrique et / ou de blessures, notamment les suivantes : •...
Page 8 Thank you for selecting a Séura Outdoor Television. This product has been inspected and packaged carefully before shipment. Please read this guide before beginning installation.
Page 9: Table Of Contents
Contents SETUP AND INSTALLATION Before Installation ........................10 Installation Instructions ......................11 Care and Maintenance ....................... 11 Setup ............................12 Input/Output Overview ....................12 Remote Control Functions ....................12 In The Box ..........................13 Making Connections ........................13 MENUS AND SETTINGS On Screen Display Menu (OSD) ....................
Page 10: Before Installation
Before Installation CAUTION Do not use any power cords or adapters other than those provided with this product! Use of power cords or adapters other than those provided with this product may cause fire, electric shock or malfunction. The individual IMPORTANT components can be destroyed if the polarity is reversed or an incorrect connection is used.
Page 11: Installation Instructions
Installation Instructions Installation Environment Recommended Location Avoid direct light or sun exposure, direct proximity to heat sources. Séura’s Storm outdoor television has been designed to perform indoors Do not place any heat sources such as radiators and heat registers, or outdoors in shaded or covered locations. Even on a cloudy day, there etc.
Page 12: Setup
Setup Input/Output Overview RF Coaxial Antenna/ Connections Cable input Component for 42" and 55" Input 2 +12 VDC Video Input models +5 VDC HDMI 1 HDMI 3 Coaxial AV Input 1 Input Input †† Optical Input HDMI 2 Analog Digital (and Audio Input...
Page 13: In The Box
In The Box Before using the device please check the following contents of the box for completeness: 2010 Remote Redesign Final guide last mute sleep zoom input display menu exit channel volume enter w a t e r p r o o f Outdoor Television AC Cable User Manual...
Page 14: On Screen Display Menu (Osd)
2010 Remote Redesign Final 2010 Remote Redesign Final 2010 Remote Redesign 2010 Remote Redesign Final Final On Screen Display Menu (OSD) 2010 Remote Redesign 2010 Remote Redesign guide last 2010 Remote Redesign 2010 Remote Redesign Final Final Final Final mute 2010 Remote Redesign guide Final...
Page 15: Picture Settings
OSD (cont.) Picture Settings (for 42" and 55" Models) The Picture Settings menu offers options to enhance and refine the image characteristics of your Séura Outdoor Television. These settings are based on ambient conditions of illumination and personal preferences. Adjustment options include: Picture Mode Contrast Brightness...
Page 16: Color Settings
OSD (cont.) Color Settings (for 65” and 84” Models)) Customize the display image according to your preferences. Adjustment options include: Color Temperature Red Gain Green Gain Blue Gain Gamma Blue ONly Input Color Format Color Range PC RGB Settings (for 65” and 84” Models)) Make screen adjustments for VGA input.
Page 17: Function Outdoor Settings
OSD (cont.) Audio Settings (for 42" and 55" Models) The Audio Settings menu offers options to enhance and refine the sound characteristics of your Séura Outdoor Television based on personal preferences. Adjustment options include: Equalizer 120 Hz 500 Hz 1.5 KHz 5KHz 10KHz Audio Language...
Page 18: Setup Menu
OSD (cont.) Setup Menu (for 42" and 55" Models) The Setup Menu offers options to determine fundamental settings of your Séura Outdoor Television based on personal preferences. Adjustment options include: Menu/Language Transparent OSD Time Out Closed Caption Restore Default Setup Wizard Software Update (USB) Blue Screen No Signal Off...
Page 19: Parental Menu
OSD (cont.) Parental Menu (for 42" and 55" Models) The Parental Menu offers options to restrict program viewing based on various national rating systems. To access the menu, enter the 4-digit Password using the keypad on the remote. The factory default password is “0000”. Adjustment options include: System Lock Change Password...
Page 20: Rs-232 Settings And Command Table
RS-232 Control Settings Table All COMMANDS and ACKNOWLEDGEMENTS begin with start text (STX) 0x02 and finish with end text (ETX) 0x03. Any data not contained between the STX and Models: STRM-42.3-S and STRM-55.3-S ETX commands will be ignored by the TV. STX and ETX must be sent as hex commands;...
Page 21 FUNCTION COMMAND (Text) ACKNOWLEDGEMENT (Response Text) STOP 0x02 0x03 0x02 0x03 SKIP FORWARD / CHAPTER + 0x02 0x03 0x02 0x03 SKIP BACKWARD / CHAPTER - 0x02 0x03 0x02 0x03 FAST FORWARD 0x02 0x03 0x02 0x03 FAST BACKWARD 0x02 0x03 0x02 0x03 EXIT 0x02...
Page 22: Ir Commands
IR Commands Remote Hexadecimal Codes Guide (EPG) Number 8 0000 006D 0020 0000 000D 0044 000B 001D 000B 001D 000B 001D 000B 0000 006D 0020 0000 000D 0044 000B 001D 000B 001D 000B 001D 000B 001D 000B 0044 000B 001D 000B 001D 000B 001B 000B 001D 000B 0044 001D 000B 001B 000D 001B 000B 001D 000B 0044 000B 001D 000B 001D Power Toggle 000B 001D 000B 0046 000B 0044 000B 001B 000D 12FF 000D 0044 000B...
Page 23: Troubleshooting
Troubleshooting If the product is not working properly, please check the following troubleshooting hints before you contact customer service: Symptoms Possible Solution Check the status LED. If the status LED is red, the Outdoor Television is in standby and the monitor is black, this is normal.
Page 24: Ports And Media Support
Ports and Media Support Ports (42" and 55" Models) Input Ports Line Audio Input 4 x RCA terminal, red, white Composite Video Input 2 x RCA terminal, yellow Component Video Input 3 x RCA terminal, red, green, blue HDMI Inputs 3 x HDMI Type A USB Input 1 x USB Type A...
Page 25: Warranty
Product Limited Warranty If a Séura, Inc. (“Séura”) Product (the “Product” or “Products”) fails to work or operate properly because of a defect in materials or workmanship, Séura will, for the length of the period indicated below, (starting on the date of the customer’s purchase receipt for the Product), at its option, either; (a) repair the Product with new or refurbished parts onsite or at Séura’s factory, including Séura’s labor if applicable;...
Page 26 Notes...
Page 27 Notes...
