Summary of Contents for BlueEyes STB

  • Page 1: Operation Manual

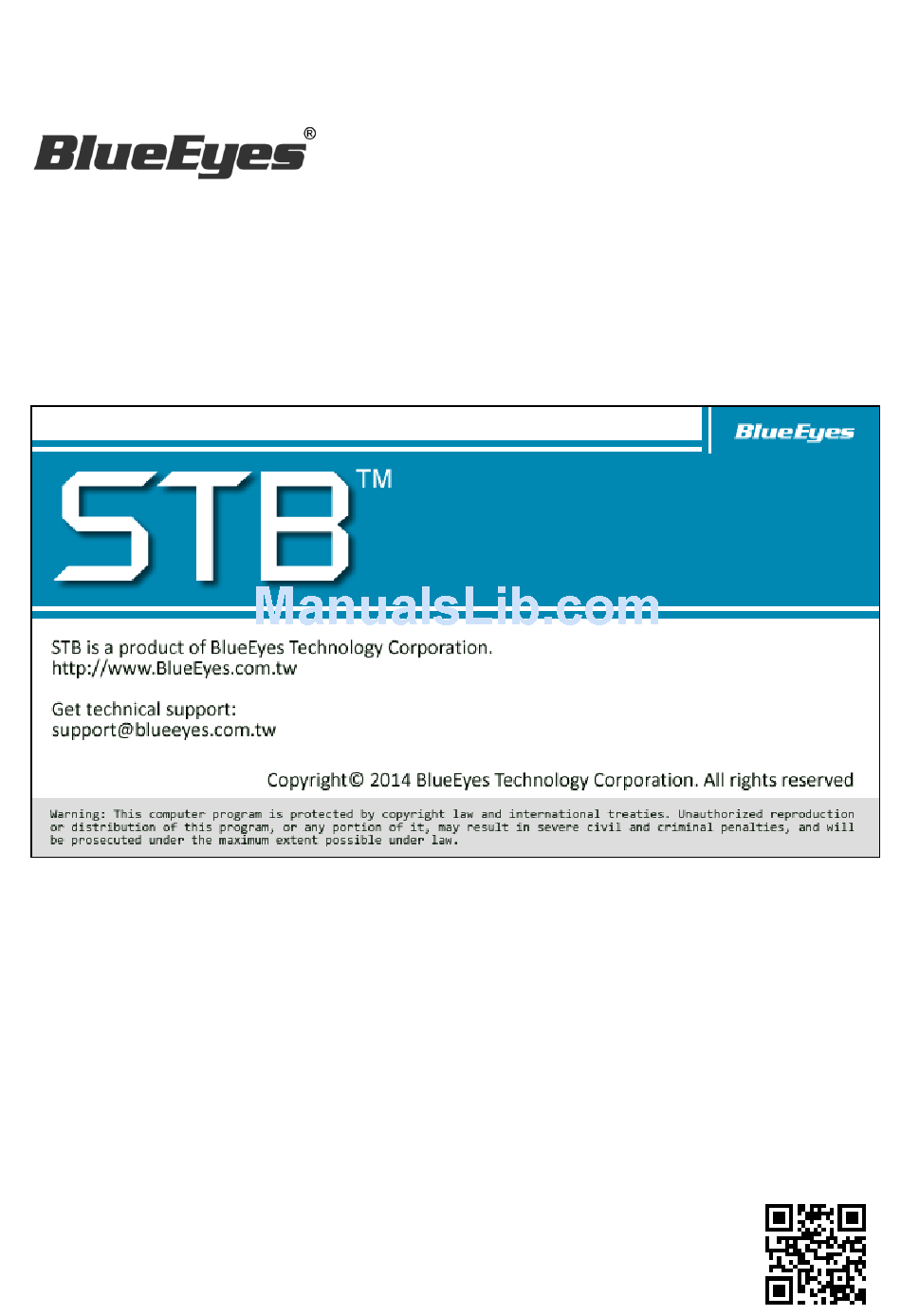

    Player Box Operation manual 2015/08/07 www.BlueEyes.com.tw...
  • Page 2 Operation manual This manual is for the product below -STB (Player Box ) Thank you for using the product of BlueEyes Technology. The manual will introduce the product of BlueEyes Technology. Please read the manual before you start using the product.

  • Page 3: Table Of Contents

    Index 1. About STB Player Box ....................4 1.1 Introduction ............................4 1.2 Features ............................. 4 1.3 Composition ............................5 1.4 Architecture Diagram ........................6 1.5 About the manual ..........................6 1.6 Intellectual Property Rights ....................... 7 1.7 Notices before use ..........................7 1.8 Appearance ............................
  • Page 4 Q3 Can’t see the video when making up for the class................50 Q4 The remote control doesn’t work....................50 Q5 How to reduce the noise when playing the video in STB? .............. 51 Q6 How to clean and maintain the STB? ....................51 Q7 Show up the request of entering the account and password.

  • Page 5: About Stb Player Box

    We spent few months researching and developing the STB player box for video room. It only cost a small amount of money for each seat and to build a perfect video room. You don’t need to converse or export the videos from the SES recording system;...

  • Page 6: Composition

    1.3 Composition iLearning multi-learning system contains iCam (Full HD Camera), SES (Lecture Recording System), STB (Player Box), FL (Film Library), and Montage (Film Editing Software). BlueEyes Technology www.BlueEyes.com.tw...

  • Page 7: Architecture Diagram

    1.4 Architecture Diagram STB is only suitable for second generation iCam camera. If you use first generation iCam camera, you will have the following restrictions: 1. Only can two times fast-forward the film, cannot four tomes or eight times or other high speed fast forward the film.

  • Page 8: Intellectual Property Rights

     If there are changes of the information in the manual, we would not notice you. Please go to the official website of BlueEyes Technology.  The company would not be responsible for the information downloaded from the website.
  • Page 9 – When you are in the room that just turned on the heating, or the place the air conditioner and heating would directly sweep through. – In the hot summer, you move the machine from an air conditioned room to a hot and damp place. BlueEyes Technology www.BlueEyes.com.tw...

  • Page 10: Appearance

    – The machine fall from high place or other reasons to cause damage. – Do as the manual but didn’t work 1.8 Appearance STB Player box is designed for the education institute to make up for the classes. The appearance is like this: BlueEyes Technology...

  • Page 11: Front Panel

     Do not put heavy objects on the machine.  Keep away from the water, stay dry.  To protect the hardware. For re-boot after the shutdown, please wait for the 10 seconds completely power off of the host. BlueEyes Technology www.BlueEyes.com.tw...

  • Page 12: Supported Audio And Video Formats

    Power input (DC 5V 2.0A Power input) Update firmware 1.9 Supported audio and video formats STB Player Box supported most of the audio and video format on the market, please see the table below for further information: BDMV、AVI、ASF、WMV、TS、MP4、MKV、RMP4、IFO、DVD-ISO、 Video formats BD-ISO、MINI BS、BD-9、BD25、RBD、D5、D9、DVD、RM/RMVB...

  • Page 13: Supported Display

    We suggest you that you can modify the name from .mod to .mpg, then the movie can be play on the STB player box. If you cannot play the DV video on STB, please let us know to help you solve the problem.

  • Page 14: Hdmi Monitor (Separately Sold)

    2.2 HDMI Monitor without built-in Speaker Please buy HDMI monitor without built-in speaker. The monitor has HDMI interface and Audio Out Sound output interface. The monitor is the most suitable for the STB player box. Look at the diagram below: Device connection diagram as below.

  • Page 15: Hdmi Monitor With Built-In Speaker

    2.3 HDMI Monitor with built-in Speaker If you purchase the HDMI monitor with build-in speaker, you should use the other way to connect the earphone to the STB player box as the monitor doesn’t have the sound output interface. Please go to 3C stores or electrical materials stores to buy Dual RCA Male to 3.5mm Stereo...

  • Page 16: Comparison Table Of Hdmi Monitor With/ Without Built-In Speaker

    Device connection diagram is as below, attention that the earphone is connected to the STB player box, use the Dual RCA Male to 3.5mm Stereo Female Y Adapter Audio Cable to transfer in the middle. The interface connection diagram of the HDMI monitor with built-in speaker connected to the STB player box is as below: 2.4 Comparison table of HDMI Monitor with/ without built-in...

  • Page 17: How To Adjust The Volume Of Hdmi Monitor

    The HDMI wire connected to the STB play box do not support hot plug. If you need to re-connect the HDMI wire, please turn the STB player box off first then re-connect it. If you don’t turn the STB player box off and plug the HDMI wire, it may cause the noise between the STB monitor and the monitor.
  • Page 18 There are many kind of HDMI monitors in the market. When you buy the HDMI monitor, please adjust the volume as the instruction. BlueEyes Technology www.BlueEyes.com.tw...

  • Page 19: Other Kinds Of Monitor (Separately Sold)

    3. Other kinds of monitor (Separately Sold) 3.1 Monitor with DVI interface The STB player box can go with the monitor with DVI interface, but you should buy the [HDMI to DVI signal converter] first. It cost about four hundred dollars.

  • Page 20: Monitor With Rca Interface (Television)

    If the education institute have the DVD player already, the monitor would be the RCA signal television. When the education institute change the DVD player to the STB player box, the television can be used, too. You just need to connect the RCA interface of the STB. The picture above is the RCA plum interface.

  • Page 21: Remote Control (Separately Sold)

    The student [infrared ray] remote control is designed for the students and it is easy to use. Student can easily control it and focus on the study. 4.1.1 Appearance We use infrared ray remote control to control the STB player box. It is very easy and convenient. BlueEyes Technology...

  • Page 22: Button Description

    4.1.2 Button Description These are descriptions of the common buttons for the student remote control: SwitchPress the button to turn on/ off the STB. Direction buttonOperate up and down, left and right. When playing the video, the left and right button has the timeline function.
  • Page 23 A and then press one more time to remember point B. Then it will repeat the fragment from A to B. After learning, press again to cancel. Second-jump fast forward, press one time to fast forward ten seconds. Second-jump fast rewind, press one time to reverse ten seconds. BlueEyes Technology www.BlueEyes.com.tw...
  • Page 24 BlueEyes Technology www.BlueEyes.com.tw...

  • Page 25: For Students [Wire] Remote Control (Separately Sold)

    The teacher’s remote control contain the function of the student’s remote control and it also can enter the setting menu to set up the STB, like location of network, monitor resolution, SES/FL shortcut…etc.

  • Page 26: Appearance

    Green Yellow 4.3.1 Appearance Blue 4.3.2 Button Description These are descriptions of the common buttons for the teacher’s remote control: SwitchPress the button to turn on/ off the STB. BlueEyes Technology www.BlueEyes.com.tw...
  • Page 27 A and then press one more time to remember point B. Then it will repeat the fragment from A to B. After learning, press again to cancel. Blue function button fast forward seconds ； Yellow function buttonReverse ten seconds. Green function buttonAdd/ edit/ delete BlueEyes Technology www.BlueEyes.com.tw...

  • Page 28: Instructions

    1080i 60Hz, 1080P 50Hz, 1080P 60Hz, 480P, 576P, 720P 50Hz, 720P 60Hz . The following buttons had no effect 4.4 Instructions To help you quickly find the clips you're looking for, you may be familiar with the following operation. BlueEyes Technology www.BlueEyes.com.tw...

  • Page 29: Fast Forward And Fast Rewind

    Press Paly button to play in normal speed. Caution! When using [Fast forward button], we suggested that no more than two times the maximum fast forward, because STB player box is immediately sent via the Internet, so it cannot be high -speed fast forward.

  • Page 30: Move Forward And Rewind In Second-Jump

    We have a caring design, you can set the seconds of the second-jump forward and rewind as 5, 10, 15, 20, 45, 60, 120, 180, 300 seconds. 《Fast procedure》 Setting Advanced Select seconds of fast forward or rewind Seconds select 1. Press [setting] on the remote control 2. Advanced  BlueEyes Technology www.BlueEyes.com.tw...

  • Page 31: Reply Previous Stopping Point Continue Playback Function

    If play the video again, then press [OK] then you can choose to play from the last play point. If you plug the power source or network cable, then you can’t choose the function when replay the video. BlueEyes Technology www.BlueEyes.com.tw...

  • Page 32: Remote Control Disturbed By Infrared Ray

    4.5 Remote control disturbed by infrared ray No matter using the student’s or the teacher’s remote control, they can control the STB player box. But in some classrooms, they would be disturbed because of the seat space allocation. We suggested you to buy the student’s [wire] remote control.

  • Page 33: Operating Procedures For Making Up Classes (Ses)

    5. Operating procedures for making up classes (SES) 《Fast procedure》 Power on Press “OK” button STB01 Play The first STB player box is STB01, and the second one is STB2, and so on. 1. Power on  2. Press “OK” button  3. STB01 ...

  • Page 34: Operating Procedures For Making Up Classes (Fl)

    《Fast procedure》 Power on Press “OK” button Player box 1 Play 1. Power on  2. Press “OK” button  3. player box 1  4. Select the video  5. Press [OK] to play BlueEyes Technology www.BlueEyes.com.tw...
  • Page 35 The first STB01(as the sample, select player box 1) If you use the second player box, choose player box 2, and so on. The file name would show the file information, such as lesson, unit, teacher, class, date and time of the class. BlueEyes Technology www.BlueEyes.com.tw...

  • Page 36: Setting

    7. Setting STB player boxes are set, the set point is printed as a sticker, and stick on the left side of the player box, so you don’t need to do any setting or change, just connect the power cable, network cable and HDMI cable. You only need to reset the player box according to this chapter if the setting is changed by others.

  • Page 37: About Ses Shortcut (My_Shortcuts) Setting

    In the FIX IP(manual) window, the subnet mask is set as 255.255.255.0 The IP address of STB player boxes are set, the set point is printed as a sticker, sticking on the side of the player box. The IP address is 192.168.1.177, and the second one is 192.168.1.178, and so on.
  • Page 38 Confirm  Enter the user ID (please enter the account of STB player, for example, the first one is client1, others reference factory preset list), network code, specific file server IP (The preset of SES is 192.168.1.169) in order. After entering, choose “detail” and set the label name as Press “OK”...

  • Page 39: About The Fl Shortcut (My_Shortcuts) Setting

    The following instruction is for the clients who buy the FL file library. If you don’t have one, please skip the chapter. The SES shortcuts are set before shipment, if the STB shortcut is deleted accidentally, you can reset according to the chapter.
  • Page 40 FL operation manual), network code, specific file server IP (The preset of FL is 192.168.1.170) in order. After entering, choose “detail” and set the label name as Press “OK” button, and then press Enter. 5. Press “OK” button BlueEyes Technology www.BlueEyes.com.tw...

  • Page 41: About The Video File Sharing Setting Of Ses One

    1. Adjust the setting in the Windows7 / 8 Systems Internet Sharing Center Open control panel  Network and Internet  Network and Sharing Center  Change advanced sharing settings a. Network discovery –Turn on b. File and printer sharing - Turn on BlueEyes Technology www.BlueEyes.com.tw...
  • Page 42 Password protected sharing - Turn on BlueEyes Technology www.BlueEyes.com.tw...
  • Page 43 2. Enable guest account Open Control PanelUser Accounts Click Manage other accounts BlueEyes Technology www.BlueEyes.com.tw...
  • Page 44 Click Guest account BlueEyes Technology www.BlueEyes.com.tw...
  • Page 45 Turn on the guest account BlueEyes Technology www.BlueEyes.com.tw...
  • Page 46 It would look like this when finished BlueEyes Technology www.BlueEyes.com.tw...
  • Page 47 3. Select [Everyone] and [Guest], click Add. After the successful implementation, it would show the information of the Everyone and Guest p ermission level as read. After clicking File Sharing, it would appear the item information of public folder. BlueEyes Technology www.BlueEyes.com.tw...
  • Page 48 BlueEyes Technology www.BlueEyes.com.tw...
  • Page 49 4. Check Network share Click the Windows button +R to see the Run window. Enter the PC IP address and click If it was set correctly, it would show the public folder of Video in the Network directory. BlueEyes Technology www.BlueEyes.com.tw...
  • Page 50 Please download the registry editor file on the Internet, input the registry file and edit the setting of system share permissions. Download path： http://blueeyes.tv/download/fixreg.zip Registry File Content： Windows Registry Editor Version 5.00 [HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\] "everyoneincludesanonymous"=dword:00000001 "NoLmHash"=dword:00000000 "LmCompatibilityLevel"=dword:00000002 [HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\LanManServer\Parameters] "restrictnullsessaccess"=dword:00000000 "AutoShareWks"=dword:00000000 [HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows\CurrentVersion\Policies\System] "LocalAccountTokenFilterPolicy"=dword:00000001 BlueEyes Technology www.BlueEyes.com.tw...

  • Page 51: Common Questions Q&A

    The infrared ray receiver on the front panel of the STB is not blocked by things. If the remote control is broken, buy a new one from our company.

  • Page 52: Q5 How To Reduce The Noise When Playing The Video In Stb

    Q7 Show up the request of entering the account and password. If the STB player box requires you to key in the account and the pass words when you are using it, there might be some problems with following conditions: 1.

  • Page 53: Q8 When Using 2X Fast Forward And Rewind, The Video Would Pause Then Play

    Q10 The volume of the AV output interface of the player box is too low. When you use the AV interface as the sound output, there are some ways to BlueEyes Technology www.BlueEyes.com.tw...
  • Page 54 1. Use the HDMI monitor instead, it is correct to use the HDMI monitor volume and it is louder. 2. Buy [Earphone Modulator] and connect between the AV interface and the earphone. This can higher the volume. 3. Use better earphone. The quality of the earphone may influence the volume. BlueEyes Technology www.BlueEyes.com.tw...
  • Page 55 Note BlueEyes Technology www.BlueEyes.com.tw...
  • Page 56 Note BlueEyes Technology www.BlueEyes.com.tw...
  • Page 57 Note BlueEyes Technology www.BlueEyes.com.tw...
  • Page 58 Note BlueEyes Technology www.BlueEyes.com.tw...
  • Page 59 Note BlueEyes Technology www.BlueEyes.com.tw...
  • Page 60 © 2015 BlueEyes Technology Corporation. All rights reserved. PRINTED IN TAIWAN This paper is for informational purposes only. BlueEyes is registered trademarks or trademarks of BlueEyes Technology Corporation. Other product or company names mentioned herein may be the trademarks of their respective owners.
