SiteX HD Series Remote Interface Manual
Description:
The SiteX HD Series consist of Power Distribution Units and Environmental Monitors with a built in web server in
a self-contained unit. Web pages, including graphs, are generated from the unit, and monitor power and environmental conditions
within the cabinet. No software other than a web browser is required, and several data formats are available. Models are available
with a wide range of onboard features; not all features are available on each model.
Specifications (See Unit Label for Ratings):
Networking:
HTTP, HTTPS (SSL/TLS), SMTP, POP3, ICMP, DHCP, TCP/IP, NTP, FTP.
Data Formats:
HTML, SNMP, CSV/Plain Text, Telnet, WAP, PDA formatted HTML, XML.
EMC Verification:
Class A digital device. This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Receptacle Ratings:
NEMA 5-15R
NEMA 6-20R
Form: GM1063
RSM/RSP/RSE/RSE-B/
RSMINI163/RSMINI/RSMINI-P
User Guide
125 Volts, 15 Amps
250 Volts, 20 Amps
800-432-3219
www.geistmfg.com
NEMA 5-20R
125 Volts, 20 Amps
IEC320 C13
125/250 Volts, 15 Amps
Revision Date: 5/30/08
Advertisement
Table of Contents
Related Manuals for Geist RPS Series
Summary of Contents for Geist RPS Series
-

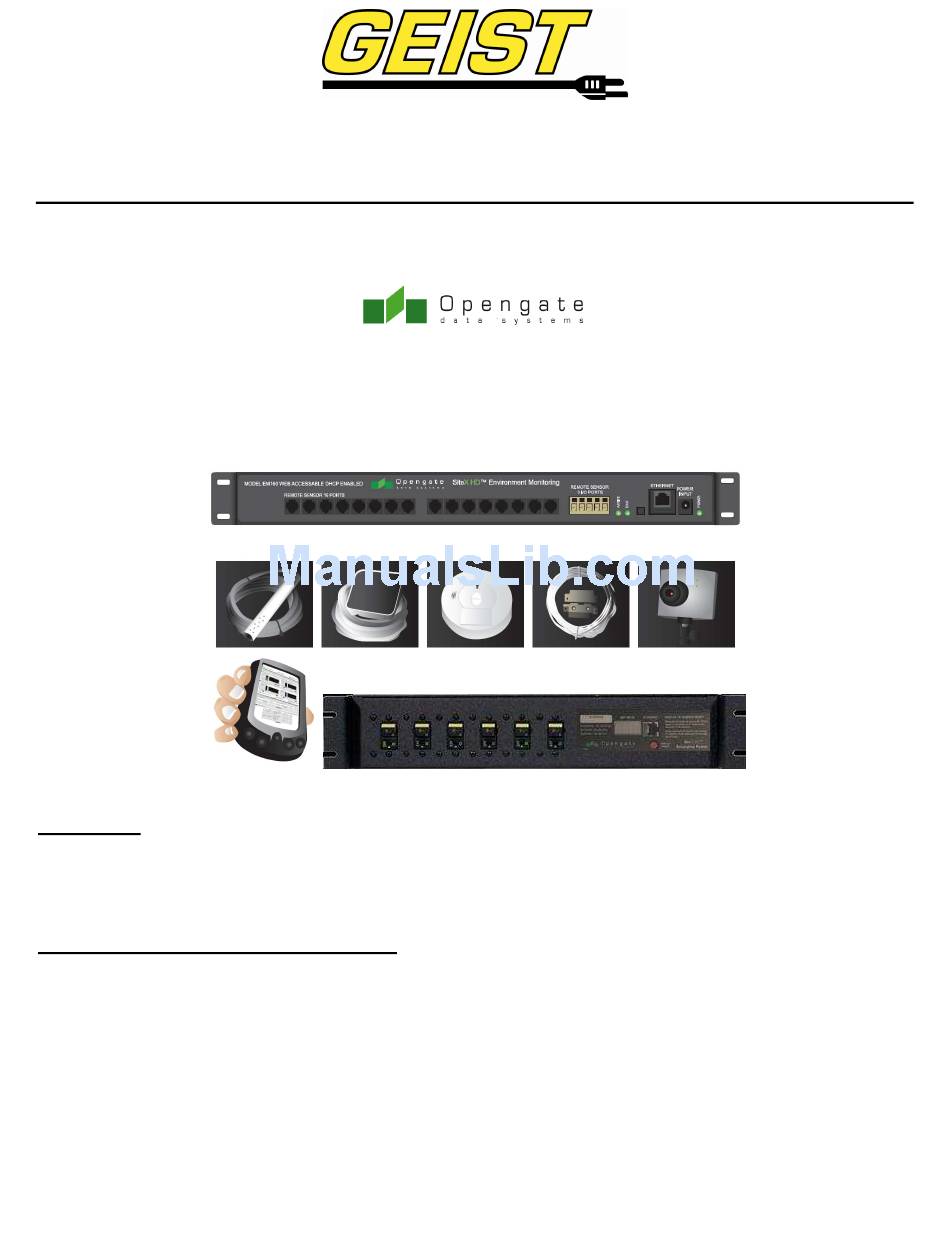

Page 1: User Guide
