Summary of Contents for Hiltron DC28

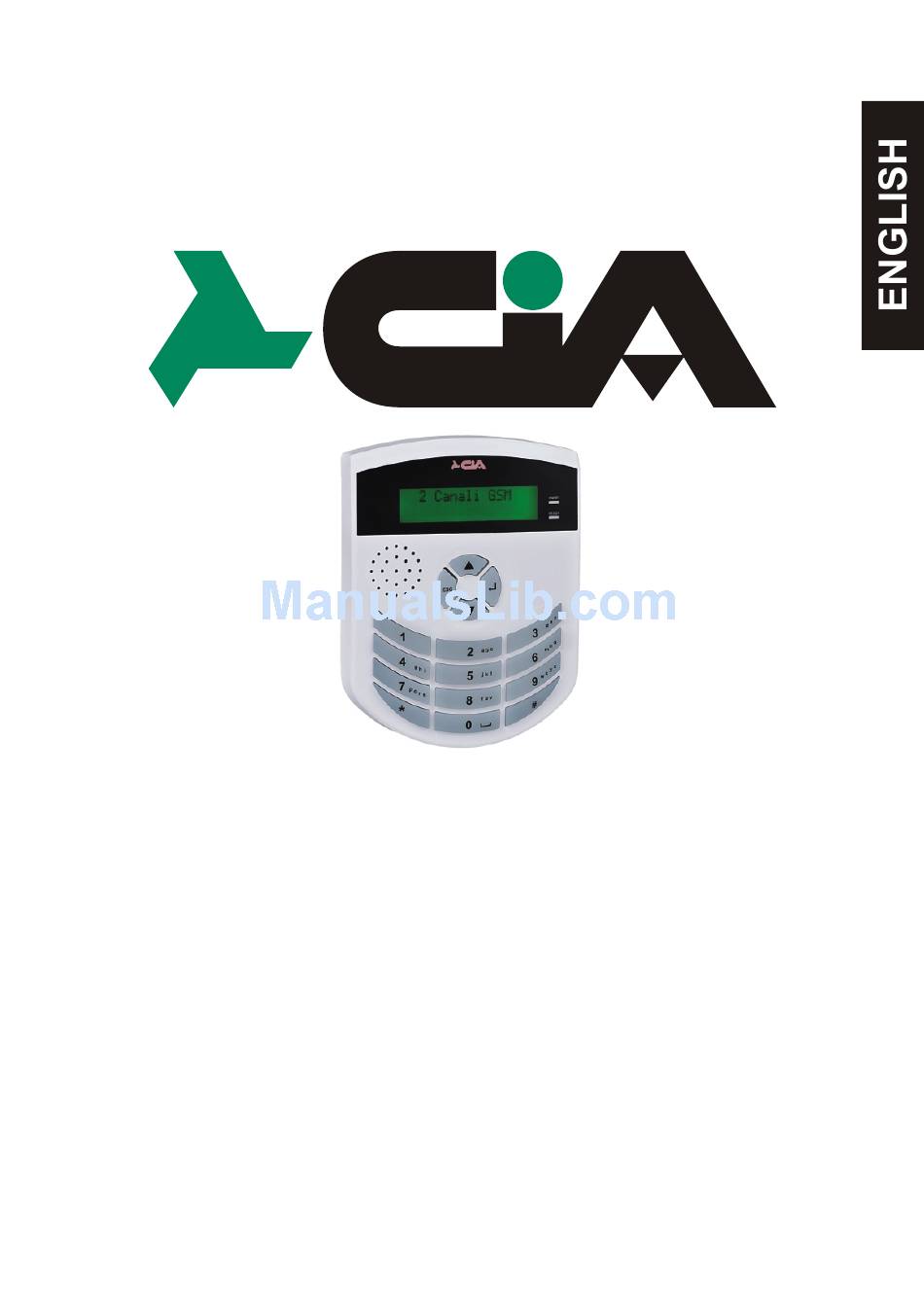

- Page 1 GSM phone dialers with vocal messages TDC28 - TDC36 - TM26GSM TM66GSM - ERMES2 USER’S MANUAL (for circuits 622aMA-2 711aMA-1.xx...
-
Page 2: Table Of Contents
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual Index Introduction ..............3 Chapter 1 - 1.1 Functional characteristics .................3 1.2 Technical characteristics ..................3 Installation ..............4 Chapter 2 - 2.1 Connections TDC28..................4 2.2 Connections ERMES2-TM66GSM-TM26GSM-TDC36........5 Programmation...............6 Chapter 3 - 3.1 Accessing programming.................. 7 3.2 Address book....................8 3.3 Vocal messages.....................10 3.4 TXT/SMS messages..................12 3.5 Channels......................14... -
Page 3: Chapter 1 - Introduction
Introduction Introduction 1.1 Functional characteristics Built-in microphone Dual Band GSM module Delay on input singularly programmable Possibility to assign each phone number singularly to one channel, some channel or to all channels Antiopening and antitearing protection tamper Multiple languages: Italian, English, French, German, Spanish, Portuguese Indication of the intensity of GSM signal and of the telephone manager Message repetitions and calling cycles settable 'Out of order' function... -
Page 4: Chapter 2 - Installation
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 2 Installation 2 Installation 2 Installation 2 Installation 2.1 Connections TDC28 2.1 Connections TDC28 2.1 Connections TDC28 2.1 Connections TDC28 This connection allows the input and output of the burglar alarm whether with the electronic key as with phone dial. -
Page 5: Connections Ermes2-Tm66Gsm-Tm26Gsm-Tdc36
Installation Installation Installation Installation 2.2 Connections ERMES2 / TM66GSM / TDC36 / TM26GSM 2.2 Connections ERMES2 / TM66GSM / TDC36 / TM26GSM ERMES2 ERMES2 ERMES2 SETUP SETUP TM66GSM TM66GSM TM66GSM TDC36 TDC36 TDC36 Tamper Tamper Int1 Int1 Int2 Int2 K2 K3 K2 K3 U2 U3 U2 U3... -
Page 6: Chapter 3 - Programmation
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 3 Programmation After the installation and the power to the telephone dialer select your language using the keys and confirm with The disponible language : Italian, English, French, Spanish, Portugues, German. After selecting language, the telephone dialer, is able to stand/by show status, rolling, the two input channels (default CH1 and CH2 is enabled is disabled). -
Page 7: Accessing Programming
Programmation To operate in the various menu you can use the keys until you see, for example: I n i t G S M 8 - P R O G R A M M A T I O N and confirm with or use the shortcut key (for example Programmation). -
Page 8: Address Book
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 3.2 Address Book 7 8 8 1 In this menu you can enter or edit the phone numbers that the controller should call in case of activation of a channel. Digit the code and press in sequence is displayed N u m b e r 0 0 0 0 1 N u m . - Page 9 Programmation For bind a channel to the number, press the key that corresponds to the channel (example channel 1; for channel 2, etc.). To delete the assignment simply retype the channel number is displayed: V o c a l c a l l C h a n n e l o o o o o o...
-
Page 10: Vocal Messages
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual Completed the setting to the number entered, press the button once to go back and select the next number to be stored using the keys. Repeat the same procedure for the other numbers. NOTE: If no number is entered in the address book and assigned to one of the channels enabled, the telephone dialer is displayed: 2 5 Y o A B C D C H 1... - Page 11 Programmation The message sent during a call as a result of the activation of a channel is composed of the common message followed by specific message channel enabled, all repeated for as many times as indicated by the "Num" parameter (see section 3.7.5).
-
Page 12: Txt/Sms Messages
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual NOTE: When a channel is alerted, the mode dial makes a series of calls to all numbers entered in the phonebook Voce matched to that channel and forward voice message concerning preceded by common message. The parameter "Amount cycles described below allows you to determine how often this cycle must be repeated calls. - Page 13 Programmation Once you have typed the message utilize the button press or . The following is a table of inputs and outputs that are displayed at the top of the display: Description channel that will be sent via SMS (Ch1/Ch2) C h a n n e l TDC28, TDC36, TM26GSM/(Ch1-6 Ch) ERMES2, TM66GSM Description for channel 1 input not active...
-
Page 14: Channels
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 3.5 Channels In this menu you can set how should be activated channel telephone dialer. Digit the code (MASTER) and then press the button after the button (Vocal Messages). Is displayed : C H A N N E L S E L E C T C h a n n e l Press the button... - Page 15 Programmation Once you have chosen the way the selected channel becomes alarmed, you can choose whether to condition or not this input to INT1, INT2 or In K1, K2. "Make "an input means do so depend on the presence of a positive voltage to make it operational;...
-
Page 16: Output
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual I N T 1 Input INT 1 Input INT 2 I N T 2 No condition O f f Input channel 1 Input channel 2 I n K 2 Po insert a delay between the activation of the channel signal and the actual beginning of the cycle of calls. -
Page 17: Mode
Programmation 3.6.1 Mode Once you have selected the output you can set the behavior when it receives a command to activate or deactivate (see also section 4.2.3) The display visualized : O u t 1 M o d e Press the button . -
Page 18: Pulse Duration
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual The state of the output is determined with reference to the K1 input : with a present tension of 12V on the K1 in putthe dialer I n K 1 it considers the active output, while in lack of such tension currency the disattiva output The output makes reference the K2 input I n K 2... -
Page 19: Remote Control
Programmation 3.7.1 Remote Control With this parameter you enable/disable the mode dial to accept remote control. NOTE: If you disable this setting, the telephone dialer does not respond to calls from outside and does not accept activation commands or questioning of the inputs and outputs during the alarm call. -
Page 20: Reply Pulse
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 3.7.3 Reply pulse Indicates the number of rings that the dialer waits before answer the call when remote control is enabled. Digit (MASTER code) and sequence the buttons: is displayed : R e p l y I m p u l s e s Press the buttons is displayed :... -
Page 21: Numbers Of Messages
Programmation 3.7.5 Number of messages This parameter indicates the number of times the voicemails (common message + channel message) are repeated for each call. Digit (MASTER code) and sequence the buttons: is displayed : N o . M e s s a g e s Then press is displayed : N o . - Page 22 TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual Digit and press the button Is displayed : C O D E S E L E C T I O N C O D E M A S T E R Press the button is displayed : M A S T E R C O D E - - - -...
-
Page 23: Info
Programmation 3.9 Info This section gathers together useful information for the identification of the combiner model and the firmware release. This information may be requested by technical assistance in order to identify the product more easily and give appropriate suggestions for its use. Digit (MASTER code) and in sequence the keys then press... -
Page 24: Chapter 4 - Operation
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual Operation Use of combiner is made easier by the presence of the display which provides information on the activities and status of the combiner. The backlight of the display is automatically controlled: this activates when the user presses any key or when a channel is activated, and it turns off 20 seconds following the end of any operation. -
Page 25: Local Control
Operation 4.2 Local control It is possible, either by using the keypad or through programming, to interact with the combiner so as to activate its outputs or interrogate its inputs. To access the operation menu items for local control indicated below, the combiner needs to the MASTER code (default “5678”) or COMMANDS code (default "1234”) must be keyed. -
Page 26: Output Command
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 7 8 3 4.2.3 Outputs command This gives access to interrogation and command of the outputs.If the combiner is not allarmed and digit a code to acces,this is the voice othat appears on display: Digit one of of the two codes and later, the buttons , is displayed :... -
Page 27: Input Status
Operation 7 8 4 4.2.4 Input status It approaches the visualization of the state of the input. Digit the code (MASTER of default) or (COMMAND) and press the button is displayed : I n K 1 I r r i g a t i o n Use the keys or directly the keys from 1 at 6 for visualize IN K1,IN K2...IN K6... -
Page 28: In Service
TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual 4.2.6 In Service 7 8 7 This command returns the system to its normal operation by an out-of-service condition Digit the code and press s visualized for a few moments S E R V I C E NOTE: This command is executable only with the MASTER code. -
Page 29: Remote Control
Operation 4.2.8 Remote control The combiner is able to interpret the DTMF multi-frequency tones commonly generated by telephone apparatus, and therefore to carry out commands or send information during a telephone connection. If the “Remote Control” option is programmed to ON (see para 3.7.1) and “Response Pulses”... - Page 30 TDC28 -TDC36-TM26GSM-TM66GSM-ERMES2 User’s manual STOP ALL CYCLES Interrupts the call cycle relative to all alarmed channels. This command stops both the current call cycle and any waiting cycle associated with the other channel. The combiner carries out no further telephone calls to other numbers in the directory, but returns to a waiting state for any successive activation.
- Page 31 Operation LOUDSPEAKER MONITORING Permits listening to the sound in the are in which the combiner is located. The combiner sends 3 beeps of command recognition and activates audio connection with the remote equipment. Key “9” to activate two way comunication with viva-voce (with increased microphone sensitivity).
- Page 32 DESCRIPTION OF PRODUCTS: GSM TELEPHONE DIALER 6IN/6OUT WITH VOCAL MESSAGES GSM TELEPHONE DIALER 2IN/2OUT WITH VOCAL MESSAGES TRADE MARK: The CIA logos is registered by HiLTRON Srl they turn out consistent to the indicated directives of continuation EMC 2006/95/CE DECLARATION OF CONFORMITY...
