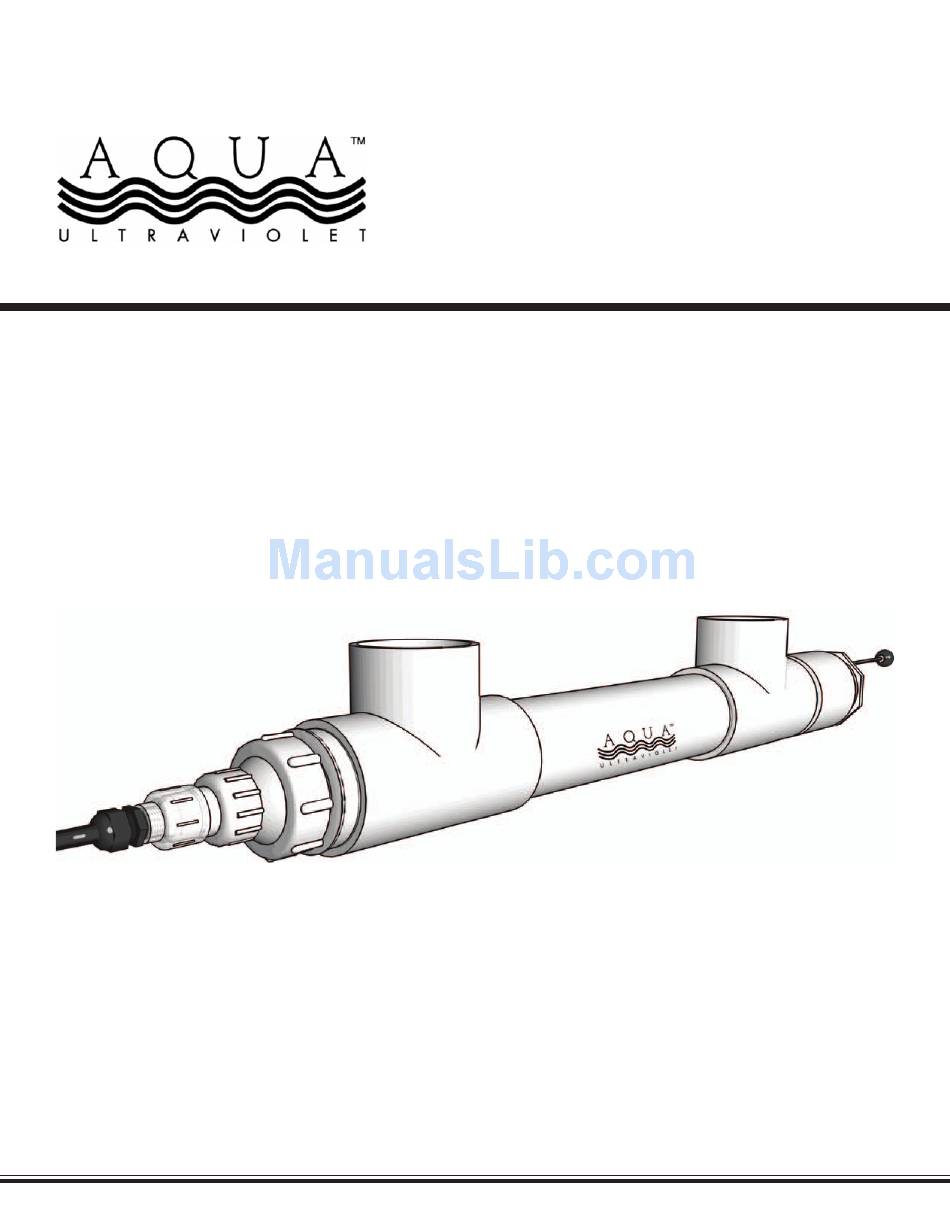

- Page 1 42371 Avenida Alvarado Temecula, CA 92590 TOLL FREE (800) 454-2725 TEL (951) 296-3480 FAX (951) 296-3490 www.aquauv.com Aqua Ultraviolet UV Sterilizer Instruction Manual for SL Series Wiper Units SEE INSIDE FOR COMPLETE LINE OF UNITS...
- Page 2 SL 100 WATT - SL 200 WATT UNITS & TRANSFORMERS 110V/60HZ SL 100 Watt Unit 1 Lamp 1 - 100 Watt Trans. 1 - Step Trans. 1 - Ignitor SL 200 Watt Unit 1 Lamp 1 - 200 Watt Trans.
- Page 3 SL 100 WATT - SL 200 WATT UNITS & TRANSFORMERS 240V/60HZ SL 100 Watt Unit 1 Lamp 1 - 100 Watt Trans. 1 - Ignitor SL 200 Watt Unit 1 Lamp 1 - 200 Watt Trans. 1 - Ignitor AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 4: Table Of Contents
Incorrect Installation............THIS SECTION CAN BE USED FOR NOTES: AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 5: Important Information
Your dealer or distributor cannot offer any warranty work or exchanges on your product. In the US please call TOLL FREE 1 - 800 - 454 - 2725 (951) 296-3480 Outside the U.S. THANK YOU! AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 6: Warranty
The warranty and remedies set forth herein are conditional upon proper storage, installation, use, maintenance and conformance with the applicable use. It will be based upon Aqua Ultraviolet’s discretion as to whether the defects are of manufacturing origin. Any damages due to shipping and handling, packing, or installation are not covered by this warranty. - Page 7 All warranty returns or repair returns must come freight prepaid with an RMA number outside clearly marked on the box. All other returns will be refused. Aqua Ultraviolet will not be liable for any shipping cost to return warranty or repair items.
-
Page 8: Introduction
INTRODUCTION We at Aqua Ultraviolet would like to take the time to thank you for purchasing the finest ultraviolet system on the market. For over twenty years, Aqua Ultraviolet has manufactured ultraviolet systems which are in use in many different fields and industries such as aquariums, aquaculture, public and commercial aquariums, educational institutions, government agencies, commercial and research organizations throughout the world. -
Page 9: Frequently Asked Questions
What should I expect after my UV is installed? If your Aqua Ultraviolet system is installed after the filter and is properly sized the water should be clear in 3-5 days. If your Aqua Ultraviolet system is installed before the filter the water should be clear in 7-10 days. The green algae on the sides and bottom of the pond will not disappear, this is normal in a pond. -
Page 10: Parts List
PARTS LIST UNITS AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... - Page 11 PARTS LIST CONTINUED: Nema Transformer 110V/60Hz Nema Transformer 240V/60Hz AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 12: Parts List
PARTS LIST CONTINUED: Nema Transformer 110V/60Hz Nema Transformer 240V/60Hz AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 13: Recommended Pond & Aquarium Layouts
RECOMMENDED POND LAYOUTS RECOMMENDED INDUSTRIAL/RETAIL AQUARIUM LAYOUT AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 14: Installation Instructions
NOTE: All units are quality tested from the factory. All units are rated up to 50 PSI. 1. MOUNTING: Mount your Aqua Ultraviolet system horizontally or vertically on a wall or above ground, on a level and firm surface. Do not lay the system on the ground. Your system should be easily accessible and as close to the filter as possible. - Page 15 LAMP AND BALLAST! READ AND FOLLOW ALL INSTRUCTIONS AND/OR SAFETY INSTRUCTIONS FIRST! CAUTION: Your Aqua Ultraviolet unit is not submersible. If this unit falls into the water, turn main power off and then retrieve it. Do not attempt to use this sterilizer if it has been submerged. Do not operate this unit if it has a damaged cord or plug, if it is malfunctioning or if it has been dropped or been damaged in any manner.
- Page 16 EZ-Twist cap. Hand-tighten until leak stops. Do not use a pipe wrench, pliers or any other tool. Hand-tighten only. Repeat step # 3 AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
- Page 17 If this occurs, please contact our customer service department for assistance. WARNING: DO NOT CONTINUE UNTIL YOUR INSTALLATION PASSES STEP #3 AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 18: Electrical Installation
4. DISCONNECT THE DAVIS CONNECTOR: Unscrew the Davis connec- tor located just above the transformer cap. This will allow the transformer cap to turn without kinking the wire. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 19: Electrical Installation
NOTE: Your Aqua Ultraviolet sterilizer has been fitted with a clear quartz cap that will glow to indicate the lamp is on. This glow may not always be visible during daylight hours, please check at night. If the glow is not visible, please con- tact our customer service department. -
Page 20: Maintenance
WARNING: This unit creates and intense heat and can severly burn you. It is a water cooled unit and must cool down for ATLEAST 30 minutes before removing/touching the lamp. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 21: Changing The Lamps
Pull the wiper rod completely out (fully extended). 5. DISCONNECT CAP: Twist off the large cap (EZ twist top) this will release the Quartz Sleeve and the assembly will still be intact. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... - Page 22 8. EXTRACT ROD: Pull the wiper rod from the large open end of the unit. 9. REMOVE TOP C-CLIP: Using needle nose pliers, remove top C-Clip from wiper rod. This will release the wiper blade. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 23: Cleaning The Quartz Sleeve
Do not force the lamp out of the quartz sleeve. Any force would be an indication of an improper removal of the lamp. 4. Drain the housing. 5. Pull the wiper rod completely out (fully extended). AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... -
Page 24: Installing A Replacement Quartz Sleeve
5. Re-install E-Z twist top without quartz sleeve. Slide quartz sleeve in housing with rubber seal already on quartz sleeve. Be sure to center the quartz sleeve into the seat at the bottom of the unit. AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... - Page 25 7. Twist on the Quartz cap. DO NOT use a pipe wrench, pliers or any other tool on this unit. Tighten by hand only. 8. See # 5 under INSTALLATION INSTRUCTIONS on page 11 and continue. THIS SECTION CAN BE USED FOR NOTES: AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
-
Page 26: Incorrect Installation
INCORRECT INSTALLATIONS The following will damage the unit’s electrical components and/or quartz sleeve(s). AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490... - Page 27 THIS SECTION CAN BE USED FOR NOTES: AQUA ULTRAVIOLET 42371 AVENIDA ALVARADO, TEMECULA, CA 92590 TEL: 951-296-3480 FAX: 951-296-3490...
