Summary of Contents for NETWEEN NVR

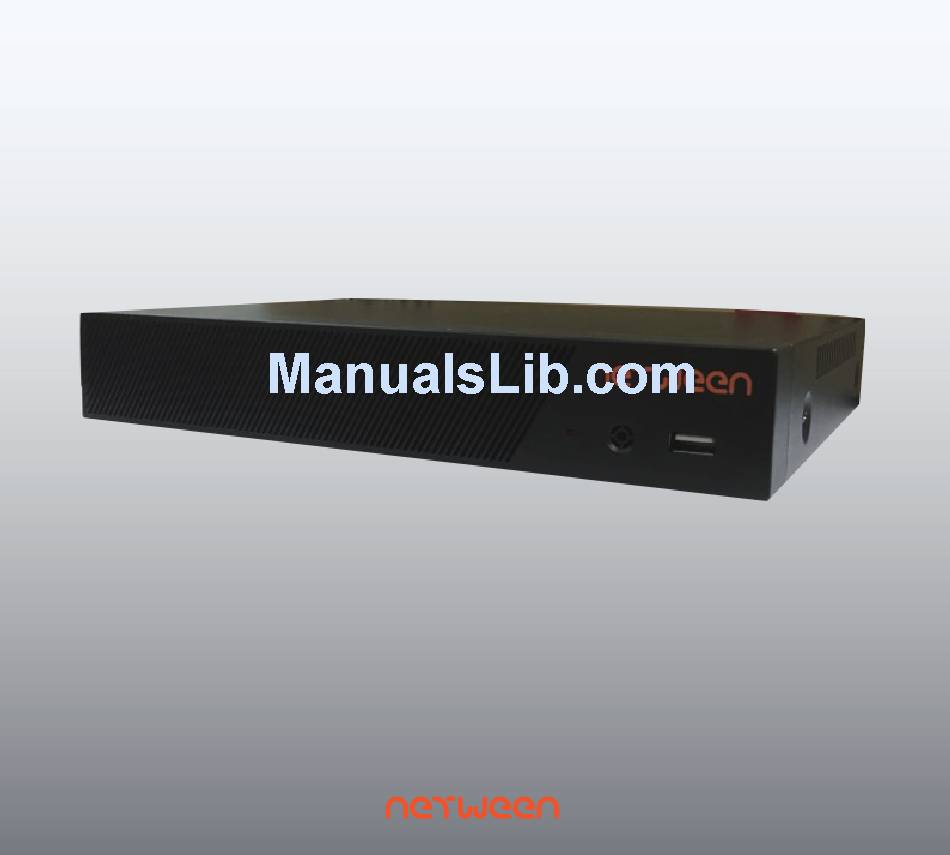

- Page 1 Netween NVR Quick Installation Guide COPYRIGHT BY NETWEEN INC. ALL RIGHTS RESERVED. www.netween.co.kr For more information, refer to the manual on the Netween website...
-
Page 2: Table Of Contents
Table of Contents 1. Package contents 2. Device layout 3. Preparation 4. Initial Configuration 5. Mobile app settings 6. Product settings 1) Connecting to cameras 2) Play 2) Time setup 3) Sync 4) Recording 5) Log out... -
Page 3: Package Contents
1. Package contents Please check the contents of the package Netween NVR AC adapter(12V2A) Mouse Quick Installation Guide 2. Device layout LAN Port (To connect Router to NVR ) Power WAN Port Router Power Monitor Monitor Audio USB Port HDMI... -
Page 4: Preparation
Connect your RGB or HDMI monitor cable to the port Connect the NVR to AC adaptor matched as below (DC12V 2A) 또는 HDMI Connect the mouse usb to the NVR Connect a LAN cable from your router to the NVR... -
Page 5: Initial Configuration
4. Initial Configuration Click the mouse right button on the screen Leave the password as empty for now Check on PnP and click “OK” anywhere to go to Quick Menu, and and click “Okay” click “Main menu”... - Page 6 4. Initial Configuration Click “System” and click ”Network” in Main menu See if IP address and gateway are filled in the cells as the example below...
-
Page 7: Mobile App Settings
OnVIF is on. Activate OnVIF by tapping the OnVIF Tap “OK” Tap “OK” then your camera starts rebooting itself. section When it’s done, NVR will be connected... -
Page 8: Product Settings
6. Product settings - Connecting to cameras Click “Remote device” in the System tab Click “Search” to see the cameras Check on the camera and click “Add” on “Main menu” connected as the example below... - Page 9 6. Product settings - Play Click “Play” in Quick Menu Recorded date Forward or Fast forward hourly Forward or fast forward 2 to 16 times Camera list Next page ▶...
- Page 10 6. Product settings - Time setup Daily Every 2 hours Hourly 삭제 Every 30 min...
- Page 11 6. Product settings - Sync Sync V check on Sync to watch simultaneously recorded movies from separate channels V 동기모드 on Snyc Check on Sync and click on the desired time to watch recorded movies at the same time Without Sync Uncheck on Sync and click on the desired time to watch the recorded movie you want 동기모드...
- Page 12 6. Product settings - Recording Go to Recording set-up in Main menu Please refer to the functions as table below <Table 1> 1 Channel Select to set up a specific channel 2 Copy 6 Week To copy recorded data and save to second hard disk To set up recording methods by weekly simultaneously.
- Page 13 6. Product settings - Log out Click Log out in Quick Menu Click Shut down Reboot Admin log out Shut down...
- Page 14 서브 Netween Inc. www.netween.com...
