Summary of Contents for Cayin iDAP-6

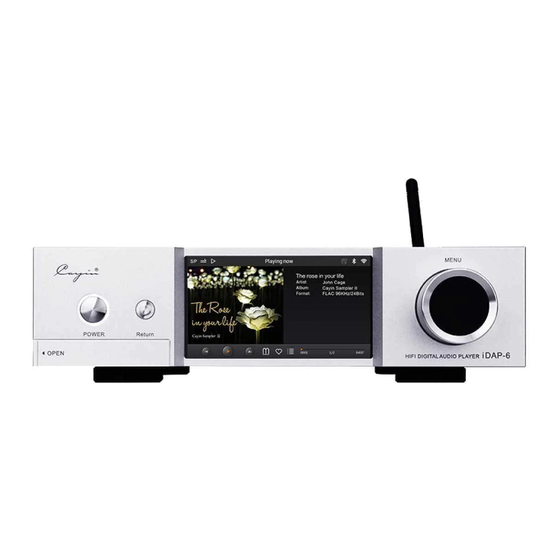

- Page 1 MENU OPEN i DAP-6 HIFI DIGITAL AUDIO PLAYER i DAP-6 HIFI DIGITAL AUDIO PLAYER User Manual...
- Page 2 6. WiFi/Bluetooth Antenna (1 piece) Attention: the product package should include only the items in the list. Please fill in the warranty card and mail to your local agent or Cayin's Sales Department, we shall provide comprehensive after sales service in the future.
- Page 3 Design Features Desktop network player that can supports all common digital file formats: DSF, DFF, SACD-ISO, FLAC, ALAC, AIFF, WAV, APE, WMA, MP3, AAC, OGG PCM supports upto 32Bit/384kHz, DSD supports upto DSD256 with I2S, upto DoP128 with USB and DoP64 on other digital interface Comprehensive digital output options: USB, I2S, AES/EBU, Coaxial, Optical.
- Page 4 MENU i DAP-6 HIFI DIGITAL AUDIO PLAYER Diagram 1: iDAP-6 Front Panel illustrationiption 1. Standby On/Off Turn on or put the player into standby: hold the button to turn on the player (at standby status) or enter standby mode (at regular operation status) When the screen is on, click the button once to turn off the screen, and click again to turn the screen back on.
- Page 5 Alternatively, you can connect USB DAC to these ports and enable the USB Audio output function of iDAP-6. 4. I²S Output (HDMI port) The output terminal is built for forthcoming Cayin DAC with I²S input. We cannot guarantee it will compatible with I²S input of other DAC.
- Page 6 This output is suitable for DAC with AES/EBU input. Note: To ensure system will perform satisfactory, we recommend you to use proper digital audio cable that meets required specification when connect iDAP-6 to digital audio equipment. Important Note: a. Please select “I²S” from “Output Selection” of “Music Setting” before you use the I²S (HDMI) output of IDAP-6...
- Page 7 Incorrect input voltage setting will cause damage to the machine or might even lead to serious household accident, Cayin reserves the right to refuse service or responsibility on related instances.
- Page 8 LAN port of this router. (3) Connecting Wireless Network When connected to an WiFi Network, iDAP-6 can playback music files shared within a LAN or receive pushed music from DLNA or Airplay.
- Page 9 Basic Operation Please make sure the AC voltage of your local power supply match the voltage information printed on the back panel and make sure all equipment are connected correctly. 1. Startup Operation Turn on the power switch on rear panel, the player will power up and enter standby mode.
- Page 10 Music Library Local Storage Music, Network Music, Update Music Library Music Category Songs, Favorite, Recent, Album, Genre, Artist, Playlist Playing now Songs, Favorite, Recent, Album, Genre, Artist, Playlist Playback Mode, Output selection, DSD Output Mode, Music Setting Resume from Breakpoint, Gapless, Lyrics, Album Art System Setting, Network Settings, System Update, System setting About Player...
- Page 11 Local Storage Music Local music is the music stored in SD card or USB storages that attached to iDAP-6 directly. Highlight the Local Storage icon on the left pane, push the MENU button once to enter the storage device list, browse through the folders and select your desired music file, push MENU button once to play the file, the screen will jump to “Playing Now”...
- Page 12 (2) Music Category The system scans and records metadata of music files during updating music library. The Music Category function will create multiple list according to "Songs", "Album", "Genre" and "Artist". In addition, Music Category will also provide features such as "Favorite", "Recent" and "Playlist", allowing users to browse and select songs to playback according to various classifications.
- Page 13 (3) Playing Now If iDAP-6 is playing or paused, the screen will display Playing Now interface. If it is not playing, the music category interface is displayed. There are several control icons at the bottom of Playing Now interface, you can select any one of these icons by turning the MENU button (notice the red highlight), and you can push the MENU button once to confirm your action.
- Page 14 The album art file can be jpeg, png or bmp format (in this order or priority) with resolution not more than 2000x2000. The iDAP-6 will recognize album art through the following priority: 1. Embed album cover to the metadata of the music file 2.
- Page 15 Language, Backlight time-out, Play through Folder, System Setting Factory Reset Network Setting BT Setup, WiFi Setup, DLNA, Airplay System upgrade Update iDAP-6 firmware Provide information of the player such as the capacity of About Player SD card, firmware version etc System Setting Submenu...
- Page 16 Set the player UI to one of the three languages: Simplify Language Chinese, Traditional Chinese, English You can set the backlight duration by choosing one of the Backlight time-out following time-out setting: 30s/1m/5m/10m/30m/always When turn on, the player will jump to next folder after playback the last song of current folder.
- Page 17 Hiby Menu bar, select the HibyLink icon. and the App will search for HibyLink compatible device immediately, you can now select Cayin iDAP-6 (according to the Bluetooth Device name) and complete the connection. Once the file sharing is setup, you can browse the Local Music content and remote control the iDAC-6 through your Android device.
- Page 18 MENU button once to confirm the connection. Important Note: When connect to WiFi or Bluetooth, iDAP-6 will display a virtual keyboard as below if a password is required. Turn the MENU button to locate the charter...
- Page 19 Systern upgrade Cayin will release firmware update to enhance and optimize IDAP-6 as deem required, please follow the instruction of our official firmware release at www.cayin.cn to complete the firmware update process. About player You can check the model number, SD card capacity and remaining storage...
- Page 20 12. The machine will become hot during operation, Please keep the Player at a well- ventilated environment and do not cover the PGayer with anything. 13. Please Contact your Cayin agent or retail shop, or our after-sales service if the machine is not working properly.
- Page 21 Sometime the problem are related to associated equipment or cables, please also check and make sure everything is in proper condition. Please contact your Cayin agent or retail shop, or our after-sales service if the problem cannot be rectified.
- Page 22 Wireless and Network Specification Bluetooth Bluetooth 2.1+Enhanced Data Rate (EDR)+ BT4.1 Wireless LAN IEEE 802.11a/b/g/n Complies with IEEE 802.3 / IEEE 802.3u 10Base-TX/ 100Base-TX, ANSI X3T12 TP-PMD 1995 standards Music Format (Local Storage) DSF/DFF/SACD-ISO/FLAC/AIFF/ File format WAV/APE/ALAC/WMA/MP3/AAC/OGG Signal Output Connector: USB Type A PCM Output: 44.1kHz to 384kHz USB Audio DSD Output: DSD64/128(2.8MHz/5.6MHz...
- Page 23 Facebook Zhuhai Spark Electronic Equipment Co.,LTD www.cayin.cn Tel: 0086-0756-3828711 Fax: 0086-0756-3828722 E-mail: market@cayin.cn ZipCode: 519045 Address: 9 lianfa Road, Liangang Industrial Park, Shuanglin Zone, Zhuhai, Guangdong,China Note:is the registered trademark of Zhuhai Spark Electronic Equipment Co.,Ltd. When you purchase,please recognize this symbol to guard against counterfeiting.
