Bioenno Power BPP-M400 User Manual

Solar pps portable power supply
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BPP-M400

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BPP-M400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bioenno Power BPP-M400

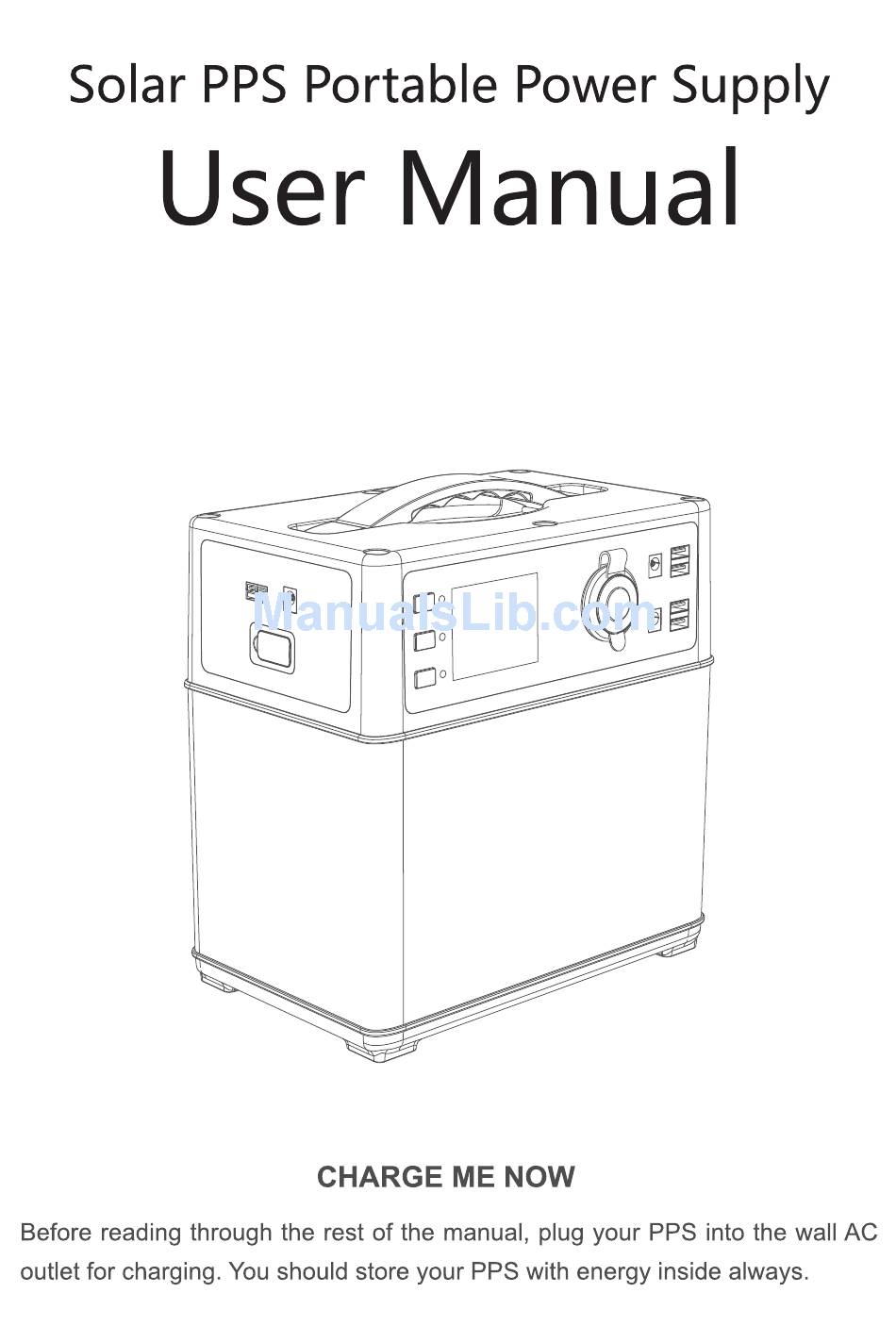

  • Page 1 BPP-M400...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS This product series are designed to keep you powered while you're doing what you love. Whether you're climbing a mountain, living in your van while you travel the world, or camping in your backyard we will keep you powered. Welcome to the solar life. CONTENTS 1.

  • Page 4: Get To Know Your Gear

    1. Get To Know Your Gear 1. Handle 8. Power On/Off Indicators 2. Solar Charging Port 9. LCD Display 3. Car/Adapter Charging Port 10. USB Outputs 4. Car Jump Starter Output 11. DC12V Output for LED Lamp 5. Master Power On/Off Button 12.

  • Page 5: Unpacking

    1. Master Power On/Off Button 2. DC Power On/Off Button 3. AC Power On/Off Button 4. Master Power On/Off Indicator 5. DC Power On/Off Indicator 6. AC Power On/Off Indicator 7. Battery Capacity 8. Charging Power 9. DC ON/OFF 10. DC Output Power 11.

  • Page 6: What It Powers

    Unpacking your PPS AC Charger Car Charging Cable Solar Charging Jump Starter Alligator Cable Clip Cable 3. What it Powers LAMP Smartphone LAPTOP 5 Recharges TV 3 Hours 100+ Hours 30+ Recharges 4. Charging Your PPS ■ Charge Me Now Before using or storing, plug your PPS into the wall until it is fully charged.

  • Page 7: Charging From Solar

    under INPUT shows the real-time charging power. Once It is fully charged, all battery segments will be lit and remain solid. Charge your PPS when there is only a battery segment! Charging from Solar LAPTOP Solar Panel 4-6 Hours 3-5 Recharges 1.

  • Page 8: Charging From The Wall

    ■ Charging from the Wall Before using or storing, plug your PPS into the wall until it is fully charged. charging from wall outlet powering your laptop or other devices Using the included AC Wall Charger, plug your PPS into any wall outlet. You will know the PPS is charging when battery segments in the BATTERY DISPLAY are blinking and the number below INPUT on LCD changes.

  • Page 10: Storage And Downtime Maintenance

    If you’ll be living off-grid in sub-zero conditions, you can drain power from PPS. But never charge your PPS in sub-zero conditions, which will damage the lithium ion battery and battery capacity may not be recovered. Low Temperature Charging Protection: when there is charging input in sub-zero conditions, the system would stop charging automatically;...
  • Page 11 Notice 1. Before starting, make sure the red and black clips are clamped tightly to car battery poles and keep the two clips with enough safety distance, to prevent the two from falling off or collision because of the engine vibration after car starting. 2.

  • Page 12: Frequently Asked Questions

    l l e Battery y t i Dimension L233×W148×H237(mm) Please check Warranty Card for details General Charge 0~45 Operation Discharge Environment Humidness 10%~90% Note:Jump starter function with higher cost is optional. Note: Solar charging and AC charging should not proceed at the same time! 7.

  • Page 13: Troubleshooting

    Second, you will need to check the capacity for the individual output ports. For example, the AC port is monitored by an inverter that allows for 300W of continuous power. This means if your device is a pulling more than 300W for an extended period of time, the PPS’s inverter will shut off. Finally, once you know your device is compatible, you’ll want to determine how long you’ll be able to power your gear from the PPS.
  • Page 14 Failure Failure Cause Troubleshooting Code Check the ambient temperature if higher System over-temperature protection than 45℃ . Output will start again if PPS cools down. Battery Over Voltage Protection Disconnect the charger and restart it Battery Damage Protection Contact the Customer Service Center 1st Battery String Over-Voltage Disconnect the charger and restart it 2nd Battery String Over-Voltage...

  • Page 15: Contact

    12.6V10A Output Over Current Check if the output overload or short- Protection circuit 12.6V10A Output Over Load Protection Check if the output overload Check if the output overload or short- 12V3A Output Over Current Protection circuit 12V3A Output Over Load Protection Check if the output overload USB5V No.1 Output Over Current Check if the output overload or short-...
  • Page 16 16.061.000**-01A0...
