Summary of Contents for ACL Audio Interface

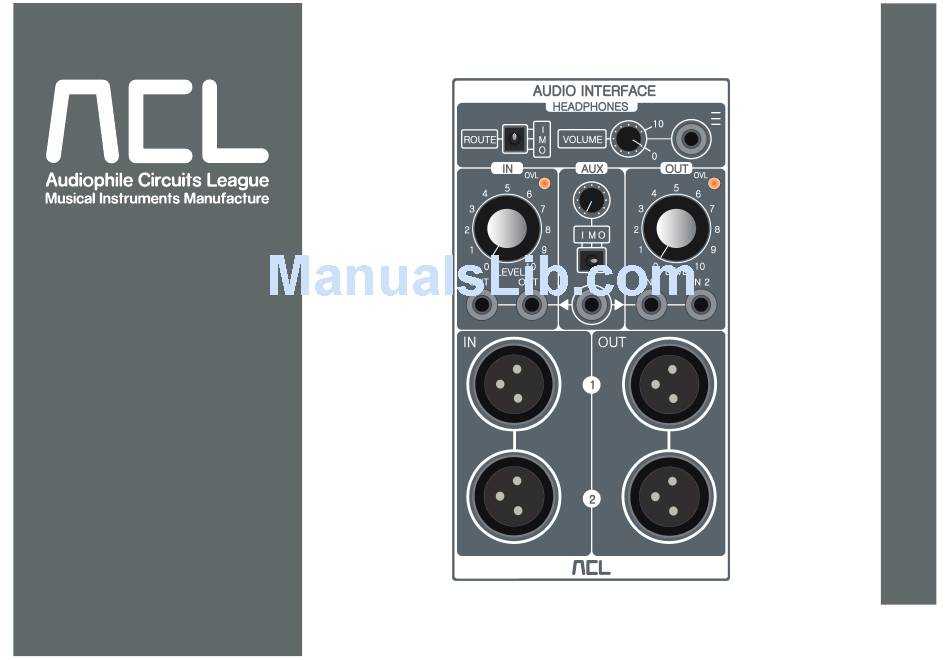

- Page 1 Audio Interface User’s Manual Eurorack Synthesizer Modules...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.INTRODUCTION 2.WARRANTY 3.INSTALLATION 4.FUNCTION OF PANEL COMPONENTS 5.SIGNALFLOW & ROUTING 6.SPECIFICATIONS... -
Page 3: Introduction
1. INTRODUCTION Audiophile Circuits League . -The main purpose of the ACL Audio Interface module is to interface modular synthesizer systems with professional audio recording and stage equipment. The combination of studio quality signal path, �lexible routing possibilities and a headphone ampli�ier, capable of driving both high and low impedance... -
Page 4: Warranty
2. WARRANTY Is it a malfunction? In the event of a fault in use, we will repair or replace it free of charge under the warranty terms stated below. The warranty period is valid for one year from the Please read the user's manual carefully and checking again. If you think that day of purchase. -
Page 5: Installation
3. INSTALLATION WARNING *Always turn the Eurorack unit off and unplug the power cord before pluging GATE the Eurorack power cable. *When attaching the Eurorack power cable, please be careful not to touch the Projection terminal part. +12V Connect to the Eurorack's system power supply (+ 12V) using the supplied Eurorack power cable. -
Page 6: Function Of Panel Components
4. FUNCTION OF PANEL COMPONENTS “OUT LEVEL” knob ① Output volume control for ③ “OUT” XLR sockets. “IN 1” “IN 2” jacks ② 3.5mm audio inputs (mono) for AC coupled unbalanced signals. Typically, you will enter the modular �inal audio outputs into these jacks. These audio signals are converted to balanced signals and output from ③... - Page 7 ~TIPS about headphone~ “IN” XLR sockets ⑥ DC and clipping protection circuit for the headphone ampli�ier, switches off DC coupled electronically balanced audio signals are input from these XLR headphone output if DC at the output exceeds ±50 mV and/or in case of hard sockets (female), converted into unbalanced audio signals, and output from ⑤...
-
Page 8: Signalflow & Routing
5. SIGNALFLOW & ROUTING Input To Modular OUT 1 INPUT MIX OUT 2 Level Stereo Aux Input Headphones OVERLOAD PROTECTION Attenuator Route Route Volume Output From Modular IN 1 OUTPUT MIX IN 2 Level FIG.3: Audio Interface signal�low & routing... -
Page 9: Specifications
7. SPECIFICATIONS Power Eurorack system power supply Width 14 HP Depth 22mm Power consumption -12V 120 - 200 mA +12V 110 - 200 mA (depends on settings) Accessories · Eurorack power cable x1 · Mounting screws x4 ACL-E-AI- 1708 - 1...
