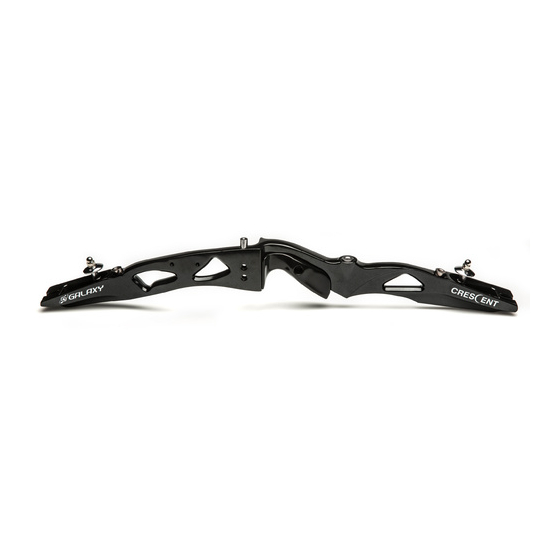

Crescent ILF Takedown Recurve Bow Manual
Congratulations on the purchase of your Galaxy bow. We are excited and thankful to have you as a valued customer. This
manual covers the Galaxy Crescent ILF Takedown Recurve Bow.
Know that Galaxy products are built with the archer in mind. They are built from quality materials and are designed to
perform to our high standards. With proper use and some basic maintenance, your new Galaxy product will allow you to
enjoy years of reliable shooting.
Archery is an enjoyable sport for people of all ages. Please be mindful, however, that, when not used properly, archery
equipment is capable of causing serious personal injury or even death. It's up to you to protect yourself and others from
harm when you are participating in archery.

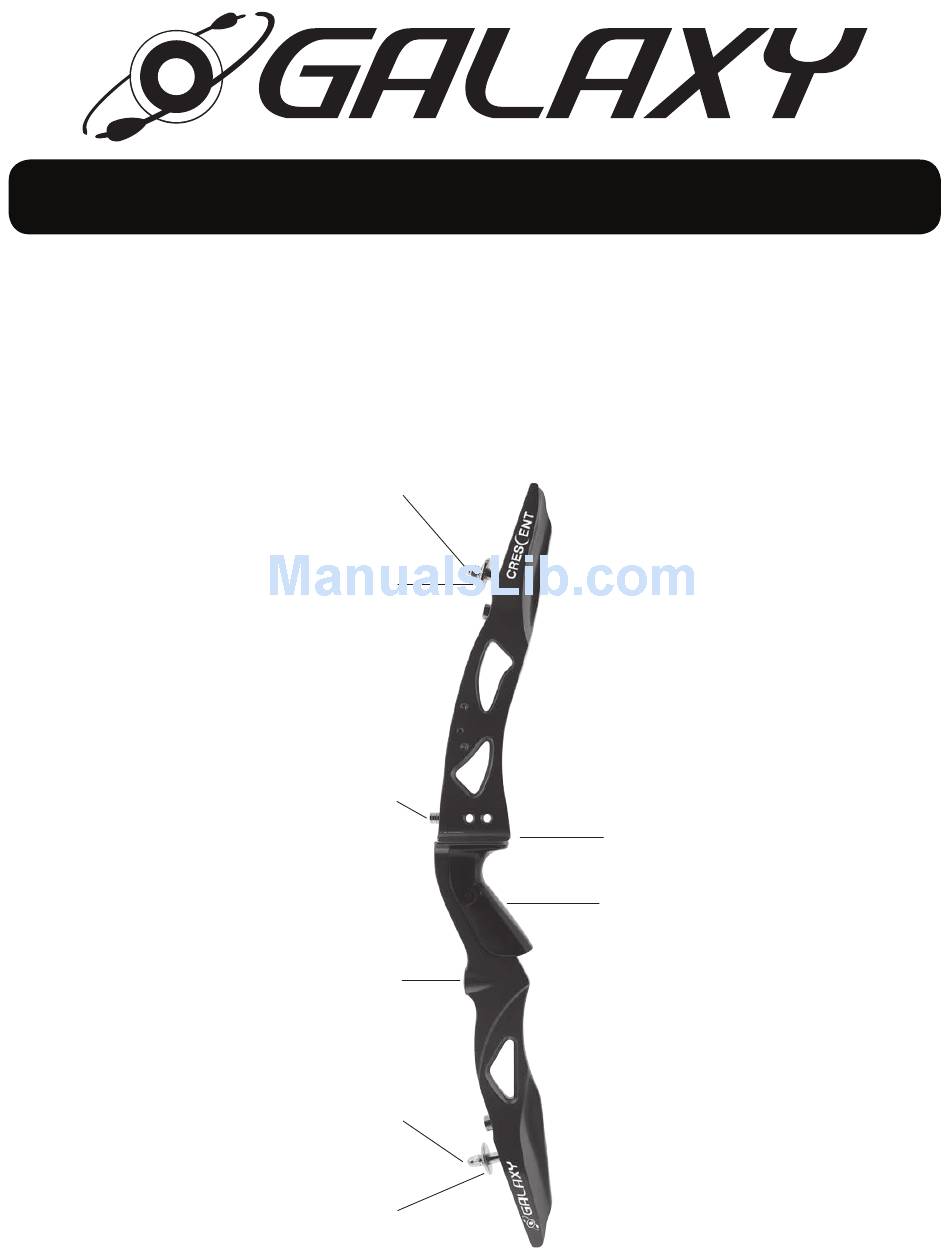

ACORN NUT
LIMB BOLT
CAP
CLICKER
EXTENSION
BUSHING
ACORN NUT
LIMB BOLT
CAP
SHELF
GRIP
1
Advertisement
Table of Contents
Summary of Contents for Galaxy Crescent
- Page 1 Crescent ILF Takedown Recurve Bow Manual Congratulations on the purchase of your Galaxy bow. We are excited and thankful to have you as a valued customer. This manual covers the Galaxy Crescent ILF Takedown Recurve Bow. Know that Galaxy products are built with the archer in mind. They are built from quality materials and are designed to perform to our high standards.
- Page 2 PREPARING THE RISER TO RECEIVE LIMBS Before seating your limbs on your Crescent bow, first make sure the limb bolts are set properly. Start out by setting the limbs at the minimum draw weight by making sure the distance from the underside of the bolt cap to the face of the limb pocket is 21mm.
- Page 3 INSTALLATION OF ILF LIMBS Your Galaxy Crescent Recurve bow uses our genuine ILF (International Limb Fitting) System. It is quite convenient, secure, and easy to use, resulting in the most accurate and quiet limb mounting system available today. 1. Align and begin to insert the stainless steel ILF dovetail bushings into the dovetail slot in the end of your riser’s open limb pocket, then place the limb...
- Page 4 LONG 7.75 - 8.75 8 - 9 8.25 - 9.25 CRESCENT Figure 10 You can generally make reasonable adjustments in your brace height by twisting/untwisting your string. Adding twists will increase your brace height. Untwisting your bowstring will lower your brace height. Ensure you do not untwist past our minimum recommended level or it may increase noise due to limb slap, increase forearm contact, or stiffen the dynamic spine characteristics of your arrow while increasing arrow velocity.
- Page 5 SETTING UP A REST The Crescent is intended to be shot by using a rest/plunger combination. Place a stick-on style rest on the riser above the shelf, aligning the hole in the rest with the rear hole in the riser. (See Figure 11) Your plunger can now be threaded through the rest hole.
- Page 6 WARRANTY Your Galaxy bow is warranted against defects in materials and workmanship for one year from the date of purchase to the original owner only. The finish is not covered by this warranty. A dated receipt or proof of purchase is needed for warranty coverage.
