ennoLogic eD560L User Manual

Laser distance meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
eD560L Laser Distance Meter
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eD560L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ennoLogic eD560L

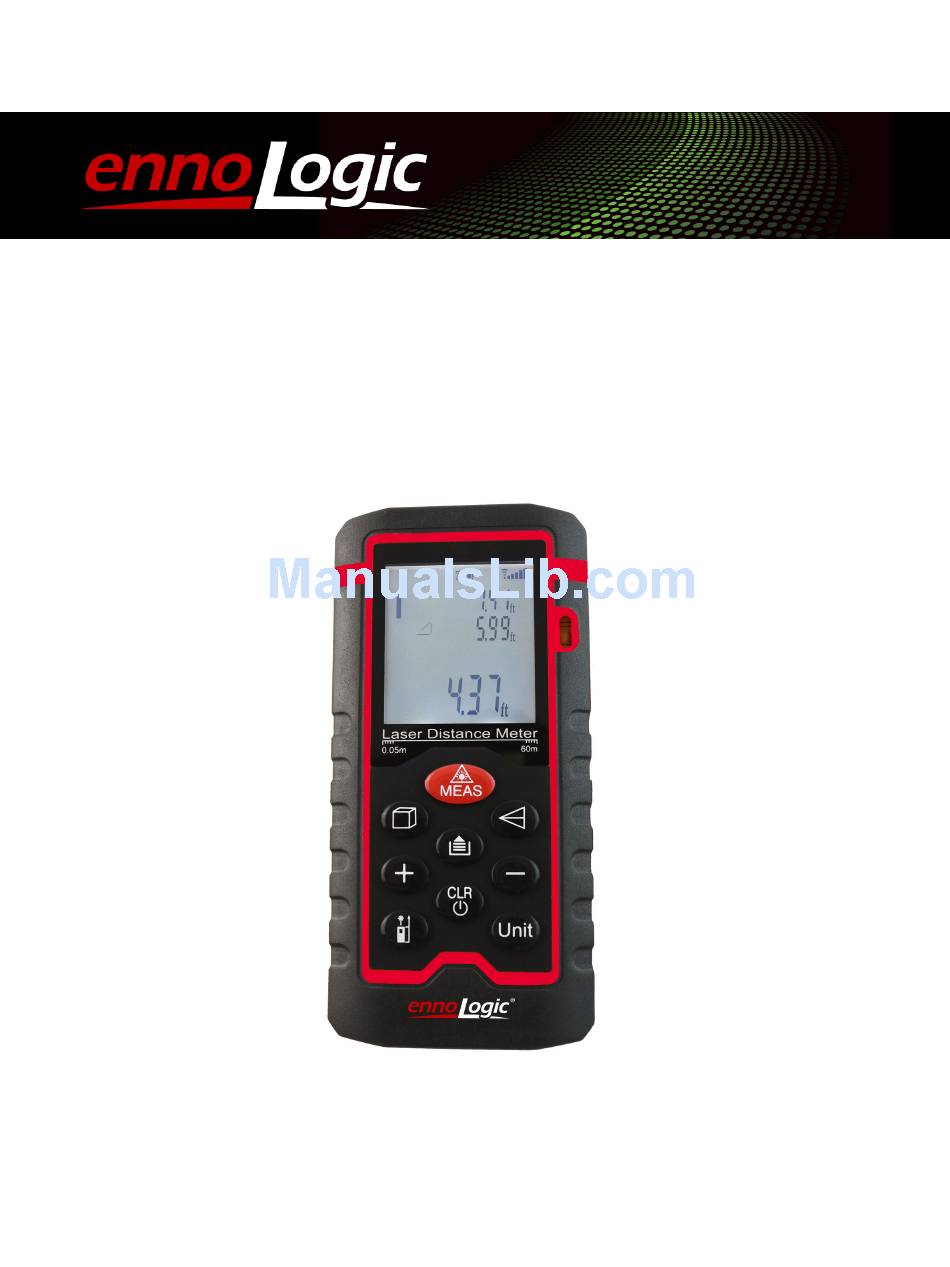

  • Page 1 Laser Distance Meter User Manual...
  • Page 2 Laser Distance Meter ennoLogic eD560L Made in China User Manual Version 1.2. Revised 11/17/2017. © 2017 ennoLogic™. All rights reserved. http://ennologic.com...

  • Page 3: Table Of Contents

    Table of Contents 1. Overview ....................1 1.1 Important Notes, Safety Considerations and......1 Disclaimer – Please Read ..............1 1.2 LCD Display ................... 3 1.3 Keypad .................... 4 1.4 Battery Installation or Replacement..........4 1.5 How to Use Your Laser Distance Meter ........5 Power On/Off..................

  • Page 4: Overview

    It can also measure height using the Pythagorean Theorem. The eD560L laser distance meter is designed to meet the needs of professionals engaged in surveying, construction, traffic, real estate, urban planning, fire fighting, farm and garden. You will also find it incredibly useful for many home improvement projects.
  • Page 5 Do not use the instrument in a flammable or explosive environment. Do not use this meter in areas where it is prohibited e.g. near airports and hospitals, or where it would be in violation of the law. To ensure proper operation avoid using this instrument in areas with strong electromagnetic interference.

  • Page 6: Lcd Display

    1.2 LCD Display 1 - Length measurement indicator 2 - Battery indicator 3 - Stored data indicator 4 - Signal strength indicator 5 - Secondary display area 6 - Main display area 7 - Measurement unit 8 - Area/Volume measurement mode 9 - Setting-out measurement mode 10 –...

  • Page 7: Keypad

    1.3 Keypad 1 - Power-on/Measurement key 2 - Volume/Area key 3 – Indirect Measurement (Pythagorean Theorem) 4 - Plus (+) key 5 - Historical data key 6 - Minus (-) key 7 - Reference key / Backlight key 8 - Cancel/Power-off key 9 - Units key 1.4 Battery Installation or Replacement Open the battery cover on the back of the instrument and install...

  • Page 8: How To Use Your Laser Distance Meter

    1.5 How to Use Your Laser Distance Meter Power On/Off Press the MEAS key to turn on the instrument and laser. Hold down the CLR key to turn the instrument off. It will power off automatically after 3 minutes without use. Canceling an Operation / Clearing Display Press the CLR key to cancel the last operation or to clear the display.

  • Page 9: Setting The Reference Edge Of The Instrument For Your Measurements

    Setting the Reference Edge of the Instrument for your Measurements The default setting for the reference edge of the instrument is its back edge. This means that any distance measurements you take will be referenced to the back edge of the meter. You can choose to use the front edge of the meter as the reference edge instead.

  • Page 10: Backlight

    Backlight Hold down the key to turn the backlight on or off. Setting of Power-On Defaults and Optional Modes To change the power-on defaults and other optional modes turn the meter on first, then hold down the key until the reference edge/laser icon is displayed.

  • Page 11: Measurement Modes

    Use the “+” and “-“ keys to fine tune the CAL 0 precision by up to ±7mm (offset). Use the “+” and “-“ keys to enable or bP. on/oFF disable the beeper. Use the “+” and “-“ keys to select bL.
  • Page 12 Continuous Measurement and Maximum/Minimum Value Hold down the key until you hear the beeper. This will place the meter into continuous measurement mode. Use the laser to scan the target area, e.g. a corner. The continuous measurement mode allows you to determine the maximum or minimum distance such as the measurement of a diagonal distance (maximum value) or vertical distance (minimum value) of a room.
  • Page 13 Adding and Subtracting Multiple Distance Measurements Addition: Take your first distance measurement. Then press the key once. The first row of the secondary display area will now show your initial measurement and the “+” sign. Any subsequent measurements will now be added to the previous one(s).

  • Page 14: Area Measurement

    Area Measurement Press the key once, you will see the icon. Press the key to measure the first distance (e.g. length). Press the key again to measure the second distance (e.g. width). The meter will calculate the area and show the result in the main display area.

  • Page 15: Volume Measurement

    Volume Measurement Press the key twice and the icon will be displayed. Press the key to measure the first distance (e.g. length). Press the key again to measure the second distance (e.g. width). Press the key a third time to measure the third distance (e.g.

  • Page 16: Indirect Measurements

    Indirect Measurements The instrument can calculate a distance with use of the Pythagorean Theorem automatically. The Pythagorean Theorem states that for a right triangle, the square of the hypotenuse (the side opposite the right angle) is equal to the sum of the squares of the other two sides.
  • Page 17 Pythagorean Theorem (the distance of the hypotenuse is longer than the distance of the right-angle edges), the calculated length of the third triangle side will be displayed in the main display area. The measurement values of the hypotenuse and right-angle edges will be displayed in the secondary display area.
  • Page 18 Indirect Measurement Mode 2: Press the key twice and the icon will be displayed. Follow the prompt of the flashing icon: Press the key once to measure the hypotenuse of the first triangle (pointing upward). Press the key again to measure the common right-angle side of the two triangles.
  • Page 19 measurement values of the hypotenuse and right-angle sides (a, b, and c) will be displayed in the secondary display area.
  • Page 20 Indirect Measurement Mode 3: Press the key three times and the icon will be displayed. Follow the prompt of the flashing icon: Press the key once to measure the hypotenuse of the first triangle. Press the key again to measure the common side of the two triangles.
  • Page 21 If the measurement result meets the requirements of the Pythagorean Theorem, the calculated height x (see diagram below) will be displayed in the main display area. The individual measurement values of the triangle sides will be displayed in the secondary display area. Note: when measurements are made in the Pythagorean mode, the length of the right-angle side must be less than that of the hypotenuse.

  • Page 22: Setting-Out Measurements

    Setting-Out Measurements Hold down the key to enter the setting-out function. First, value a is being set, its second digit will flash. Select the desired value for this digit by pressing the + and – keys (0 to 9). To change digits, press the key.

  • Page 23: Reviewing Historical Data

    nearest setting-out point, the main display area shows the distance from the current position to the setting-out point. A positive value means the current position is larger than the distance of the setting-out point and a negative value means it is less.
  • Page 24 measurements. The latest measurement will automatically be added to the end of the data buffer at storage location 20. All other values will be shifted down by one storage location towards 1, so that the buffer always contains the last 20 measurements.

  • Page 25: Specifications

    SPECIFICATIONS Technical Specifications Measurement range 0.05 – 60m Measurement accuracy 土 2 mm Measurement unit Meters, Feet, Inches Laser class Class II Laser type 620~670nm, <1mW Calculation of area and √ volume Measurement with √ Pythagorean Theorem Adding and subtracting √...

  • Page 26: Failure Causes And Solutions

    Error Code Causes Solution Calculation error Measure again The received signal is Use a sighting too weak and the device measurement time is long. Power the Hardware failure instrument on and off multiple times. If the error persists, please contact ennoLogic.

  • Page 27: Measurement Conditions

    Measurement Conditions Operating the instrument in extreme environmental conditions may cause substantial errors. Examples include bright sunshine, extreme temperatures, poor surface reflections and low batteries. Under these conditions applying a reflective sheet to the target surface may improve results. Transparent or clear measurement target surface (such as water, clear glass, etc.) may lead to inaccurate measurements.
  • Page 28 PO Box 25207 Eugene, OR 97402...
