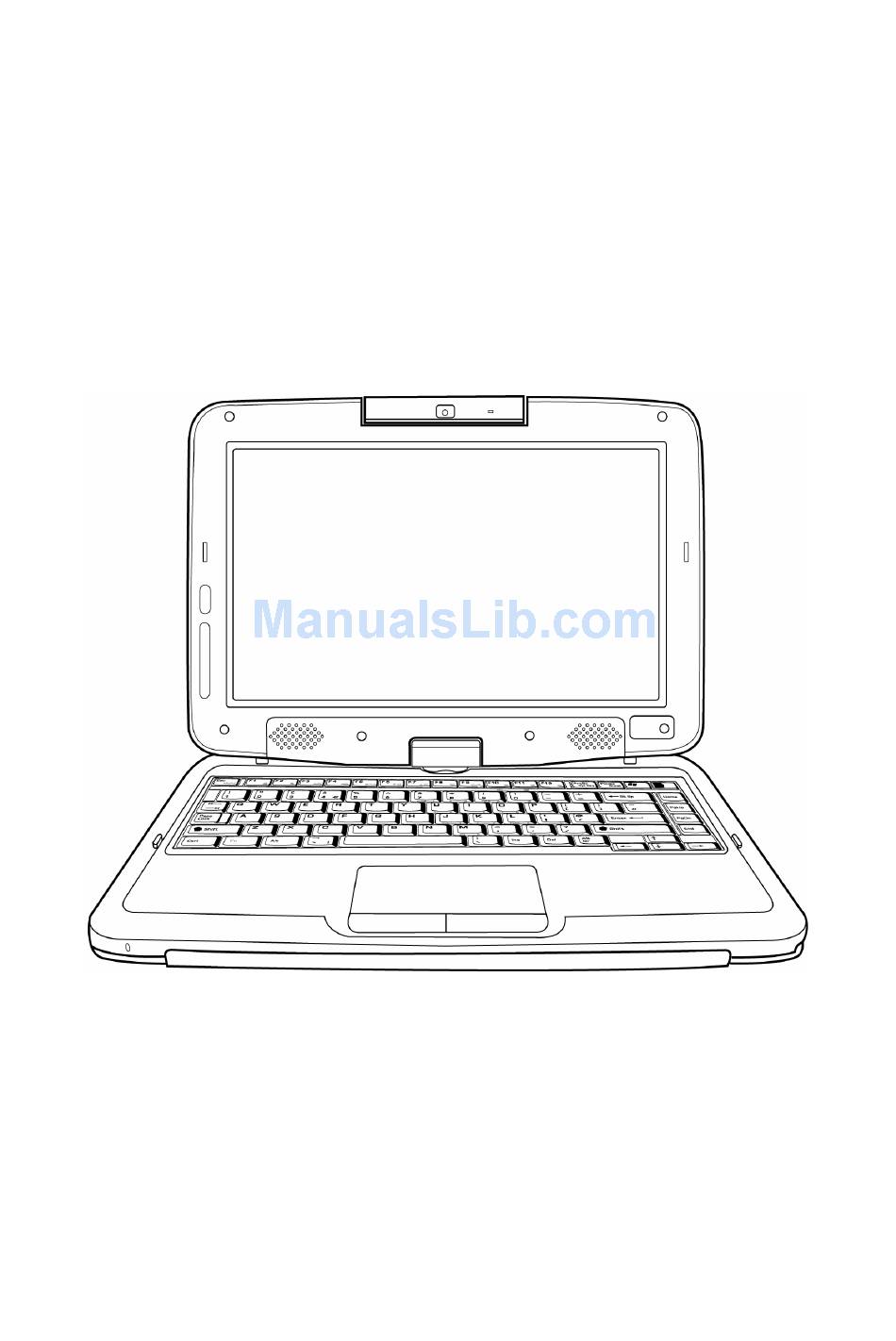

Quanta Computer NL1 User Manual

Intel powered classmate pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

T
h
i
r
d
T
h
i
r
I
n
t
e
l
I
n
t
e
l
G
e
d
G
e
P
o
w
e
r
P
o
w
e
r
n
e
r
a
n
e
r
a
e
d
C
l
a
e
d
C
l
a
User's Manual
t
i
o
n
t
i
o
n
s
s
m
a
t
e
s
s
m
a
t
e
P
C
P
C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NL1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Quanta Computer NL1

  • Page 1 User’s Manual...

  • Page 2: Limitation Of Liability

    © Copyright 2008 All Rights Reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 3: Table Of Contents

    Before You Start ..................1 Attention: Teachers and Parents................1 For Your Safety ......................1 Caring for Your Notebook..................2 Regulatory Information ................3 Federal Communications Commission Notice.............3 Modifications........................3 Connections to Peripheral Devices ................3 SAR Exposure......................4 Declaration of Conformity ..................4 European Notice......................4 Attachment Limitations Statement .................5 Power Cord Requirement ..................5 Battery Pack Safety .....................6 Lithium battery warning / Bridge battery warning ..........7...
  • Page 4 Using the Notebook..................19 Using the Keyboard....................19 Using the Touch Pad ....................20 Using the Touch Screen ..................21 Rotating the Display Panel ..................21 Using the Web Camera..................24 Conserving the Battery Power ................25 BIOS Setup ....................26 Entering BIOS Setup....................26 Main Setup.........................

  • Page 5: Before You Start

    Attention: Teachers and Parents This product is an educational tool designed for school age children, ages 6 and up. Make sure that students understand this product is an educational tool and not a toy. Students must be supervised by an adult when using this notebook. Explain to students the safe and proper handling of the notebook, power supply, battery pack, and power cord.

  • Page 6: Caring For Your Notebook

    Do not expose to rain or moisture. • Do not leave the notebook turned on or plugged in when enclosed in a non- • vented container, such as a backpack, as overheating may occur. Caring for Your Notebook • Do not spray water or any other cleaning fluids directly on the display. Do not clean the notebook when it is plugged into a wall socket.

  • Page 7: Regulatory Information

    Federal Communications Commission Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 8: Sar Exposure

    Declaration of Conformity This device complies with Part 15 the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 9: Attachment Limitations Statement

    TBR21 (ETSI TBR21) Terminal Equipment. • EN60950 (IEC60950) I.T.E. Product Safety • Attachment Limitations Statement Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.

  • Page 10: Battery Pack Safety

    The attachment plug must be a two-pole, grounded type with a Japanese • Industrial Standard C8303 (15 A, 125 VAC) configuration. Other Countries The cord set fittings must bear the certification mark of the agency • responsible for evaluation in a specific country. Acceptable agencies are: •...

  • Page 11: Lithium Battery Warning / Bridge Battery Warning

    • To obtain a replacement battery, contact your local dealer. Do not expose the battery pack to high storage temperatures (above 60°C, • 140°F). When discarding a battery pack, contact your local waste disposal provider • regarding local restrictions on the disposal or recycling of batteries. Use only supplied AC Adapter for charging.
  • Page 12 Der Arbeitsplatzbezogene Schalldruckpegel nach DIN 45 635 betragt 70dB (A) oder weniger. Zum Netzanschlua dieses Gerates ist eine geprufte Leitung zu verwenden. Fur einen Nennstrom bis 6A und einem Gerategewicht groBer 3kg ist eine Leitung nicht leichter als (1) H05VV-F, 3G, 0.75mm (2) 2X0.75 mm conductors einzusetzen.

  • Page 13: Touring The Notebook

    Front Built-in web Use the built-in web camera for video conferencing. camera Contents of the current system operation are LCD display displayed here. Stereo speakers The stereo speakers allow for audio output. Keyboard Use the keyboard to enter data. Use the touch pad and two buttons as a mouse. See Touch pad “Using The Touch Pad”.

  • Page 14: Left View

    Left view External monitor Use this port to connect to an external monitor. port Use this port to connect Universal Serial Bus USB port devices. The notebook supports v.2.0 of the USB standard. Insert a memory card into this slot to read the Memory card slot stored data on the notebook.

  • Page 15: Right View

    Right view Stylus pen slot The stylus pen for the touch screen is stored here. Use the microphone jack to connect an external Microphone jack microphone. Use the headphone jack to connect an external Headphone jack headphone set. The ventilation opening allows the notebook to Ventilation cool off and prevent overheating.

  • Page 16: Back

    Back Power adapter Connect your AC adapter to this port to power up port your notebook and charge the battery pack. Handle Use the handle to carry the notebook. Name field Place your name tag here.

  • Page 17: Base

    Base Battery bay The battery pack is stored here. Use the battery lock switch to lock the battery Battery lock switch pack in the battery bay. Use the battery release latch to release the Battery release latch battery pack from the battery bay. The ventilation openings allow the notebook to Ventilation openings cool off and prevent overheating.

  • Page 18: Getting Started

    Congratulations on your purchase of the third generation Intel powered Classmate PC. Your notebook features a built-in web camera, rotating LCD display panel, and touch screen functions. In this section, you will be introduced to the basic operations of your notebook. Installing the Battery To install the battery pack: Make sure the notebook is turned off.

  • Page 19: Charging The Battery

    To remove the battery pack: Make sure the notebook is turned off. Slide the battery lock switch left into the unlocked position. Slide and hold the battery release latch, and slide the battery pack up. Align the end of the battery pack ridge with the dip on the sides of the battery bay.

  • Page 20: Opening The Lcd Panel

    Opening the LCD Panel To open the LCD panel: Steady the base of the notebook with one hand. Hold a corner of the LCD panel with the other hand. Gently raise the LCD panel to the upright position. Never slam the LCD panel shut, as this may damage the notebook. Warning Do not grip the web camera when trying to open or close the LCD panel.
  • Page 21 To switch the power on: Slide the power latch towards you and release. To switch the power off: Make sure all applications are turned off. Slide the power latch towards you and release. Never turn the notebook off during the POST, or an unrecoverable error •...

  • Page 22: Led Status Indicators

    LED Status Indicators The notebook has LED status indicators on the top of the LCD panel and to the left of the LCD display, allowing you to see the system and power status of your notebook at a glance. Green light indicates the numeric keypad is activated. Green light indicates the caps-lock is activated.

  • Page 23: Using The Notebook

    Using the Keyboard You can use certain key combinations to quickly configure system settings. Graphic symbol Action System control Fn + F1 Turn the WLAN module off or on. Fn + F2 Enter the sleep mode. Fn + F3 Turn off the volume output. Fn + F4 Decrease the speaker volume.

  • Page 24: Using The Touch Pad

    Using the Touch Pad The touch pad includes a touch-sensitive pad and two buttons, and can be used like a mouse. You can move the cursor on the screen, select items, and call up menus. • To move the cursor on the screen, move the tip of your finger across the touch pad.

  • Page 25: Using The Touch Screen

    Using the Touch Screen The display panel of your notebook also works as a touch screen. You can use the stylus pen to control system operations, or as a pen for writing or illustration applications. The first time you power on the notebook, follow the on screen instructions to activate the touch screen.
  • Page 26 Turn 180 degrees until the display panel gently snaps into place. Do not try to turn the display panel in the opposite direction, or more than 180 degrees. Warning...
  • Page 27 To use the display panel as a writing pad: Make sure the display panel has been rotated 180 degrees. Hold the display panel by one or both of the upper corners. Gently lower the display panel to the closed position.

  • Page 28: Using The Web Camera

    Using the Web Camera The built-in web camera can rotate up to 180 degrees, and is equipped with an internal sensor to automatically switch to the correct orientation. You can rotate the web camera back and forth to use on both sides of the display panel. To rotate the web camera: Hold the edge of the web camera with your thumb and index finger.

  • Page 29: Conserving The Battery Power

    Conserving the Battery Power You can use a combination of key controls to enter the sleep or hibernation mode to conserve the battery power. • In the sleep mode, hardware devices, such as the display panel and hard disk, are turned off to conserve energy. In the hibernation mode, all system data are saved in the hard disk before •...

  • Page 30: Bios Setup

    The BIOS (Basic Input/Output System) Setup Utility runs and maintains a variety of hardware functions. It is a menu-driven software, which allows you to easily configure and change the settings. When turning on the notebook for the first time, you may get a message prompting you to run the BIOS Setup Utility. Entering BIOS Setup Turn on the power, and press the DEL key quickly when the POST (Power-On Self Test) is running.

  • Page 31: Advanced Setup

    System Memory: Displays the amount of conventional memory detected • during boot. Extended Memory: Displays the amount of extended memory detected • during boot. Advanced Setup In this menu you can configure advanced settings. Wake On LAN: When enabled, turning on wireless LAN will cause the •...

  • Page 32: Security Setup

    Security Setup In this menu you can set up supervisor and user passwords to protect system information and limit third party access. • Supervisor Password Is: Displays the supervisor password. User Password Is: Displays the user password. • • Set Supervisor Password: Enter and confirm your new password. You will be asked to enter this password each time you enter the setup utility.

  • Page 33: Boot Setup

    • Passwords are not case sensitive. • Write the passwords down and keep in a safe location. If you forget the passwords, the notebook may need to be sent back to the factory or to an Note authorized service dealer to reset the passwords. Boot Setup In this menu you can decide the order of boot devices to load the operating system.

  • Page 34: Exit Setup

    Exit Setup Exit Saving Changes: Exit system setup and save your changes to CMOS. • • Exit Discarding Changes: Exit system setup without saving changes to CMOS. • Load Setup Defaults: Load default values for all setup items. Discard Changes: Load previous values from CMOS for all setup items. •...

  • Page 35: Troubleshooting

    Troubleshooting activity should only be performed by an adult. Your notebook has been fully tested and complies with the system specifications before shipping. However, incorrect operations and/or mishandling may cause problems. You may also encounter simple setup or operating problems that can be solved by considering the following suggestions.

  • Page 36: Specifications

    Items Prototype w/o handle: 241.4 mm x 181.4 mm x 27.7 mm (front side) Dimensions with handle: 241.4 mm x 209.3 mm x 27.7 mm (front side) (W x D x H) ps. All of dimensions with tolerance 0.4 mm Weight Target 1.21 kg Diamondville 1.6GHz, 512 KB L2 cache, FSB=533 MHz...

  • Page 37: Index

    AC adapter factory settings switching the power on and off, 16 replacing, 5 restoring, 30 system settings, 26 battery headphones, 11 status indicators, charging time, 15 installing, 14 keyboard controls, 19 removing, 15 touch pad, 20 status indicators, touch screen, 21 15, 18 LCD display stylus pen, 11, 21...
