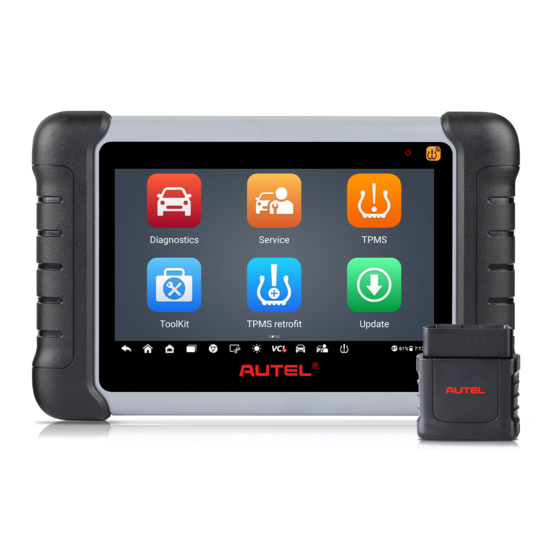

MaxiCheck MX808TS User Manual

Display tablet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Trademarks
Autel
®
, MaxiSys
MaxiCheck
®
are trademarks of Autel Intelligent Technology Corp., Ltd.,
registered in China, the United States and other countries. All other marks
are trademarks or registered trademarks of their respective holders.

Copyright Information

No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise without the prior written permission of
Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on
the latest information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no
guarantee is given for the completeness and correctness of the contents,
including but not limited to the product specifications, functions, and
illustrations.
Autel will not be liable for any direct, special, incidental, indirect damages or
any economic consequential damages (including the loss of profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully,
paying extra attention to the safety warnings and precautions.
For Services and Support
pro.autel.com
www.autel.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-86147779 (China)
Support@autel.com
For technical assistance in all other markets, please contact your local
selling agent.
®
, MaxiDAS
®
, MaxiScan
®
, MaxiCheck
i
®
, MaxiRecorder
®
, and

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX808TS and is the answer not in the manual?

Questions and answers

Related Manuals for MaxiCheck MX808TS

Summary of Contents for MaxiCheck MX808TS

  • Page 1: Copyright Information

    Autel ® , MaxiSys ® , MaxiDAS ® , MaxiScan ® , MaxiCheck ® , MaxiRecorder ® , and MaxiCheck ® are trademarks of Autel Intelligent Technology Corp., Ltd., registered in China, the United States and other countries. All other marks are trademarks or registered trademarks of their respective holders.

  • Page 2: Safety Information

    Safety Information For your own safety and the safety of others, and to prevent damage to the device and vehicles upon which it is used, it is important that the safety instructions presented throughout this manual be read and understood by all persons operating or coming into contact with the device.

  • Page 3: Safety Instructions

    Safety Instructions The safety messages herein cover situations Autel is aware of. Autel cannot know, evaluate or advise you as to all of the possible hazards. You must be certain that any condition or service procedure encountered does not jeopardize your personal safety. DANGER When an engine is operating, keep the service area WELL VENTILATED or attach a building exhaust removal system to the engine exhaust system.
  • Page 4 Refer to the service manual for the vehicle being serviced and adhere to  all diagnostic procedures and precautions. Failure to do so may result in personal injury or damage to the test equipment. To avoid damaging the test equipment or generating false data, make ...

  • Page 5: Table Of Contents

    Contents 1 USING THIS MANUAL ................1 ................... 1 ONVENTIONS 2 GENERAL INTRODUCTION ..............3 MX808TS D ............4 HECK ISPLAY ABLET VCI – V ..........7 EHICLE OMMUNICATION NTERFACE ................10 THER CCESSORIES 3 GETTING STARTED ................11 ..................11 OWERING ..................15 OWERING 4 DIAGNOSTICS ..................17...
  • Page 6 7 DATA MANAGER ................. 101 ..................101 PERATIONS 8 SETTINGS ................... 106 ...................... 106 ..................... 107 ANGUAGE ................... 108 RINTING ETTING ................110 OTIFICATION ENTER ..................111 PDATE ................... 112 YSTEM ETTINGS ....................113 BOUT 9 UPDATE ....................115 ................. 115 ISPLAY ABLET PDATE...
  • Page 7 ..................148 OGGING ..................149 OMMUNITIES ................151 RAINING HANNELS FAQ D ..................151 ATABASE 16 QUICK LINK ..................152 17 FUNCTION VIEWER ................153 18 MAINTENANCE AND SERVICE ............156 ..............156 AINTENANCE NSTRUCTIONS ..............157 ROUBLESHOOTING HECKLIST ................157 BOUT ATTERY SAGE...

  • Page 8: Using This Manual

    Using This Manual This manual contains device usage instructions. Some illustrations shown in this manual may contain modules and optional equipment that are not included in your system. Contact your sales representative for availability of other modules and optional tools or accessories.
  • Page 9 Important IMPORTANT indicates a situation which, if not avoided, may result in damage to the test equipment or vehicle. Example: IMPORTANT Keep the cable away from heat, oil, sharp edges and moving parts. Replace damaged cables immediately. Hyperlink Hyperlinks, or links, that take you to other related articles, procedures, and illustrations are available in electronic documents.

  • Page 10: General Introduction

    General Introduction Together with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, MaxiCheck MX808TS provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System) and DPF (Diesel Particulate Filter).

  • Page 11: Maxicheck Mx808Ts Display Tablet

    MaxiCheck MX808TS Display Tablet Functional Description Figure 2-1 Display Tablet Front View 7.0” LCD Capacitive Touchscreen Ambient Light Sensor – detects ambient brightness. Power LED – indicates battery level & charging or system status. TPMS Service Symbol – indicates the position of the embedded TPMS antenna.
  • Page 12 Figure 2-2 Display Tablet Back View Collapsible Stand – extends from the back to allow hands-free viewing of the Display Tablet. Heat Sink MaxiVCI Mini Holder Built-in Battery Figure 2-3 Display Tablet Top View Mini USB OTG Port 10. Micro SD Card Slot – holds the micro SD card. 11.
  • Page 13 Internal Battery Pack The Display Tablet can be powered with the internal rechargeable battery, which if fully charged can provide sufficient power for about 7 hours of continuous operation. External Power Supply The Display Tablet can be powered from a wall socket using the USB charging cable and the USB external power adapter.

  • Page 14: Vci - Vehicle Communication Interface

    Item Description Battery Charging 5 V/1.5 A Input 600 mA (LCD on with default brightness, Power Consumption Wi-Fi on) @3.7 V Operating Temp. -10 to 60°C(14 to 140°F) Storage Temp. -20 to 70°C (-4 to 158°F) Operating Humidity 5% - 95% non-condensing 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 Dimensions ( W x H x D...
  • Page 15 Functional Description Figure 2-4 MaxiVCI Mini Views Vehicle Data Connector (16-Pin) – connects the MaxiVCI Mini to the vehicle’s 16-pin DLC directly. Power LED – refer to Table 2-2 Power LED on the Front Panel on page 8 for details. Connection LED –...
  • Page 16 Table 2-3 Connection LED on the Front Panel Color Description Illuminates solid green when the device  is successfully connected via USB cable but there is no communication with the vehicle. Green Flashes green when the device is  successfully connected via USB cable and there is communication with the Connection vehicle.

  • Page 17: Other Accessories

    Description Item Built-in Battery 3.7 V Lithium Battery Light White LED Power Sources The MaxiVCI Mini operates on 12-volt vehicle power, which it receives through the vehicle’s DLC. The unit powers on whenever it is connected to the vehicle’s DLC. Other Accessories MaxiVCI Mini Connects to the vehicle’s DLC and provides wireless...

  • Page 18: Getting Started

    The power LED light will illuminate green. The system boots up, and shows the lock screen. Slide the Lock icon to the left to enter the MaxiCheck Job Menu or slide to the right to unlock. Figure 3-1 Sample MaxiCheck MX808TS Job Menu...

  • Page 19: Application Buttons

    Opens the organization system for saved data Data files. See on page 101 for Data Manager Manager details. Allows you to set the MaxiCheck system settings and to view the general information Settings about the Display Tablet. See Settings on page 106 for details.
  • Page 20 Launches Support platform which synchronizes Autel’s on-line service base Support station with the MaxiCheck tablet. See Support on page 143 for details. Provides associated website bookmarks to allow quick access to product update, service, Quick Link support and other information. See Quick Link on page 152 for details.

  • Page 21: Locator And Navigation Buttons

    Chrome Launches the Android built-in browser. Takes a screenshot when you want to save Screenshot the displayed information. Returns to MaxiCheck Job Menu from other MaxiCheck Home operations. Opens the VCI Manager application. The tick icon at the bottom right corner indicates the...

  • Page 22: Powering Down

    System Status Icons As the Display Tablet is working with the Android operating system, you may refer to Android documents for more information. By up sliding the bottom right corner, a Shortcuts Panel will be displayed, on which you are allowed to set various system settings of the tablet. Operations of each button on the panel are described in the table below: NOTE The shortcuts buttons will be highlighted when enabled, and dimmed when...

  • Page 23: Reboot System

    Reboot System In case of system crash, long press the Lock/Power button and tap Reboot option to reboot the system.

  • Page 24: Diagnostics

    When these are done, check the VCI navigation button at the bottom bar on the screen, if the button displays a green tick icon at the lower right corner, the MX808TS Diagnostic Platform is ready to start vehicle diagnosis. Vehicle Connection The Display Tablet communicates with the vehicle via the BT connection provided by the MaxiVCI Mini.

  • Page 25: Vci Connection

    NOTE The vehicle’s DLC is not always located under the dash; refer to the user manual of the test vehicle for additional connection information. VCI Connection After the MaxiVCI Mini is properly connected to the vehicle, and the Power LED on the MaxiVCI Mini illuminates solid green, it indicates that the MaxiVCI Mini is ready to establish communication with the Display Tablet.

  • Page 26: No Communication Message

    NOTE When both the communication methods are applied at the same time, the MaxiCheck system will use the USB communication as the default priority. No Communication Message A. If the Display Tablet is not connected to the MaxiVCI Mini correctly, an “Error”...

  • Page 27: Getting Started

    When the Display Tablet device is properly connected to the vehicle, the platform is ready to start vehicle diagnosis. Tap on the Diagnostics application button on the MaxiCheck MX808TS Job Menu, the Vehicle Menu then displays. Figure 4-1 Sample Vehicle Menu...

  • Page 28: Vehicle Identification

    The Manufacturer buttons display the various vehicle logos and the brand names. Select the required manufacturer button after establishing the communication with the test vehicle to start a diagnostic session. Vehicle Identification The MaxiCheck diagnostic system supports four methods for Vehicle Identification. Auto VIN Scan Manual VIN Input...
  • Page 29 Automatic Selection Manual Selection Auto VIN Scan The MaxiCheck diagnostic system features the latest VIN-based Auto VIN Scan function to identify vehicles in just one touch, which allows the technician to quickly detect vehicles, scan all the diagnosable ECUs on every vehicle and run diagnostics on the selected system.
  • Page 30 Figure 4-3 Sample Auto Detect Screen Review the information to make sure it is correct. Tap OK to confirm the vehicle profile or NO if the information is not correct. Figure 4-4 Sample Vehicle Profile Screen The tool would start establishing vehicle communication and reading control unit information.

  • Page 31: Manual Vin Input

    Figure 4-5 Sample Diagnostic Screen Manual VIN Input For some vehicles that do not support the Auto VIN Scan function, the MaxiCheck diagnostic system allows you to enter the vehicle VIN manually.  To perform Manual VIN Input Tap the Diagnostics application button from the MaxiCheck Job Menu.
  • Page 32 Figure 4-6 Sample Diagnostic Screen Tap Done. The vehicle will be identified in a few seconds, and once the matching is successful, the system will guide you to the Vehicle Diagnostics screen directly. Tap Cancel to exit Manual Input. Automatic Selection In some cases when users have selected the vehicle brand instead of performing Auto VIN Scan in the first place, the system still provides an option for vehicle VIN scan.
  • Page 33 Figure 4-7 Sample Selection Screen  To perform Automatic Selection Tap the Diagnostics application button from the MaxiCheck Job Menu. The Vehicle Menu displays. Tap the vehicle brand of the test vehicle. Tap Automatic Selection and the system will proceed to acquire VIN information automatically.

  • Page 34: Navigation

    Navigation This section describes how to operate the Diagnostics screen and select test options. Diagnostics Screen Layout Figure 4-8 Sample Diagnostics Screen The diagnostic screens typically include four sections. Diagnostics Toolbar Status Information Bar Main Section Functional Buttons Diagnostics Toolbar The Diagnostics Toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls.
  • Page 35 148 for detailed information.  To print data in Diagnostics Tap the Diagnostics application button from the MaxiCheck Job Menu. The Print button on the diagnostic toolbar is available throughout the whole Diagnostics operations. Tap Print whenever you want to make a printing. A drop-down...
  • Page 36  To submit Data Logging reports in Diagnostics Tap the Diagnostics application button from the MaxiCheck Job Menu. The Data Logging button on the diagnostic toolbar is available throughout the whole Diagnostics operations. Tap the Data Logging button. The button displays blue during the active recording process.

  • Page 37: Diagnosis

    Screen Messages Screen messages appear when additional input is needed before proceeding. There are mainly three types of on-screen messages as to their purposes: Confirmation, Warning, and Error. Confirmation Messages This type of messages usually displays as an “Information” screen, which informs you when you are about to perform an action that cannot be reversed or when an action has been initiated and your confirmation is needed to continue.
  • Page 38 There are two options available when accessing the Diagnosis section: Auto Scan – starts auto scanning for all the available systems on the vehicle. Control Units – displays a selection menu of all available control units of the test vehicle. After a section is selected and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu displays.
  • Page 39 Main Section Column 1 – displays the sequence numbers. Column 2 – displays the scanned systems. Column 3 – displays the diagnostic marks indicating different conditions of the test result: : Indicates that the scanned system may not support the code ...
  • Page 40 Name Description Suspends scanning and it will change to Continue Pause button after tapping. Returns to the previous screen or exit Auto Scan. Control Units This option allows you to manually locate a required control system for testing through a series of choices. Please follow the menu driven procedures, and make proper selection each time;...
  • Page 41 NOTE With the diagnostic toolbar on top of the screen throughout the whole diagnostic procedures, you are allowed to make various controls of the diagnostic information at any time, such as printing and saving the displayed data, getting help information, or performing data logging, etc. ...
  • Page 42 Functional Button – in this case, only an ESC (or sometimes a Back) button is available; tap it to exit after viewing. Read Codes This function retrieves and displays the DTCs from the vehicle’s control system. The Read Codes screen varies for each vehicle being tested. On some vehicles, freeze frame data can also be retrieved for viewing.
  • Page 43 etc. Freeze – tap this to view the freeze frame.  Search – tap this icon to search the fault code related information  in Google. ESC – tap it to return to the previous screen or exit the function. ...
  • Page 44 Figure 4-13 Sample Live Data Screen Diagnostics Toolbar Buttons – tap the drop-down button at the top center of the screen and the toolbar buttons will display. See on Table 4-2 Diagnostics Toolbar Buttons page 28 for detailed descriptions of the operations for each button.
  • Page 45 mode, and one Help button on the right that you can tap for additional information. Each parameter item displays the selected mode independently. Analog Gauge Mode – displays the parameters in form of an analog meter graph. Text Mode – this is the default mode which displays the parameters in texts and shows in list format.
  • Page 46 comparison. There are three control buttons available on the top right side of the screen under this mode.  To edit the waveform color and line thickness in a data graph Select 1 to 3 parameter items to display in Waveform Graph mode.
  • Page 47 NOTE This mode supports Graph Merge for 2 to 3 parameter items only, so select no less than 2 or no more than 3 items each time when making graph merge. To cancel Graph Merge mode, tap the drop-down button on the right ...
  • Page 48 Buzzer Alarm – switches the alarm on and off. The alarm function makes a beep sound as a reminder whenever the data reading reaches the preset minimum or maximum point. To set threshold limits for the parameter values  Tap the Setting functional button at the bottom of the Live Data screen.

  • Page 49: Generic Obd Ii Operations

    before the data recording start point for reference (for Auto trigger mode only). To perform setting for live data record  Tap the Setting functional button at the bottom of the Live Data screen. Tap the Record navigation button. > button on the right of Trigger Type bar and select the Tap the ○...

  • Page 50: General Procedure

    General Procedure  To access the OBD II/EOBD diagnostics functions Tap the Diagnostics application button from the MaxiCheck Job Menu. The Vehicle Menu displays. Tap the EOBD button. There are two options to establish communication with the vehicle. Auto Scan – when this option is selected the diagnostic tool ...

  • Page 51: Function Descriptions

    I/M Readiness  Live Data  On-Board Monitor  Component Test  Vehicle Information  Vehicle Status  NOTE Some functions are supported only on certain vehicle makes. Function Descriptions This section describes the various functions of each diagnostic option: DTC &...
  • Page 52 Stored Codes  Stored codes are the current emission related DTCs from the ECM of the vehicle. OBD II/EOBD Codes have a priority according to their emission severity, with higher priority codes overwriting lower priority codes. The priority of the code determines the illumination of the MIL and the codes erase procedure.
  • Page 53 I/M Readiness This function is used to check the readiness of the monitoring system. It is an excellent function to use prior to having a vehicle inspected for compliance to a state emissions program. Selecting I/M Readiness opens a submenu with two choices: Since DTCs Cleared –...

  • Page 54: Exiting Diagnostics

    MaxiCheck Job Menu. Now, the Diagnostics application is no longer communicating with the vehicle and it is safe to open other MaxiCheck applications, or exit the MaxiCheck Diagnostic System and return to the Android System’s Home...

  • Page 55: Service

    Service The Service section is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. The typical service operation screen is a series of menu driven executive commands. By following the on-screen instructions to select appropriate execution options, enter correct values or data, and perform necessary actions, the system will guide you through the complete performance for various service operations.
  • Page 56 To perform oil reset functions  Tap the Service application button from the MaxiCheck Job Menu. Tap Oil Reset button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information and tap Yes to confirm.
  • Page 57 Follow the step-by-step on-screen instruction to complete the service. Take CBS Reset UDS as an example. Tap CBS Reset UDS on the Oil Reset function list to start the operation. The screen will guide you to confirm the date and time, if the displayed date and time are correct, tap Yes to confirm.

  • Page 58: Electronic Parking Brake (Epb) Service

    Figure 5-4 Sample Oil Reset Service Screen 3 When the reset is done, the availability would display as 100%. Tap ESC to exit. Electronic Parking Brake (EPB) Service This function has a multitude of usages to maintain the electronic braking system safely and effectively.
  • Page 59 Electronic Parking Brake system. To perform EPB functions  Tap the Service application button from the MaxiCheck Job Menu. Tap EPB button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information and tap Yes to confirm.
  • Page 60 Replacing the parking brake button.  Figure 5-6 Sample EMF Start-up Screen 1 Tap Continue to proceed this service function or the Back button at the bottom left to exit. Tap on the action that has been carried out to continue. Figure 5-7 Sample EMF Start-up Screen 2 In the following step, the screen will remind you that the fault memory of the parking brake control unit will be deleted, press Continue to...
  • Page 61 Figure 5-8 Sample EMF Start-up Screen 3 Follow the on-screen instructions to pull the parking brake button and wait for around 3 seconds until the parking brake is set. When the operation is successfully completed, a “Completed successfully” message will appear on the screen. Press OK to exit. Parking Brake: Workshop Mode This service is used to activate and deactivate the so-called installation position for the Automatic Hold brake.

  • Page 62: Battery Management System (Bms) Service

    Battery Management System (BMS) Service The Battery Management System (BMS) allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle. NOTE This function is not supported by all vehicles. The screens shown in this section are examples.
  • Page 63 To display the battery history  Tap the Service application button from the MaxiCheck Job Menu. Tap BMS button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information and tap Yes to confirm. See Vehicle Identification page 21 for detail.
  • Page 64 Figure 5-10 Sample BMS Screen 1 Read carefully the complete information and press Continue to continue. Figure 5-11 Sample BMS Screen 2 Check the battery capacity and the battery replacement information on the screen. Tap on the corresponding function 1 to return to the selection screen or press the function 2 to end the service function.
  • Page 65 Figure 5-12 Sample BMS Screen 3 To register the battery replacement  Tap on the corresponding service you want to carry out. In this case, it is function 2 Register battery replacement. Figure 5-13 Sample BMS Screen 4 Read carefully the information on the screen and slide up/down to view all the functions listed.
  • Page 66 Figure 5-14 Sample BMS Screen 5 Enter battery replacement: Same capacity Enter battery replacement: Different capacity Enter battery replacement: Changing from the normal lead-acid battery (white housing) to AGM battery (black housing) End service function. Take the first function as an example. Figure 5-15 Sample BMS Screen 6...
  • Page 67 Read carefully the information on the screen and tap Yes to continue. Follow the on-screen instructions to input the data matrix code of the newly installed battery which should be on the label of the battery. Tap OK to continue. Figure 5-16 Sample BMS Screen 7 When the battery exchange is successfully entered, tap Continue to complete the operation.

  • Page 68: Steering Angle Sensor (Sas) Service

    Take Land Rover as an example. Tap the Service application button from the MaxiCheck Job Menu. Tap SAS button and wait for the vehicle manufacturer screen. You can tap VIN Scan or the vehicle make to acquire vehicle VIN information...
  • Page 69 and tap Yes to confirm. See on page 21 for detail. Vehicle Identification Tap the service you want in the SAS function list, the list may vary for different vehicles being tested. Figure 5-18 Sample SAS Function Menu Steering Angle Sensor Calibration This function allows users to perform steering angle sensor calibration and clear records.

  • Page 70: Diesel Particle Filter (Dpf) Service

    Figure 5-19 Sample SAS Function Screen 1 When the operation is completely finished, the scan tool will display a confirmation message. Otherwise, it will display a message to remind you of a problem. After you exit the diagnosis program, please repair the problem immediately.
  • Page 71 The tool will manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit. ECM monitors driving style and selects a suitable time to employ regeneration. Cars driven a lot at idling speed and low load will attempt to regenerate earlier than cars driven more with high load and high speed.
  • Page 72 Figure 5-21 Sample DPF Service Function Menu Starting Basic Inspection Quantity This function enables you to start fuel delivery matching. Tap Starting Basic Inspection Quantity from the service functions menu to enter the service screen. The tool communicates with the vehicle and reads the fault codes memory.
  • Page 73 [1] Enter New Value for Adjustment From the Starting Basic Inspection Quantity menu, tap [1] and the screen displays as below. Figure 5-23 Sample Enter New Value Screen After entering the value, tap OK to save the value to the tool. Tap ESC to exit the operation.
  • Page 74 The tool communicates with the vehicle and reads the fault codes memory. Follow the on-screen instructions to finish this procedure. Then the tool will display as below. Press the corresponding number button to perform the desired function. Figure 5-24 Sample Injection Rate Screen [1] Enter New Value for Adjustment From the Injection Rate menu, tap [1] and the screen displays as below.
  • Page 75 NOTE The data you input should be in the reasonable range. If the input data is out of range, the tool will display a warning message “Permissible adjustment range exceeded.” [2] Reset Adjustment to 100% Once the [2] is pressed, the tool will automatically reset the value to 100%. [3]/[4] Store Data and Exit When the injection volume adjustment is completed, select [3] and OK to store the new value in the control units;...
  • Page 76 Figure 5-26 Sample Regeneration Confirmation Screen A series of instruction screens appears for users to perform the particle filter regeneration step by step. Follow the onscreen instructions and tap OK button until the tool reads off the regeneration status as below. Figure 5-27 Sample Regeneration Status Screen When the particle filter regeneration is complete, the tool will ask your confirmation to exit the display.
  • Page 77 Figure 5-28 Sample Repeat Screen NOTE In the case of a particle filter heavily loaded with soot, it can occur that the regeneration request is blocked again after a short time or is not released. In this case, it is required to regenerate the particle filter in a motorway or cross-country trip taking approx.

  • Page 78: Immobilizer (Immo) Service

    If there are DPF-related codes stored in DDE, the screen displays as below. Select OK to continue or Cancel to exit this function. Figure 5-29 Sample Codes Screen The tool shows a list of particle filter test. Select the corresponding number button to perform the desired test [1] [2] [3] [4] [5].
  • Page 79 The IMMO service of MX808TS enables you to disable the lost vehicle keys and program the replacement key fob. It could be one replacement key fob or more, depending on your needs.
  • Page 80 Figure 5-30 Sample IMMO Note Screen Figure 5-31 Sample Program Key FOB Screen...

  • Page 81: Tpms

    Establishing Vehicle Communication establish a communication link between the vehicle and the Display Tablet. TPMS Service Menu Layout Tap TPMS on the MaxiCheck Job Menu, the screen then opens the TPMS Vehicle Menu. Figure 6-1 Sample TPMS Vehicle Menu Screen Top Toolbar Buttons –...

  • Page 82: Vehicle Selection

    TPMS Service Access Methods OEM Part No.  Manufacturer Buttons  Navigation Buttons System Status Icons TPMS Service Access Methods OEM Part No. Refer to TPMS by OEM Part No. on page 96 for details. Vehicle Selection Select the required manufacturer and follow the onscreen instructions to select vehicle information step by step to start a TPMS service session.
  • Page 83 Figure 6-2 Sample Vehicle Manufacturer Selection Figure 6-3 Sample Vehicle Model Selection...
  • Page 84 Figure 6-4 Sample Vehicle Year Selection For some vehicles that adopt an indirect TPMS, the following screen displays. 6-5 Sample Indirect TPMS Selection Screen For indirect TPMS vehicle, only the Relearn function is supported. Tap the vehicle year information button, in the case of the above figure – 2008/08-2017/01 (indirect), the screen will turn to the Relearn procedure, follow the onscreen instructions to complete the operation.
  • Page 85 6-6 Sample Relearn Procedure for Indirect TPMS For the vehicles that adopt a Direct TPMS, follow the onscreen instruction to select vehicle information and once the test vehicle is identified, a most comprehensive TPMS service functions menu displays. Figure 6-7 Sample TPMS Service Screen Top Toolbar Buttons Navigation Tab Main Section...
  • Page 86 Top Toolbar Buttons The top toolbar contains a number of buttons that allow you to print or save the displayed data and make other controls. See Table 4-1 Top Toolbar Buttons on page 21 for details. Navigation Tab The navigation tab at the top of the Main Section screen contains the following items: Check Tab –...
  • Page 87 TPMS Check The Check function allows user to activate TPMS sensor to view sensor data such as sensor ID, tire pressure, tire temperature, battery condition and sensor position.  To check the sensors Follow the steps in Vehicle Identification on page 21 to identify the test vehicle.
  • Page 88 Figure 6-8 Sample Check Screen The sensor position, sensor ID, tire pressure, tire temperature, sensor frequency and sensor battery information of the triggered sensor will be displayed on the right table of the screen. Table 6-1 Possible Results for Triggering Icon Results Description...
  • Page 89 TPMS Diagnosis The Diagnosis function is used to check the health of the TPMS ECU. This function requires connection with the test vehicle. Refer to Establishing Vehicle Communication on page 17 for details. Diagnosis Operations Tap Diagnosis, the Display Tablet will automatically communicate with the vehicle.
  • Page 90 If the OBD function is supported by the test vehicle, the sensor ID saved in the TPMS ECU will be retrieved and displayed on the screen with an OBD mark before it when the communication completed. If the sensor ID retrieved from sensor activation is the same as the ID saved in the ECU, the trigger mark ( ) and OBD mark ( ) before the IDs will...
  • Page 91 Figure 6-12 Sample DTCs Screen In this screen, the detailed fault definition will be displayed. Select one of the DTC and tap Search, the tablet will automatically connect the Internet and more details will be displayed on the tablet. If there is no DTC exited in the TPMS ECU, a green “No DTC” message appears in the DTC column.

  • Page 92: Special Functions

    Live Data Tap Live Data to view the data stream of the sensor information. Figure 6-14 Sample Live Data Screen The Live Data screen shows all parameters be default. Tick on the box before the parameters you want to see, the Show icon on the bottom of the screen will be available and turn to blue.
  • Page 93 Figure 6-15 Sample Special Functions Screen Select each function to conduct the Active Test for the vehicle lamps. Sensor Programming The Programming function allows users to program the sensor data to the MX-Sensor and replace faulty sensor with low battery life or one that is not functioning.
  • Page 94 The sensor IDs retrieved from sensor activation and TPMS ECU will automatically appear on the left column of the table on the screen with the trigger and OBD marks before them. If the OBD function is not supported by the test vehicle and the sensor ID saved in the ECU cannot be retrieved, the Programming screen appears as below.
  • Page 95 Figure 6-18 Sample Copy by Active Confirmation Screen A window will pop up for your confirmation, tap OK to program, or tap Cancel to quit the operation. Figure 6-19 Sample Copy by Active Screen...
  • Page 96 Figure 6-20 Sample Copy by Active Complete Screen When the programming is complete, the programmed ID will appear to the right of the FL column. By using Copy by Active, the sensor ID that is retrieved from sensor activation is programmed to the new MX-Sensor. Because the IDs of the original sensor and the new MX-Sensor are the same and the ID has already be recognized by the vehicle ECU, so there is no need to perform the Relearn function to write the ID into the ECU.
  • Page 97 Figure 6-21 Sample Copy by OBD Screen When the programming is complete, the programmed ID will appear to the right of the FR column. By using Copy by OBD, the sensor ID that is retrieved from TPMS ECU is programmed to the new MX-Sensor. In this case, there is no need to perform the Relearn function to write the ID into the ECU.
  • Page 98 Figure 6-22 Sample Copy by Input Screen Tap Copy by Input, an input box pops up for you to enter the ID of the original sensor. Tap the input box to open a soft keyboard, enter the ID and tap Enter when finished. Some sensor manufacture use hex format to compile the sensor ID, others use decimal format.
  • Page 99 The tablet will create a random ID for the MX-Sensor. Since this new ID is different from the ID saved in the TPMS ECU, therefore the Relearn function is needed to write the new ID into the TPMS ECU for the vehicle recognizing the new MX-Sensor.
  • Page 100 Figure 6-24 Sample Stationary Relearn Screen 1 Then follow the Relearn Procedure to conduct Stationary Relearn. Figure 6-25 Sample Stationary Relearn Screen 2 Active Relearn For some vehicles, the Relearn function can be completed by driving. Refer to the onscreen Relearn Procedure for the exact operation steps and the details of the driving process.
  • Page 101 Figure 6-26 Sample Active Relearn Screen 1 Figure 6-27 Sample Active Relearn Screen 2 OBD II Relearn OBD II Relearn The OBD II Relearn function allows the MX808TS Display Tablet directly program the TPMS sensor IDs to the vehicle electronic modules.
  • Page 102 NOTE Not all the vehicles support the OBD II Relearn. If the selected vehicle model supports OBD II Relearn, the OBD II Relearn button will automatically appear on the bottom left of the screen. To perform the Relearn, read all four wheels first. If one or more sensors are faulty, please use the Programming function to replace the faulty sensors and trigger new sensors after replacement.

  • Page 103: Oem Part N O

    OBD II Assisted Relearn The MX808TS Display Tablet also provides OBD II Assisted Relearn functions. Since the Display Tablet communicates with vehicle wirelessly, users can hold the tablet and move to each wheel to trigger the sensor mounted on the vehicle while still keep the Display Tablet connected with the vehicle.
  • Page 104 Function Operations Tap OEM Part No. on the TPMS service menu to access the next screen. A list of sensor OEM part numbers will be displayed. Use your finger to move the screen left and right to find out the correct OEM part number of the sensor on the test vehicle.
  • Page 105 Figure 6-32 Sample OEM Part No. Service Menu When a specific OEM part No. is selected, the screen will display as below. NOTE Only sensor Check and Programming functions are provided by OEM Part No.. The Diagnosis and Relearn functions can only be accessed through vehicle selection from manufacturer buttons on the TPMS service menu.
  • Page 106 Figure 6-33 Sample Check Screen via OEM Part No. Programming The programming function is used to program the sensor data to the MX-Sensor and replace the faulty senor (poor battery life or malfunction). There are three options available when programming MX-Sensor using the OEM Part No.
  • Page 107 The PSN Code here is used to remind you the programmed ID of each MX-Sensor. When you have programmed more than 1 MX-Sensor at a time, you can read the PSN Code printed on the MX-Sensor as an index to find out the corresponding ID programmed to each MX-Sensor.

  • Page 108: Data Manager

    Data Manager The Data Manager application is used to store, print, and review the saved files. Most operations are controlled through the toolbar. Selecting the Data Manager application opens the file system menu. Different file types are sorted separately under different options, there are six types of information files to be viewed or played back.
  • Page 109 Figure 7-2 Sample Image Screen Toolbar Buttons – used to edit, print and delete the image files. See the following table for detailed information. Main Section – displays the stored images. Table 7-1 Toolbar Buttons in Image Screen Button Name Description Back Returns to the previous screen.
  • Page 110  To edit image information Select Data Manager application from the MaxiCheck Job Menu. Select Image to access the image database. Select an image to display it in full screen. Tap the screen to display the editing toolbar. Tap the Info button to open a window displaying the image information.

  • Page 111: Pdf Files

    Select the images that need to be deleted by tapping the thumbnail images, the selected thumbnail displays a tick icon at the bottom right corner. Tap the Delete button, and then Delete Selected, then the selected images will be deleted. PDF Files The PDF section stores and displays all PDF files of saved data.
  • Page 112 Tap Back to exit data playback. Apps Uninstall This section allows you to manage the firmware applications installed on the MaxiCheck Diagnostics System. Selecting this section opens a managing screen, on which you can check all the available vehicle diagnostic applications.

  • Page 113: Settings

    Settings Selecting Settings application opens a setup interface, on which you can adjust default setting and view information about the MaxiCheck system. There are seven options available for the MaxiCheck system settings: Unit  Language  Printing Setting  Notification Center ...

  • Page 114: Language

    Figure 8-1 Sample Unit Setting Screen Language This option allows you to adjust the display language for the MaxiCheck system.  To adjust the language setting Tap the Settings application on the MaxiCheck Job Menu. Tap the Language option on the left column.

  • Page 115: Printing Setting

    Tap the Home button on the top left corner to return to the MaxiCheck Job Menu. Or select another setting option for the system setup. Figure 8-3 Sample Printing Setting Screen Printing via APP MX808TS provides the most convenient printing method, printing via APP.
  • Page 116 To realize this function, please make sure a Wi-Fi printer is available and then purchase a Wi-Fi printer APP and install it onto your Display Tablet. By a simple click on the Print button of a saved file on the Display Tablet, the file will be printed automatically.

  • Page 117: Notification Center

    Internet. It is highly recommended to keep this function on all the time, so you won’t miss out any new update for MaxiCheck or event from Autel. Internet access is required for receiving on-line messages.

  • Page 118: Auto Update

    The Auto Update allows the tool to automatically update the OS, the MaxiCheck system, and the Vehicle. All you need to do is to switch ON by tapping the button on the right side of each and set the desired automatic update time.

  • Page 119: System Settings

    Android system, etc.  To enable the App Switcher function Tap the Settings application on the MaxiCheck Job Menu. Tap the System settings option on the left column.

  • Page 120: About

    You may refer to Android documentation for additional information about Android system settings. About The About option provides information of the MaxiCheck diagnostic device regarding the product name, version, hardware, and serial number, etc.  To check the MaxiCheck product information in About Tap the Settings application on the MaxiCheck Job Menu.
  • Page 121 Tap the Home button on the top left corner to return to the MaxiCheck Job Menu, or select another setting option for the system setup, after viewing. Figure 8-8 Sample About Screen...

  • Page 122: Update

    Update This chapter describes the update operation for both the MX808TS Display Tablet and the MaxiVCI Mini. The software and firmware updates of the Display Tablet can be completed on the tablet via Internet, while the updates for MaxiVCI Mini can be completed either via the connection with the Display Tablet or via the connection with a PC.
  • Page 123 Search Bar – search specific update item by inputting the file name,  for example: a vehicle make Status Bar Left Side – displays the MaxiCheck device model information and  serial number Right Side – displays an update progress bar indicating the ...

  • Page 124: Firmware Update

    Make sure the Display Tablet is connected to a power source with stable access to the internet. Tap the Update application button from the MaxiCheck Job Menu; or tap the update notification message when received one; or tap the Update icon on Vehicle Menu in Diagnostics application. The Update application screen displays.

  • Page 125: Maxivci Mini Update

    To update the MaxiVCI Mini software Power on the Display Tablet. Connect the MaxiVCI Mini to Display Tablet via USB. Tap the VCI Manager application on the MaxiCheck Job Menu of the Display Tablet. Select Update from the connection mode list.

  • Page 126: Vci Manager

    BT Paring – when paired to a wireless device, the connection state  displays as Paired; otherwise it displays as Unpaired. Update (for VCI software only) – when the MaxiCheck tablet and  the MaxiVCI Mini are connected by a USB cable, this function is used to update VCI software via Internet.

  • Page 127: Bt Pairing

    Display Tablet is connected to the MaxiVCI Mini, and is ready to perform vehicle diagnosis. Tap the paired device again to unpair it. 10. Tap the Home button on the top left to return to the MaxiCheck Job Menu. NOTE A MaxiVCI Mini can be paired to only one Display Tablet each time, and once it’s been paired, the device will not be discoverable for any other unit.

  • Page 128: Programmer Update

    Programmer Update Coming soon.

  • Page 129: Shop Manager

    Shop Manager The Shop Manager application helps you to manage the workshop information, customer information records, and keep test vehicle history records, which can be a great assist in dealing with daily workshop business and improves customer service. There are three main functions available: Vehicle History ...

  • Page 130: Vehicle History

    Button Name Description Touching this button to create a new customer Account account file. Touching this button opens a note form, which History allows you to create audio record, attach picture or Notes video, or edit text notes, etc. Touching this button opens the Vehicle History Vehicle screen which displays the correlated test vehicle History...

  • Page 131: Historical Test Record

     To activate a test session for the recorded vehicle Tap the Shop Manager application on the MaxiCheck Job Menu. Select Vehicle History Tap the Diagnostics button at the bottom of the thumbnail of a vehicle record item. Or select a vehicle record item by tapping the thumbnail.

  • Page 132: Workshop Information

     To edit the Historical Test record sheet Tap the Shop Manager application on the MaxiCheck Job Menu. Select Vehicle History. Select the specific vehicle history record thumbnail from the main section. The Historical Test record sheet displays. Tap the Edit button to start editing.

  • Page 133: Customer Manager

    Figure 11-3 Sample Workshop Information Sheet  To edit the Workshop Information sheet Tap the Shop Manager application on the MaxiCheck Job Menu. Select Workshop Information. Tap the Edit button on the top toolbar. Tap on each field to input the appropriate information.

  • Page 134: History Notes

    Tap Done to save the account, or tap Cancel to exit without saving.  To edit a customer account Tap the Shop Manager application on the MaxiCheck Job Menu. Select Customer Manager. Select a customer account by tapping the corresponding name card. A Customer Information sheet displays.
  • Page 135  To access History Notes Tap the Shop Manager application on the MaxiCheck Job Menu. Select Customer Manager or Vehicle History. Select a customer account by tapping the corresponding name card.
  • Page 136 Button Name Description Quickly locates the required note by Search entering the note title. Cancel Cancel edit or file search. Touching this button opens an edit Edit window allowing you to edit notes and attach files. Add Notes Adds new note to History Notes. Save Saves notes.

  • Page 137: Academy

    Academy Autel provides various tutorial articles and technical bulletins produced by top-notch technicians and product experts. Please view the materials that are saved on the Display Tablet or view more technical articles from our online forum by clicking the links displayed under this application.

  • Page 138: Remote Desk

    You can use the application to receive ad-hoc remote support from Autel’s support center, colleagues, or friends, by allowing them to control your MaxiCheck tablet on their PC via the TeamViewer software.
  • Page 139 and shown. Your partner must install the Remote Control software to his/her computer by downloading the TeamViewer full version program online (http://www.teamviewer.com), and then start the software on his/her computer at the same time, in order to provide support and take control of the Display Tablet remotely.

  • Page 140: Maxifix

    (DTC) database for most vehicles, but also serves as a forum allowing you to network with other MaxiCheck users, and gives you access to a vast database of repair and diagnostic tips along with proven filed fixes.
  • Page 141 The MaxiFix screen layout consists of 3 main areas: The Header – the tool bar across the top of the screen which allows you to select vehicles and perform searches. The Main Screen – located at the center of the screen displaying content based on the vehicle attributes and keywords specified.
  • Page 142 Select the model of the vehicle from the list. Select the submodel of the vehicle from the list. Select the engine of the vehicle from the list. After completing the vehicle selection procedure, the identified vehicle is shown on the Header. Terminology MaxiFix Tip A MaxiFix Tip provides practical information of real fix of a specific vehicle...

  • Page 143: Operations

    OBD II Fault Codes description and reference — helps in diagnostic assessment by making clear the nature of an automotive problem so that beginner and advanced technicians can make effective repairs. Real Fix Tips – provides repair tips from actual shop practices and are presented in an easy to understand Complaint, Cause, Correction format.
  • Page 144 to your activities in the Question section. Support – opens the FAQ page, or a message box for contacting  Customer Service by email. Home Home is the first option on the Navigation Menu at the bottom of the screen. Tapping it opens your MaxiFix home page.
  • Page 145  To ask a MaxiFix Question If not already done, click Select Vehicle on the Header to specify the vehicle you are asking about. Click Ask on the Navigation Menu at the bottom of the screen to open the Ask page. On the Ask page find Ask for Help, fill in the following sections to ask a question.
  • Page 146 are actively participating in. My Profile – allows you to view your Autel account information including:  your Autel ID, personal information, MaxiFix score, phone number and register time, and edit your portrait. Vehicle Preference –used to set up a list of preferred vehicles. The ...
  • Page 147 Use the Attach File button at the left-side bottom of the page to include images or other supporting data with your question. View Profile Information You can view your personal profile by clicking on your account ID or “My Profile” in My MaxiFix section or edit portrait where applicable, and visit other community members’...
  • Page 148 About Adopted Answer: Only one answer can be selected as “Adopted Answer”.  Answers can only be rated by the MaxiFix member who asked the  question. Close a Question When a repair question that you've posted to the community is resolved, you are encouraged to write down the case as a way to share a good solution.
  • Page 149 If you wish to contact the administrator of this site please use the contact form. Select “Support” from the Navigation Menu to open the comment window. To allow the administrator to respond to your question or issue, the following information should be provided: Your name ...

  • Page 150: Support

    Product Registration In order to get access to the Support platform and obtain update and other services from Autel, you are required to register the MaxiCheck Diagnostic Device the first time you use it. ...

  • Page 151: Support Screen Layout

    The Support application interface is navigated by 4 simple buttons on the top navigation bar, operation of each is described below in turn from left to right: Home Button – returns to the MaxiCheck Job Menu.  Back – returns to the previous screen, each press takes you back one ...

  • Page 152: User Complaint

    User Info - displays detailed information of your registered on-line Autel  account, such as your Autel ID, Name, Address and other contact information, etc. Device Info – displays the registered product information, including the  Serial Number, Registration Date, Expire Date, and Warranty Period. Update Info The Update Info section displays a detailed record list of the product’s software update history, including the product serial number, software...
  • Page 153 Figure 15-2 Sample Complaint Screen Screen Layout The User Complaint screen consists of two parts. Option Bar Period Filter – displays only the complaint records within the  defined period on the list Status Filter – displays the corresponding complaint records ...
  • Page 154  To establish a new complaint session Register the product online. Tap the Support application on the MaxiCheck Job Menu. The device information is automatically synchronized with the online account. Tap Complaint on the Main Menu.

  • Page 155: Data Logging

    Input the content in the input field, and if necessary, upload an attaching file. Tap Submit to post the reply. Tap the States selection drop-down menu to reset a case state. Tap the Update button to commit the newest update. Data Logging The Data Logging section keeps records of all sent or unsent (saved) data loggings on the diagnostic system.

  • Page 156: Communities

    Select a desired group according to the subject you are about to discuss. For example, if you are going to ask a question about the MaxiCheck tablet, tap MaxiCheck to start a discussion. Enter your topic and the discussion content in the appropriate input field.
  • Page 157 Tap the > button on the right side of the topic item to view the ○ discussion. The posts contents are displayed. Browse through all the posts by sliding the screen up and down. Tap Go to original post when reaching the end of the discussion to return to the first post.

  • Page 158: Training Channels

    Training Channels The Training section provides quick links to Autel’s online video accounts. Select a video channel by the language to see all the available online tutorial videos from Autel for various technical supports, such as product usage techniques and vehicle diagnostics practice, etc., may be available for your interests.

  • Page 159: Quick Link

    Figure 16-1 Sample Quick Link Screen  To open a quick link Tap the Quick Link application on the MaxiCheck Job Menu. The Quick Link application screen displays. Select a website thumbnail from the main section. The Chrome browser is launched and the selected website is opened.

  • Page 160: Function Viewer

     To Search by the vehicle Tap the Function Viewer application on the MaxiCheck Job Menu. The Function Viewer application screen displays. Tap the tool name on the top left to drop down the tool list, tap the one you want to search.
  • Page 161 Figure 17-2 Sample Function Viewer Screen 2  Search by the functions Tap the Function Viewer application on the MaxiCheck Job Menu. The Function Viewer application screen displays. Tap the tool name on the top left to drop down the tool list, tap the one you want to search.
  • Page 162 Figure 17-3 Sample Function Viewer Screen 3...

  • Page 163: Maintenance And Service

    Maintenance and Service Maintenance Instructions The following shows how to maintain your devices, together with precautions to take. Use a soft cloth and alcohol or a mild window cleaner to clean the touch  screen of the tablet. Do not use any abrasive cleansers, detergent, or automotive chemicals ...

  • Page 164: Troubleshooting Checklist

    Troubleshooting Checklist A. When the Display Tablet does not work properly: Make sure the tablet has been registered online.  Make sure the system software and diagnostic application software  are properly updated. Make sure the tablet is connected to the Internet. ...

  • Page 165: Service Procedures

    explosion. Do not use a damaged battery charger. Do not disassemble or open crush, bend or deform, puncture or shred.  Do not modify or remanufacture, attempt to insert foreign objects into  the battery, expose to fire, explosion or other hazard. Make sure to use the charger and USB cables only that come together ...
  • Page 166 AUTEL CHINA HQ Phone: 0086-755-8614 7779  Website: www.autel.com  Email: support@autel.com  Address: 6th-10th floor, Building B1, Zhiyuan, Xueyuan Road, Xili,  Nanshan, Shenzhen, 518055, China AUTEL NORTH AMERICA Phone: 855-AUTEL-US (855-288-3587) Monday-Friday 9am-6pm EST  Website: www.autel.com  Email: ussupport@autel.com ...
  • Page 167 Repair Service If it becomes necessary to return your device for repair, please contact us first and then download the repair service form from www.autel.com, and fill it in. The following information must be included: Contact name  Return address ...

  • Page 168: Compliance Information

    Compliance Information FCC Compliance FCC ID: WQ8MX808-TPMS This device complies with Part 15 of the FCC rules and Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 169 -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
  • Page 170 CE COMPLIANCE This product is declared to conform to the essential requirements of the following Directives and carries the CE mark accordingly: EMC Directive 2014/30/EU R&TTE Directive 1999/5/EC Low Voltage Directive 2014/35/EU...

  • Page 171: Warranty

    Limited One Year Warranty Autel Intelligent Technology Corp., Ltd. (the Company) warrants to the original retail purchaser of this MaxiCheck Diagnostic Device that should this product or any part thereof during normal usage and under normal conditions be proven defective in material or workmanship and results in...
  • Page 172 IMPORTANT All contents of the product may be deleted during the process of repair. You should create a back-up copy of any contents of your product before delivering the product for warranty service.

Table of Contents
