Funkyheat Touchscreen series Instruction Manual

Touchscreen far infrared heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

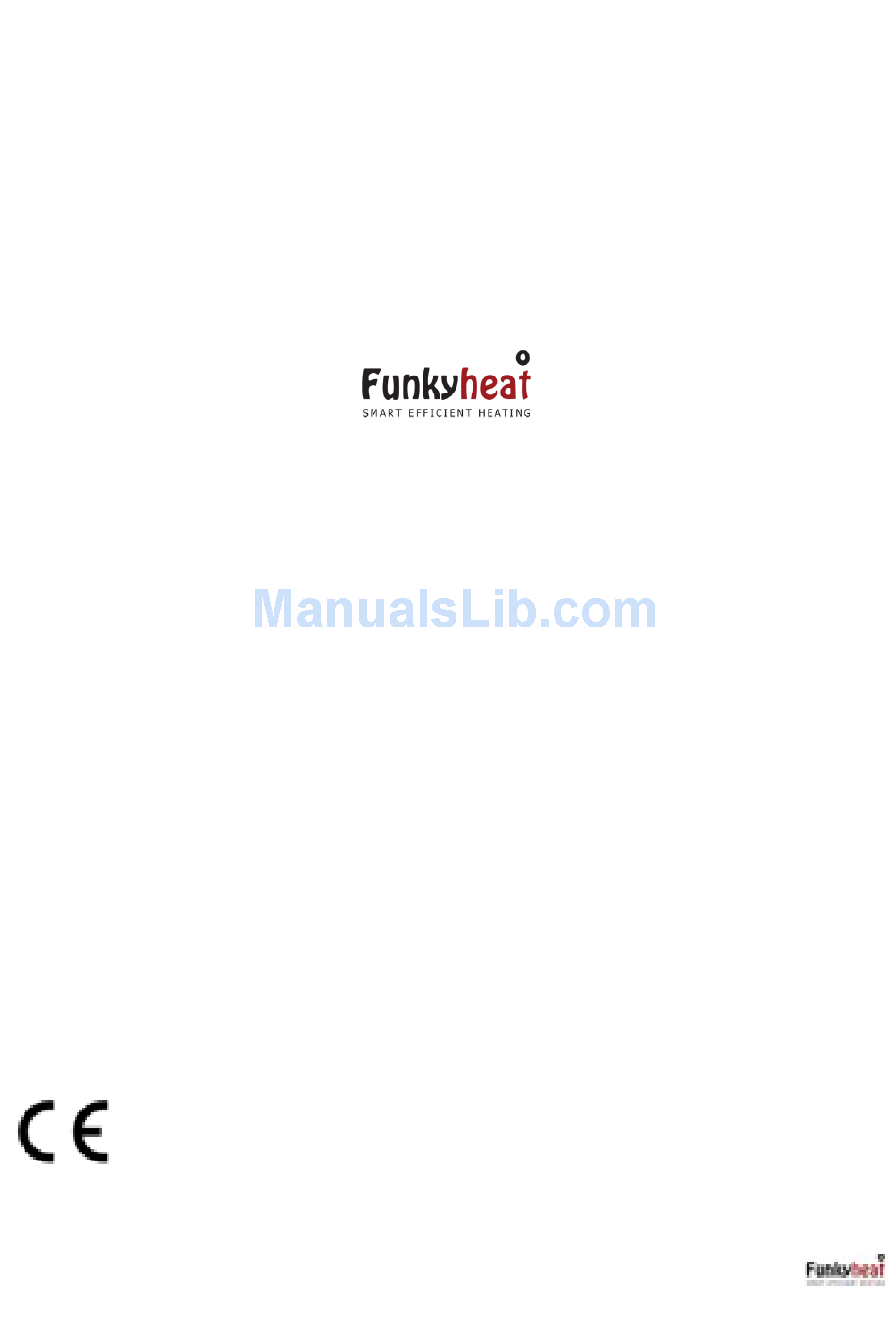

INSTRUCTION MANUAL
TOUCHSCREEN FAR
INFRARED HEATER
This appliance complies with European Directives:
The Carlile Institute
www.funkyheat.co.uk
2004/108/EC
on electromagnetic compatibility.
2006/95/EC
on low voltage.
2002/95/EC
on the restrictions of the use of certain hazardous
substances.
Funkyheat Ltd.
Huddersfield Road
Meltham
HD9 4AE



Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Touchscreen series and is the answer not in the manual?

Questions and answers

Related Manuals for Funkyheat Touchscreen series

Summary of Contents for Funkyheat Touchscreen series

  • Page 1 INSTRUCTION MANUAL TOUCHSCREEN FAR INFRARED HEATER Funkyheat Ltd. The Carlile Institute Huddersfield Road Meltham HD9 4AE www.funkyheat.co.uk This appliance complies with European Directives: 2004/108/EC on electromagnetic compatibility. 2006/95/EC on low voltage. 2002/95/EC on the restrictions of the use of certain hazardous
...

  • Page 2: Table Of Contents

    CONTENTS 1.Technical features of the appliance 2. General Information 3. Positioning and installation 5 3.1 Wall mounting 7 3.2 Electrical connection 8 4. Warnings 9 4.1. Control panel (touch screen) 10 5. Remote Control 12 6. Cleaning and maintenance 19 7.

  • Page 3: Technical Features Of The Appliance

    2004/108/EC on electromagnetic compatibility. 2006/95/EC on low voltage. 2002/95/EC on the restrictions of the use of certain hazardous substances. 1.Technical features of the appliance hnical features of the appliance 230V 50Hz Class II Degree of protection: IP24 of protection: IP24 The features of the appliance are indicated on the features label situated on the rear edge of the cover.

  • Page 4: General Information

    2. General Information Unpack the appliance and place it either on the polystyrene protection or on a carpet Package contains: • Appliance • Remote control • Wall mounting kit • Instruction manual Read these instructions carefully before installing and using the appliance. •...

  • Page 5: Positioning And Installation

    3. Positioning and installation 3. Positioning and installation This appliance is intended for domestic use for room heating. It shall not be put to This appliance is intended for domestic use for room heating. It shall not any other use. 3.
  • Page 6 Do not install the appliance: - Right below a power socket - In contact with the floor. - In close proximity to flammable or combustible materials or pressurised containers. - Make sure that there are no electrical cables or pipes in the wall which could be damaged during installation.

  • Page 7: Wall Mounting

    3.1 Wall mounting Make sure the plugs and screws provided are suitable for the wall type onto which the appliance is going to be mounted. If in doubt, ask professional qualified personnel.

  • Page 8: Electrical Connection

    3.2 Electrical connection If hardwiring to a fused spur, this work must be done by a qualified electrician. The electrical connection must be carried out in compliance with the national regulations for electricians in force. Before connecting the appliance to the electrical network, make sure that the power is off.

  • Page 9: Warnings

    4. Warnings - This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities. - Children under 3 years of age must be kept away from the appliance and always be supervised. liance is not intended for use by persons (including children) ced physical sensory or mental capabilities.

  • Page 10: Control Panel (Touch Screen)

    4.1. Control panel (touch screen) 4.1. Control panel (touch screen) Control panel with symbols and functions (Fig. 7) Control panel with symbols and functions (Fig. 7) STAND-BY..............L1 STAND-BY..............L1 Low-temperature heating (50°c) …..…....Low-temperature heating (50°c) …..…....Medium-temperature heating (70°c) …..… Medium-temperature heating (70°c) …..…...
  • Page 11 These far infrared heaters are equipped with an advanced control system with touch-screen controls and light indicators which indicate the set function. Changes in settings are also notified by a beep. When connecting the power supply, all the LEDs light up for 2 seconds •...

  • Page 12: Remote Control

    5. Remote Control These far infrared heaters are equipped with infrared remote control allowing you to set, through the S1 sensor, the control of room temperature and to set different operating programs. When the S1 sensor receives the information, the L8 LED flashes to indicate the communication has been received.
  • Page 13 Symbol Mode Function Description Fil-pilot The temperature of the appliance is controlled by the pilot- wire Symbol Mode Function Description Comfort The temperature of the appliance is controlled by the Fil-pilot The temperature of the appliance is controlled by the pilot- wire “Comfort mode”...
  • Page 14 Programming your infrared heater Infrared and convection heating work differently, whereas convection heaters are switched on an off regularly due to their inefficiency and expensive running costs, infrared heaters should be set up using temperature parameters. The most efficient way to set up an infrared heater is by using temperature parameters.
  • Page 15 Switching Modes See Fig.1 below: 1. Once the batteries are installed, the LCD display will be showing all symbols for three seconds. Switching Modes After this, go to the “Date and time settings” interface – the date will be flashing, See Fig.1 below : the user will then be able to set the date by using the “Plus”...
  • Page 16 switch to: Comfort Mode – Night Mode – Antifreeze Mode – Clock Mode – Pilot- Wire Mode – Comfort Mode*** Comfort and Night Modes – setting of the mode's temperature (see Fig.1 ) 2 : The “Night” mode temperature setting can not be higher than the “Comfort” 1.
  • Page 17 Stand-by Mode In any mode, by pressing the "Stand-by" button, the remote control will go into stand-by mode and the device will stop operating. By pressing this button again, the remote control will go back to the previous By pressing this button again, the remote control will go back to the previous mode.
  • Page 18 By pressing the “Mode” button again, the subsequent day will be displayed and the user will be able to set, in the same way, the modes for the hours from 0 to 23. (Fig. 6) Keypad Lock Keypad Lock By pressing the “Mode” and “Minus” buttons simultaneously for 3 seconds, the block symbol will be displayed and all buttons will be locked.

  • Page 19: Cleaning And Maintenance

    IR transmission If no button is in operation, after 1 second, the remote control will transmit the IR data to the device and the IR transmission symbol will start flashing. At the end of data transmission the symbol will disappear. (Fig 8) Low Batteries Low Batteries When the batteries' tension is lower than 2.2 V, the “Batt”...
  • Page 20 4. Press the centre oval button twice - this allows you to set the clock. Use the + or - buttons (above and below the oval button) to set the time 5. Press the clock icon button on the top left (the 1 in the display on the right will now flash) - you need to decide which is day one for you so that you can differentiate the weekend settings.
  • Page 21 Funkyheat Ltd. The Carlile Institute Huddersfield Road Meltham HD9 4AE www.funkyheat.co.uk...
