Summary of Contents for General tools TS07

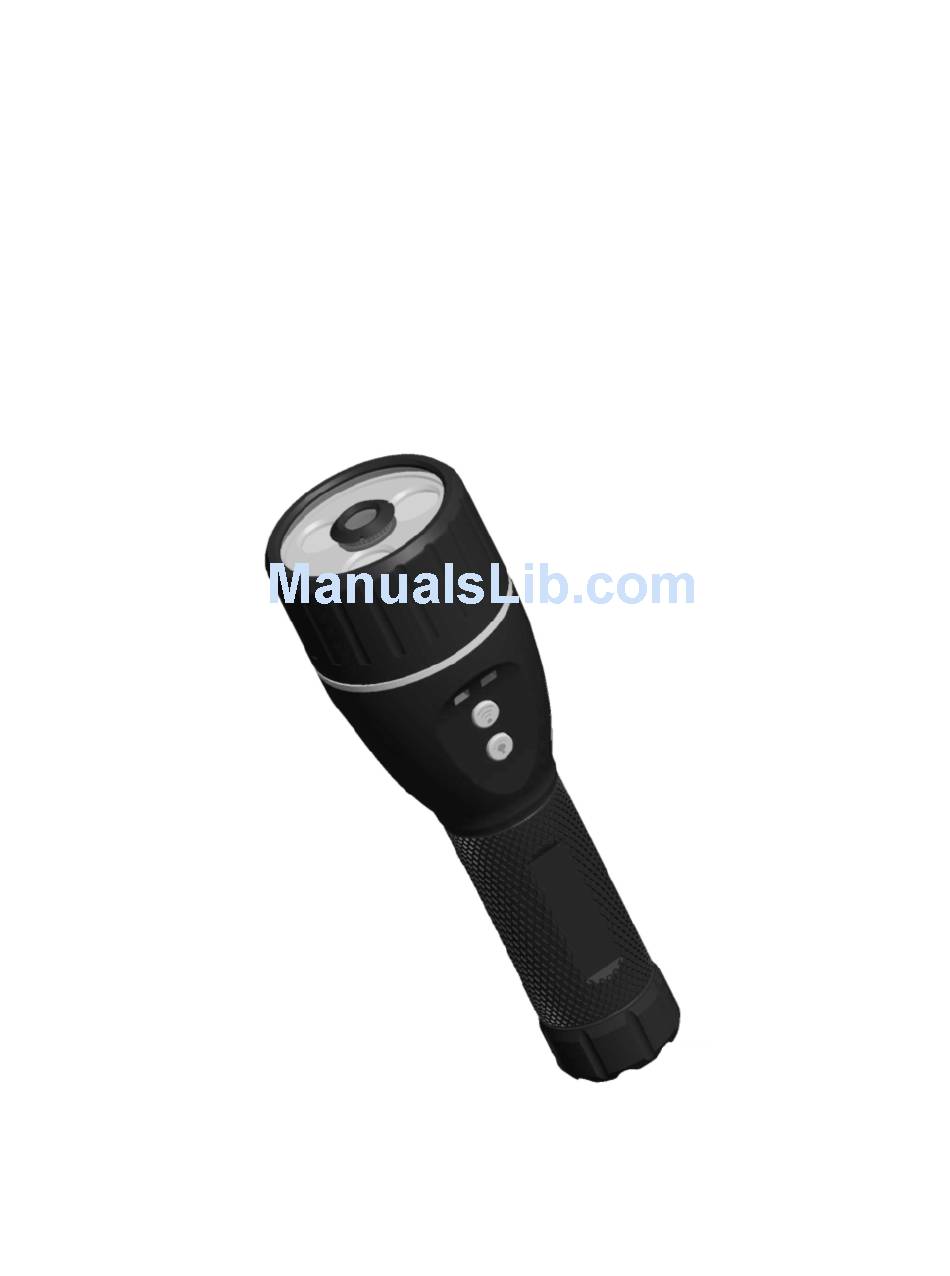

- Page 1 ToolSmart Illuminated Inspection Camera Model: TS07 Operation Manual 160228 V1.0...
-
Page 2: Safety Instructions
Model： ： ： ： TS07 Overview TS07 product has CMOS image sensor, it combines the light function and wifi camera head with one product. Lighting for the Scope’s line-of-sight camera is provided by a powerful LED, also can send the target video and image to the platform device for remote recording and review. - Page 3 ●Please always keep the charging connector away from the metal and oily objects. ●Please fully charging the battery before it is not for use, to make sure the high performance while using. ●Don’t compress and puncture the inside battery. ●Please stop operating if the inside battery is broken. ●Don’t throw the product into fire, which will cause explosion.
- Page 4 C：Charging hole ( inside the front cover) D：Return to factory default set hole (at the opposite side of front cover charging hole). E：Front cover F： WIFI camera power button。 Hold for 1s to turn on the WIFI camera head; Hold 1s again to turn off the camera head.
-
Page 5: Operation Precautions
5、Press the fifth time，the flashlight enters SOS strobe mode, it is better for SOS. 6、Press the sixth time，power off the flashlight. NOTES:a、Under any mode, no matter what status, holding for 2s to turn on SOS mode, press again to turn off the flashlight power. b、... - Page 6 above 45℃. ● Take care of this product, if drops, please check if every parts are ok, otherwise will affect the operation.If any damage, please repair it well, then operate. ● Store the product in aeration-drying places. ● Use accessory from the default factory, otherwise will cause danger. ●...
-
Page 7: Trouble Shootings
Trouble Shootings Problems Causes Solutions Loose connection of Please make sure the connection the charging wire is good before use. The Charging interface or Replace before use Can’t charge. wire is bad Dead battery Ask a technician to replace the battery. -
Page 8: Technical Specifications
●Please charge the inside battery regularly (charging every three month is recommended) to aviod overdischarge of battery. ● Take out the battery if not use for long time. Technical Specifications Name ToolSmart Illuminated Inspection Camera Model TS07 Lighting 3pcs of 2W high brightness LED, Max：600 lumens. levels 100%——50%——25%——8Hz fast （... - Page 9 from the date of purchase. Notice: The warranty does not apply to the following conditions: ● Disassembling the laser tool will void the warranty. ● We are not responsible for any damage resulting from abrasion, water, dropping or disassembling. Tips：Most parts of the product could be recycled, please refer to your local regulations for disposing of them instead of throwing into the dustbin.
