Summary of Contents for ReTrak ETVR360CAMW

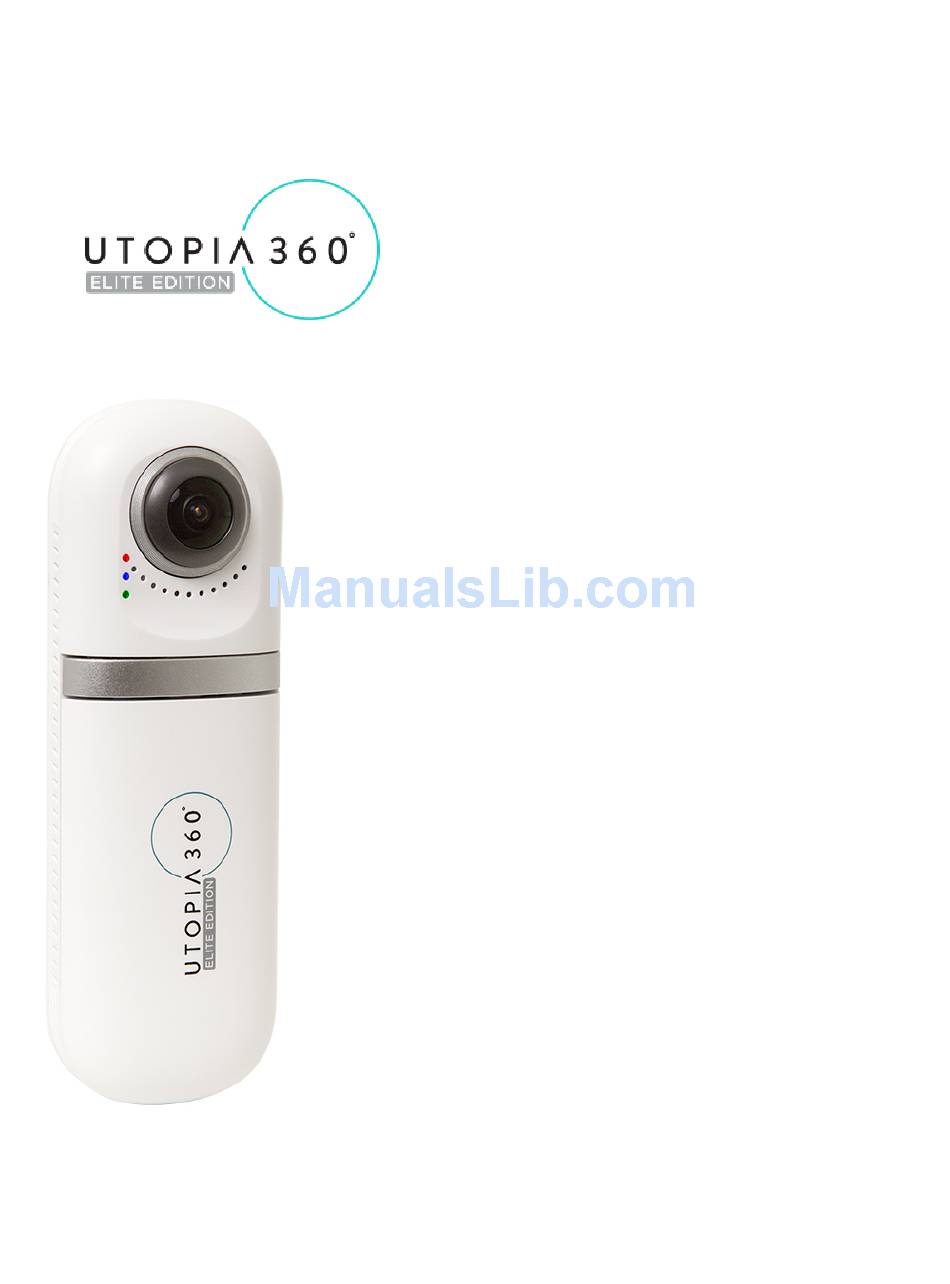

Page 1 ETVR360CAMW-User Guide...
Page 2: Table Of Contents
ETVR360CAMW-USER GUIDE TABLE OF CONTENTS PARTS .............................. 3 GETTING STARTED ........................6 Charging the Battery ......................6 Power On & Power Off ....................... 6 Use Mode ..........................6 Independent Operation ....................... 6 APP ............................. 6 CONNECTING THROUGH WIFI ...................... 8 SOFTWARE USE ..........................
Page 3: Parts
ETVR360CAMW-USER GUIDE 1. PARTS Front View Back View Charge Indicator WiFi/Record Indicator Power Indicator Charge Indicator: Red light indicates the internal camera battery is charging. It will stay solid if the camera is charging either from a micro USB power source or the...
Page 4 ETVR360CAMW-USER GUIDE Left View SD Card Slot Upward View Top View...
Page 5 ETVR360CAMW-USER GUIDE Micro USB to Micro USB Connector Micro USB to USB-C Connector Power Bank Green Indicator LED Power Bank Shutter Button Functions: Hold down the shutter button for 2 seconds to turn on the for between .4s and 1.8s to record video. When recording video, the blue light will flash continuously. Hold down the shutter button for 3.5 seconds to turn off the camera.
Page 6: Getting Started
ETVR360CAMW-USER GUIDE Getting Started Charging the Battery Using the supplied Micro USB cable, plug the camera into a 5V USB charger. A red LED light will turn on when the camera is charging. Once fully charged, the red light will turn off. A green light will flash when the battery is low.
Page 7 ETVR360CAMW-USER GUIDE Figure 3: USB connection tips Once you tap “OK”, the ‘Utopia 360’ app will open. If you select “Use by default for this USB device”, the app will automatically launch every time the camera is connected. After connecting, the ‘Utopia 360’ interface will appear as shown in figure 4:...
Page 8: Connecting Through Wifi
ETVR360CAMW-USER GUIDE Connecting Through WiFi Download the ‘Utopia 360’ app to your device through the Apple App Store or the Google Play Store. When you open the app, you will see the ‘Utopia 360’ app interface as shown in Figure 5.
Page 9: Software Use
ETVR360CAMW-USER GUIDE Once you are connected to WiFi, return to the ‘Utopia 360’ app to see the preview interface as shown in figure 7. Figure 7: WIFI Connection Utopia 360 preview interface Software Use Mobile APP https://play.google.com/store/apps/details https://itunes.apple.com/us/app/utopia- ?id=com.myretrak.utopia360&hl=en 360/id1287358805?mt=8...
Page 10: Buttons Introduction
ETVR360CAMW-USER GUIDE Buttons introduction Double tap your screen in preview mode to change between shooting modes: Panorama, Fisheye, and Asteroid : Tap the timer button to choose between a “5s countdown” or “10s countdown” Low battery icon Charging status icon...
Page 11 ETVR360CAMW-USER GUIDE Figure 8: The Share interface You can share photos or videos directly to Facebook. You can also upload videos directly to YouTube. If you select the photo or video and save to your Local Gallery, the photos/videos can be saved to your device.
Page 12: Youtube
ETVR360CAMW-USER GUIDE YouTube Live Streaming The camera can live stream through YouTube and Facebook. Tap the “Live” button to select the live platform, as shown in Figure 10. Figure 10: Select the live platform You will enter the YouTube Live interface after you select the YouTube platform, as shown...
Page 13 ETVR360CAMW-USER GUIDE Figure 12: logged interface If you're signed into an account that does not have Live permissions on YouTube, you must turn on Live permissions through the web login URL (http://www.youtube.com/features): Set live streaming permissions on the site, as shown in Figure 13: Figure 13: Turn on YouTube Permissions Select Enable in Live Streaming to turn on live permissions.
Page 14 ETVR360CAMW-USER GUIDE You can input the live stream title, choose a resolution, and set Privacy. Select Start Live Stream to start, as shown in figure 14: Figure 14: Create YouTube Live Stream The live interface as shown in figure 15:...
Page 15 ETVR360CAMW-USER GUIDE You can share the live stream with your friends through a URL. If you want to stop live streaming, just tap the Stop Live button. The live interface of YouTube is shown in figure 16: Figure 16: The live streaming interface on YouTube...
Page 16: Facebook
ETVR360CAMW-USER GUIDE Facebook You will enter the Facebook Live interface when you select the Facebook Live platform, as shown in Figure 17: Figure 17: Create Facebook Live Input a title for your live stream, select the resolution, and adjust privacy settings. Once you tap “Start Live Stream”, the app will prompt you to log into Facebook and give app permission.
Page 17 ETVR360CAMW-USER GUIDE Figure 19: The live interface in Facebook app If you want to stop live streaming, just tap “Stop Live” as shown in figure 20. Figure 20: Facebook living interface You can view the live stream on the Facebook site or Facebook app during or after the stream.
Page 18: Camera Settings
ETVR360CAMW-USER GUIDE Camera Settings Select Camera Settings to enter the below menu, as shown in figure 21: 21: Camera Settings interface Video resolution: you can set the camera’s resolution to 2048x1024 or 1920x960. Device: You can view the Camera’s Module type, Serial number, and Firmware version.
