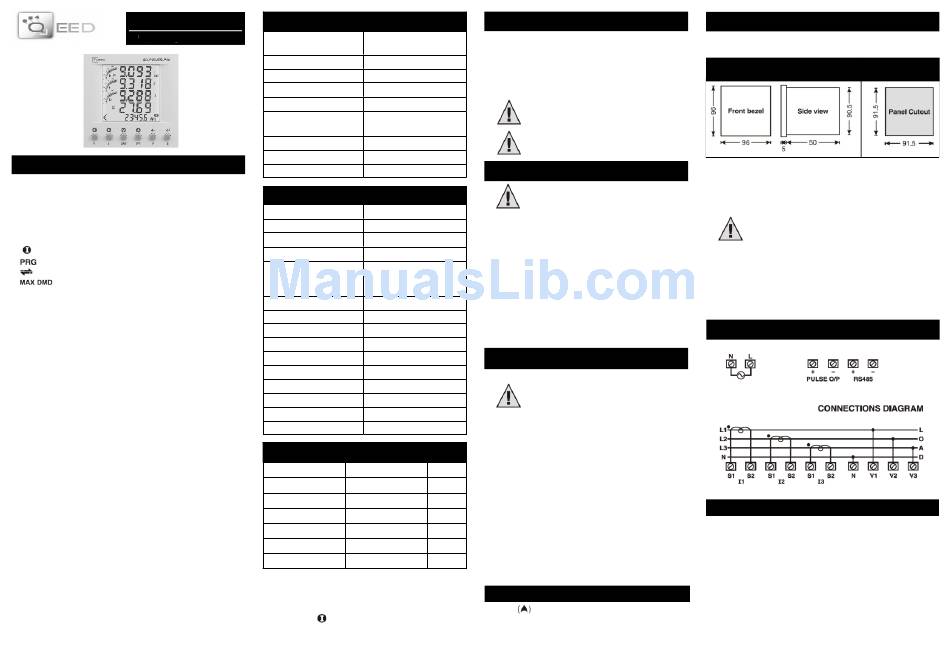

QEED QC-POWER-P96 Operating Instructions Manual

QC-POWER-P96
Operating Instructions
QUALITY ELECTRONIC DESIGN
SPECIFICATIONS
DISPLAY
Liquid crystal display with backlight
4 line, 4 digits per line to show electrical Parameters
th
5 line, 8 digits to show energy
Bar graph for current indication as a % of CT rating
LCD INDICATIONS
- Integration of energy
- Unit is in configuration menu -
Communication in progress
- Maximum & Minimum Demand of Power
WIRING INPUT
3.Ø - 4 wire, 3.Ø - 3 wire, 2.Ø - 3 wire, 1.Ø - 2 wire
RATED INPUT VOLTAGE
11 to 300Vac (L­N); 19 to 519Vac (L­L)
FREQUENCY RANGE
4 5 - 6 5 H z
CT PRIMARY
1A to 10000A (Programmable for any value)
CT SECONDARY
Nominal 5A (min 11mA, Max 6A)
PT PRIMARY
100 to 500KVac (Programmable for any value)
PT SECONDARY
100 to 500Vac (Programmable for any value)
DISPLAY UPDATE TIME
1 Second for parameters
DISPLAY SCROLLING
Automatic / Manual
POWER CONSUMPTION
<8VA
TEMPERATURE
Operating : -10 to 55°C
Storage : -20 to 75°C
HUMIDITY
85% non-condensing
MOUNTING
Panel mounting
WEIGHT
318gms
OUTPUT
Pulsed Output : Voltage range External 24VDC max
Current capacity : 100mA
INSTALATION CATEGORY
Category III
SERIAL COMMUNICATION
Interface Standard
RS485 & Modbus RTU
and protocol
Communication address 1 to 255
Transmission Mode Half duplex
Data types Float and Integer
Transmission distance 500 Meter maximum
Transmission speed 300, 600, 1200, 2400, 4800
9600, 19200 (bps)
Parity None, Odd, Even
Stop bits 1 or 2
Response time 100mS
Measurement Accuracy
Voltage V
±0.5% of Full Scale
L-N
Voltage V ±0.5% of Full Scale
L-L
Current ±0.5% of Full Scale
±0.1% of Full Scale
For L-N Voltage >20V
Frequency
For L-L Voltage >35V
Active Power 1%
Reactive Power
1%
Apparent Power 1%
Power factor ±0.1%
Active Energy Class 1
Reactive Energy Class 1
Apparent Energy Class 1
MAX / Min Active Power 1%
MAX / MIN Reactive Power 1%
MAX Apparent Power 1%
RESOLUTION
PT Ratio x CT Ratio KWh / KVAh / KVArh Pulse
<15 0.01K 0.01K
<150 0.1K 0.1K
<1500 1K 1K
<15000 0.01M 0.01M
<150000 0.1M 0.1M
≥1500000 1M 1M
NOTE:
1) For Voltage, Current, Power, resolution
is automatically adjusted.
2) For Power Factor resolution is 0.001
3) Blink every 5 seconds, if a load is
connected to at least 1 of the 3 phases
SAFETY PRECAUTIONS
All safety related codifications, symbols and instructions that
appear in this operation manual or on the equipment must be
strictly followed to ensure the safety of the operating personnel
as well as the instrument.
If the equipment is not used in the manner specified by the
manufacturer it might impair the protection provided by the
equipment.
CAUTION
Read the instructions prior to installation
and operation of the unit .
CAUTION
Risk of electrical shock
WIRING GUIDELINES
WARNING
1. To prevent the risk of electric shock, power supply to the
equipment must be kept OFF while installing the wiring.
2. Wiring shall be done strictly according to the terminal
layout. Confirm that all connections are correct.
3. Use lugged terminals.
4. To reduce electromagnetic interference use of wires with
adequate ratings and twists of the same in equal size shall
be made with shortest connections.
5. Layout of connecting cables shall be away from any
internal EMI source.
6. Cable used for connection to power source, must have a
cross section of 0.5mm2 to 2.5mm2. These wires shall
have current capacity of 6A.
7. Copper cable should be used (Stranded or single core
cable).
8. Before attempting work on the device ensure absence of
voltages using appropriate voltage detection device.
INSTALLATION GUIDELINES
CAUTION
1. This equipment, being of a built-in-type, normally becomes
a part of a main control panel and in case the terminals do
not remain accessible to the end user after installation and
internal wire.
2. Conductors must not come into contact with the internal
circuitry of the equipment or it may lead to a safety hazard
that may in turn endanger life or cause electrical shock to
the operator.
3. Protection & disconnection means must be installed
between power source and supply terminals to facilitate
power 'ON' or 'OFF' function & must be installed in a
convenient position normally accessible to the operator.
SERIAL NUMBER DESCRIPTION
Press PF key for 10 seconds to 8 digit serial number only for
10 seconds on the fifth line of the display
MECHANICAL INSTALLATION
For installing the meter
1. Prepare the panel cut out with the dimensions as shown below.
Meter Outline Panel Cut-out
Dimensions (In mm) Dimensions (In mm)
2. Push the meter into the panel cut-out. Secure the meter in its place by
fitting the clamp from the rear side. Fit clamps on both sides in
diagonally opposite location for optimum fitting.
3. For proper sealing, tighten the screws evenly with required torque.
2
4. Recommended conductor cross section = 1.5mm .
Screw clamps tightening torque = 0.1N-m
CAUTION
The equipment in its installed state must not co in close proximity to any
heating sources, caustic vapour, oil, steam or other unwanted process
by-products.
EMC Guidelines
1. Use input power cable with shortest connections.
2. Layout of connecting cables shall be away from any internal EMI
source.
TERMINAL CONNECTIONS
LEFT HAND CT MOUNTING PHASE CORRECTION
The meter phases L1, L2 & L3 are setup as default for the CT to be
mounted as an incomer on the RH (Right Hand) side of the board.
Meter display shows rH when "I" is pressed for 3 seconds.
When the CT is mounted on the LH (Left Hand) side of the board the
phase sequence needs to be reversed.
1. Press "I" for 3 seconds, then release and then press again for
3 seconds. Phase will be reversed and the display will show
LH.
2. Wait 5 seconds for the meter to resume online reading. Meter
display shows LH when "I" is pressed for 3 seconds.
QC-POWER-P96 (Page 1 of 6)
