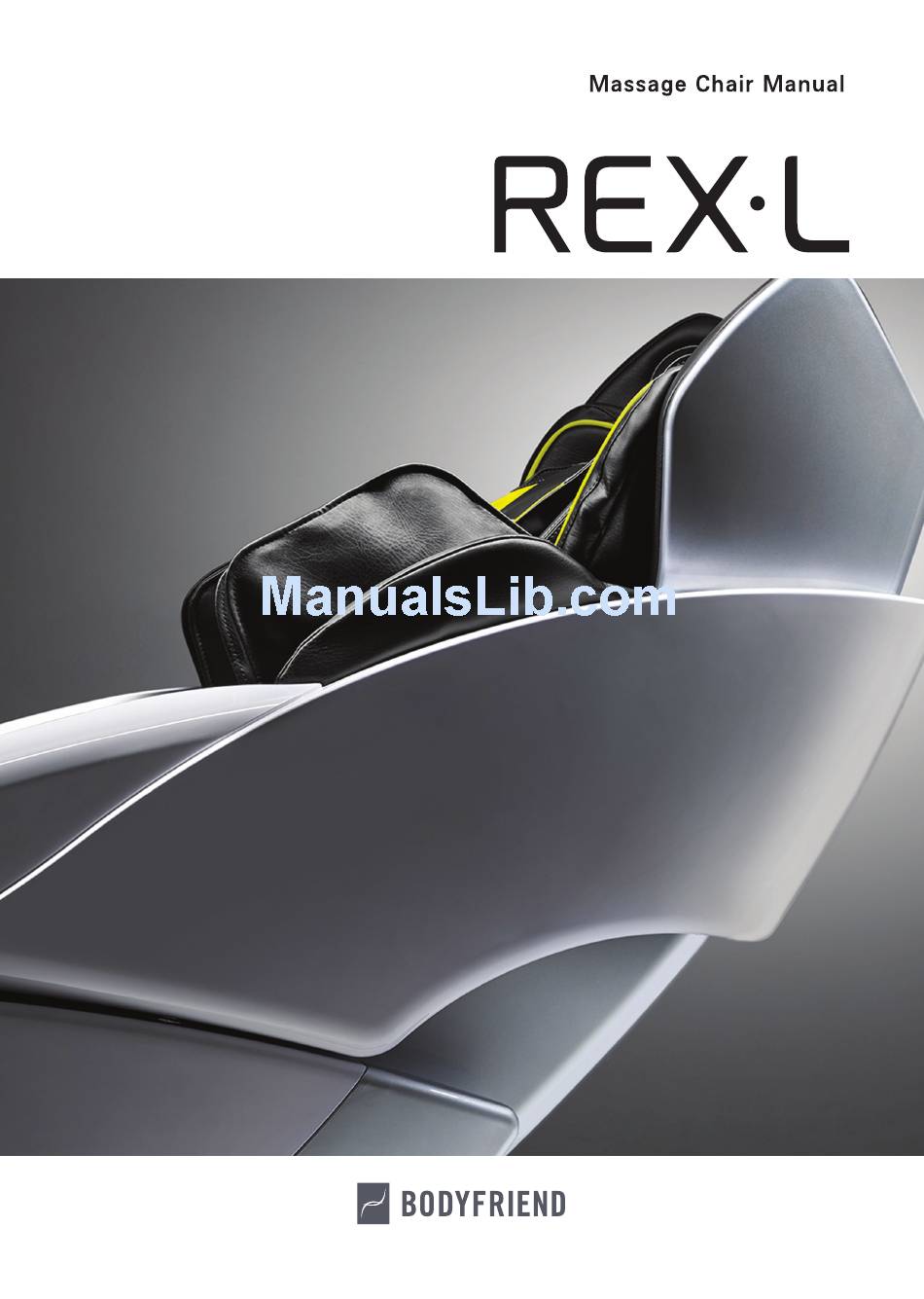

- Page 1 BODYFRIEND Massage Chair REX-L User Manual Product image or content descriptions may slightly differ due to product improvements without previous notice.
-
Page 2: Product Features
Thank you for purchasing BODYFRIEND Massage Chair. Before Introduction using our product, please read through the safety precautions and operation instructions carefully. We kindly ask users to understand that there may be slight differences in image and content descriptions presented throughout this manual due to product quality improvements. -
Page 3: Table Of Contents
Table of Contents Before Use Instructions Product Features Safety Precautions Important Safety Instructions Components and Descriptions Transporting/Grounding Installation Instructions Installation Controller Information Controller Button Descriptions Controller Function Descriptions Program Descriptions BODYFRIEND Customized Programs Product Specifications Product Specifications Troubleshooting Troubleshooting Customer Support Guidelines... -
Page 4: Safety Precautions
WARNING - Please do not try to install or repair massage chairs without the assistance of technicians. Bodyfriend is not responsible for replacement costs if the product is damaged or breaks due to self-troubleshooting. CAUTION - Please Do Not Install Outside the Home. -
Page 5: Important Safety Instructions
Important Safety Instructions Compulsory Consult a doctor before using if you have Check power supply before using. a pacemaker or any implantable medical Do not handle with wet hands. device. Do not operate when body is wet. Do not use if pregnant or have recently given birth. -
Page 6: Components And Descriptions
Components and Descriptions Exterior 01 Head Rest 02 Back Rest 03 Embedded Touch Switch 04 Seat Cushion 05 Controller Storage 06 Leg Massage Unit 07 Side Panel 08 USB Charging Port 09 Arm Massage Unit 10 Shoulder Massage Unit Embedded Touch Switch 01 Power ON/OFF 02 Auto... -
Page 7: Transporting/Grounding
Transporting/Grounding After removing all cables and miscellaneous objects from the floor, tilt the massage chair backward at an angle and lift. After arriving at the desired location, safely place the chair securely on the floor and begin re-installation of the chair. WARNING ※... - Page 8 Installation Part 01 STEP 1. Undo Packaging This product is packaged in three separate boxes. Please check that you have received all necessary parts. • Main Box : Back sheet, Head sheet, Seat cushion, Accessories (controller, cables, and manual) • Arm / Shoulder Unit •...
- Page 9 Installation Part 02 STEP 3. Assemble the Arm Unit / Attach the Back Cover 01 Connect the air hose and connector beneath the interior of the side panel. 02 After aligning the corresponding parts, fasten using nails. Arm Unit Main Body 03 Fasten the back cover into place using nails on the back of the Back Cover massage chair.
- Page 10 Installation Part 03 STEP 4. Connecting the Controller Locate the controller socket towards the right arm rest and connect the controller cables with its socket. Controller Cable Controller Socket STEP 5. Connecting to Power Supply Plug the power cable into the socket at the lower end of the massage chair as depicted below. After plugging in the power cable, turn on the power switch.
- Page 11 Installation Part 04 STEP 6. Back / Head Unit Construction Head cushion and pillow can be installed depending on preference. The head cushion can be used to soften the intensity of the shoulders and neck massage. Construct the back unit using the zipper (01) and adherent (02). Install the head cushion using the adherent (03) (length can be adjusted based on preference).
-
Page 12: Controller Button Descriptions 01
Controller Button Descriptions 01 Controller LCD Components 01 Zero Gravity Indicator 02 Heating Indicator 03 Auto/Manual Mode Indicator 04 Auto or Manual Massage Technique Indicator 05 Air Massage Indicator 06 Legrest Adjust Indicator 07 Massage Intensity Indicator Feet Roller Speed Indicator Airbag Intensity Indicator Width Indicator 08 Reclining Indicator... - Page 13 Controller Button Descriptions 02 This is the power button. If the [Power] button is pressed during a massage, the screen will ask the user if he/she would like to end the massage. In the case of a Power ceased massage mode, massage balls, sliding features, and etc. will all return to its original resting state.
-
Page 14: Controller Function Descriptions 01
Controller Function Descriptions 01 Start Press the [Power] button to turn on the screen and activate the massage chair. When the child safety lock screen appears, hold down the [Enter] button for three seconds. Child Safety Lock Screen Main Screen Menu Screen The child safety lock screen is emplaced The main screen shows the current... - Page 15 Controller Function Descriptions 02 Auto Modes [Menu] > Auto > Use the [Up/Down] arrow keys to pick preferred massage modes > [Enter] > Auto Body Scanning will use sensors to pinpoint areas of your body > Massage balls will relocate to corresponding locations >...
- Page 16 Controller Function Descriptions 03 Manual Modes [Menu] > Manual Mode > Choose preferred area of massage on the body > (Press [Menu] to go back to previous screen) [Up/Down] > Choose massage techniques > [Enter] > Massage set-up screen will appear [Right/Left] to personalize massage options >...
- Page 17 Controller Function Descriptions 04 [Menu] > [Massage options] > roller speed, heating, airbag settings can be adjusted. Roller Speed Adjust roller speeds for the feet, change to manual feet massage mode, and use [Right/Left] arrow keys to adjust roller speeds. Heating Airbags There are heating options for the back and waist.
- Page 18 Bluetooth function on under the settings menu. 02 Turn Bluetooth ON on mobile device. 03 Pair the devices by finding ＂BODYFRIEND REX-BT1 " Time Elapsed Bluetooth Connectivity Set massage duration times for 15/20/25/30 Sync personal mobile device with Bluetooth mins. [Right/Left] arrow keys increase or decrease function to play music through the speakers while duration times.
-
Page 19: Bodyfriend Customized Programs
Massaging these areas by kneading, acupressure, air pressure, and a combination of these techniques, let the body experience the benefits of hip-up mode. Rest BODYFRIEND’s Rest Mode provides healing bodies need (30min.). Rest Mode is one of BODYFRIEND’s exclusively patented technologies. -
Page 20: Product Specifications
Product Specifications Product Specifications are subject to change without previous notifications due to product improvements. Model BFS-8000US Reclining Angle 135°- 170° Lower Body Angle 0°-90° Kneading Speed 25-35 kneads per minute Kneading Width 2.4in – 6.7in (6-17cm) Tapping 320-560 taps per minute Heating Temperature Max 140°F Power Supply 110-120V~... -
Page 21: Troubleshooting
Troubleshooting If you encounter minor malfunctions or errors, please refer below before contacting Customer Support. Problem Causes Solutions Controller [Power] Button is Press [Power] to turn on the not turned on. controller on. Auto Mode was not selected. Press [Enter] to select an Auto mode. Power cord is not properly Properly plug power cord into socket. -
Page 22: Customer Support Guidelines
02 Broken or disabled parts due to excessive pressure. 03 Problems due to deformation or external defects caused by personal actions. 04 Problems due to not using parts or cords provided by Bodyfriend. 05 Problems due to incorrect use of product. - Page 23 Memo...
- Page 24 Product Name Massage Chair Model BFS-8000US Manufacturer Shanghai BODYFRIEND Electronic Technology Co., Ltd./China Importer BODYFRIEND Inc. Customer Support Contact Information service@bodyfriend.com / 888-299-8218 (toll free) Voltage/Frequency 110-120V~, 60Hz Rated Current 1.8A FCC Information to User This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
