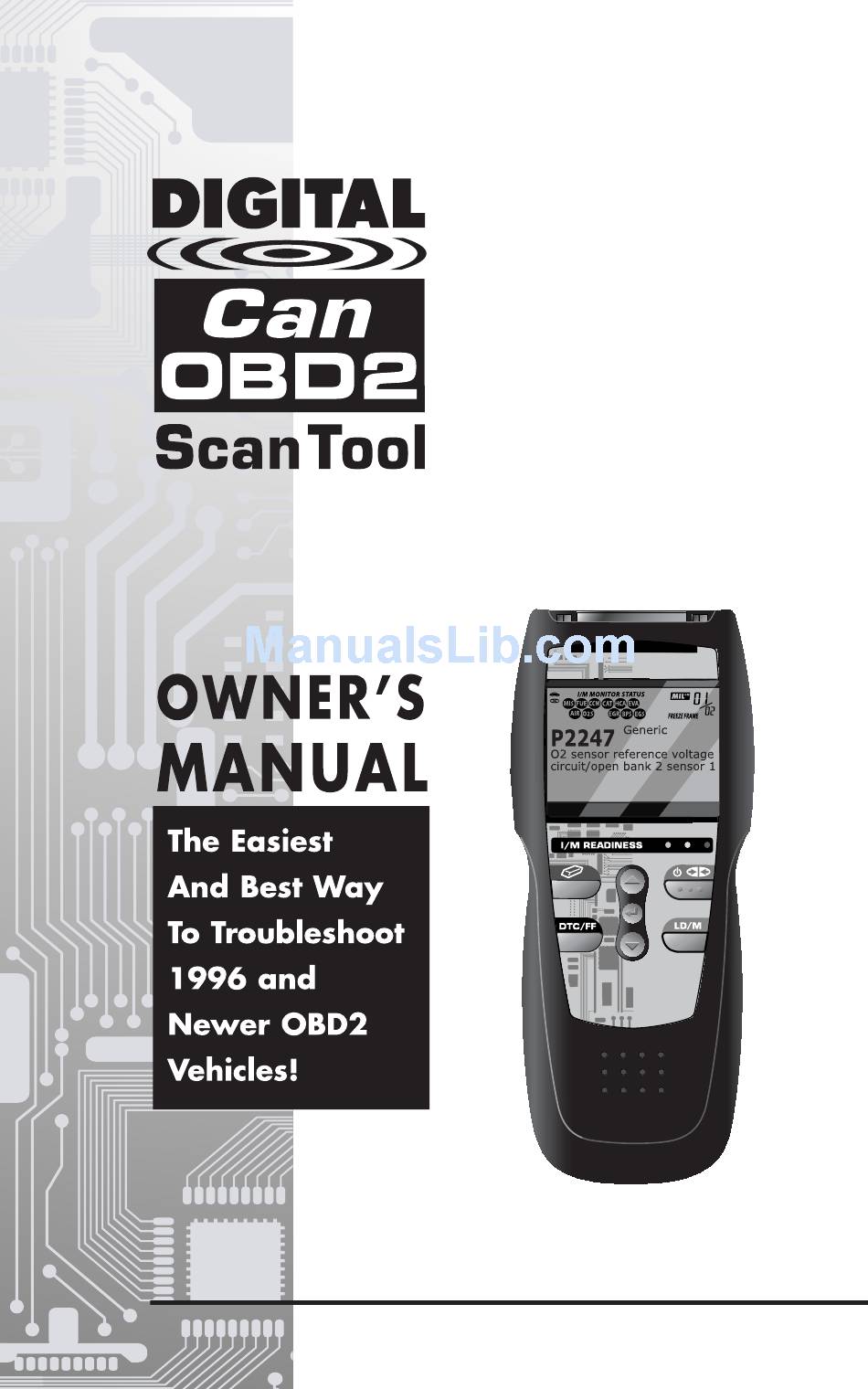

Innova Electronics Can OBD2 Owner's Manual

Scan tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Can OBD2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Innova Electronics Can OBD2

  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION WHAT IS OBD? ..................YOU CAN DO IT! .................... SAFETY PRECAUTIONS SAFETY FIRST! ..................ABOUT THE SCAN TOOL VEHICLES COVERED ................. BATTERY REPLACEMENT ............... SCAN TOOL CONTROLS CONTROLS AND INDICATORS ............DISPLAY FUNCTIONS ................ ONBOARD DIAGNOSTICS COMPUTER ENGINE CONTROLS ..........

  • Page 3: Introduction What Is Obd

    Introduction WHAT IS OBD? WHAT IS OBD? The Enhanced OBD2 Scan Tool is designed to work on all OBD2 compliant vehicles. All 1996 and newer vehicles (cars, light trucks and SUVs) sold in the United States are OBD2 compliant. One of the most exciting improvements in the automobile industry was the addition of on- board diagnostics (OBD) on vehicles, or in more basic terms, the computer that activates the...

  • Page 4: You Can Do It

    You Can Do It! EASY TO USE - EASY TO VIEW - EASY TO DEFINE Easy To Use ..Connect the Scan Tool to the vehicle’s test connector. Turn the ignition key "On.” The tool will automatically link to the vehicle’s computer.

  • Page 5: Safety Precautions Safety First

    Safety Precautions SAFETY FIRST! SAFETY FIRST! To avoid personal injury, instrument damage and/or damage to your vehicle; do not use the OBD2 Scan Tool before reading this manual. This manual describes common test procedures used by experienced service technicians. Many test procedures require precautions to avoid accidents that can result in personal injury, and/or damage to your vehicle or test equipment.
  • Page 6 Safety Precautions SAFETY FIRST! To prevent damage to the on-board computer when taking vehicle electrical measurements, always use a digital multimeter with at least 10 megOhms of impedance. Fuel and battery vapors are highly flammable. To prevent an explosion, keep all sparks, heated items and open flames away from the battery and fuel / fuel vapors.

  • Page 7: About The Scan Tool

    About the Scan Tool VEHICLES COVERED VEHICLES COVERED The Enhanced OBD2 Scan Tool is designed to work on all OBD2 compliant vehicles. All 1996 and newer vehicles (cars and light trucks) sold in the United States are OBD2 compliant. Federal law requires that all 1996 and newer cars and light trucks sold in the United States must be OBD2 compliant;...

  • Page 8: Battery Replacement

    About the Scan Tool BATTERY REPLACEMENT On some Asian and European vehicles the DLC is located behind the “ashtray” (the ashtray must be removed to access it) or on the far left corner of the dash. If the DLC cannot be located, consult the vehicle’s service manual for the location.

  • Page 9: Scan Tool Controls Controls And Indicators

    Scan Tool Controls CONTROLS AND INDICATORS CONTROLS AND INDICATORS Figure 1. Controls and Indicators See Figure 1 for the locations of items 1 through 12, below. ERASE button - Erases Diagnostic Trouble Codes (DTCs), and “Freeze Frame” data from your vehicle’s computer, and resets Monitor status.

  • Page 10: Display Functions

    Scan Tool Controls DISPLAY FUNCTIONS DOWN button - When in MENU mode, scrolls DOWN through the menu and submenu selection options. When LINKED to a vehicle, scrolls DOWN through the current display screen to display any additional data. UP button - When in MENU mode, scrolls UP through the menu and submenu selection options.
  • Page 11 Scan Tool Controls DISPLAY FUNCTIONS 2. Monitor icons - Indicate which Monitors are supported by the vehicle under test, and whether or not the associated Monitor has run its diagnostic testing (Monitor status). When a Monitor icon is solid, it indicates that the associated Monitor has completed its diagnostic testing.
  • Page 12 Scan Tool Controls DISPLAY FUNCTIONS If “01” is a “Pending” code, there may or may not be “Freeze Frame” data stored in memory. 14. Code Enumerator - Indicates the total number of codes retrieved from the vehicle’s computer. OBD2...

  • Page 13: Onboard Diagnostics Computer Engine Controls

    Onboard Diagnostics COMPUTER ENGINE CONTROLS COMPUTER ENGINE CONTROLS The Introduction of Electronic Engine Controls Electronic Computer Control Systems make it possible for vehicle manufacturers to comply with the tougher emissions and fuel efficiency standards mandated by State and Federal Governments. As a result of increased air pollution (smog) in large cities, such as Los Angeles, the California Air Resources Board (CARB) and the Environmental Protection Agency (EPA)
  • Page 14 Onboard Diagnostics COMPUTER ENGINE CONTROLS The Basic Engine Computer Control System The Computer Control System consists of an on-board computer and several related control devices (sensors, switches, and actuators). The on-board computer is the heart of the Computer Control System. The computer contains several programs with preset reference values for air/fuel ratio, spark or ignition timing, injector pulse width, engine speed, etc.
  • Page 15 Onboard Diagnostics COMPUTER ENGINE CONTROLS Vehicle operating conditions are constantly changing. The computer continuously makes adjustments or corrections (especially to the air/fuel mixture and spark timing) to keep all the engine systems operating within the preset reference values. On-Board Diagnostics - First Generation (OBD1) With the exception of some 1994 and 1995 vehicles, most vehicles from 1982 to 1995 are equipped with some type of first generation On-Board Diagnostics.
  • Page 16 Onboard Diagnostics COMPUTER ENGINE CONTROLS Because OBD1 systems only detect failed components, the degraded components were not setting codes. Some emissions problems related to degraded components only occur when the vehicle is being driven under a load. The emission checks being conducted at the time were not performed under simulated driving conditions.
  • Page 17 Onboard Diagnostics COMPUTER ENGINE CONTROLS Powertrain Control Module (PCM) - The PCM is the OBD2 accepted term for the vehicle’s “on-board computer.” In addition to controlling the engine management and emissions systems, also participates in controlling the powertrain (transmission) operation. Most PCMs also have the ability to communicate with other computers on the vehicle (ABS, ride control, body, etc.).

  • Page 18: Diagnostic Trouble Codes (Dtcs)

    Onboard Diagnostics DIAGNOSTIC TROUBLE CODES (DTCs) OBD2 Drive Cycle - An OBD2 Drive Cycle is an extended set of driving procedures that takes into consideration the various types of driving conditions encountered in real life. These conditions may include starting the vehicle when it is cold, driving the vehicle at a steady speed (cruising), accelerating, etc.
  • Page 19 Onboard Diagnostics DIAGNOSTIC TROUBLE CODES (DTCs) Manufacturer-Specific DTCs are codes that are controlled by the vehicle manufacturers. The Federal Government does not require vehicle manufacturers to go beyond the standardized generic DTCs in order to comply with the new OBD2 emissions standards.
  • Page 20 Onboard Diagnostics DIAGNOSTIC TROUBLE CODES (DTCs) DTCs and MIL Status When the vehicle’s on-board computer detects a failure in an emissions-related component or system, the computer’s internal diagnostic program assigns a diagnostic trouble code (DTC) that points to the system (and subsystem) where the fault was found.

  • Page 21: Obd2 Monitors

    Onboard Diagnostics OBD2 MONITORS If the conditions that caused the MIL to light are no longer present for the next three trips in a row, the computer automatically turns the MIL “Off” if no other emissions-related faults are present. However, the DTCs remain in the computer’s memory as a history code for 40 warm-up cycles (80 warm-up cycles for fuel and misfire faults).
  • Page 22 Onboard Diagnostics OBD2 MONITORS Non-Continuous Monitors The other twelve Monitors are “non-continuous” Monitors. “Non- continuous” Monitors perform and complete their testing once per trip. The “non-continuous” Monitors are: Oxygen Sensor Monitor Oxygen Sensor Heater Monitor Catalyst Monitor Heated Catalyst Monitor EGR System Monitor EVAP System Monitor Secondary Air System Monitor...
  • Page 23 Onboard Diagnostics OBD2 MONITORS Fuel System Monitor - This Monitor uses a Fuel System Correction program, called Fuel Trim, inside the on-board computer. Fuel Trim is a set of positive and negative values that represent adding or subtracting fuel from the engine. This program is used to correct for a lean (too much air/not enough fuel) or rich (too much fuel/not enough air) air-fuel mixture.
  • Page 24 Onboard Diagnostics OBD2 MONITORS the downstream sensor signal voltage becomes almost the same as the upstream sensor signal. In this case, the monitor fails the test. The Catalyst Monitor is supported by “spark ignition” vehicles only. The Catalyst Monitor is a “Two-Trip” Monitor. If a fault is found on the first trip, the computer temporarily saves the fault in its memory as a Pending Code.
  • Page 25 Onboard Diagnostics OBD2 MONITORS into the engine where the vapors are burned. The EVAP Monitor checks for proper fuel vapor flow to the engine, and pressurizes the system to test for leaks. The computer runs this Monitor once per trip. The EVAP Monitor is supported by “spark ignition”...
  • Page 26 Onboard Diagnostics OBD2 MONITORS exhaust stream. A faulty oxygen sensor reacts slowly, or its voltage signal is weak or missing. The Oxygen Sensor Monitor is supported by “spark ignition” vehicles only. The Oxygen Sensor Monitor is a “Two-Trip” monitor. If a fault is found on the first trip, the computer temporarily saves the fault in its memory as a Pending Code.
  • Page 27 Onboard Diagnostics OBD2 MONITORS NOx Aftertreatment Monitor - NOx aftertreatment is based on a catalytic converter support that has been coated with a special washcoat containing zeolites. NOx Aftertreatment is designed to reduce oxides of nitrogen emitted in the exhaust stream. The zeolite acts as a molecular "sponge"...
  • Page 28 Onboard Diagnostics OBD2 MONITORS PM Filter Monitor - The particulate matter (PM) filter removes particulate matter from the exhaust stream by filtration. The filter has a honeycomb structure similar to a catalyst substrate, but with the channels blocked at alternate ends. This forces the exhaust gas to flow through the walls between the channels, filtering the particulate matter out.
  • Page 29 Onboard Diagnostics OBD2 MONITORS Name of Monitor Comprehensive Continuous Component Monitor Misfire Monitor 3 - similar Continuous (Type 1 and 3) conditions Misfire Monitor 3 - similar Continuous (Type 2) conditions Fuel System Monitor 3 - similar Continuous 1 or 2 conditions Catalytic Converter Once per...

  • Page 30: Preparation For Testing Preliminary Vehicle Diagnostic Worksheet

    Preparation for Testing PRELIMINARY VEHICLE DIAGNOSTIC WORKSHEET PRELIMINARY VEHICLE DIAGNOSTIC WORKSHEET The purpose of this form is to help you gather preliminary information on your vehicle before you retrieve codes. By having a complete account of your vehicle's current problem(s), you will be able to systematically pinpoint the problem(s) by comparing your answers to the fault codes you retrieve.
  • Page 31 Preparation for Testing PRELIMINARY VEHICLE DIAGNOSTIC WORKSHEET WHEN DID YOU FIRST NOTICE THE PROBLEM: Just Started Started Last Week Started Last Month Other: LIST ANY REPAIRS DONE IN THE PAST SIX MONTHS: PROBLEMS STARTING No symptoms Cranks, but will not start Will not crank Starts, but takes a long time...
  • Page 32 Preparation for Testing PRELIMINARY VEHICLE DIAGNOSTIC WORKSHEET AUTOMATIC TRANSMISSION PROBLEMS (if applicable) No symptoms Vehicle does not move when in gear Shifts too early or too late Jerks or bucks Changes gear incorrectly PROBLEM OCCURS Morning Afternoon Anytime ENGINE TEMPERATURE WHEN PROBLEM OCCURS Cold Warm DRIVING CONDITIONS WHEN PROBLEM OCCURS...

  • Page 33: Before You Begin

    Preparation for Testing BEFORE YOU BEGIN BEFORE YOU BEGIN The Enhanced OBD2 Scan Tool aids in monitoring electronic- and emissions-related faults in your vehicle and retrieving fault codes related to malfunctions in these systems. Mechanical problems such as low oil level or damaged hoses, wiring or electrical connectors can cause poor engine performance and may also cause a fault code to set.

  • Page 34: Vehicle Service Manuals

    Preparation for Testing VEHICLE SERVICE MANUALS VEHICLE SERVICE MANUALS Always refer to the manufacturer’s service manual for your vehicle before performing any test or repair procedures. Contact your local car dealership, auto parts store or bookstore for availability of these manuals.

  • Page 35: Using The Scan Tool Code Retrieval Procedure

    Using the Scan Tool CODE RETRIEVAL PROCEDURE CODE RETRIEVAL PROCEDURE Retrieving and using Diagnostic Trouble Codes (DTCs) for troubleshooting vehicle operation is only one part of an overall diagnostic strategy. Never replace a part based only on the DTC definition. Each DTC has a set of testing procedures, instructions and flow charts that must be followed to confirm the location of the problem.
  • Page 36 Using the Scan Tool CODE RETRIEVAL PROCEDURE If the unit does not power on automatically when connected to the vehicle’s DLC connector, it usually indicates there is no power present at the vehicle’s DLC connector. Check your fuse panel and replace any burned-out fuses. If replacing the fuse(s) does not correct the problem, consult your vehicle’s repair manual to identify the proper computer (PCM) fuse/circuit, and perform any necessary repairs before...
  • Page 37 Using the Scan Tool CODE RETRIEVAL PROCEDURE The Scan Tool will display a code only if codes are present in the vehicle’s computer memory. If no codes are present, the message “No Powertrain DTCs or Freeze Frame Data presently stored vehicle’s computer.
  • Page 38 Using the Scan Tool CODE RETRIEVAL PROCEDURE The green, yellow and red LEDs are used (with the display) as visual aids to make it easier to determine engine system conditions. Green LED – Indicates that all engine systems “OK” operating normally. All monitors supported by the vehicle have run performed their...
  • Page 39 Using the Scan Tool CODE RETRIEVAL PROCEDURE DTC’s that start with “P1” and some “P3” are Manufacturer specific codes and their code definitions vary with each vehicle manufacturer. When a Manufacturer specific DTC is retrieved, the LCD display shows a list of vehicle manufacturers.
  • Page 40 Using the Scan Tool CODE RETRIEVAL PROCEDURE record saved is called Freeze Frame data. Saved engine conditions include, but are not limited to: engine speed, open or closed loop operation, fuel system commands, coolant temperature, calculated load value, fuel pressure, vehicle speed, air flow rate, and intake manifold pressure.

  • Page 41: The Enhanced Main Menu

    Using the Scan Tool THE ENHANCED MAIN MENU THE ENHANCED MAIN MENU Following the code retrieval procedure (see CODE RETRIEVAL PROCEDURE on page 33), when the last retrieved DTC has been displayed and the DTC/FF button is pressed, the Scan Tool enters the “enhanced”...

  • Page 42: Viewing Enhanced Dtcs

    Using the Scan Tool VIEWING ENHANCED DTCs If a Manufacturer specific DTC was retrieved, and the manufacturer selected for the code was not Chrysler, Jeep, Ford, Mazda, General Motors, Isuzu, Honda, Acura, Toyota or Lexus, the message “This vehicle does not support Enhanced communication”...
  • Page 43 Using the Scan Tool VIEWING ENHANCED DTCs 1. Use the UP and DOWN buttons, as necessary, to highlight the desired option, then press the ENTER button. Transmission DTCs are not sup- ported on most Chrysler/Jeep ve- hicles manufactured prior to 2002. A “One moment please”...
  • Page 44 Using the Scan Tool VIEWING ENHANCED DTCs 3. If more than one code was retrieved press the DTC/FF button, as necessary, to display additional codes one at a time. Whenever the Scroll function is used to view additional codes, the Scan Tool’s communication link with the vehicle’s computer disconnects.
  • Page 45 Using the Scan Tool VIEWING ENHANCED DTCs - Press the ENTER button to return to the Ford/Mazda Enhanced menu. 2. An “instructional” message shows on the Scan Tool’s display. Perform test procedures as appropriate. If the Continuous Memory or KOEO test was selected, turn the ignition OFF, then back ON.
  • Page 46 Using the Scan Tool VIEWING ENHANCED DTCs The Scan Tool will display a code only if codes are present in the vehicle’s computer memory. If no codes are present, a “No Enhanced DTC’s are presently stored in the vehicle’s computer” is displayed. Press the LD/M button to return to the Ford/Mazda Enhanced menu.
  • Page 47 Using the Scan Tool VIEWING ENHANCED DTCs 2. To read the display: Refer to DISPLAY FUNCTIONS on page 8 for a description of LCD display elements. A visible icon indicates that the Scan Tool is being powered through the vehicle’s DLC connector. The upper right hand corner of the display shows the number of the code currently being displayed, the...
  • Page 48 Using the Scan Tool VIEWING ENHANCED DTCs Honda/Acura Enhanced DTCs When the Scan Tool enters the “enhanced” mode (and Honda/Acura is selected, if prompted), the Honda Acura Enhanced menu displays. Depending on the protocol used to communicate with your vehicle, Honda/Acura Enhanced menu...
  • Page 49 Using the Scan Tool VIEWING ENHANCED DTCs The Scan Tool will display a code only if codes are present in the vehicle’s computer memory. If no codes are present, a “No Enhanced DTC’s are presently stored in the vehicle’s computer” is displayed. Press the LD/M button to return to the Honda/Acura Enhanced menu.
  • Page 50 Using the Scan Tool VIEWING ENHANCED DTCs - Verify the ignition is ON, then press the ENTER button to continue. 2. To read the display: Refer to DISPLAY FUNCTIONS on page 8 for a description of LCD display elements. A visible icon indicates that the Scan Tool is being powered through the vehicle’s DLC connector.

  • Page 51: Viewing Abs Dtcs

    Using the Scan Tool VIEWING ABS DTCs VIEWING ABS DTCs Refer to Vehicle Applications - ABS on page 86 for vehicles covered. Reading ABS DTCs 1. The screen shown when ABS DTCs is selected from the Enhanced Main Menu (and the appropriate vehicle manufacturer is selected, if prompted) depends on the vehicle make.
  • Page 52 Using the Scan Tool VIEWING ABS DTCs A visible icon indicates that the Scan Tool is being powered through the vehicle’s DLC connector. A visible icon indicates that the Scan Tool is linked to (communicating with) the vehicle’s computer. The upper right hand corner of the display shows the number of the code currently being displayed, the total number of codes retrieved.

  • Page 53: Viewing Srs Dtcs

    Using the Scan Tool VIEWING SRS DTCs 2. A confirmation message shows on the LCD display. If you are sure you want to proceed, press the ERASE button to erase the ABS DTCs from the vehicle’s computer. If you do not want to continue with the erase process, press the LD/M button to exit the erase mode and return to the Enhanced Main Menu.
  • Page 54 Using the Scan Tool VIEWING SRS DTCs For Chrysler/Jeep, Ford/Mazda, Honda/Acura and Toyota/ Lexus vehicles: Proceed to step 2. 2. A "One moment please" message displays while the Scan Tool retrieves the selected DTCs. If the Scan Tool fails to link to the vehicle’s computer, "Linking...
  • Page 55 Using the Scan Tool VIEWING SRS DTCs 4. If more than one code was retrieved press the DTC/FF button, as necessary, to display additional codes one at a time. Whenever the Scroll function is used to view additional codes, the Scan Tool’s communication link with the vehicle’s computer disconnects.

  • Page 56: Erasing Diagnostic Trouble Codes (Dtcs)

    Using the Scan Tool ERASING DIAGNOSTIC TROUBLE CODES (DTCs) Erasing SRS DTCs does not fix the problem(s) that caused the code(s) to be set. If proper repairs to correct the problem(s) that caused the code(s) to be set are not made, the code(s) will appear again as soon as the vehicle is driven long enough for the problem to recur.

  • Page 57: I/M Readiness Testing

    Using the Scan Tool I/M READINESS TESTING 3. Press and release the ERASE button. A confirmation message shows on the display. - If you are sure you want to proceed press the ERASE button again to erase DTCs from the vehicle’s computer. - If you do not want to continue with erase process,...
  • Page 58 Using the Scan Tool I/M READINESS TESTING Emissions tests vary depending on the geographic or regional area in which the vehicle is registered. If the vehicle is registered in a highly urbanized area, the I/M 240 is probably the type of test required. If the vehicle is registered in a rural area, the stricter “dynamometer type”...
  • Page 59 Using the Scan Tool I/M READINESS TESTING If a Monitor has not yet met all the conditions required for it to perform the self-diagnosis and testing of its assigned engine system; it means the Monitor "HAS NOT RUN.” The Monitor Run/Not Run status does not show whether or not a problem exists in a system.
  • Page 60 Using the Scan Tool I/M READINESS TESTING Perform the CODE RETRIEVAL PROCEDURE as described on page 33, then interpret the LED indications as follows: Interpreting I/M Readiness Test Results 4. GREEN LED - Indicates that all engine systems "OK" operating normally (all Monitors supported by the vehicle have run and performed their self-diagnostic testing).
  • Page 61 Using the Scan Tool I/M READINESS TESTING 6. RED LED - Indicates there is a problem with one or more of the vehicle's systems. A vehicle displaying a red LED is definitely not ready for an Emissions Test (Smog Check). The red LED is also indication that...
  • Page 62 Using the Scan Tool I/M READINESS TESTING Each DTC is associated with a specific Monitor. Consult the vehicle's service manual to identify the Monitor (or Monitors) associated with the faults that were repaired. Follow the manufacturer's procedures to perform a Trip Drive Cycle for the appropriate Monitors.

  • Page 63: Live Data Mode Viewing Live Data

    Live Data Mode VIEWING LIVE DATA The OBD2 Scan Tool is a special diagnostic tool that communicates with the vehicle's computer. The Scan Tool lets you view and/or "capture" (record) "real-time" Live Data. This information includes values (volts, rpm, temperature, speed etc.) and system status information (open loop, closed loop, fuel system status, etc.) generated by the various vehicle sensors, switches and actuators.

  • Page 64: Customizing Live Data (Pids)

    Live Data Mode CUSTOMIZING LIVE DATA (PIDs) 5. A vehicle usually supports several PIDs, however, only a limited amount of PID data can be displayed on the screen at one time. If additional PID data is available, a small arrow will be shown on the display.

  • Page 65: Recording (Capturing) Live Data

    Live Data Mode RECORDING (CAPTURING) LIVE DATA 1. While linked to the vehicle, start the engine, then press and release the LD/M button. The “Mode Selection Menu” displays. 2. Use the UP and DOWN buttons, as necessary, to highlight Live Data, then press the ENTER button.
  • Page 66 Live Data Mode RECORDING (CAPTURING) LIVE DATA There are two ways that the Scan Tool can "record" Live Data: Record by DTC Trigger Record by Manual Trigger If the POWER/LINK button is pressed at any time while in Live Data mode, any stored (recorded) Live Data will be cleared (erased) from the Scan Tool’s memory.
  • Page 67 Live Data Mode RECORDING (CAPTURING) LIVE DATA The Scan Tool is capable of recording approximately 100 frames of Live Data. Record by DTC trigger lets you select the point in time at which you wish the Scan Tool to begin recording Live Data. You can set the trigger point to record the 100 frames of data before an event (when the DTC sets), after the event, or in the middle (50 frames before and 50 frames after the event.
  • Page 68 Live Data Mode RECORDING (CAPTURING) LIVE DATA 9. You can exit the "Record Live Data Mode" at any time by pressing and holding the LD/M button until the "Mode Selection Menu" displays. If desired, you can transfer the recorded Live Data information to a personal computer with the use of optional software (see instructions included with the software for more information).
  • Page 69 Live Data Mode RECORDING (CAPTURING) LIVE DATA Beginning - records approximately 100 frames of Live Data after the ENTER button was pressed. Middle - records approximately 50 frames of Live Data before and 50 frames after the ENTER button was pressed. End - records approximately 100 frames of Live Data before the ENTER button was pressed.

  • Page 70: Live Data Playback

    Live Data Mode LIVE DATA PLAYBACK Important Information 1. When Live Data capture is initiated, the green, yellow and red LEDs on the Scan Tool will flash three times to indicate that Live Data is being saved to the Scan Tool's memory. 2.
  • Page 71 Live Data Mode LIVE DATA PLAYBACK If there is no Live Data currently stored in the Scan Tool's memory, an advisory message shows on the display. Press the DTC/FF button to exit the "Live Data Playback" mode. 3. When you have viewed all PID information for the current frame of Live Data, use the DOWN button to scroll to the end of the PID list.

  • Page 72: Additional Tests Special Test Menu

    Additional Tests SPECIAL TEST MENU In addition to retrieving Diagnostic Trouble Codes (DTCs) and viewing Live Data, you can use the Scan Tool to perform additional diagnostic tests, to view diagnostic and vehicle information stored in your vehicle's on-board computer, and to configure the Scan Tool for your particular needs. SPECIAL TEST MENU Additional tests are accessed through the “Special...
  • Page 73 Additional Tests SPECIAL TEST MENU X or XX - These characters identify the location of the O2 sensor in relation to a cylinder bank. An O2 sensor for cylinder bank 1 is identified by the designation “1” or "B1"; a sensor for cylinder bank 2 is identified as “2”...
  • Page 74 Additional Tests SPECIAL TEST MENU 6. Repeat steps 3 through 5 to view test results for additional sensors. When you have finished viewing the retrieved test data, scroll to the end of the display to select Exit, then press the ENTER button to return to the “Special Test Menu”...
  • Page 75 Additional Tests SPECIAL TEST MENU Min or Max test limit Only one test limit, either Min or Max, is shown for any given test. Test Value and status Status is calculated by the Scan Tool by comparing the Test Value against the displayed test limit (either Min or Max). Status is shown as either Low, High or OK.

  • Page 76: Viewing Vehicle Information

    Additional Tests VIEWING VEHICLE INFORMATION VIEWING VEHICLE INFORMATION The Vehicle Info function offers three options for retrieving reference information for the vehicle under test; Vehicle ID, Available Modules and IPT (In-Use Performance Tracking). Retrieving Vehicle ID Information The Vehicle ID function is applicable to model year 2000 and newer OBD2-compliant vehicles.
  • Page 77 Additional Tests VIEWING VEHICLE INFORMATION 6. When you have finished viewing the retrieved vehicle ID information, press the LD/M button to exit. Viewing Available Modules The Scan Tool can retrieve a list of modules supported by the vehicle under test. 1.

  • Page 78: Adjustments And Settings

    Additional Tests ADJUSTMENTS AND SETTINGS 1. While linked to the vehicle, press and release the LD/M button. “Mode Selection Menu” displays. 2. Use the UP and DOWN buttons, as necessary, to highlight Vehicle Info, then press the LD/M button. The Vehicle Info Menu displays. 3.
  • Page 79 Additional Tests ADJUSTMENTS AND SETTINGS Firmware Version: Displays the Scan Tool’s firmware version. Select Language: Sets the display language for the Scan Tool to English, French or Spanish. Unit of Measurement: Sets the Unit of Measurement for the Scan Tool’s display to USA or metric. Adjustments and settings can be made only when the Scan Tool is NOT connected to a vehicle.
  • Page 80 Additional Tests ADJUSTMENTS AND SETTINGS Enabling the Audible Tone 1. Use the UP and DOWN buttons, as necessary, to highlight Audible Tone in the Menu, then press the ENTER button. The Audible Tone screen displays. 2. Press the UP or DOWN button, as necessary, to highlight ON or OFF as desired.
  • Page 81 Additional Tests ADJUSTMENTS AND SETTINGS The selected character displays “solid”, and the next character is highlighted. 3. Select the remaining characters in the DTC in the same way, pressing the DTC/FF button to confirm each character. When you have selected all the DTC characters, press the ENTER button to view the DTC definition.
  • Page 82 Additional Tests ADJUSTMENTS AND SETTINGS The Firmware Version screen displays. The screen shows the Scan Tool’s current firmware version. 2. Press the ENTER button to return to the Menu. Selecting the Display Language 1. Use the UP and DOWN buttons, necessary, highlight Select...

  • Page 83: Generic (Global) Obd2 Pid List

    Generic (Global) OBD2 PID List The following is a list of Generic (Global) PIDs and their descriptions. Tool Display Unit Value PID Description ACC Pedal D XXX.X Accelerator Pedal Position D ACC Pedal E XXX.X Accelerator Pedal Position E ACC Pedal F XXX.X Accelerator Pedal Position F Air Status...
  • Page 84 Generic (Global) OBD2 PID List Tool Display Unit Value PID Description Ratio EQ Ratio 21 X.XXX Bank 2 - Sensor 1 Equivalence Ratio EQ Ratio 22 X.XXX Bank 2 - Sensor 2 Equivalence Ratio EQ Ratio 23 X.XXX Bank 2 - Sensor 3 Equivalence Ratio EQ Ratio 24 X.XXX...
  • Page 85 Generic (Global) OBD2 PID List Tool Display Unit Value PID Description O2S B1 S1 V X.XXX Bank 1 - Sensor 1 O2S Voltage O2S B1 S2 X.XXX Bank 1 - Sensor 2 O2S B1 S2 X.XXX Bank 1 - Sensor 2 O2S Current O2S B1 S2 V X.XXX Bank 1 - Sensor 2 O2S Voltage...
  • Page 86 Generic (Global) OBD2 PID List Tool Display Unit Value PID Description OBD Support OBD2 OBD Requirements OBD Support OBD Requirements OBD Support OBD and OBD Requirements OBD2 OBD Support OBD1 OBD Requirements OBD Support No OBD OBD Requirements OBD Support EOBD OBD Requirements OBD Support...
  • Page 87 Generic (Global) OBD2 PID List Tool Display Unit Value PID Description Veh Speed km/h XXX / XXX Vehicle Speed Sensor Warm-up DTC # Warm-ups since DTC Cleared OBD2...

  • Page 88: Vehicle Applications - Abs

    Vehicle Applications - ABS ABS APPLICATIONS – DOMESTIC Chrysler CHRYSLER Model Year Model Year 300C 2005-2008 Crossfire 2004-2008 300 LX 2005-2008 1998-2001 300C SRT8 2005-2007 PT Cruiser 2001-2008 300M 1999-2004 Sebring 2001-2008 Aspen 2006-2008 SRT-4 2004-2008 2WD/4WD Concorde 1998-2004 Town & Country 2001-2008 DODGE Model...
  • Page 89 Vehicle Applications - ABS Ford FORD Model Year Model Year Crown Victoria 1996-2008 F-250 1997-2008 (w/o traction (w/4-wheel ABS) control) E-150 2000-2007 F-350 1997-2008 (w/4-wheel ABS) E-250 2000-2007 Five Hundred 2005-2007 E-350 2000-2007 Focus 2000-2008 Edge 2007-2008 Freestar 2004-2007 Escape 2001-2008 Fusion 2006-2008...
  • Page 90 Vehicle Applications - ABS BUICK Model Year Model Year Century 1998-2005 Regal 1998-2004 LaCrosse 2005-2008 Rendezvous 2002-2005 LeSabre 2000-2005 Skylark 1998 Park Avenue 1997-2005 Terraza 2005-2007 Rainier 2004-2005 CADILLAC Model Year Model Year 2003-2008 Escalade 2000-2008 DeVille 1997-2005 Seville 1997-2004 2006-2008 2004-2008 Eldorado...

  • Page 91: Abs Applications - Import

    Vehicle Applications - ABS HUMMER Model Year Model Year 2004-2005 2006-2008 OLDSMOBILE Model Year Model Year Achieva 1998 Cutlass 1997-1999 Alero 1999-2004 Intrigue 1998-2002 Aurora 2001-2003 1997-1999 Bravada 1996-2004 Silhouette 2000-2004 PONTIAC Model Year Model Year Aztek 2001-2005 Grand Am 1998-2005 Bonneville 2000-2005...
  • Page 92 Vehicle Applications - ABS Toyota LEXUS Model Year Model Year 400h 2006-2008 IS 250 2006-2008 ES 330 2004-2006 IS 300 2001-2005 ES 350 2007-2008 IS 350 2006-2008 GS 300 1998-2006 LS 430 2001-2005 GS 350 2007-2008 LS 460 2007-2008 GS 400 1998-2005 LX 470 1998-2000...

  • Page 93: Vehicle Applications - Srs

    Vehicle Applications - SRS SRS APPLICATIONS – DOMESTIC Chrysler CHRYSLER Model Year Model Year 300M 1999-2004 Pacifica 2004-2006 Aspen 2006-2008 PT Cruiser 2001-2005 2WD/4WD Concorde 1999-2004 Sebring 2006 Crossfire 2004-2008 Town & Country 1998-2007 Crossfire SRT-4 2004-2008 Voyager 2001-2003 1999-2001 DODGE Model Year...
  • Page 94 Vehicle Applications - SRS Ford FORD Model Year Model Year Contour 1996-2000 F-250 1997-2008 Crown Victoria 1996-2008 F-350 1997-2008 E-150 1996-2008 Five Hundred 2000-2007 E-250 1996-2008 Focus 2000-2008 E-350 1996-2008 Freestar 2004-2007 Edge 2007-2008 Fusion 2006-2008 Escape 2001-2008 Mustang 1996-2008 Escort 1996-2003 Ranger...
  • Page 95 Vehicle Applications - SRS CADILLAC Model Year Model Year 2006-2007 Seville 1996-2004 DeVille 1996-2002 2006 Eldorado 1996-2002 2008 Escalade 1999-2006 CHEVROLET Model Year Model Year Astro 1999-2005 K3500 1999-2008 Avalanche 2002-2006 Lumina 1996-2001 Aveo 2006-2008 Malibu 1999-2003 Blazer 1996-2005 Malibu Classic 2004-2005 C1500 1999-2008...

  • Page 96: Srs Applications - Import

    Vehicle Applications - SRS PONTIAC Model Year Model Year Aztek 2001-2005 Grand Am 1996-2005 Bonneville 2000-2005 Grand Prix 1996-2008 Bonneville SE 2000-2005 2004-2006 Bonneville SLE 2000-2005 Montana 1999-2005 Bonneville SSEi 2000-2005 Montana SV6 2005-2007 Firebird 1996-2002 Solstice 2006-2008 2007-2008 Sunfire 2000-2005 2005-2008 Torrent...
  • Page 97 Vehicle Applications - SRS SCION Model Year Model Year 2005-2008 2004-2008 2004-2006 2008 TOYOTA Model Year Model Year 4-Runner 2000-2008 2001-2005 Avalon 2000-2008 MR2 Spyder 2001-2005 Camry 2000-2008 Prius 2001-2008 Camry Solara 2004-2008 Rav4 2003-2008 Celica 2001-2005 Sequoia 2001-2008 Corolla 2000-2008 Sienna 1998-2008...

  • Page 98: Glossary

    Glossary GLOSSAY OF TERMS AND ABBREVIATIONS GLOSSARY OF TERMS AND ABBREVIATIONS CARB – California Air Resources Board CCM – Central Control Module Computer Control System – An electronic control system, consisting of an on-board computer and related sensors, switches and actuators, used to ensure peak performance and fuel efficiency while reducing pollutants in the vehicle’s emissions.
  • Page 99 Glossary GLOSSAY OF TERMS AND ABBREVIATIONS OBD2 – On-Board Diagnostics Version 2 (also referred to as “OBD II”) On-Board Computer – The central processing unit in the vehicle’s computer control system. PCM – Powertrain Control Module Pending Code – A code recorded on the “first trip” for a “two-trip” code. If the fault that caused the code to be set is not detected on the second trip, the code is automatically erased.
  • Page 100 Notes OBD2...
  • Page 101 Notes OBD2...
  • Page 102 Notes OBD2...

  • Page 103: Warranty And Servicing

    Warranty and Servicing LIMITED ONE YEAR WARRANTY The Manufacturer warrants to the original purchaser that this unit is free of defects in materials and workmanship under normal use and maintenance for a period of one (1) year from the date of original purchase.
  • Page 104 ® Innova Electronics Corp. 11231 Young River Ave. Fountain Valley, CA 92708 Printed in Taiwan Instruction MRP #93-0323 © 2010 Copyright © 2010 IEC. All Rights Reserved.
