Summary of Contents for Shenzhen Jumper Medical Equipment JPD-FR400

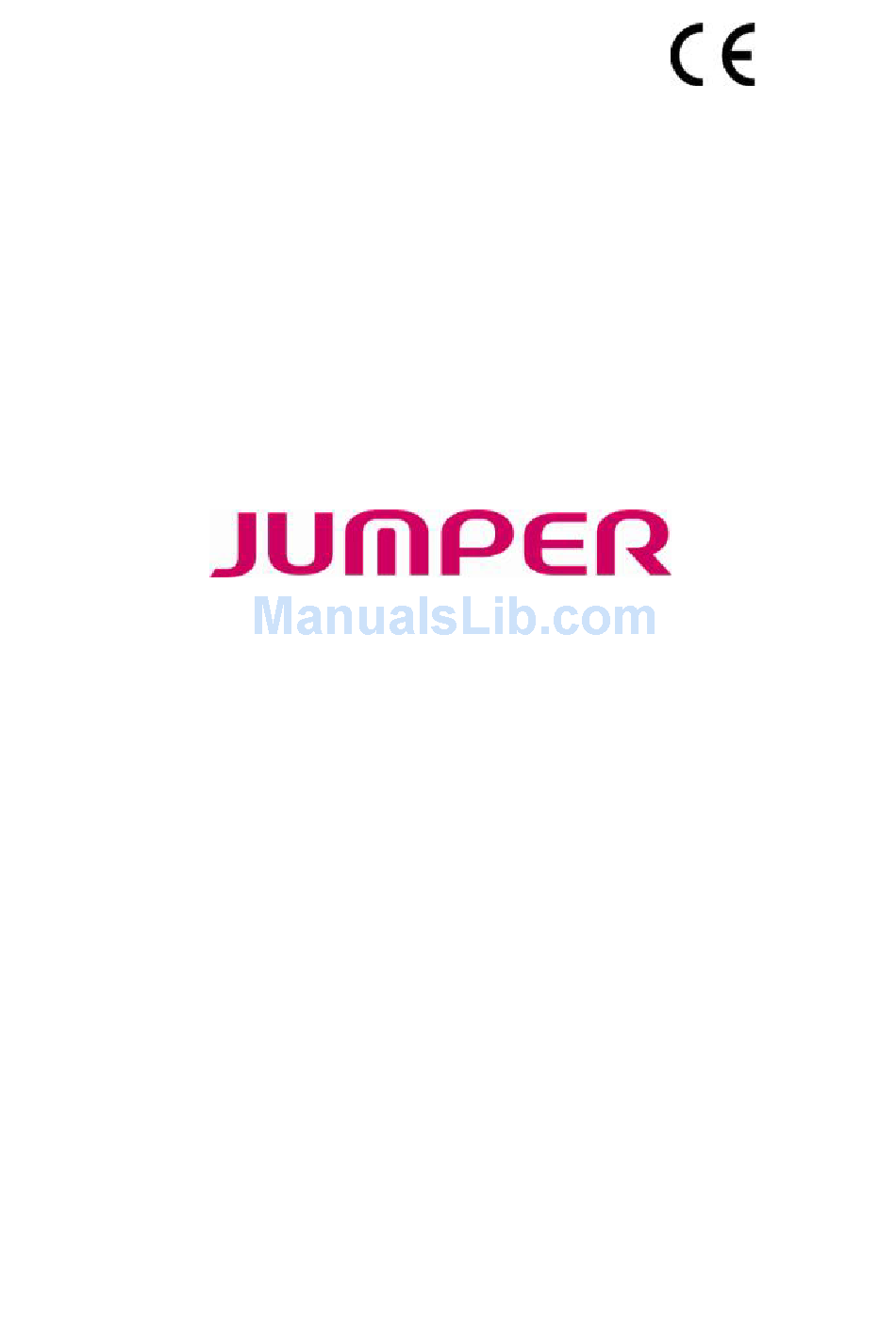

- Page 1 JPD-FR400 0482 Infrared Thermometer Instruction Manual Shenzhen Jumper Medical Equipment Co., Ltd Manual Ver.: 1.0 Issuing Date: 2016/09/12...
- Page 2 Thank you for choosing the Dual-mode Digital Infrared Thermometer of Jumper Medical, Infrared thermometer for short. The infrared thermometer JPD-FR400 can be used to read the body temperature by measure the ear and forehead temperature, which is suitable for adult and children(ear test mode only for the child above 3 months).
-
Page 3: Table Of Contents
Contents 1. The advantages of infrared thermometer JPD-FR400 .... 1 2. Necessary safety instructions ........2 3.Instructions for product designs ........3 4.How to measure the forehead temperature ......4 5.How to measure the ear temperature ......4 6.Instructions for display and operation ......6 7.Cleaning and Disinfection ........ -
Page 4: The Advantages Of Infrared Thermometer Jpd-Fr400
1. The advantages of infrared thermometer JPD-FR400 Multiple use (measurement of forehead temperature and ear temperature) Dual-mode design, you are free to take body temperature by detecting the infrared heat given off by the forehead or eardrum,The Measuring range of the thermometer in forehead /ear mode is between 32.0°F - 212.0°F (0 °C- 100 °C) . -
Page 5: Necessary Safety Instructions
●The device is not used for newborn baby. ●The device is not continuous monitoring device. ●JPD-FR400 is not waterproof. Please do not douse it into water or other liquids. Cleaning and disinfection procedure shall be in comply with the instructions specified in [cleaning and storage] ●Please do not use the product if the temperature sensor or the... -
Page 6: Instructions For Product Designs
●Battery Installation: Put the two AAA batteries into battery compartment in correct polarities. Push the battery cover horizontally along the arrow. Notes: ☆ If you are the first time using the thermometer, please pull out the Plastic sheet . ☆ Battery polarities should be correctly installed. Otherwise, damage may be caused to the device. -
Page 7: How To Measure The Forehead Temperature
Display description 1. Ambient temperature 2. Ready for measurement 3. Ear mode 4. Head mode 5. ˚C / ˚F 6. Low power indicator 7. Memory mode 8. Temperature value How to measure the forehead temperature ▀ Spot measurement 1. With the sensor/probe cover attached, position the thermometer at the center of the forehead, just above the eyebrow. - Page 8 10 minutes, and please follow the rule (2). (8)Do not hold JPD-FR400 for long time as it is highly sensitive to heat. JPD-FR400 has undergone clinical test, it is safe and accurate when...
-
Page 9: Instructions For Display And Operation
Connecting the thermometer to an APP application of a mobile phone The thermometer has a built-in Bluetooth module and can be connected to a smartphone by using the Bluetooth 4.0 wireless technology. View the measurement data in real time by using mobile phone software "MyThermo". - Page 10 Forehead measurement mode Eardrum measurement mode 3 short beeps with a red The measured value exceeds backlit for 3 seconds. 212 °F/100°C. 3 short beeps with a red The measured value falls below backlit for 3 seconds. 32.0°F/0°C. Inquiry for memory data, Storing 20 temperature readings Operational method and instruction for Sound and...
- Page 11 The thermometer will power off automatically if no activity is detected for 10 seconds. Attention: ●Electromagnetic interference: JPD-FR400 contains sensitive electronic component and shall not use under the condition with electromagnetic interference,( such as the place nearby the mobile phones and microwaves ) ●Please dispose the used products and batteries in accordance with...
-
Page 12: Cleaning And Disinfection
local regulation requirements when the products and batteries are not available. ●Please take out the battery if the device unused for long time. 7.Cleaning and Disinfection Cleaning Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab. -
Page 13: Replace The Battery
the storage and transportation environments meet the requirements Check whether safety risks exist on a regular basis. Remove the batteries if the thermometer will not be used for more than two months. 9. Replace the battery. Slide the battery cover off along the marked direction. Put two AAA batteries correctly into the compartment. -
Page 14: Technical Specifications
The temperature probe is Contact Jumper. The temperature faulty. reading is higher than the typical body temperature range. 11. Technical specifications Items Standards Models JPD-FR400 1.Applicable ASTM E 1965 regulations and laws ℃/℉, adjustable 2.Temperature units... -
Page 15: After-Sale Service
Forehead temperature mode:0.0℃-100.0℃ /32.0F – 212.0 F 3.Measurement range Ear temperature mode:0.0℃-100.0℃ /32.0F – 212.0 F ±0.2℃ /±0.4F(36℃-39℃/96.8℉-102.2℉) 4.Accuracy ±0.3/±0.5℉(less than 36 °C (96.8°F) or greater than (Laboratory) 39 °C (102.2 °F) 5.Display resolution 0.1℃/0.1℉ 6.Measure time About 1 second 7.Latency Time About 1 second 1~5 mm(0.04~0.2 inches) -
Page 16: Security Type
13. Security type The signal indicates that the thermometer is type BF applied part. 14. Authorized European Representative: Wellkang Ltd Suite B, 29Harley Street, London, W1G9QR,UK. 15. Symbols Symbol Description Type BF applied part. Attention must be paid. Information about a manufacturer, such as name and address. -
Page 17: Appendix A: Emc Information-Guidance And Manufacture"S Declaration
Guidance and manufacturer´s declaration – electromagnetic emission The JPD-FR400 Infrared Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the JPD-FR400 Infrared Thermometer should assure that it is used in such an environment. - Page 18 Guidance and manufacturer´s declaration – electromagnetic immunity The JPD-FR400 Infrared Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the JPD-FR400 Infrared Thermometer should assure that it is used in such an environment.
- Page 19 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the JPD-FR400 Infrared Thermometer is used exceeds the applicable RF compliance level above, the JPD-FR400 Infrared Thermometer should be observed to verify normal operation.
- Page 20 The JPD-FR400 Infrared Thermometer is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the JPD-FR400 Infrared Thermometer can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF...
- Page 21 FCC IC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 22 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan,Shenzhen,Guangdong,China Tel: +86-755-26692192, 26696279 Fax: +86-755-26852025 Website:www.jumper-medical.com Postal Code: 518102...
