Summary of Contents for Swiss Timing MYRIA 10

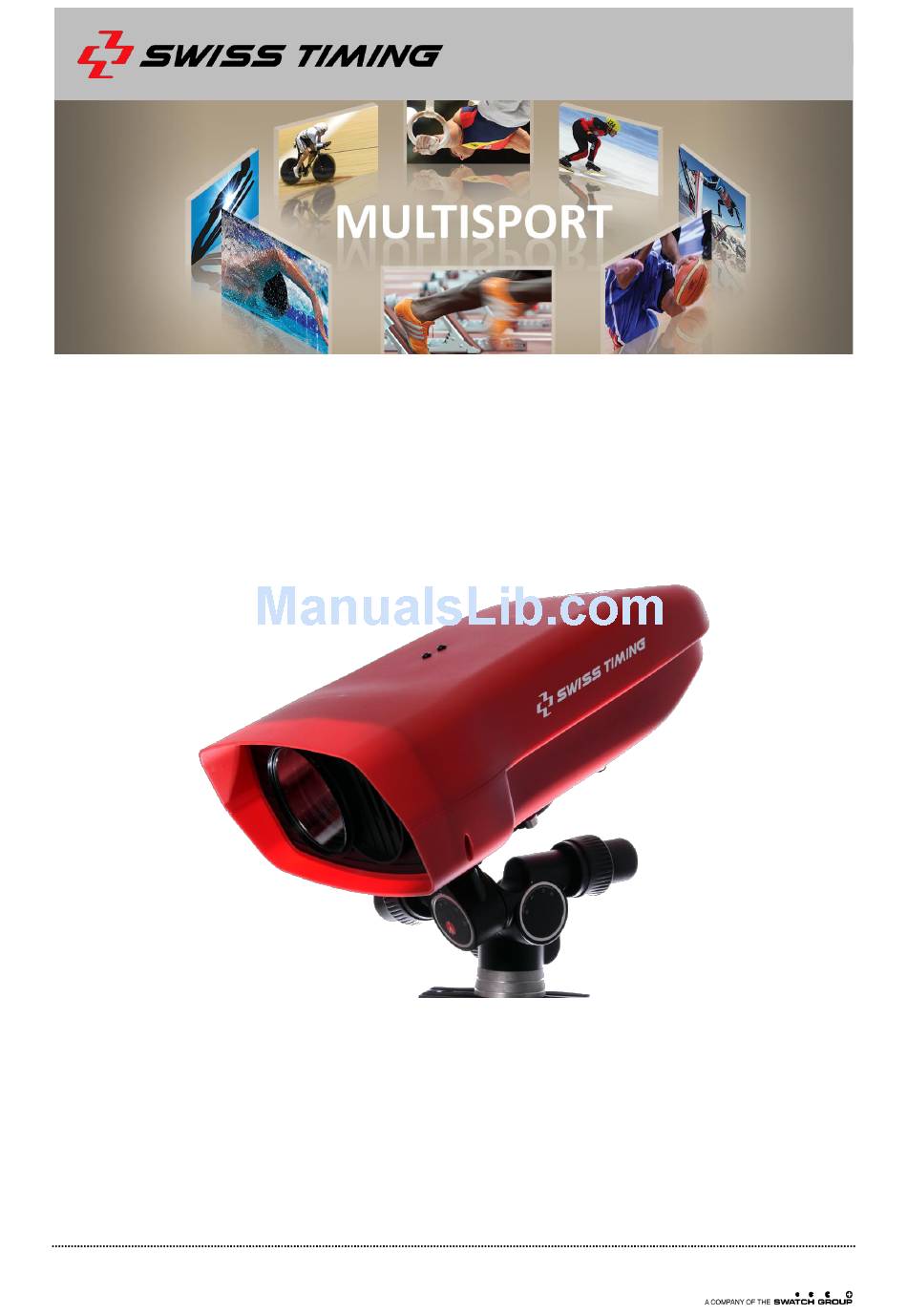

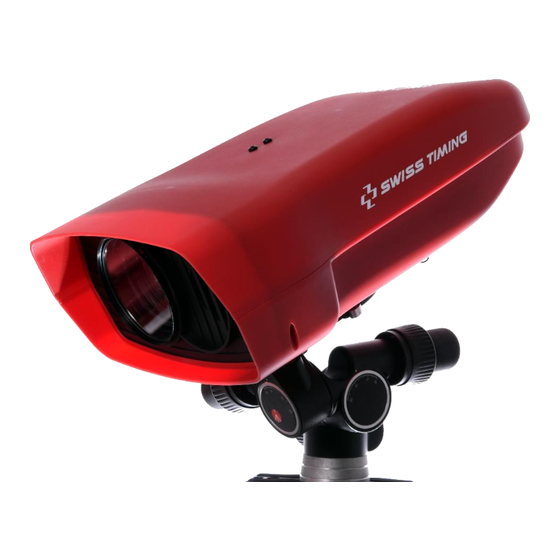

- Page 1 OMEGA Scan’O’Vision MYRIA – PHOTO FINISH CAMERA USER’S MANUAL 3503.502.02 l Version 1.0 l October 2017 MYRIA 10 & MYRIA 16 Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH-2606 Corgémont - Switzerland...
- Page 2 During the transport of all Swiss Timing equipment delivered with a reusable carry case, the said case should be used at all times. This is imperative to limit the damage, such as shocks or vibration that can be caused to the units during transport.
-
Page 3: Table Of Contents
................13 Storage ..........................13 Maintenance ........................13 APPENDICE........................13 Index figures ........................13 Version history ........................ 13 Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH-2606 Corgémont - Switzerland www.swisstiming.com... -
Page 5: Introduction
3434.501. A 10x (MYRIA 10) or 16x (MYRIA 16) optical zoom lens is integrated in the camera housing. It is fully remote controlled (zoom, iris and focus). It allows setting the camera in almost any location and having a perfect image framing. -
Page 6: Myria Parts
3. Status LEDs 7. Fixation plate 4. Air input (with internal filter) Figure 1 – MYRIA 10/16 front view Figure 2 – MYRIA bottom view 1.2 Definitions The camera is typically supplied with a support permitting the setting of its position according to 4... -
Page 7: Installation
OMEGA Scan'O'Vision MYRIA 2 INSTALLATION 2.1 Installation of the camera The photo finish camera must be installed exactly on a virtual extension of the finish line and the sensor must be vertically perpendicular to this line. The inclination of the camera is important for the ease of judgment. In general, a vertical inclination of 8 to 10 is used for the rowing and the canoeing, and of 10... -
Page 8: Wiring The Installation
The camera can also be fixed from top (for example to fix it under a roof); for that you should invert the fixation plate with its screws between bottom and top: Wiring the installation Connect the delivered Start-Finish cable (3503.625) on the bottom of the camera on the I/O connector. -
Page 9: Power On / Power Off
OMEGA Scan'O'Vision MYRIA 2.3 Power ON / Power OFF As soon the camera is powered by the Ethernet cable (PoE), the camera will boot; it takes about 40 seconds to be in operation. There is no ON/OFF switch. When the power is removed (Ethernet cable unplugged or PoE injector switched off), the camera will turn off, losing its time base (synchronisation). -
Page 10: Software
3 SOFTWARE 3.1 Computer specification OSV MYRIA camera works with a computer (laptop or desktop) with the following minimum specifications: For acquisition computer For judging computer (with camera connection) (without camera connection) Operating system Windows 7 or 10 Windows 7 or 10 Screen resolution 1920x1080 pixels 1920x1080 pixels... - Page 11 OMEGA Scan'O'Vision MYRIA 3.Run “eBUS Driver Installation Tool” from the list of All Programs: “Pleora Technologies Inc” “eBUS SDK”. 4. Click on the “Advenced…” button of “GiGE VISION” part. 5. In the scroll list, select the network adapter where the camera is connected. Ensure that check boxes “eBUS Universal Pro for Ethernet”...
-
Page 12: Network Card Configuration
7. To run the software, use the shortcut on the desktop (created by the installer) or run C:\OSV8\OSV7.exe. 3.3 Network card configuration In addition to above driver setting, you should specify the TCP/IP address: Press the windows button "Start", "Settings" then "Control panel". ... -
Page 13: Software Use
OMEGA Scan'O'Vision MYRIA Select the "Advanced" tab; select "Link Speed/Duplex Mode" in the list and change the value from "Auto Negotiation" to "1000Mbps/Full Duplex". Note: the previous text in magenta may change depending of the network adapter. Close all the opened windows by clicking on the corresponding "OK" button. 3.4 Software use ... -
Page 14: Synchronization Window
Synchronization Window 3.4.3 The logo representing the synchronization status has a different signification. OSV-STAR OSV MYRIA Sync not done or sync done Sync not done or Manual sync done or sync automatically with PC time done automatically with PC time Sync done (manual or with start Sync done with start pulse pulse) -
Page 15: Technical Specifications
CISPR 16-2-1:2008+A1:2010 Conducted disturbance mains Depends of purchased option Between 100 and 200m, an amplifier can be inserted; for longer distance, an optical fibre should be used. Please contact Swiss Timing for information about available interface. Version 1.0 3503.502.02 Page 11... -
Page 16: Connections
RoHS 2 compliant 2011/65/EU Restriction of Hazardous Substances METAS (Swiss Federal Institute of Metrology) ~5ms / 24 hours Δt / t = (-5.8 ± 4.0) 10 4.4 Connections Ethernet Standard RJ45 Ethernet connector Cat 5e. Support also cable plug housing Neutrik NE8MC-B IP54 connector. -
Page 17: Prevention And Maintenance
OMEGA Scan'O'Vision MYRIA 5 PREVENTION AND MAINTENANCE 5.1 Storage Ideally, the Scan'O'Vision MYRIA camera should be stored in its transporting case in a place which is not too humid and where the temperature is around 20°C. 5.2 Maintenance Never touch the glass in the front of the camera with your fingers. After use, please always replace the protection cap. -
Page 19: Swiss Timing Ltd P.o. Box 138, Rue De L'envers
Swiss Timing LTD Phone +41 32 488 36 11 P.O. Box 138, Rue de l’Envers 1 info@swisstiming.com CH-2606 Corgémont - Switzerland www.swisstiming.com...
