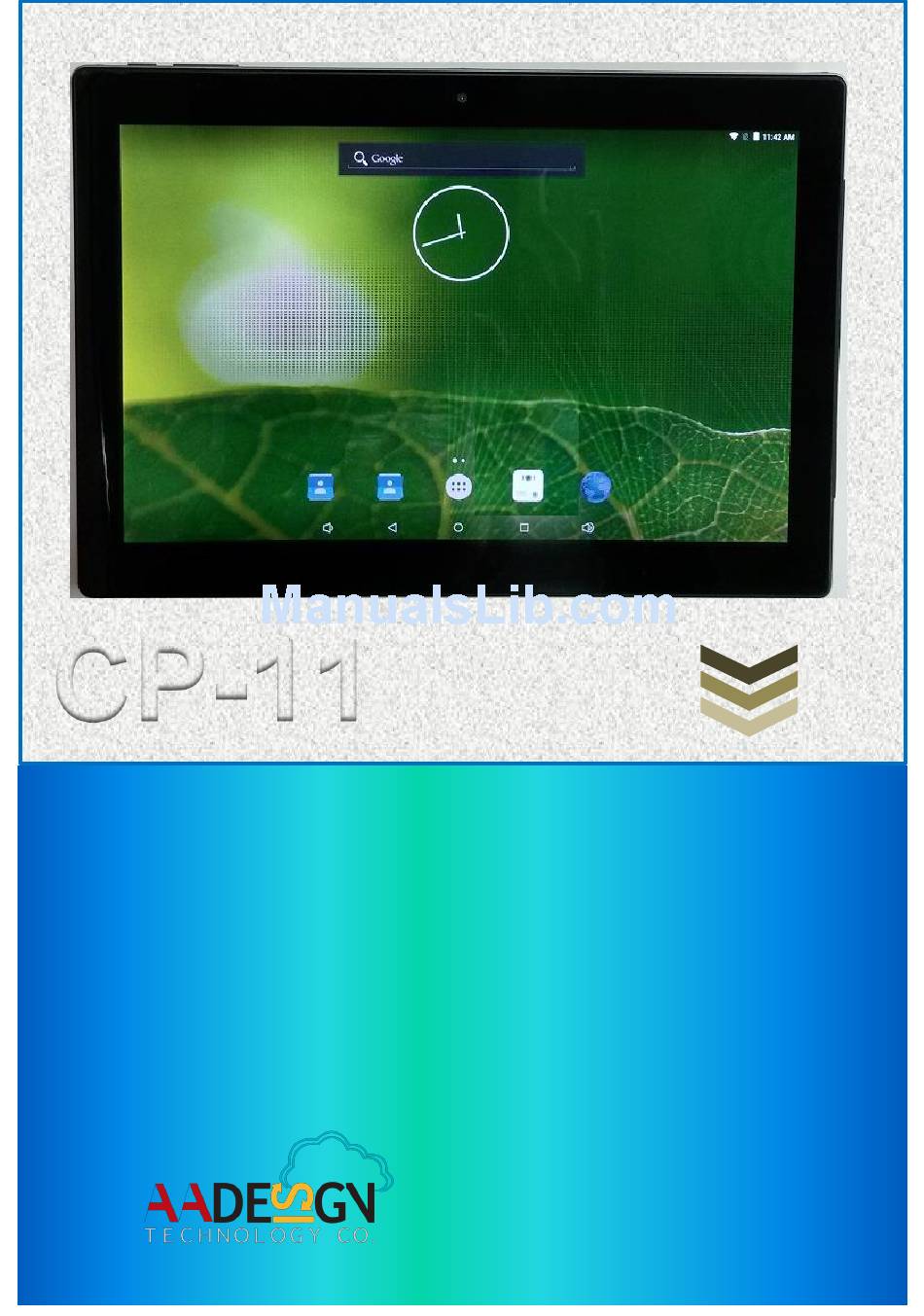

- Page 1 CP-11 User Manual The CP-11 is a 10.1” Android Intercom Monitor Control Panel for home Automation. T o s h i b a 2 0 1 6 / 3 / 1 0...
- Page 2 The CP-11 control panel is operated by Android system and supports Wi-Fi and SIP protocol with Door Phone. The CP-11 makes a warm home style by plug and play equipment and suitable for all your door entry communication needs.
-
Page 3: Table Of Contents
Chapter 3 How to use the CP-11 ........ -
Page 4: Chapter 1 Introduction
The control panel also interfaces with PoE connectivity option to reduce installation costs. Using CP-11 to turn your house into a digital home just got easier with the help of plug and play equipment. -
Page 5: Technical Specifications
1.2 Technical Specifications Technical Specifications Hardware Specifications Operating system Android 5.1.1 CPU (SoC) ARM Quad-Core Cortex-A7 1.3GHz Mali400 DDR3-1GB Storage 8GB NAND Flash Resolution 1280x800 HD resolution Screen Size 10.1 inch Language Default: English ; Multi-Language support Network WiFi IEEE 802.11 b/g/n Wireless Ethernet PoE support and compliance with IEEE802.3at... - Page 6 Sorenson Spark : 1080p@60fps VC-1 up to AP level 3 : 1080p@30fps RV8/RV9/RV10 : 1080p@60fps VP6/VP8 : 1080p@60fps AVS : 1080p@60fps MVC : 1080p@60fps Image browser BMP, PNG Support JPEG, Physical and Environmental Characteristics Dimensions(L x W x H) 247 mm x 173mm x 23 mm Operating Temperature 0 ~ 45°C Storage Temperature...
-
Page 7: Chapter 2 Quick Install
There are transparent stickers on the surface of CP-11 Android Intercom Monitor Control Panel. Please remove it. 2.3 The Procedure of Connection Step 1: Mounting on the wall. Select a location, Surface-mount the CP-11 at desired location. Step 2: Plug in the power adapter to CP-11. -
Page 8: Chapter 3 How To Use The Cp-11
Chapter 3 How to use the CP-11 After you connect to the power, wait for a while, you will see the first page display as following diagram. Then click the door phone icon to enter the CP-11 home page. Home key... -
Page 9: Voice Volume Adjustment
The home page of CP-11 shows the voice volume adjustment, ring tone adjustment, and dial pad on the left side of screen. There are five icons for door phone on the right side of screen. And setting function key on the upper right corner of screen. There are also a home key on the top of screen to help user return to his/her home automation system. -
Page 10: Dial Pad
3.3 Dial Pad You also can click button for dial pad. A dial pad used to enter a phone number when initiating a call to another phone. Now you can input the phone number to dial out. Please refer to following diagram. -
Page 11: Handset
3.5 Handset The handset icon on the screen shows the status of call. When you pick up the call from visitor, the handset icon will change to red color . Now callers at your door can talk to you. You can also look at callers. Then open the door. 3.6 Janitor When you click the icon of Janitor on the home page, the screen will show as below and you can talk to janitor directly. -
Page 12: Snapshot
3.8 Snapshot The button of snapshot provides to catch the visitor image for you. If you would like to keep the snapshot picture, please follow up these steps that described as below. Step 1: click this circle and go to the first page. - Page 13 Step 2: Then click the white circle button and go to the android system screen. Step 3: Please click Explorer button and go to the NAND Flash screen.
- Page 14 Step 4: Now you can find the snapshot picture file on the screen. Step 5: The snapshot picture displays on the screen now.
-
Page 15: Key
3.9 Key You can open the door by pressing the “ ” button on the screen. 3.10 Settings Click the button of “Settings” on the home page. The square of settings will display on the screen. Please click the square of settings to enter the configuration page that shown as below. -
Page 16: Sip Setting
Main screen of Settings 3.10.1 SIP Setting Please click the square of SIP setting to enter the setting screen. You can define two different IP-PBXs as line 1 and line 2 that showed as follows. The keypad will appear to help you doing the key in work. - Page 17 Step 1: Select line 1 or line 2 by clicking on the line number. Step 2: Input the IP address of SIP server. Step 3: Input account number. Step 4: Input password. Step 5: Click on “Save” button at the end of the screen to save your configuration. The SIP setting screen of line 2 shows as below.
-
Page 18: Speed Dial
These two small circles on the right hand side of home page show the status of line 1 and line 2. Green color indicates a successful connection. Red color indicates connection failed. White color indicates no link. 3.10.2 Speed Dial You can set up speed dial by clicking “Speed Dial”... - Page 19 Then you will see the content of account with name “ddd”. You can edit or delete this account. If you click the check square of Auto answer, the auto answer will be enabled. When a call coming, you can preview the caller’s image then decide whether to answer the call. If your IP-PBX already supports preview function, you do NOT need to enable auto answer.
- Page 20 Click OK button to delete the account. You can also add an account for speed dial by clicking icon that shown as below. Step 1: Input account name. Step 2: You can input SIP ID or IP address for Number. Step 3: Select line 1 or line 2.
-
Page 21: Ring Tone
Then you will see a new account with name David has added successfully. 3.10.3 Ring Tone You can set up ring tone by clicking “Ring Tone” button on the screen. -
Page 22: Home Key
3.10.4 Home Key You can set up home key by clicking “Home Key” button on the screen that shown as below. The keypad will appear to help you doing the key in work. Please input package name and class name. The home key helps you to go back to your original smart home system. SettingsHome Key... -
Page 23: System Setting
3.10.5 System Setting You can do the system setting by clicking “System Setting” button on the screen. Then select which item you want to view or edit by clicking on the item name. SettingsSystem Setting... -
Page 24: Janitor
3.10.6 Janitor You need to input Number to connect to Janitor directly shown as below. Step 1: input Number. You can input SIP ID or IP address here. Step 2: Click on “Save” button to save the configuration. Go back previous page SettingsJanitor SIP ID SettingsJanitor... -
Page 25: Door Phone
3.10.7 Door Phone You can set up door phone by clicking “Door Phone” button on the screen that shown as below. The keypad will appear to help you doing the key in work. Step 1: input Number. You can input SIP ID or IP address here. Step 2: Click on “Save”... -
Page 26: Upgrade App
3.10.8 Upgrade app You can upgrade app of CP-11 by clicking “Upgrade app” button on the screen. The character string of “Downloading package…” will display on the screen. Waiting for a while, you will see the screen that shown as below.
