Summary of Contents for hune H-200

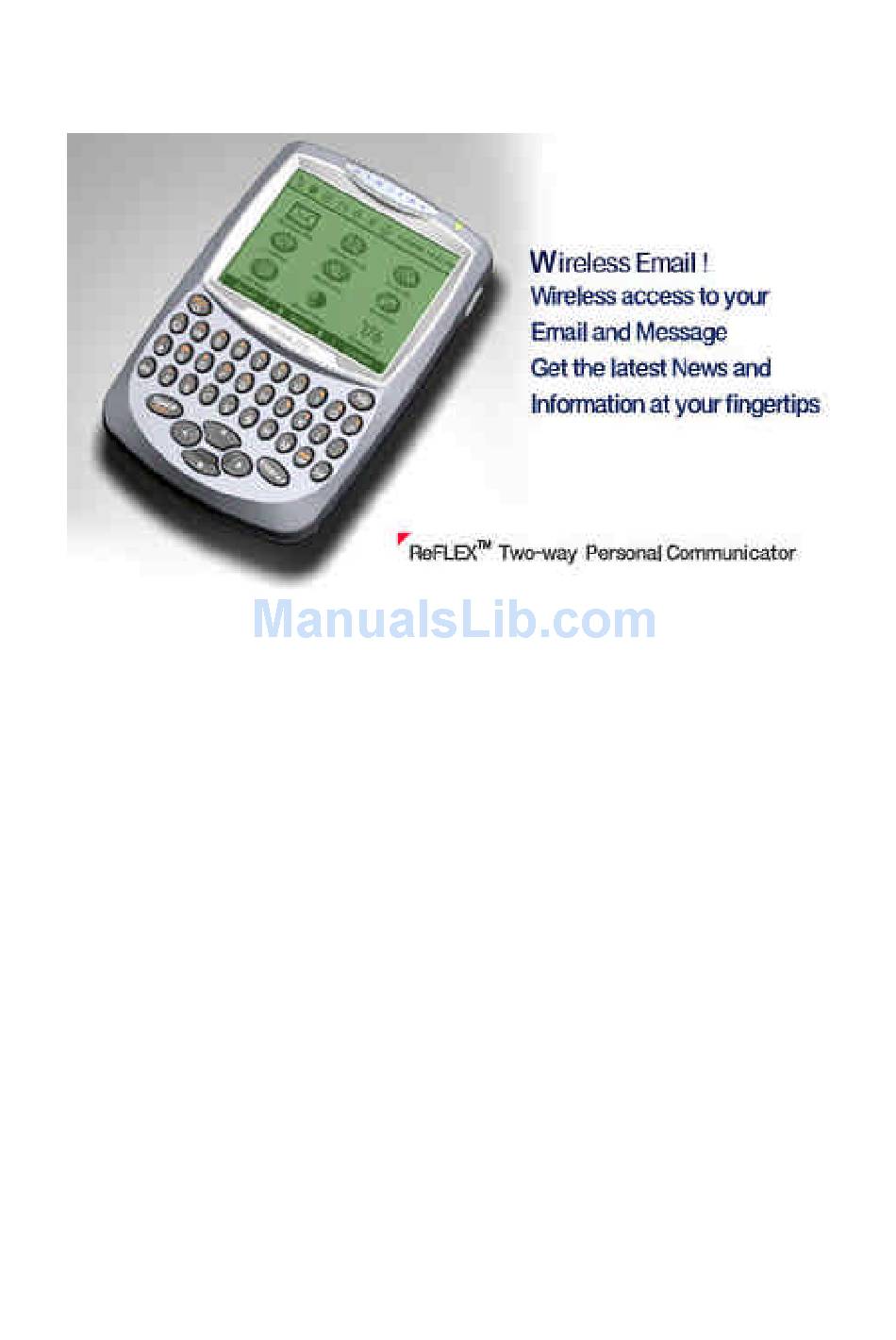

  • Page 1 H-200 H200 User’s Manual August 27, 2003 HuneTec Co.,Ltd...

  • Page 2: Table Of Contents

    My Mail … … … … … … … … … … … … … … … … … … … … … … … . … … … . ..75 H-200 PC Link Program … … … … … … … … … … … … … … … … . … … … … . .76 Device and Battery Care …...
  • Page 3 Part List … … … … … … … … … … … … … … … … … … … … … … … … ..86 Logic & RF Board Part List … … … … … … … … … … … … … … … … … … ..86 Keypad Board Part List …...

  • Page 4: General Information

    General Information Introduction # Small Size and Light Weight for Portability # ReFLEX Two-way Messaging & E-Mailing # Graphic User Interface for Easy Use # Personal Information Management Support # PC Connectivity for Data Back-up and Restoring with Desktop PC RF Specification - Receiver Frequency Bands: 929 MHz - 932 MHz , 935 MHz - 942 MHz...

  • Page 5: Physical Specification

    Physical Specification # Operating temperature range: -10°C ~ +50°C (32F~122F) # Dimensions －Size: 105×70×18mm －Weight: 120g # Power Consumption －Batteries: Li-Ion 700mA rechargeable battery －Stand-by Time: 7 days －Recharging Time: 2 hours －Rx Consummation: 45mA －Tx Consummation: 800mA －Idle Current: 1.2mA # Display －Full-graphics high-contrast screen －Resolution 160×128 dots...

  • Page 6: H200 Pc Link

    # Keypad －32 QWERTY Keyboard －slide keys －4 navigation keys # Accessories －Mains charger －Belt clip －H200 PC Link software & editor cable H200 PC Link # Edit and back up address book memory # Send and receive messages by using a PC keyboard # Compose and change Bell melodies with H200 PC Link Maestro Manage settings Manufacturers Hunetec Co.,LTD...

  • Page 8: Technical Theory

    Technical Theory Controller Circuit Descriptions The controller section consists of the following main functional blocks(see Figure 2-1) Functional Controller (U25) Message Storage (U24) Primary Code Storage (U23) Power Management (U304) Display Module Backlighting (U3) Serial Interface (U28) Audio (U31)
  • Page 9 DISPLAY / LCD_CE ADDRESS/DATA KEYPAD FLASH BACKLIGHT ROM_CE SOUND1 ADDRESS/DATA SOUND2 TRANSDUCER SRAM RAM_CE KEYIN[1:6] RSSI KEYPAD KSCAN[1:7] DETECTOR CONTROLLER VIB_EN VIBRATOR CPU_IRQ #RESET DECODER POWER & READY/ RESET +3.0V_L SLAVE/ POWER INTERFACE MANAGEMENT EXT_DET_SENSE CONNECTOR CIRCUITRY DATA IN / OUT RECHARGEAB LE Li-Ion BATTERY...

  • Page 10: M I S

    2. Digital Signal Processor The digital signal processor (U14) is responsible for the decoding received information. 3. Message Storage The message storage IC (U24) is a 4M bit SRAM (Static Random Access Memory) contained in a 44-pin package 4. Primary Code Storage The primary code storage IC (U23) is a 16-megabit flash memory IC contained in a 48- pin package.
  • Page 11 6. Display Module The display driver is a flex circuit that drives Lines by 24 characters display. This circuit attaches to the controller at contacts display module. The functional controller (U25) provides sole control over the driver. The display driver has an internal voltage triple that generates the appropriate voltage levels needed to drive the display glass.

  • Page 12: O F

    Circuit Descriptions Specifications 1. Receiver Item Specification Frequency 929~932MHz, 935~942MHz Channel Spacing 6.25 kHz , 10 kHz and 12.5 kHz 1600/2 level FSK , 3200/2 level FSK , Bit Rate 3200/4 level FSK , 6400/4 level FSK Signaling Modulation 2 / 4 Level FSK Frequency Deviation +/- 800 Hz and +/- 2400 Hz Receiver Sensitivity...
  • Page 13 2. Transmitter Item Specification Frequency Range 896~902MHz Channel Spacing 12.5 KHz in 6.25 KHz steps Bit Rate 800, 1600, 6400 and 9600 bps Signaling Modulation 4Level FSK Frequency Deviation +/- 800 Hz and +/- 2400 Hz Frequency Accuracy -2.5ppm < X < 2.5ppm Frequency Stability -1.0ppm <...
  • Page 14 Circuit Descriptions The following information describes the circuitry specific to HRD-100 pagers with 900MHz transceivers. See Figure 3-1. MICRO DETECTOR IC =930.5MHz, CONTROLLER =21.4MHz ANTENNA 938.5MHz DOWN MIX IN RX SAW Local FSK1_ IN FSK1_ OUT CONVERTER IF AMP 20.945MHz FILTER Oscillator MIXER...
  • Page 15 Decoder (U26) Operational Amplifier (U9, U19) Transmit VCO/ Receiver First LO VCO (VCO1) Phase locked Loop Power Amplifier (U4) Driver Amplifier (U6) 1. Antenna Antenna is for optimal receiving of transmission signal from base station. Reduce damage of weak signal under general external environment and voltage from device to a minimum.
  • Page 16 6. Down Converter (MIXER) Down Converter is used for one output against two input signal and making IF signal by combining amplified RF signal from LNA with Local signal. Adjust RF signal of 930.5MHz ±1.5MH & 938.5MHz±3.5MHz and local signal of 909.1MHz &...

  • Page 17: Power Amplifier

    VCTCXO is used for voltage supply for reference frequency of main set input. It creates 16.8MHz frequency and input to PLL IC. It controlled by voltage for exact frequency tuning. 12. PLL(Phase locked Loop) PLL(PLL2) is frequency combiner of Dual mode. It output IF signal and Local signal if demultiplied signal and Phase of phase comparator is same.

  • Page 18: User's Manual

    User’s Manual (Draft Version)

  • Page 19: Before You Start 1

    Contents 1. BEFORE YOU START … … … … … … … … … … … … … … … … … … … … … … … … … … … . .. … … ..19 I C O N …...
  • Page 20 6. SCHEDULER … … … … … … … … … … … … … … … … … … … … … … … … … … … … . … … … … … … 5 0 7. TASK … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … … . … … … … … … . .54 8.

  • Page 21: Before You Start

    1. Before You Start * What’s in the Box?
  • Page 22 Product Literature H 200 CODEX Travel Charger Holster Data Cable (Optional Items)
  • Page 23 1.1 Device Layout and Icons The following illustration shows the main elements of your H200. LED Indicator Display Keys < Front > RF Test hole for AS only (Do not uncover Rubber cap) Label Speaker Hole < Back >...
  • Page 24 Power Button Hold Button < Left Side > Rubber cap for serial port and Reset switch < Bottom >...

  • Page 25: Icon

    < Status Icons in the Main menu display> Icon Description Appears device is 1 WAY mode. You can receive message only Appears device is 2 WAY mode. You can send and receive message Appears device is No Service mode. You are out of service range Shows the level of battery status.
  • Page 26 Appears when message sending is succeeded Appears when device is roaming status Appears when new news / Info message has been arrived < Icons for message list > Shows unread message Shows read message Shows duplicated read message Shows duplicated read message Shows sent failed message Shows sending message...

  • Page 27: Keys Description

    1.2 Keys Description ESCAPE DELETE CAPS LOCK ENTER SYMBOL SPACE NAVIGATION Control Buttons Control Button Description Press to return to preceding screen without accepting any changes. Escape Also, press to access the initial screen from the main menu screen Caps Press to capitalize for next typed letters.
  • Page 28 Enter Press to select the highlighted option or to save settings. Press left, right, up, down buttons to move within a field (Text field, Navigation list field, button field) Activates the alt-mode control keys (color-coded amber). The next key pressed activates an Alt-mode function. Pressing Alt key two times activates Alt lock mode.
  • Page 29 And use left or right key to view long text in the lower box. - Always use Enter key to select. Upper Box Lower Box Bottom Menu 1.3 Display in the initial screen ß Status Icon Area ß Owner’s name Area ß...
  • Page 30 1.4 Display in the Main menu screen < Main menu icons > Icon Description Read Message Write Message Contact Scheduler Task Memo Preference Calculator...

  • Page 31: Led Indicator

    Game Preference World Clock Alert Alarm Lock Tx Set Mymail icon 1.4 LED INDICATOR Your device LED radiates 3 Color light When new message arrived – Yellow Green Color During device charging with charger – Red Color When device complete charging – Green Color...

  • Page 32: Getting Started

    2. Getting Started 2.1 How to switch device on and off Press Power Button over 3 sec to switch device on Press Power Button over 4 sec to switch device off 2.2 How to charge battery H200 Pager HRD-100 Pager Travel Charger Electric outlet - Plug your charger into a main socket first...

  • Page 33: D E V I C

    Battery Charging Indicator Charging Complete Charging Device LED Red light Green light Charger Indicator Red light Green light - The first charging must be for at least 2 hours in order to achieve optimum performance. - Normally the device completes to charge the battery in one hour - After complete charging, the device automatically checks the battery status during the charger connector is installed on the device.

  • Page 34: Read Message

    3. Read Message This application enables you to read and respond to incoming messages & Info, forward and delete messages. It also allows you to manage inbox, Info, Draft, Personal / Business / Misc group, Outbox, Sent and delete menu. Figure Read-1 appears when you select Read in the menu screen.

  • Page 35: Inbox

    3.1 Inbox Message List Message Preview Max character : 96 Bottom Menu <Figure Inbox-1: Inbox MSGS> Inbox folder saves all the messages received so far. Upper box shows the message list and lower box shows the contents of message. Up/Down direction key is used to move the message you want to read in the list. And Left/Right Direction key is used to read the contents if the message is long.
  • Page 36 Feature of Bottom Menu (1) Reply <Figure Reply-1> If you want to write a new message in Figure Reply-1, select the custom message menu in the upper most menu to display the screen in Figure Reply-2. If you sends multi-choice or canned message, select the message you want and press Enter.
  • Page 37 <Figure Qtext-1> At this time, select the content you want to type, in order to enter into the main part of editor. Refer to Qtext menu function of Preference. (2) Forward If you select Forward in the bottom menu, Figure Write-1 appears. From here, it is same as the explanation of Write, and only difference with Forward is whether the contents of previous message exist or not.

  • Page 38: Info

    (4) Delete Select this function to display popup box "delete now?" as shown in the Figure Delete-1. At this time, select "Yes" if you want to delete, and "No" if you don't want to delete. Press Esc key to go back to previous screen.

  • Page 39: Draft

    News List News Preview Bottom Menu <Figure Info-2> <Figure Info-3> 3.3 Draft This folder is for the user to record and temporarily save the message. If you select save function when you write a message, the message is saved in this folder. Initial screen is as shown in the screen of Figure Draft-1.
  • Page 40 <Figure Draft-1> If there is any item you want to modify, press Enter key in the relevant list to display the screen of Figure Draft-2 where you can modify. If you want to save after modifying in Figure Draft-2 screen, select the Save function in the bottom menu. If you want to delete, select Delete.

  • Page 41: Outbox

    Since the function of bottom menu in Figure Personal-1 is same as Inbox, refer to how to use Inbox folder described above. <Figure Personal-1> 3.5 Outbox This folder is to show the message currently being sent or the message that was not successfully sent. When you select, screen of Figure Outbox-1 will appear.

  • Page 42: Delete

    This folder is to show the message successfully sent. Screen of Figure Sent-1 will appear when you select one message among the message list. Function of bottom menu is same as the bottom menu function of outbox. <Figure Sent-1> 3.7 Delete This folder is to delete message data and display the screen of Figure Delete-1, Figure Delete -2.
  • Page 43 <Figure Delete-3>...

  • Page 44: Write Message

    4. Write Message This application enables you to compose messages using the QWERTY keyboard, insert Quick text and other features. Select Write in menu screen to pop up the screen of Figure Write-1. If there exists in the address book, the recipient you want to send the message to, move to the relevant item and press Enter key to pop up and select the check mark.
  • Page 45 Max character : 39 <Figure Write-1> <Figure Write-2> If you select new address, it will move to the screen of Figure Contact-2.1. Check how to use Contact for reference. After entering address, select the Save function. Then, it will return to the screen of Figure Write-1 and checkmark appears in the new user data.
  • Page 46 Select Return function in the lower menu to display the Figure Write-1 screen again. - Exit Return to the previous screen. - Compose If all selections are done, select Compose function in the lower menu to compose a message. If you select Compose function, the screen of Figure Write-4 appears. Following is the description about the bottom menu of Figure Write-4.
  • Page 47 In this screen, you can add multi-choice function. You can select one of several items when you send reply to recipient. You can enter up to 16 items. If you want to use this function, enter the data and select Save in the lower menu to use this function.

  • Page 48: Contact

    5. Contact This application enables you to store the address information of each person or group you might want to contact. You can include Name, email address, work & home phone number and even address for each contact entry. 5.1 Contact List (Screen showing the list of entered address) Contact List Max character : 40 Contact Preview...
  • Page 49 <Figure Contact-1.2> Bottom menu description Selected menu is marked black when it is moved to the lower menu. Use Tab Key to move to the bottom menu you want. You can execute the selected menu using Enter Key. Use ESC Key to exit the lower menu. Add New: Move to Contact New screen (Figure Contact-2.1) where you can enter new address.
  • Page 50 <Figure Contact-2.1> <Figure Contact-2.2> <Figure Contact-2.3> New Contact is to input new contact contents and if you press Add new menu in the bottom menu, this screen will displayed. Use Up/Down arrow or Enter Key to move to the item you want and enter using the character and number Key.
  • Page 51 triangle ( ) will be displayed in the lower part of Box. Use Left/Right arrow to move to the following list. Press Tab Key to move to the lower menu. Bottom menu description Edit: Move to the Contact Edit screen (Figure Contact-4.1) where you can edit the existing address. Snd Msg: Move to Write screen (Figure Write-1) 5.4 Edit Contact (Screen for Editing Entered Address) <Figure Contact-4.1>...
  • Page 52 5.5 Contact Group (Screen for Listing Addresses by Group) <Figure Contact – 5.1> <Figure Contact – 5.2> <Figure Contact – 5.3> Contact group is to show classified contact list by group name – Personal / Business / General Key operation and bottom menu description is same as Contact list. 5.6 Name Type If Contact or Write icon is selected in the menu screen, the address you entered appears.

  • Page 53: Scheduler

    6. Scheduler This application enables you to manage & record your schedule, view calendar and alarm function for each saved schedule event. 6.1 Calendar (Screen for showing whether there exist Schedule and Task) <Figure Scheduler – 1> Use Up/Down, Left/Right arrow to move the box in the screen and to select the specific date. If there exist schedule or task previously entered, the date is underlined.
  • Page 54 6.2 New Schedule (Screen for Entering New Schedule) If you press SchEvt in the bottom menu to input new schedule event, Figure Scheduler 2 screen will be displayed. Max character : Event entry area Start / End date & time Alert set area <Figure Scheduler –...
  • Page 55 Before 1 hr Before 2 hr Before 4 hr Before 12 hr Before 1 day Before 7 day Repeat is to set the alarm repeatedly and you can set repeat mode using left and right key Repeat mode has 5 options – Never / Daily / Weekly / Monthly / Yearly. Use Esc Key to cancel the contents modified.
  • Page 56 Delete: Delete the selected item. 6.4 Edit Schedule (Screen for Modifying selected Schedule) Max character : <Figure Scheduler – 5> Bottom menu description Save: Save the contents you modified Cancel: Move to the previous screen.

  • Page 57: Task

    7. Task This application enables you to manage & record your to do list. It shows due date, status and priority of each to do list Task list Task Preview Bottom Menu <Figure Task – 1> If cursor is located in the list, use Up/Down arrow to move to the location you want.
  • Page 58 Input Task title on event subject area and then set the due date, Status, Priority of task and description of task. You can enter characters, numbers and symbols in Text field and number in date field. Use Up/Down Key to move to the specific item. You can use Left/Right Key to set status and priority.

  • Page 59: Memo

    8. Memo This application enables you to record your memo and you can also send your saved memo as message to others. Memo List Menu Preview Bottom Menu <Figure Memo – 1> If cursor is located in the list, use Up/Down arrow to move to the location you want. In this case, details will be displayed in the lower Preview Box.
  • Page 60 8.1 New Memo (Screen for Entering New Memo) Memo Subject Notes Area Bottom Menu <Figure Memo – 2> Use Up/Down Key to move to the specific item. You can enter characters, numbers and symbols in the Text field. Enter Tab Key to move to the lower menu. Bottom menu description Save: Save the contents you entered Cancel: Move to the previous screen.

  • Page 61: Preference

    9. Preference This application provides various features that allow you to select various options and to execute several functions. Select Prefs in new screen to display Figure Prefs-1. <Figure Prefs – 1> 9.1 Alert Settings Change Sound and Alert in 1. Alert Settings. <Figure Prefs –...
  • Page 62 1. Volume Select 1. Volume when you adjust the volume in Figure Prefs-2. You can select Low/Middle/High volume with Left/Right key in volume field, 2. Inbox, Info, Sch & Alm You can select the preferable alert type using Left/Right key for Inbox, Info, Sch & Alm. These Alert notice you when there is new message in inbox or new information in Info.

  • Page 63: Quick Text

    9.2 Quick Text Using Quick Text, you can easily put the words or shot message which are frequently used as shown in 2. Quick Text of Figure Prefs-3.. Max character : <Figure Prefs-3> <Figure Prefs-4> <Figure Prefs-5> * New Quick Text If you want to register new Quick text, select New Text field by pressing Enter key and it display as Figure Prefs-4.

  • Page 64: Setup

    ON/OFF in Set field with Left/Right key. Press Enter key when it is ON to activate private time function. Mute icon will appear when it becomes the private time you set. 9.4 Setup You can set up H200 in this menu. <Figure Prefs-7>...

  • Page 65: Display Settings

    cursor is placed on AM/PM, press A key to become AM, and press P key to become PM. Decide the value in Sync mins/Date Format/Time Format field with Left/Right key. Then, press Enter key to save the changed value and check the changed current time in the standby screen. 9.4.2 Display Settings Select 2.

  • Page 66: Signature

    9.4.4 Signature This function is used to attach the signature at the end of mail you transmit. Press 4.Signature in Figure Prefs-7 to display Figure Prefs-11. Select whether to Enable/Disable Display field with Left/Right key and enter the text you want in Signature field.

  • Page 67: About

    Max character : <Figure Prefs-13> In Figure Prefs-13, select Enable/Disable in lock field with Left/Right key and enter the 4 digit same letters both in Password and Confirm Password field. If you don’t enter previous password exactly in Old Password field, you'll see the screen of Figure Prefs-14. The Password to be set from the factory is “0000”.

  • Page 68: Mymail Setup

    Current memory consumption, Battery level, carrier and S/W Version appear. Press Esc key to exit. 9.6 Mymail Setup It is used when you want to setup the Mymail communication. Select Mymail Setup to display Figure Prefs -16. <Figure Prefs -16> Input your Mymail address on address area and then set ON/OFF with Left/Right Key.

  • Page 69: Alarm

    10. Alarm You can set the alarm date & time with this application. Max character : <Figure Alarm-1> Input alarm title on subject area and then set date & time. You can enter characters, numbers and symbols in Text field and number in date field. If it is 12hour mode, AM/PM appears.
  • Page 70 <Figure Alarm -2>...

  • Page 71: Calculator

    11. Calculator This application enables you to calculate using navigation keys Select Calc in the menu screen to display Figure Calc-1. Max character : <Figure Calc-1> 1. Direction (Up/Down, Left/Right) key, Space, Enter, Esc, Del and number key from 1~0 are used. 2.

  • Page 72: Lock

    12. Lock After Lock field is selected to Enable setting in Figure Prefs-13, If select Lock Menu, you'll see the screen of Figure Lock-1. <Figure Lock-1> To release lock in Figure Lock-1, enter 4 digit password you entered in Password field in Figure Prefs-13. Then, the lock will be released.

  • Page 73: World Clock

    13. World Clock This application enables you to check world clock with world map Select W/Clock in the menu screen to display Figure W/Clock-1 <Figure W/Clock-1>. 1. World Clock View Local time is displayed. Press left & right keys to move area and press Esc key to exit. <Figure W/Clock-2>.

  • Page 74: Game

    14. Game This application enables you to play BLACK JACK game Select Game in the menu screen to display Figure Game-1. <Figure Game-1> Press Enter here to display Figure Game-2. <Figure Game-2> * Betting Change the Betting Money to the number you want using Up/Down key and press Enter Key to display Figure game-3.
  • Page 75 When Black Jack game starts, select whether to receive the card or not. If the game is over, the result is displayed as shown in Figure Game-4. At this time, you can change the Betting Money with Up/Down direction key and press Enter key to start new game. If you press Esc key while you are playing, it will exit to Figure Game-1.

  • Page 76: Tx Set

    15. Tx Set If the user wants to restrict the transmission at his discretion, select Tx Set and press Enter. <Figure TxSet-1> Here, move the cursor to the place you want, and press Enter to select. Press Enter again to save. You may cancel it by pressing Esc.

  • Page 77: Alert

    16. Alert You can change the type of Alert pressing Enter Key,. Alert type status selected is displayed by Alert Type Satus Icon (Silent, Sound and Vibrator) at Status Icon Area.

  • Page 78: Mymail

    17. Mymail <Figure Mymail-1> <Figure Mymail-2> <Figure Mymail-3>...

  • Page 79: H200 Pc Link Program

    18. H200 PC Link Program 1. Introducing H200 PC Link • You can transfer and save device data to your PC via data cable. • You can transfer and save following device data: Message (Inbox, Outbox, Sent, Personal, Business, Miscellaneous) Data, Contact Data, Scheduler D ata and Task Data to your PC •...
  • Page 80 2.3 Uninstall • From the window start menu, select “Uninstall H200 Link” 3. How to connect data cable to your computer Personal Computer Serial Port HRD-100 Pager H - 200 Data Cable 4. Using H200 PC Link...
  • Page 81 Menu Port Setting Schedule, Task <Picture 1> Menu Display <Picture 2>...
  • Page 82 Current Backup display Progress Bar <Picture 3> * Note: Device must be connected with PC via Data cable and PC port must be opened. 4.1 Port Open • After connect data cable with PC, set the port and baud rate. •...
  • Page 83 4.2 Save • After press Backup button , Picture 3 will be displayed and Backup starts. • You can check Backup progress via Progress bar and current mode display (Picture 3) • If you want to stop backup, press button or button.
  • Page 84 4.5 Delete Data (1) Delete all data Press button (2) Delete special message folder or contact data After Press button, picture 2 will be displayed. Select message folder or contact button which you want to delete and then press button. (3) Delete each Data Select data and press button...

  • Page 85: Device And Battery Care

    19. Device and Battery Care 1) Use only approved battery and power charger. Charging battery by any other method or unauthorized product may cause damage to the battery 2) Keep in mind that a new battery’s full performance is achieved only after two or three times of completed charging 3) The battery can be charged and discharged hundreds of times but it will eventually wear out.

  • Page 86: Troubleshooting

    20. Trouble Shooting 1. Screen cannot be turned on at all. It is because the batter is completely exhausted. Use it after charging. 2. Key is not pressed. It is because Key is put on a hold. Release Hold Key. 3.
  • Page 87 8. Backlight is not turned on. Press Power Key located at the upper left of the terminal for about 2 seconds. 9. I locked it but forgot the password. (Caution) It will result in deleting all the messages you saved. Push off the Reset key to the right located at the right bottom of the terminal and push it off to the left to turn it on.

  • Page 88: Safety Information

    21. Safety Information For the efficient and safe operation of your phone, observe these guidelines. Pager Transmitter Safety The FAA has regulations concerning the use of electric devices aboard aircraft. When boarding an aircraft, turn your device off to avoid potential interference with aircraft radio communication or navigation equipment.

  • Page 89: Fcc Compliance Statement

    22. FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

  • Page 90: Sar Information

    SAR INFORMATION THIS MODEL PHONE MEETS THE GOVERNMENT’S RE-QUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radiofrequency (RF) energy set by the Federal Communications the emission Commission of the U.S.
  • Page 91 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association(CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue.
