Summary of Contents for Tree Audio BRANCH II

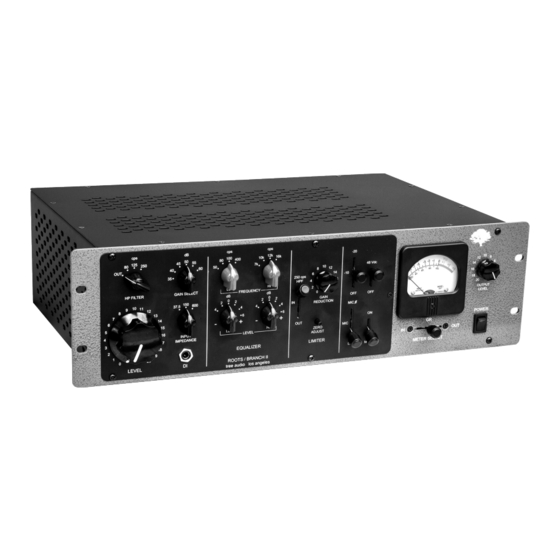

- Page 1 / los angeles THE BRANCH II Pure Tube Channel Strip Mic Pre, Line In, Direct In, Direct Out, EQ, Limter USER’S GUIDE TREE AUDIO 7710 MAESTRO AVENUE WEST HILLS, CA. 91304 www.treeaudio.com...
-
Page 2: Front Panel Overview
(19) OUTPUT LEVEL - Overall ouptut level, this should typically be set full up, fully clock wise Attenuates (cuts) only if output level is overdriving next piece of equipment (20) POWER SWITCH - Turns the Branch II on or off. - Page 3 FAST TRACK SETUP WITH A MICROPHONE AS THE SOURCE With a microphone plugged in to the MIC IN XLR on the rear of the unit and the LINE OUT XLR connected to an appropriate record / monitor input, set the front panel controls as follows: Big Knob Level should initially be set to zero (all the way off / fully counter clockwise) HP FILTER...
- Page 4 FAST TRACK SETUP WITH A LINE LEVEL SIGNAL AS THE SOURCE With a line level signal plugged in to the LINE IN XLR on the rear of the unit and the LINE OUT XLR connected to an appropriate record / monitor input, set the front panel controls as follows: Big Knob Level should initially be set to zero (all the way off / fully counter clockwise) HP FILTER...
- Page 5 FAST TRACK SETUP WITH DIRECT INPUT (DI) AS THE SOURCE With a guitar,bass or keyboard pluggedinto the 1/4” jack on the front of the unit. LINE OUT XLR connected to an appropriate record / monitor input, set the front panel controls as follows: Big Knob Level should initially be set to zero (all the way off / fully counter clockwise) HP FILTER...
