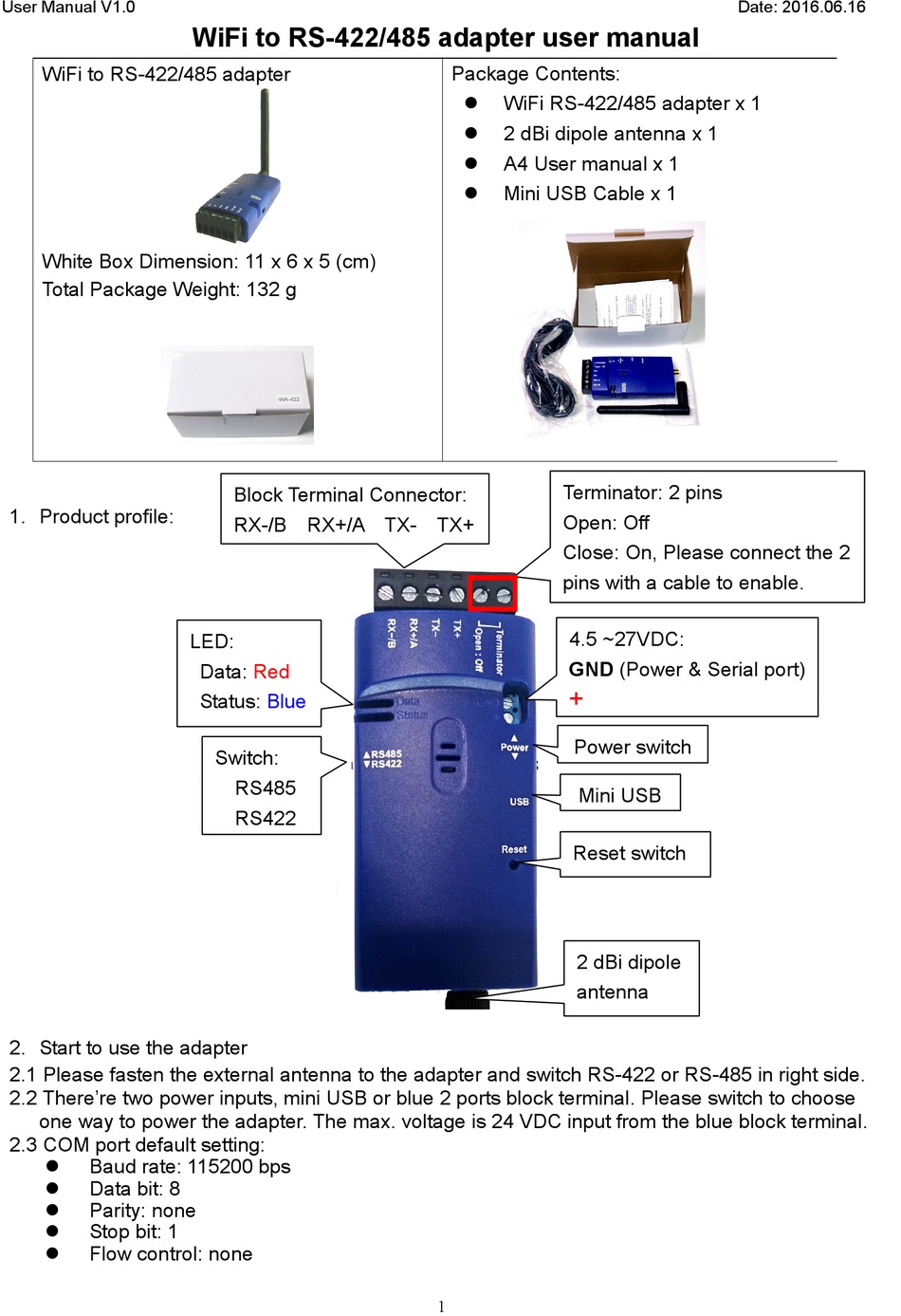

UCONNECT INTERNATIONAL WA-485E User Manual

User Manual V1.0
WiFi to RS-422/485 adapter
White Box Dimension: 11 x 6 x 5 (cm)
Total Package Weight: 132 g
1. Product profile:
2. Start to use the adapter
2.1 Please fasten the external antenna to the adapter and switch RS-422 or RS-485 in right side.
2.2 There're two power inputs, mini USB or blue 2 ports block terminal. Please switch to choose
one way to power the adapter. The max. voltage is 24 VDC input from the blue block terminal.
2.3 COM port default setting:
 Baud rate: 115200 bps
 Data bit: 8
 Parity: none
 Stop bit: 1
 Flow control: none
WiFi to RS-422/485 adapter user manual
Block Terminal Connector:
RX-/B RX+/A TX- TX+
LED:
Data: Red
Status: Blue
Switch:
RS485
RS422
Package Contents:
 WiFi RS-422/485 adapter x 1
 2 dBi dipole antenna x 1
 A4 User manual x 1
 Mini USB Cable x 1
Terminator: 2 pins
Open: Off
Close: On, Please connect the 2
pins with a cable to enable.
4.5 ~27VDC:
GND (Power & Serial port)
+
Power switch
Mini USB
Reset switch
2 dBi dipole
antenna
1
Date: 2016.06.16
