Summary of Contents for SoundRyder Audio FreeWheelin

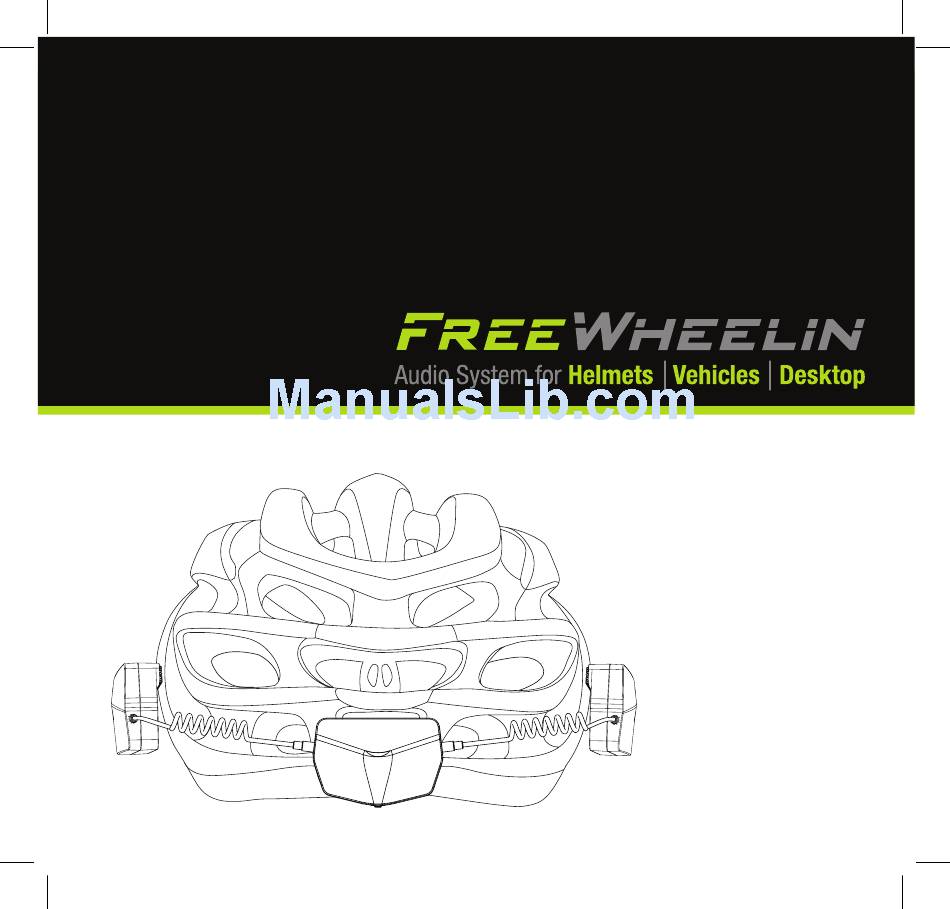

- Page 1 USER GUIDE...
- Page 2 • Makes and receives phone calls while in Bluetooth mode using any iPhone or Bluetooth enabled smartphone • Safe and legal — unlike ear buds, FreeWheelin does not insert or cover the ears — ambient sounds (car horns, sirens, etc.) may still be heard •...
-
Page 3: Package Contents
PACKAGE CONTENTS • FreeWheelin Bluetooth amp (1) • FreeWheelin left/right speaker communication pods (2) • 3.5mm audio cable for wired mode (48”) • USB charge cable — Type A USB to 3.5mm plug (36”) • Dual Lock pads — self-adhesive for helmet application (3) •... - Page 4 2) Connect USB cable to any open USB port on computer 3) For faster charge connect to USB/AC wall adapter 4) Insert 3.5mm plug into 3.5mm port located at base of FreeWheelin amp (Figure A) 5) LED indicator illuminates red while charging (Figure A) 6) LED indicator shuts off when FreeWheelin is fully charged in about 1.5 hours...
- Page 5 Be sure area is completely dry and clean of all dirt, oil, etc. before installing Dual Lock. To allow proper bond strength for Dual Lock adhesive, do not remove FreeWheelin amp/speaker pods for 24-48 hours when first applied to the helmet. Removing FreeWheelin components sooner may result in Dual Lock strips coming loose.
- Page 6 5) Continue to hold until LED flashes blue/red — FreeWheelin is ready to pair with your device 6) Initiate pairing mode on your device and it will recognize FreeWheelin — then ask it to pair 7) There is no code # to enter — when paired, the blue/red LED changes to flashing blue...
- Page 7 FreeWheelin pairs up to eight unique devices that are stored in its pairing memory. If you have new devices that you want to pair and have already paired 8 other devices, you can erase all devices from...
- Page 8 1) Insert 3.5mm audio cable into any audio device having a 3.5mm stereo output/headphone port 2) Insert opposite end of 3.5 audio cable into 3.5mm port located at base of FreeWheelin amp (the charging port is also the audio cable port)
- Page 9 FREEWHEELIN CONTROLS OVERVIEW MULTIFUCTION BUTTON (MFB) • POWER ON • POWER OFF • PLAY • PAUSE • ANSWER CALL • END CALL • REJECT CALL • MICROPHONE FORWARD BUTTON LED INDICATOR • VOLUME UP • NEXT TRACK • BATTERY LEVEL •...
-
Page 10: Playing Music
DURING PHONE CONVERSATIONS DURING PHONE CONVERSATIONS SECONDS CONVERSATION CONVERSATION RELEASE WHEN AUDIBLE TONE IS SHORT AUDIBLE TONE FREEWHEELIN’ AND CELL PHONE TO CELL PHONE CANCELS MICROPHONE MUTE RECEIVING CALLPARTY CAN HEAR PRESS/HOLD MFB BUTTON AND PRESS/HOLD MFB BUTTON AND CANCEL MICROPHONE MUTE... - Page 11 CHARGING CHARGING LED INDICATOR FREEWHEELIN’ STATUS CHARGING RED LED ON CHARGING LED INDICATOR FREEWHEELIN’ STATUS RED LED OFF DEVICE IS FULLY CHARGED RED LED ON CHARGING RED LED OFF DEVICE IS FULLY CHARGED CHARGING LED INDICATOR FREEWHEELIN’ STATUS PAIRING AND BLUETOOTH...
- Page 12 Use on desktop as shown for speaker phone and music listening (Figure C) USING VISOR CLIP ACCESSORY FOR VEHICLE OR DESKTOP 1) Attach FreeWheelin amp and left/right speaker pods to visor clip accessory (Figure B) RE B 2) Use on vehicle visor as shown for hands-free calls while driving (Figure B)
-
Page 13: Specifications
SPECIFICATIONS AUDIO Amp T ype Class D AUDIO Impedance 4 O hm Amp T ype Class D Output 2W R MS Impedance 4 O hm Total H armonic D istortion 0.50% Output 2W ... - Page 14 AVRCP ( Remote C ontrol) BLUETOOTH P AIRING Number o f P aired D evices Passcode 0000 INTEGRATED M ICROPHONE Type 4mm O mni-‐Directional? Sensitivity -‐37dB + / -‐3dB ( 1KHz, 0 dB = 1 V/Pa) Noise ...
-
Page 15: Limited Warranty
The suitable temperature for the phone and accessories is 0˚C - 40˚C. When charging, please place the FreeWheelin in an environment that has a normal room temperature and good ventilation. It is recommended to charge the phone in an environment with a temperature that ranges from 5˚C - 25˚C. - Page 16 EU Regulatory Conformance Hereby, BST Enterprises, Inc. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the declaration of conformity, visit the Web site www.soundryderaudio.com Notice: Observe the national local regulations in the location where the device is to be used. This device may be restricted for use in some or all member states of the European Union (EU)
- Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 SoundRyder Audio BST Enterprises, Inc. 17801 South Susana Rd, Rancho Dominguez, CA, 90221 USA...
