Masibus masTER T-Sync MTS200 User Manual

Masibus masTER T-Sync MTS200 User Manual

Time synchronization server
Hide thumbs
Table of Contents

Advertisement

Quick Links

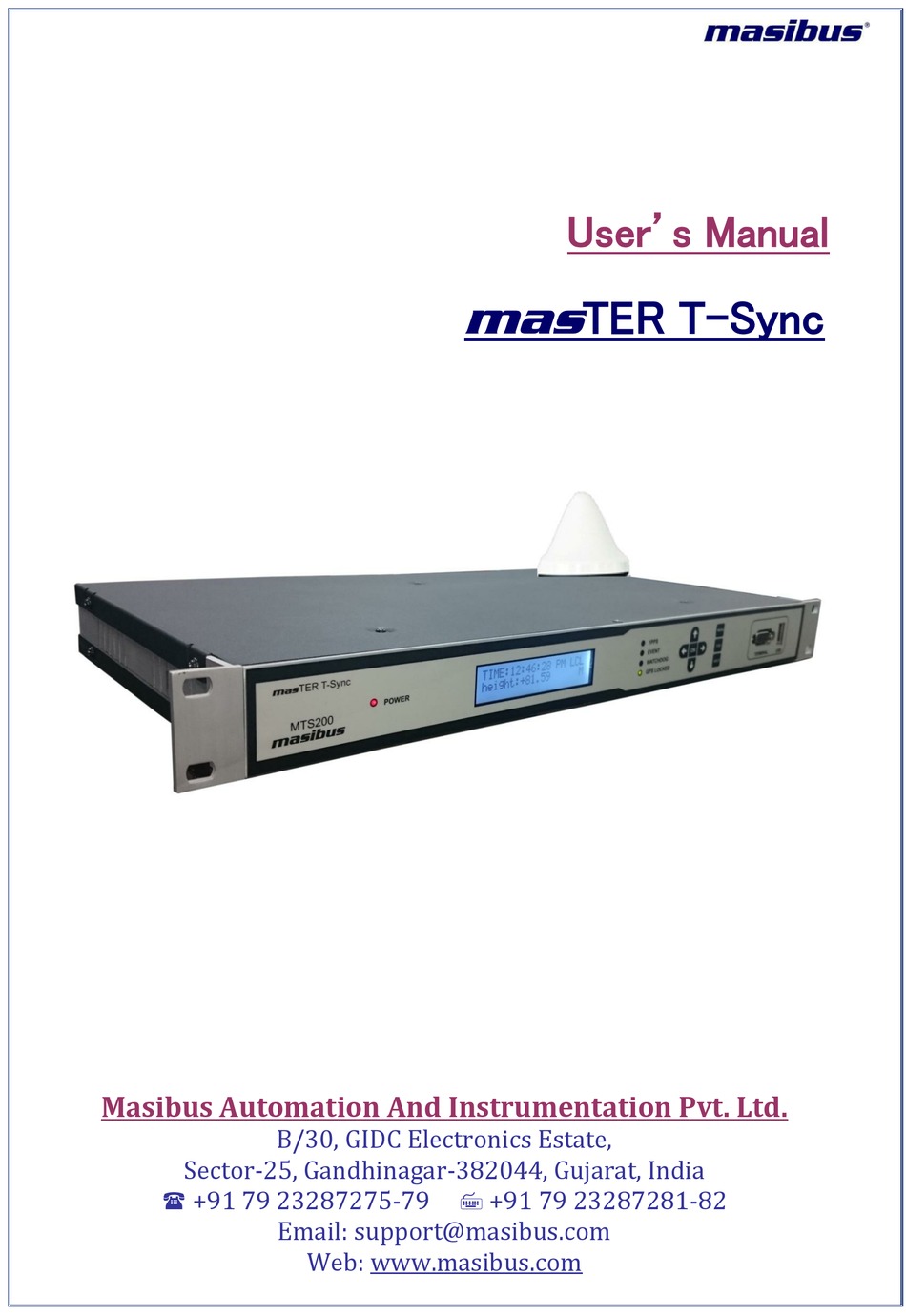

User's Manual
mas
TER T-Sync
Masibus Automation And Instrumentation Pvt. Ltd.
B/30, GIDC Electronics Estate,
Sector-25, Gandhinagar-382044, Gujarat, India
+91 79 23287275-79
+91 79 23287281-82
Email: support@masibus.com
Web: www.masibus.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the masTER T-Sync MTS200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Masibus masTER T-Sync MTS200

  • Page 1 User’s Manual TER T-Sync Masibus Automation And Instrumentation Pvt. Ltd. B/30, GIDC Electronics Estate, Sector-25, Gandhinagar-382044, Gujarat, India  +91 79 23287275-79  +91 79 23287281-82 Email: support@masibus.com Web: www.masibus.com...

  • Page 2: Limited Warranty

    For warranty service or repair, products if returned to a service facility at Masibus Head Office, buyer shall prepay all shipping charges to Masibus. Masibus highly recommends that prior to returning equipment for service work, our technical/Customer support department be contacted to provide trouble shooting assistance while the equipment is still installed.

  • Page 3: Issue No

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 SAFETY PRECAUTIONS The product and the instruction manual describe important information to prevent possible harm to users and damage to the property and to use the product safely. Understand the following description (signs and symbols), read the text and observe descriptions.

  • Page 4: Table Of Contents

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Table of Contents Unpacking TER T-Sync Model MTS200 ..................9 Standard Items ..........................9 Optional Items ..........................9 Introduction ............................10 GPS Fundamentals ........................... 11 Specification ............................13 Unit Front and Rear Panel Description ...................
  • Page 5 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 9.2.5.2 HTTPS Security Certificate menu: .................. 88 9.2.5.3 NTP Autokey menu: ......................90 9.2.5.3.1 NTP Autokey PC Scheme: ..................91 9.2.5.3.2 NTP Autokey IFF Scheme: ..................94 9.2.6 Default / Restore Settings: ....................
  • Page 6 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 13.2 SSH ............................148 13.3 SNMP ............................149 13.3.1 SNMP Addressing: ......................149 13.3.2 Protocol Detail: ........................149 13.3.3 SNMP Operation: ......................150 13.3.4 SNMP Traps: ........................164 13.4 Webserver ..........................
  • Page 7 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Table of Figures Figure 3-1 The Basis of GPS ........................11 TER T-Sync Model MTS200 Model ................. 13 Figure 4-1 Figure 5-1 TER T-Sync Model MTS200 Front Panel Description ............. 18 Figure 5-2 TER T-Sync Model MTS200 Rear Panel Description ............
  • Page 8 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Table of Tables Table 5-1 TER T-Sync Model MTS200 Front Panel Key Definitions ..........19 Table 6-1 Antenna Mounting ........................30 Table 7-1 Power Relay Configuration ......................33 Table 7-2 GPS LOST Relay Configuration ....................

  • Page 9: Unpacking Mas Ter T-Sync Model Mts200

    Documents – User Manual and supporting Appendix manuals, Test Report, Test Certificates(On Customer Request only)  CD for Masibus NTP Utility Software – Qty: 1 INFORMATION  Antenna Cable type (RG6 / RG8) and antenna cable length (15 meters / 30 meters / 50 meters / customized) is shipped only as per customer order.

  • Page 10: Introduction

    MTS200 TER T-Sync has been developed for the time synchronization requirements in various industries like power, process, IT, telecommunications. Masibus next-generation GPS clock provides enhanced performance and security. It is the most featured and cost-effective GPS time synchronization solution available in 1U compact size. MTS200 is Reliable and provides time accuracy of 150nsec at basic level.

  • Page 11: Gps Fundamentals

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 3 GPS Fundamentals TER T-Sync Model MTS200 device is a GPS/GNSS based receiver clock device which provides accurate time output with 1PPS signal. Satellite Navigation system is a system of satellites that provide autonomous geo-spatial positioning with global coverage.
  • Page 12 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 circular, with an inclination of about 64.8°, and orbit the Earth at an altitude of 19,100 km, which yields an orbital period of approximately 11 hours, 15 minutes. The overall arrangement is such that, if the constellation is fully populated, a minimum of 5 satellites are in view from any given point at any given time.

  • Page 13: Specification

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 4 Specification TER T-Sync Model MTS200 Model Figure 4-1 Timing Accuracy <15 ns with GPS receiver (the receiver is locked on a fixed position). <±0.1 ppm (OCXO) accuracy while GPS Is Unlock* <±5.0 ppm (TCXO) accuracy while GPS Is Unlock* Positioning Accuracy <10mts SEP (with Selective Availability [SA] Disabled).
  • Page 14 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Output: TTL into 250 Ω Pulse Width: 200 (200 mS High & 800 mS Low signal) Interface: BNC Female connector(Rear Panel) No. of Ports: 1 Alarms Three Isolated Dry Contacts to 230 VAC / 24VDC, 10 A: 1.
  • Page 15 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Signal: 1 KHz AM Signal Modulation Ratio: 3:1 Output: 3.3Vp-p to 10Vp-p, into 100Ω Interface: BNC Female connector (Rear Panel) No. of Ports: 2 Ethernet Output No. of Ports: 2 (1x10/100 Mbps + Optional 1 Gbps) Auto Negotiation support Time Synchronization protocols: NTP/SNTP Server [Factory settable]...
  • Page 16 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Keypad FUNCTION MENU For Entering into Configuration mode. HELP To Display help about every parameter configurations. To save the final Configurations. To come back into Run mode. Scroll between various parameters in ascending order in main menu and to change parameters value in submenu.
  • Page 17 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 19” Rack Mountable Width:482.6 mm (19”) PHYSICAL Depth:241 mm (9.488”) DIMENSIONS Height: 1 U – 44 mm (3.46”) Weight: 2.1 Kg Ingress Protection: IP20 enclosure Temperature Operating: 0° C to 50° C ENVIRONMENT Storage: -20°...

  • Page 18: Unit Front And Rear Panel Description

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 5 Unit Front and Rear Panel Description This section provide description of masTER T-Sync Model MTS200 unit front panel and back panel user applicable interface. TER T-Sync Model MTS200 Front Panel Below image shows masTER T-Sync Model MTS200 model front panel.

  • Page 19: Ter T-Sync Model Mts200 Rear Panel

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 3. KEYPAD: masTER T-Sync Model MTS200 device is equipped with keypad buttons to configure various parameters of Unit. Functionality/usage of each key is described below: FUNCTION MENU To enter in Configuration mode. HELP To Display help about every parameter configurations.

  • Page 20: Figure 5-3 Power Supply Terminal

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 1. Power Input and Fuse Connector: Figure 5-3 Power supply terminal 2. Relay and Event contacts: masTER T-Sync Model MTS200 provide three relay outputs for Power, Watchdog, GPS LOST alarm and a PMOS pulse output through 8 pin female connector.

  • Page 21: Figure 5-6 Ethernet Eth Terminal

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 masTER T-Sync Model MTS200 model is available with optional Additional Event Outputs. 4. Ethernet Output Connector: masTER T-Sync Model MTS200 is equipped with 10/100 Mbps Ethernet output for NTP, SNMP, SSH, Webserver and Telnet communication as shown in figure 5.6.

  • Page 22: Figure 5-9 Com1 Terminal

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 7. COM1 terminal: COM1 terminal on back plane is RS-232/RS-485 electrical standard DB-9 female connector as shown in figure 5.9. Figure 5-9 COM1 terminal masTER T-Sync Model MTS200 provides serial time frame NMEA format on its COM1 terminal. This terminal provides NMEA time output either in RS-232 electrical standard or RS-485 electrical standard as per specified during unit order.

  • Page 23: Mechanical Dimensions Layout

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 9. SWITCH: Figure 5-11 SWITCH Switch “SW1” should be positioned towards the COM1 connector for accessing the time frame on COM2 terminal. If switch “SW1” notch is towards the GPS Antenna, then the system will enter into firmware upgrade mode.

  • Page 24: Installation

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 6 Installation Before beginning with unit installation, please follow important safety statements for avoiding installation practices causing malfunctioning of the device as mentioned below. OPERATION RELIABILITY To minimize the possibility of fire or shock hazards, do not expose this instrument to rain or excessive moisture Do not use this instrument in areas under hazardous conditions such as excessive shock, vibration, dirt, moisture, corrosive gases or oil.

  • Page 25: Gps Antenna Installation

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 WARNING Never work on open unit when power of unit is ON. WARNING Unit is equipped with internal fuse. If it is blown Up or blowing again on its replacement, it is highly probable that either power source is incorrect or power source connection is improper.

  • Page 26: Mounting The Antenna

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Blocked signals and multipath cancellation may significantly increase GPS signals acquisition time. Multipath Cancellation is caused by reflected signals that reach the antenna out of phase with the direct signal due to vertical reflective objects positioned to the side and above the antenna.
  • Page 27 In-line amplifiers overcome signal attenuation in by amplifying the GPS signal. Use the in-line amplifier for cable runs of 100 to 200 meter. Please contact a masibus Sales Representative for information on how to extend the distance from the antenna to the receiver.

  • Page 28: Verifying Antenna And Cable Operation

    If GPS Surge Suppressor kit is available with purchase order, user should mount it in line with the antenna cable. Additional information on grounding GPS antennas, and grounding in general, are available from masibus Customer Support division (Kit P/N :m-LA-01). User’s Manual...

  • Page 29: Technical Details On Gps Antennas And Cables

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 6.1.5 Technical Details on GPS Antennas and Cables Antenna Cable Length and Loss Considerations Standard Antenna Cable The standard antenna cable assembly included with masTER T-Sync Model MTS200 is constructed using a 15-meters (50-foot) length of RG-6 type low-loss coaxial cable, terminated with male Type N connector and BNC male connector.

  • Page 30: Unit Installation

    Issue no. : 03 Available Antenna Cables and Accessories for Longer Runs masibus offers longer antenna cables for use with all models of clocks when the standard15 meters (50- foot) cable is inadequate. RG-6 cable runs up to 50 meter, RG-8 cable is available for 100 meters (328 masibus foot) without the in-line preamplifier.

  • Page 31: Wiring Diagram

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 11. Once unit is Power ON, it is necessary to keep the unit in warm up condition for minimum 1 hour in antenna LOCK condition for precise and accurate timing outputs during unit LOCK and Holdover conditions.

  • Page 32: Hardware Jumper Setting

    Relay contacts configuration from C-NO to C-NC contacts and COM1, COM2 terminal RS-232 to RS-485 electrical configurations. However, it is recommended to change the hardware settings after contacting Masibus Customer Support department. For changing above mentioned settings, jumpers are provided on the main card inside the unit. For changing any configuration, follow below procedure step by step.

  • Page 33: Relay Contact Output Configurations

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 7-1 TER T-Sync Model MTS200 Main board (Top View) 7.1 Relay Contact Output Configurations: The factory default settings of Relay contacts for Power, Watchdog and GPS LOST alarm, available on rear panel of unit are as per C-NO contacts (if any special request is not provided for setting relay output contacts configuration).

  • Page 34: Watchdog Relay Contacts

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 C-NO Configuration: C-NC Configuration: CN21 CN21 Table 7-2 GPS LOST Relay Configuration 7.1.3 WATCHDOG relay contacts: CN23 3-pin jumper on main card is used to change the relay contact for Watchdog relay contacts. Operator has to remove black jumper from its current position to required position as explained in below images.

  • Page 35: Com2 Terminal Rs232 / Rs485 Output Configurations

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 RS-232 Configuration: RS-485 Configuration: RS232 RS485 CN12 CN12 RS232 RS485 CN13 CN13 Table 7-4 COM1 terminal RS-232/RS-485 Configuration 7.3 COM2 terminal RS232 / RS485 output configurations: COM2 terminal provides serial based T-format, NGTS time frame at every minute once after unit boots. This terminal is also used for GPS configuration.

  • Page 36: Start-Up Operation

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 8 Start-Up Operation 8.1 Receiver Boot-up mode When masTER T-Sync Model MTS200 unit is power up, the time of unit depends on the GPS receiver RTC data. At every Power ON, unit is in UNLOCK mode initially. If GPS antenna is connected after Power ON or was already connected while powering up the unit, the time to getting unit LOCK depends on the duration for which the unit was in Power OFF condition.

  • Page 37: Battery Backup Rtc And Gps Receiver Ram Configurations

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 8.2 Battery Backup RTC and GPS receiver RAM Configurations: Backup batteries are used to keep the RAM and the Real-Time Clock (RTC) in the receiver running even after unit Power OFF to retain setup and status information, Time, Date, Last Calculated Receiver Position, Almanac and Ephemeris information along with receiver specific parameters allowing resumption of GPS operation automatically once unit mains power is restored.
  • Page 38 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03  MTS200 is operating system based product so it takes few seconds for bootup which may vary from 15 to 40 seconds to start the main application. During initial bootup period, above two messages are displayed in sequence.

  • Page 39: Basic Normal Run Mode Operation

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03  Once device internal clock is synchronized with gps receiver, ntp driver will always maintain internal clock accuracy with few hundred microseconds w.r.t gps receiver time in lock conditions and holdover conditions (as per holdover ppm accuracy of internal rtc) during normal run of device.
  • Page 40 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 only if the Eth interface is set as “UP” in device. If Eth interface is disable using “DOWN” configuration or if GPS rear-panel ETH0 connector is open, “Not-Live” status will be display for that particular Ethernet port.
  • Page 41 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Status Display: Timezone and DST parameter Status Display: Eth0 Port Connection Status Status Display: Eth1 Port Connection Status User’s Manual Page 41 of 195...

  • Page 42: Unit Setup Configuration

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 9 Unit Setup Configuration TER T-Sync Model MTS200 setup can be done using front panel keypad buttons or front panel RS- 232 based serial console or via Ethernet port eth0 or eth1 using Telnet, SSH, webserver and SNMP. Keypad options provided all basic general settings, network settings for eth0 and eth1 port, network services configuration, GPS receiver related settings and limited NTP server settings.

  • Page 43: Table 9-1 Key Functions

    (0001 to 9999.), which can be changed by the user. By factory set, this password is „0001‟. Another is Immortal Password that cannot be changed by any user and it kept confidential to Masibus Service Engineers. Users are recommended to change the user-defined password as per there requirement.

  • Page 44: Figure 9-2 Display Main Menu Layout

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Figure 9-2 Display Main Menu layout User’s Manual Page 44 of 195...
  • Page 45 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 GENERAL SETTINGS: To enter the configuration mode of MTS200 using front keypad, user need to press “MENU” key and then enter appropriate password. This will allow user to enter configurable parameters option and this parameters can be configured as explained in below section.
  • Page 46 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 3. SET PARITY COM2 serial port output parity bit at rear panel of MTS200 can be set by using this option. MTS200 is capable to provide serial time frame on COM2 terminal at configurable parity options of NONE / ODD / EVEN.
  • Page 47 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Serial Time frame T-format, GPZDA and GPGGA are transmitted at every 1 second while NGTS time frame is transmitted at every 1 minute. Refer section 11.1 for detail description of each time string. As shown above, “LEFT”...
  • Page 48 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 : After DISPLAY UPDATE RATE option is displayed, press OK key to change its value. After OK key is pressed, cursor will blink which indicates now you can change the value. Its minimum value is 1 second and maximum value is 10 seconds.
  • Page 49 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 : Cursor will start blinking once user enters this mode by pressing “OK” key. To change specific digit, use “UP” / “DOWN” arrow keys and to change the position of blinking cursor use “LEFT” / ”RIGHT” arrow keys.
  • Page 50 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 : Cursor will start blinking once user enters this mode by pressing “OK” key. To change specific digit, use “UP” / “DOWN” arrow keys and to change the position of blinking cursor use “LEFT” / ”RIGHT” arrow keys.
  • Page 51 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Other options in calendar settings are timezone setting for setting the local time, Daylight Settings. All the calendar settings will only become effective once user come out of configuration mode of keypad menu to normal run mode.
  • Page 52 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 by setting the timezone offset configured in device with respect to UTC time.Timezone format is :hr:min +/- is the offset polarity hr=hours, -12 to +12 min = minutes, 0 to 59 Default timezone set from factory is +05:30.
  • Page 53 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 “DST Start Time” = Format (hr:min). This the time on DST start day when DST effect should start. Hr:min = hour form 0 to 12 and minute from 0 to 59 “DST End”...
  • Page 54 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 As shown above, “LEFT” and “RIGHT” key are used to change setting of HOUR MODE. “OK” key will save the setting and “ESC” key will reject new setting and keep old value of this parameter in effect and come out of configuration MENU mode to RUN mode.
  • Page 55 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 So, it is recommended to use DHCP mainly for initial network communication and thereafter configure static address of Ethernet port. User can view the network settings for both eth port as shown in below figure. User’s Manual Page 55 of 195...
  • Page 56 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Configuration of Eth0 (EthX) Parameters 1. Bonding Here, user can configure bonding if MTS200 is with two Ethernet ports. In case of bonding "ENABLE", only configurations of Ethernet port 0 will be applicable to bonding. To configure bonding of Ethernet port 0 and 1, user have to select "ENABLE"...
  • Page 57 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Her, user can configure IPv4 subnetmask for specific port as shown in figure. If DHCP is "ENABLE" for respective port, this configurations will not affect IPv4 address. : Cursor will start blinking once user enters this mode by pressing “OK” key, user can see blinking line.
  • Page 58 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 automatically. For automatic allocation for IPv6 address, user have to select ENABLE for ETH v6 AUTOCONF and press OK key to save changes as shown in figure. Once, user set AUTOCONF as ENABLE, user need to wait till respected Ethernet port receives IPv6 address from network.
  • Page 59 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 : Cursor will start blinking once user enters this mode by pressing “OK” key, user can see blinking line. To change specific digit, use “UP” / “DOWN” arrow keys and to change cursor on 1 position of 2 the position of blinking cursor use “LEFT”...
  • Page 60 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 the position of blinking cursor use “LEFT” / ”RIGHT” arrow keys. UP/DOWN arrow keys will update the digit on which cursor is blinking. After value is edited, press “OK” again to save the parameter or "ESC" to restore parameter value. After user presses “OK”...
  • Page 61 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 To START/STOP any service follow steps: 1. Go to specific service 2. Press OK key 3. Using UP/DOWN key change START/STOP option. 4. Press OK key User need to restart the particular service if there is any change in those particular service configurations. NTP PARAMETERS: MTS200 act as stratum 1 NTP Server for NTP clients in network.
  • Page 62 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 LOCAL CLOCK SERIVCE: MTS200 works on internal clock during Unlock conditions or when internal ntp driver is not synchronized with GPS receiver. User, cannot restart the NTP service during unlock conditions if this parameter is disabled.
  • Page 63 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 This parameter instructs the GPS receiver to output the 1PPS output pulse earlier in time to compensate for antenna cable delay. Up to 100 microseconds of equivalent cable delay can be removed. Zero cable delay is set for a zero-length antenna cable.
  • Page 64 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 2. Go to option for which you want to configure default settings using LEFT/RIGHT arrow keys. 3. Press OK key. 4. Wait till "Configuring.." message is there on display. Message indicates device is saving new configurations.
  • Page 65 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 USB Menu User can enter in this menu only if USB Pendrive is connected to USB port of MTS200 at front panel. If Pendrive is not connected, MTS will blink "NO DEVICE DETECTED". User can do following operations: 1) Firmware Update 2) Configuration Files Update...

  • Page 66: Console Based Configuration

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Note: 1. If “MENU” key is pressed while configuring this parameter and before saving the new change of this parameter, user will be jumped to “ENTER PASSWORD” option again without saving new settings.

  • Page 67: Figure 9-3 Console Based Program Main Menu Layout

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Here fdc2:7142:0:1eba:8cff:fee5:c115 is the Global IPv6 address of the MTS200. It can be viewed on LCD, Webserver, SNMP and on console based configuration utility. user: root password: MTS200LAMBDA Note: Operator can also use “putty”...

  • Page 68: General Settings

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 INFORMATION  If no data is entered for more than 5 minutes timeout interval, console program “start” will be stopped automatically. After program being stopped, user need to again start the program by above mentioned command to configure device.
  • Page 69 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Option “2” will allow configuring all parameters mentioned in above figure, as shown in below image. Example: Refer below steps to configure Hour Mode parameter, Step 1: Enter Command number for Hour Mode as given in left most column in above figure, and then press “enter”.

  • Page 70: Ntp Settings

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Step 4: If there are no parameters to be modified, then enter “0” in “Enter command:” prompt. Thereafter it will ask to save modified parameters. Enter “y” or “Y” for yes and “n” or “N” for not saving them. Once saved, check the parameters update by using option “1”...
  • Page 71 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 8 = To check MTS200 ntp driver output status. This provides ntp driver status equivalent to status generated by “ntpq -p” command in ntp client systems. To configure basic NTP settings: For configuring basic NTP settings, operator have to select option “2”...
  • Page 72 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 parameter. It is for BCAST. Address 1 BCAST. SYMM. KeyID 1 1 to 9999 Broadcast key symmetric ID for Broadcast Symmetric key authentication type SYMM for BCAST. Address 1. This parameter is required only if parameter 3 and 7 are of type.
  • Page 73 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 and then configure the added ntp key ID number as trusted key in ntp.conf file. Thereafter, when ntp process is restarted, ntp driver will read the updated keys and .conf file and provide the authentication based on authentication type configured in ntp.conf file.
  • Page 74 Refer section 11.3 for complete understanding of NTP operation. 2. Default key is provided from factory shipment with key ID number as “1” and key string as “masibus”. However, user can change the key string as per his requirement.

  • Page 75: Snmp Settings

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03  reach = The value displayed in column reach is octal, and it represents the reachability register. One digit in the range of 0 to 7 represents three bits. The initial value of that register is 0, and after every poll that register is shifted left by one position.
  • Page 76 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Option “2” in SNMP menu is for configuring each parameter. After pressing option “2”, user will be prompted for command value of each parameter shown in above figure. The command number of each parameter are mentioned in left most column of parameters list.
  • Page 77 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 “0” is special case to disable SNMP agent configuration for SNMP Manager1. Default: 0 & RO Community String public SNMP ro community name (v1 / v2c) for Manager 1 Note: ...
  • Page 78 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 0x123456789123456789 Manager1 Auth. Type NONE / MD5 / SNMP Authentication (v3) Technique Default: MD5 Manager1 Auth. User defined SNMP Authentication Passphrase password passphrase or password Note:  Min – 4 chars, Max – 30 chars.
  • Page 79 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Manager2. Default: 0 & Manager2 public Community string Trapcommunity(v1/v2c) SNMPv1/v2 trap enabled. Note:  Min – 4 chars, Max – 30 chars.  No special characters allowed Default: public Manager2 User defined...

  • Page 80: Ethernet Settings

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 chars.  No special characters allowed except _ . , [ ] Default: masibus SNMP Location User defined SNMP system location string information Note:  Min – 4 chars, Max – 38 chars.
  • Page 81 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Once user have entered in Ethernet menu “ETH0/1 Network Settings”, below is explanation of various options: 1 = To check current live network settings of Eth0 and Eth1. This are network settings which are alive in system.
  • Page 82 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Note: SSH and TELNET Communication will get disconnected and console application “start” code will stop whenever operator will change the Ethernet network settings parameters by using SAVE option using the start program. So, it is necessary that user should again connect MTS200 by SSH or TELNET communication with the applicable IP address and start the console program “/usr/sbin/start”...
  • Page 83 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Default: :: Eth0 IPv6 Netmask 0 to 128 This is v6 format subnet mask address for eth0 port. Default: 0 Eth0 IPv6 Gateway Valid IPv6 This is v6 format gateway address for address eth0 port.
  • Page 84 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Eth1 IPv6 Netmask 0 to 128 This is v6 format subnet mask address for eth1 port. Default: 0 Eth1 IPv6 Gateway Valid IPv6 This is v6 format gateway address for address eth1 port.
  • Page 85 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 IPv6 Service 0 / 1 Disable(0) or enable(1) IPv6 service in MTS200. This change will make IPv6 service effective on both eth0 & eth1 port. Note: Service can be restarted only though Option “4”...

  • Page 86: Network Security Settings

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 9.2.5 Network Security Settings: MTS200 provides secure communication to remote machines through SSH and HTTPS mode for its own status monitoring and configurations. However, SSH and HTTPS provide security layer though their respective security keys and certificates.

  • Page 87: Sshv1/V2 Security Keys Menu

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 9.2.5.1 SSHv1/v2 Security Keys menu: Option “1” in security main menu, user can select SSH security menu page. Below image shows the SSH menu page in security settings. This menu allows user to view existing SSH key details, to generate new SSH keys for verison1 and 2, view generated new SSH keys and option to save new generated keys.

  • Page 88: Https Security Certificate Menu

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 1. Whenever new SSH keys are generated and saved in MTS200, user need to remove old keys for MTS200 particular IP address at remote PC and then connection with MTS200 new keys can be established.
  • Page 89 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 User’s Manual Page 89 of 195...

  • Page 90: Ntp Autokey Menu

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Option “2” is used to generate new HTTPS SSL certificate. MTS200 is capable to generate user defined data based HTTPS certificate. When option “2” is selected, user is prompted to enter few details required for generating security certificate as shown in below figure.

  • Page 91: Ntp Autokey Pc Scheme

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 User need to enter 3 for NTP Autokey settings in console based configuration utility. Once user has entered in the NTP Autokey settings it will ask for the certificate type. Enter „1‟ for trusted server. In above menu below options are available.
  • Page 92 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 For detailed description please refer section 11.3.3.4.2.1  Procedure to Generate NTP Autokey PC Scheme keys in MTS200: User need to enter in the NTP Autokey configuration menu in the Security menu in the console based configuration utility.
  • Page 93 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03  Procedure to use NTP Autokey PC Scheme as ntp associations between MTS200 and ntp clients Procedure for NTP associations between MTS200 and client is same as explained in the 11.3.3.4.2.1 section.

  • Page 94: Ntp Autokey Iff Scheme

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Step 2: Enter the password used to generate the Trusted Server PC keys in password field. After entering password wait for some time. Now copy private key and certificates from trusted server. Step 3: To transfer NTP key from trusted server to server please follow 11.3.3.4.2.1.
  • Page 95 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 For detailed description please refer 11.3.3.4.2.2  Procedure to Generate NTP Autokey IFF Scheme keys in MTS200 which will act as Trusted Authority in NTP network: User can generate Autokey for PC and IFF scheme in MTS200 using webserver and console based configuration utility.
  • Page 96 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 The keys generated in PC scheme in MTS200 are as follows: IFF Parameter key: “ntpkey_iffkey_MTS200” IFF Private Key: “ntpkey_host_MTS200” IFF Private Certificate: “ntpkey_cert_MTS200”  Procedure to use IFF scheme as ntp associations between MTS200 trusted authority and ntp clients: Step 1: Procedure to use IFF scheme between MTS200 trusted authority and ntp client is same as explained in the 11.3.3.4.2.2.
  • Page 97 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Step 3: Transfer NTP IFF group key from trusted server to server please follow 11.3.3.4.2.2. Step 4: After the NTP auto key is transferred from trusted server to server again go to the NTP autokey settings menu in the security menu of console based configuration utility.

  • Page 98: Default / Restore Settings

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 9.2.6 Default / Restore Settings: MTS200 settings related to General settings, NTP settings, SNMP Settings and Ethernet network settings can be resetting to factory default and/or restore using “D” or “d” command in console based configuration utility.

  • Page 99: Administration Settings Menu

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Option “1” will default General setting to factory default. If user wants to revert to settings which were before default being done, user can use Option “2” to restore the settings. Option “3” will let user view the current settings of General parameters which will be applicable.
  • Page 100 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Multiple Users can be created for MTS200 device with categories as Super-User, Administrator and Info. Maximum 10 username are allowed within system including “root” user. “root” is default super-user of MTS200 device which cannot be deleted or its username or password modified.

  • Page 101: Snmp Based Configuration

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Option “4” can delete existing user as shown below. “root” user cannot be modified or deleted. Default factory settings for user are below: Username: root Password: MTS200LAMBDA 9.3 SNMP based configuration masTER T-Sync Model MTS200 support SNMP v1/v2c/v3 protocol for its monitoring and configuration with SNMP Manager.

  • Page 102: Serial Communication And Configuration

    Connect one end of the cross cable to the serial console terminal of device and other end to an available serial port on your local computer. (If there is no RS-232 terminal in user‟s computer, user can use USB- To-Serial convertor. Masibus do not provide USB-To-Serial convertor as part of accessories supplied with masTER T-Sync Model MTS200 device).

  • Page 103: Steps To Set Putty For Serial Communication With Mts200

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 10.1 Steps to Set Putty for serial communication with MTS200: 1. Run putty.exe file. Below image will appear when putty software is started. Figure 10-2 Putty Software 2. User need to select “Serial” in field “Connection type” as shown in below image. User’s Manual Page 103 of 195...

  • Page 104: Figure 10-3 Putty (Serial) Settings For Console Port

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 3. Now, user need to enter comport number e.g. COM22 in field “Serial line” and baudrate 115200 in field “Speed”. Then click on “Open” which will establish serial communication with MTS200 device as shown in below figures.

  • Page 105: Steps To Set Hyperterminal For Serial Communication With Mts200

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 10.2 Steps to Set Hyperterminal for serial communication with MTS200: Configuration requires a standard 9-way D-type RS-232 cable and standard serial communication software in the PC, such as HyperTerminal. Figure 10-4 Path of HyperTerminal Open the HyperTerminal and start new connection on COMx of your PC.

  • Page 106: Figure 10-6 Hyperterminal Configuration

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 In using HyperTerminal, it is recommended to select File\Properties\Settings and set Emulation to ANSI, to avoid auto-detect making unwanted changes to the settings. INFORMATION  Cross cable connection as mentioned in above figure is necessary to communicate with COM2 terminal.
  • Page 107 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 INFORMATION User should log out when the configuration through serial console utility is finished by pressing key on PC keyboard Ctrl + d. This command will log out the console and prevent unauthorized access to MTS200 system.

  • Page 108: Timing Outputs - Serial, Irig-B / Ieee 1344, Ntp

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 11 Timing Outputs – Serial, IRIG-B / IEEE 1344, NTP 11.1 Timing Output – Serial 11.1.1 NMEA-0183 RMC Time frame output masTER T-Sync Model MTS200 transmits NMEA time frame from COM1 terminal at rear panel of unit at every 1 second at 9600 (baud rate), 8 (Data bits), N (NONE parity), 1 (1 stop bit).

  • Page 109: Ngts Time Frame Output

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Note: Device can be configured to transmit T-format, NGTS, GPZDA or GPGGA time frame through its COM2 terminal at rear panel. Configuration of frame type can be done via keypad, via console based configuration utility through serial console terminal or Telnet or SSH, via SNMP or via Webserver.

  • Page 110: Gpzda Time Frame Output

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Day of Month 1 to 31 Day of Week 1 to 7 Hours 9,10 0 to 23 Minutes 11,12 0 to 59 GMT Marker 0 or 1 Validity Marker 0 or 1 CR [Carriage return] Non displayable...

  • Page 111: Timing Output - Irig-B / Ieee 1344 C37.118-2005

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 The full data message of this format shall consist of data fields as follows: Field Example Comments String ID $GPGGA, UTC Time 130525.00, hhmmss.ss, Latitude 4250.5589, ddmm.mmmm, N/S Indicator N = North/S = South, Longitude 14518.5084,...

  • Page 112: Standard Irig-B Output

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 11.2.2.1 Standard IRIG-B Output: As per figure 5.2, masTER T-Sync model MTS200 model has two BNC connectors each for TTL and AM + one optional BNC connector for TTL/AM that supply timing signals to external equipment. Figure 5.8 shows the same two ports referenced as IRIG-B TTL.

  • Page 113: Irig-B Ieee 1344 Extension

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 11-1 IRIG-B waveforms 11.2.2.4 IRIG-B IEEE 1344 Extension: IEEE 1344 protocol has two versions available of which model MTS200 supports is IEEE 1344-2005 which defined in IEEE 1344.C37.118TM-2005 document. IEEE 1344.C37.118TM-2005 extends the Range Commanders Council document by using CF bits of IRIG 200-04.

  • Page 114: Generated Irig-B Time Codes

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Position Identifier #7 Time Zone Offset 0.5 Hour 0 = none, 1=additional 0.5 hour time-zone offset Time Quality 4-bit code representing approx. clock time error. 0000 =MTS200 Locked, maximum accuracy Time Quality 1111 =MTS200 failed, data unreliable Time Quality...

  • Page 115: Connecting Irig-B Time Code

    IRIG-B Time code output. 4) Input impedance of end device: -By connecting, multiple devices to masTER T-Sync MTS200 results in decrease of drive voltage due to increase in load current. In many cases, model MTS200 time code output are “fanned out”...

  • Page 116: Timing Output - Ntp

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 11.3 Timing Output – NTP 11.3.1 NTP Introduction: NTP (Network time protocol) is a common method for synchronization of hardware clocks in local and global Ethernet networks. The software package NTP is an implementation of the actual version 3, based on the specification RFC-1305.

  • Page 117: Figure 11-2 Ntp Frame Format

    Unlock conditions. Clock precision:This is an eight-bit signed integer indicating the precision of the local clock, in seconds to the nearest power of two. masTER T-Sync MTS200 is having its internal clock precision of 1 us (1 microseconds = 0.000001s).

  • Page 118: Ntp Server Installations And Configurations

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 11.3.3 NTP Server Installations and Configurations: 11.3.3.1 NTP General Settings NTP Settings through front panel keypad: NTP Settings through SSH / Telnet / Serial Console Mode: Figure 11-3 NTP Settings Menu on Console based utility User’s Manual Page 118 of 195...

  • Page 119: Ntp Local Clock

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 NTP Settings through Webserver Mode: Figure 11-4 NTP Settings Menu on Webserver 11.3.3.2 NTP Local Clock MTS200 is capable to operate on internal local clock whenever there is no GPS Antenna connected to the unit.

  • Page 120: Ntp Broadcast / Multicast

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 application or webserver or front panel serial console port. Stratum can be configured from 0 to 15 value range. Local clock cannot be disable in GPS Unlock conditions because in unlock conditions, unit is running on its internal clock.
  • Page 121 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 User can configure NTP broadcast Authentication via console based utility in Symmetric key mode only and in Symmetric and Autokey authentication via webserver mode. Broadcast Authentication – Symmetric key: Before configuring NTP Broadcast Authentication, user need to configure NTP main Authentication mode to required Broadcast Authentication mode (SYMM / AUTO) for symmetric key and Autokey because ntp driver can be configured only in one authentication mode either Symmetric key or Autokey, at a time for...
  • Page 122 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 User have to do below changes in client ntp.conf file for receiving ntp broadcast packets. # disable auth keys /etc/ntp/ntp.keys # symmetric key file trustedkey 1 2 8 10 # total trusted keys list broadcastclient key 8 # 8 is key id number required from trusted keys...

  • Page 123: Ntp Authentication

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 User have to do below changes in client ntp.conf file for receiving ntp broadcast packets. # disable auth crypto pw password #Autokey keysdir /etc/ntp # public keys directory path crypto randfile /dev/urandom multicastclient 224.0.1.1 autokey FUNCTIONALITY...
  • Page 124 1 to 9999 key ID values in MTS200 and key string of max. 20 characters only. Factory default key id will be set at ID number 1 and Key string “masibus”. ntp driver will authenticate the ntp messages with symmetric key for only those keys which are defined as trustedkey in ntp.conf file.

  • Page 125: Ntp Autokey Mechanism

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 11-5 NTP Security Setings on Webserver 2. Now, to configure any key in ntp.keys file as trustedkey in ntp.conf file, go to menu NTP-> NTP Configurations. If trusted key field is to be modified, then user have to ensure the NTP filed “Authentication Type” should be already set as “SYMMETRIC”.
  • Page 126 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Autokey involves public and private key in which public key cryptography is based on a private key known only to creator or trusted server and a public key known to all participants. NTP client can verify the originator has the private key using the public key and any of several digital signature algorithms.

  • Page 127: Figure 11-6 Ntp Autokey - Pc Scheme Settings On Webserver

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 11-6 NTP Autokey – PC Scheme Settings on Webserver Step 2: After password is entered, click on “Submit Password”. This option will configure the crypto password in MTS200 ntp configuration file automatically. “Generate NTP Autokey” option will only be enable after “Submit Password”...
  • Page 128 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Step 4: PC scheme generates two different Autokey files i.e. Private key file and Certificate file. After required keys are generated, user can check the key contents using “VIEW” option and selecting key type in field “Contents of”...
  • Page 129 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 To transfer MTS200 ntp keys using SCP method, user need to take console of MTS200 using SSH (only by super-user or administrative user of MTS200) from remote host PC, mentioned as below commands.
  • Page 130 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 keysdir = is the directory in ntp clients where PC private key and private certificate are stored. User need to add “autokey” keyword in server address line in ntp.conf which will ensure the ntp communications between MTS200 and ntp client is through PC based Autokey.
  • Page 131 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Step 1: User should transfer the generated key and certificate to PC using secure means such as SCP. User should avoid using Telnet mode to transfer keys as Telnet in unsecure way for communication.
  • Page 132 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Step 4: User need to set the crypto password in ntp.conf file. This crypto password should be same as the password used to generate autokey PC keys in MTS200 Trusted Server side. This can be set by webserver mode in Security page in filed “NTP Autokey Password”...

  • Page 133: Figure 11-7 Ntp Autokey - Iff Scheme Settings On Webserver

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 As the IFF parameter key file in independent of keys and certificates, the private and public key at each normal NTP server and NTP clients can be refreshed or recreated as needed. There will be only one MTS200 device in complete NTP group which will act as Trusted Authority with trusted server functionality.
  • Page 134 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Step 4: After required keys are generated, user can check the key contents using “VIEW” option and selecting key type in field “Contents of” as shown in below images. User’s Manual Page 134 of 195...
  • Page 135 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 The keys generated in PC scheme in MTS200 are as follows: “ntpkey_iffkey_MTS200” IFF Parameter key: “ntpkey_host_MTS200” IFF Private key: “ntpkey_cert_MTS200” IFF Private Certificate:  Procedure to use IFF Scheme as ntp associations between MTS200 Trusted Authority and ntp clients : Step 1: User should transfer the generated IFF parameter Group Key from Trusted MTS200 to all other ntp clients using secure means such as SCP or HTTPS (using download section).
  • Page 136 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 To create IFF private and public key file of ntp client system, first, user should enter the folder (e.g. /etc/ntp/) where ntp keys are needed to be generated using cd command and delete all old ntp autokey files to avoid conflict and confusion with new keys.
  • Page 137 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Now, user should close the SSH session with MTS200, as given below command: exit Now, at NTP client side, user should enter in folder where ntp client autokey files are generated. cd /etc/ntp and then, ln –s /path*/ntpkey_iffkey_MTS200 ntpkey_iffkey_username*...
  • Page 138 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03  Procedure to transfer Trusted Authority MTS200 IFF key in other MTS200 units: There will be only one MTS200 device in complete NTP group network which will act as Trusted Authority with trusted server functionality.
  • Page 139 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Step 2: Now, transfer the files from PC where IFF key is stored to MTS200 where keys are to be installed by below command. scp /path*/ntpkey_iffkey_MTS200 /etc/ntp/ntpkey_iffkey_MTS200 where, path is the local folder path where Trusted Server MTS200 keys are stored. Step 3: Now take SSH connection of MTS200 where keys are need to be installed and create the required links for key.

  • Page 140: Ntp Service & Status

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 11.3.3.5 NTP Service & Status NTP Service: As MTS200 provides many configuration related to NTP operation, user need to restart the ntp service after any change done in ntp configurations. This is required as ntp will not update the changed configuration till service is restarted.

  • Page 141: Figure 11-8 Ntp Server Status On Webserver

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 11-8 NTP Server Status on Webserver “NTP Process Status” filed in above image indicates the output of ntp driver as similar as ntpq –p command output. Below are description of each parameters. ...

  • Page 142: Ntp Client Synchronization

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 User can check the ntp statistics output of current running date by selecting option “Show Graph of Current date”. As the ntp statistics of current data is not complete, the same time scale will be shown till the data is recorded.

  • Page 143: Ntp Hierarchical Time Distribution

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 masTER T-Sync Model MTS200 is available with NTP Utility software which can be used to synchronize Windows PC as NTP client device. If NTP Utility software is used, there is no need to do regedit settings in Windows PC for NTP client configuration.

  • Page 144: Figure 11-10 Ntp Time Distributions In Hierarchical Arrangement

    NTP server output as level 15 is the last limit of stratum as per NTP standard.  Stratum of masTER T-Sync MTS200 under Unlock conditions should be such that last NTP client in hierarchical arrangement should be at stratum level 15 so that can be continuously synchronized with its superior level NTP source device.
  • Page 145 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03  It is recommended that NTP output in network should be used only when once device is Lock after being power UP. If device was in Power OFF condition for very long duration, RTC battery may get discharged and RTC time will reset to its default time.

  • Page 146: Relay And Pulse Outputs

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 12 Relay and Pulse Outputs 12.1 Relay Contact Outputs masTER T-Sync Model MTS200 device is equipped with 3 Relay contact outputs for indication of POWER failure alarm, WATCHDOG alarm and GPS LOCK status alarm on back panel of unit. Factory set configuration for relay contacts for all three mentioned outputs is C-NO terminal.

  • Page 147: Event Output (Ppm/Pph)

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 masTER T-Sync Model MTS200 device provides 1PPS output at every 1 second through its BNC terminal on rear panel of unit. This is TTL signal of 0(low level) to 5V (high level) value. The Pulse width of 1PPS signal is 20% duty cycle i.e.

  • Page 148: Ethernet Communications: Telnet, Snmp

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 13 Ethernet Communications: Telnet, SNMP 13.1 Telnet Telnet is a session layer protocol to provide bilateral communication using command line interface with remote host. MTS200 support telnet protocol (PORT: 23) for its own configuration of device. User can connect with MTS200 device using telnet command from windows or unix/linux based systems.

  • Page 149: Snmp

    T-Sync model MTS200 product name Enterprise MIB variable is “1.3.6.1.4.1.38306.1.1.0”, this is also known as OID (Object Identifier). The address fragment 1.3.6.1.4.1 is fixed by the IANA (Internet Assigned Number Authority) and is the address of the SNMP Private Enterprise MIB‟s. The 38306 is the masibus masibus for our Enterprise MIB‟s.

  • Page 150: Snmp Operation

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 v) Response: Agent returns this PDU in response to above all PDUs. It contains the requested data items along with a result code. vi) Trap: This PDU is quite different from other PDUs. Agent generates it in response to particular important events.
  • Page 151 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 To get/walk variables from masTER T-Sync on unlix/linux based SNMP Manger systems: Command for SNMP v1 1. snmpwalk -v 1 -c public 192.168.100.121 .1.3.6.1.4.1.38306 on IPv4 2. snmpwalk -v 1 -c public udp6:[fdc2:7142:77b7:0:1eba:8cff:fee5:bb52] .1.3.6.1.4.1.38306 on IPv6 3.
  • Page 152 = STRING: "passphrase222" iso.3.6.1.4.1.38306.6.23.0 = STRING: "DES" iso.3.6.1.4.1.38306.6.24.0 = STRING: "passphrase222" iso.3.6.1.4.1.38306.6.25.0 = STRING: "masibus" iso.3.6.1.4.1.38306.6.26.0 = STRING: "Sector" iso.3.6.1.4.1.38306.6.27.0 = INTEGER: 0 masTER T-Sync device can be configured by multiple modes such as front panel keypad, SSH, Telnet, HTTP/HTTPS and SNMP Managers.
  • Page 153 .1.3.6.1.4.1.38306.6.25.0 is the OID of the agent variable which is to be configured, s indicates string and i indicated integer depending on variable data type, “masibus” indicated value of OID in string format. User can use IPv6 address to set string variable as well as multiple variables.
  • Page 154 To set single string variable: user@ubuntu:~$ snmpset -v 3 -n "" -u usernamesnmp -l authPriv -a MD5 -A passphrase -x DES -X passphrase -e 0x12345678912345 192.168.100.121 .1.3.6.1.4.1.38306.6.25.0 s "masibus" To set multiple variables: user@ubuntu:~$ snmpset -v 3 -n "" -u usernamesnmpv33333 -l authPriv -a MD5 -A passphrase222 -x DES -X passphrase222 -e 0x123456789123456789 192.168.100.121 .1.3.6.1.4.1.38306.6.25.0 s...
  • Page 155 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 OID of masTER T-Sync device is 1.3.6.1.4.1.38306. masTER T-Sync SNMP Main branches are given below: Branch Description masibusGPSProductInfo .1.3.6.1.4.1.38306.1 Device basic Information masibusGPSStatus .1.3.6.1.4.1.38306.2 Status of run time device parameters masibusGPSGeneral .1.3.6.1.4.1.38306.3 GPS general parameters...
  • Page 156 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 configurations) [format: minute:hour:seconds] masibusGPSDate .1.3.6.1.4.1.38306.2.2.0 String Current Device display Date [read only] (will be according to system configurations) [format: dd/mm/yyyy] masibusGPSlockstatus .1.3.6.1.4.1.38306.2.3.0 String Unit LOCK / UNLOCK status [read only] [GPS LOCK / GPS UNLOCK] masibusGPSLatitude...
  • Page 157 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 [1 / 2] [read-write] Note: 1 = utc / 2 = local time masibusGPSCOM1TxFrame .1.3.6.1.4.1.38306.3.6.0 Integer COM1 port serial time string type [read-write] [1] Note: fix value masibusGPSCOM2TxFrame .1.3.6.1.4.1.38306.3.7.0 Integer COM2 port serial time string...
  • Page 158 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 e.g.: +05:30 masibusGPSDSTStartDate .1.3.6.1.4.1.38306.3.21.0 string DST start date Max chars: 7 [read-write] Format: mm.w.d Mm(month): 01 <= mm <= 12, w(week): 1 to 5, D(day of week): 0 to 6 Day 0 is a Sunday.
  • Page 159 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 masibusGPSEth0v4IP .1.3.6.1.4.1.38306.4.2.0 string Eth0 v4 IP address Max chars: 16 [read-write] Format: xxx.xxx.xxx.xxx masibusGPSEth0v4GTY .1.3.6.1.4.1.38306.4.3.0 string Eth0 v4 gateway address Max chars: 16 [read-write] Format: xxx.xxx.xxx.xxx masibusGPSEth0v4MASK .1.3.6.1.4.1.38306.4.4.0 string Eth0 v4 subnet mask address Max chars: 16...
  • Page 160 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 [0 / 1] [read-write] Note: 0=stop, 1=start masibusGPSHTTPSopt .1.3.6.1.4.1.38306.4.21.0 Integer To stop/start https service in device. [read-write] [0 / 1] Note: 0=stop, 1=start masibusGPSSNMPSopt .1.3.6.1.4.1.38306.4.22.0 Integer To stop/start snmp service in device.
  • Page 161 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 unlock conditions [0 to 15] [read-write] Note: stratum applicable on ntp output will be stratum+1 during unlock. masibusGPSNTPAuthType .1.3.6.1.4.1.38306.5.3.0 string NTP authentication type [read-write] [NONE / SYMM / AUTO] Note: Autokey settings can be done only by webserver.
  • Page 162 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 masibusGPSNTPAuthType parameter always. masibusGPSNTPBCTkey2 .1.3.6.1.4.1.38306.5.8.0 Integer NTP broadcast key id value if broadcast is configured for SYMM broadcast [read-write] address 2. [1 to 9999] Note: keyid entered should be a valid key in ntp.keys file of GPS Clock unit.
  • Page 163 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Manager1. [read-write] min chars: 4, max chars: 30 masibusGPSSNMPMngr1v3engin .1.3.6.1.4.1.38306.6.9.0 string SNMPv3 engineid value with Manager1. [read-write] min chars: 4, max chars: 40 Note: String must start with 0x format.

  • Page 164: Snmp Traps

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 [read-write] v1/v2 only. min chars: 4, max chars: 30 masibusGPSSNMPMngr2v3User .1.3.6.1.4.1.38306.6.21.0 string SNMPv3 username Manager2. [read-write] min chars: 4, max chars: 30 masibusGPSSNMPMngr2v3engin .1.3.6.1.4.1.38306.6.22.0 string SNMPv3 engineid value with Manager2.

  • Page 165: Webserver

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 2. NTP Sync Loss [OID:- .1.3.6.1.4.1.38306.7.1.3.0] Message: “ NTP Sync.” or “NTP Not Sync.” Description: Whenever ntpd daemon in device loses sync with internal gps receiver, masTER T- Sync will generate this alarm on every change of state.
  • Page 166 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 masTER T-Sync Model MTS200 device can be configured remotely using Serial port, SSH, Telnet and Webserver mode. However, the configuration through Serial port, SSH and telnet is done by running “start”...

  • Page 167: Figure 13-1 Mts200 Webserver Login Page

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 13-1 MTS200 webserver login page User need to enter the username and password in login page to gain access to other web pages of MTS200. Users can be created through “Administration” webpage of MTS200. Maximum 9 users can be created.
  • Page 168 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Home page is updated only at every loading or refresh of page. This can be done either by selecting menu option in menu index or by pressing refresh button on web browser. Home page display top menu line have link to Home page, General Settings menu, Network Settings, NTP options, SNMP menu, Security page, Device Administration page and logout index.

  • Page 169: Figure 13-3 Mts200 Webserver General Page

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 13-3 MTS200 webserver General page User’s Manual Page 169 of 195...

  • Page 170: Figure 13-4 Mts200 Webserver Network Configuration With Ipv4

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 As shown in above figure, user can configure general settings of device in webserver. Please refer section 9.1 for each parameter description. Once user modify the required data, click on “Save” options provided at end of page.

  • Page 171: Figure 13-5 Mts200 Webserver Network Configuration With Ipv6

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Figure 13-5 MTS200 Webserver Network Configuration with IPv6 To configure network parameters of eth0 and eth1 of MTS200, user need to enter respective data in mentioned field in network webpage. In order to configure network settings of eth0 and eth1, first select the tickbox of respective eth interface and then settings of that eth can be edited.

  • Page 172: Figure 13-6 Mts200 Webserver Network Status Page

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Figure 13-6 MTS200 Webserver Network Status Page User can configure syslog server1 and syslog server2 IP address in their respective filed. For further explanation, refer section 13.5. Once user modify the required data, click on “Save” options provided at end of page. This will save the changed parameters in MTS200.

  • Page 173: Figure 13-7 Mts200 Webserver Snmp Page

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 For detailed explanation, refer section 11.3.3.  “SNMP” Webpage: For MTS200 SNMP settings, user need to navigate and select the “SNMP” option in menu index. After, selecting below webpage will be displayed. Figure 13-7 MTS200 Webserver SNMP Page MTS200 can be configured as SNMP agent communicating with two different SNMP Manager‟s.

  • Page 174: Figure 13-8 Mts200 Webserver Security Page

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 Once user modify the required data, click on “Save” options provided at end of page. This will save the changed parameters in MTS200. Other options provided at end of page include “Default Configurations” used to default the settings of GENERAL parameters, “Restore Configurations”...
  • Page 175 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 HTTPS Certificate: MTS200 can be remotely configured using secured HTTP service i.e. HTTPS with remote PC Web browser. HTTPS security certificate in MTS200 are self-signed SSL security certificate of X509 type. Remote PC can connect with MTS200 using https with address: https://192.168.100.153 or the IP...
  • Page 176 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 SSH v1/v2 keys: MTS200 can be configured and monitored using console based configuration utility. This utility can be executed through SSH communication mode with MTS200. MTS200 supports SSHv1 and SSHv2 protocol.

  • Page 177: Figure 13-9 Mts200 Webserver Administration Page

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 When user communicate with MTS200 using ssh for first time or when new keys are generated, user will be prompt to accept new keys, which should be accepted by user to start ssh communication with MTS200.
  • Page 178 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 System Configurations: Process list shows the current process running in MTS200 device. The process list is only refreshed on the loading of webpage. User need to refresh this webpage to see current list of process running in system.
  • Page 179 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Device Configurations: Using Device configurations, user can view the current applicable settings for General settings, Network settings, NTP settings, SNMP settings, ntp.conf file, snmp.conf file and NTP symmetric keys values. User need to select the option and click on “Submit”...

  • Page 180: Syslog

    User can download MTS200 SNMP MIB file, Product manual and log messages file from “Download” Section.  “Contact Us” Webpage Provides Details regarding “Masibus Automation And Instrumentation Pvt. Ltd.” Contact details. 13.5 Syslog MTS200 is capable to send internal logging messages of /var/log/messages file to configured two remote syslog servers.

  • Page 181: Dhcp

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 For this, user need to configure IPv4/IPv6 address of required syslog server in the Ethernet Network settings. This can be done by console based configuration utility through front serial console port, Telnet, SSH and Webserver.

  • Page 182: Holdover Mode

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 MTS200 can be configured with IPv6 based network settings. Autoconf option in MTS200 can be enabled / disabled via front panel keypad menu or console based configuration utility or SNMP or Webserver. Once IP address and other network parameters acquired, user can view the acquired network parameters on LCD display in respected Ethernet port menu option.

  • Page 183: Options

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 If masTER T-Sync Model MTS200 is Power ON in Unlock conditions, the unit will provide time output depending on the data of its internal RTC clock time which is available with battery backup (refer section 8).

  • Page 184: Optional Input Power Supply

    Issue no. : 03 15.1 Optional Input Power Supply masTER T-Sync MTS200 model is available with optional power input connects to Plug in screw terminal. For AC supply operation connect LINE to (L) terminal, Neutral to (N) terminal and safety ground earth to “E”...

  • Page 185: Appendix List

    Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 16 Appendix List Below is the list of Model MTS200 supported manuals. masTER T-Sync Appendix C – Procedure to configure Windows / Linux PC as NTP Client Appendix D – Procedure to configure Unix PC as NTP Client Appendix H –...

  • Page 186: Troubleshooting

    2) Check Power input cable connected to respective terminal as described in section 14.1 3) Check Input power is available. 4) Check fuse is melted or not, if fuse is melted please contact masibus support department. 17.2 Wrong time at Unit Power ON If the unit was kept in Power OFF conditions for the duration more than 15 days, as per mentioned in section 8.2, the battery back of internal RTC will get discharged completely.
  • Page 187 1) It is always recommended to use factory provided antenna cable shipped with masTER T- Sync Model MTS200 unit. If antenna cable used for installation is other than provided with masTER T-Sync Model MTS200 unit, please contact Masibus Service department for assistance.
  • Page 188 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 1) masTER T-Sync Model MTS200 is shipped with factory set Ethernet configuration (IP, gateway and subnet address) or DHCP. For DHCP to work properly there should be DHCP server available in network.
  • Page 189 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 1) IP address of GPS ethernet port and telnet device should be same network domain. 2) Please verify the Ethernet connection between GPS ethernet port and telnet device by pinging the IP address of GPS ethernet port.
  • Page 190 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 1) IP address of GPS ethernet port and telnet device should be same network domain. 2) Please verify the Ethernet connection between GPS ethernet port and telnet device by pinging the IP address of GPS ethernet port.
  • Page 191 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 17.22 NTP Client Not synchronized with MTS200 using Symmetric Key Authentication 1) ntp.keys file of MTS200 and ntp client should have same Keyid-string pair at both sides. The required keyid-pair should be configured in ntp.conf file at MTS200 and client side.
  • Page 192 Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 1) Autokey password used to generate autokey files at client side should be added in client ntp.conf file. This password can be different from autokey password of MTS200 trusted server.
  • Page 193 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 2) Need to configure broadcast option in NTP client ntp settings and then restart NTP service at client side. 3) Authentication type should be same at MTS200 and client side if ntp authentication is used for ntp broadcast/multicast.

  • Page 194: Abbreviations

    Model: MTS200 (1U) Doc. Ref. no. : m08/om/201 Issue no. : 03 18 Abbreviations 1PPS 1 Pulse Per Second Amplitude Modulation Alternate Current Bayonet Neill–Concelman Connector Binary Coded Decimal BCDYR Binary Coded Decimal Year BCDTOY Binary Coded Decimal Time of Year Conducted Emission CISPR International special committee on Radio Interference...
  • Page 195 Model: MTS200 (1U) Doc. Ref. no. : - m08/om/201 Issue no.: 03 Precision Time Protocol Coordinated Universal Time User Datagram Protocol Range Commanders Council Real Time Clock Request For Comments Radiated Emission RG-6/RG-8 : Radio Grade - 6 Radio Frequency Selective Availability Straight Binary Second SNTP...
