Arlec DC687 Installation And Operating Instructions

6. Clean only with a damp cloth and mild detergent. Do not use solvents.
7. In an event of power outage, surge or unstable main power supply,
your door chime will default to factory setting. Please reset the unit
according to 'Resetting the Unit'.
Security
When you are away from home for long periods you may wish to leave
your Chime Unit with one of your neighbours so that they can monitor
callers to your house during your absence.
Trouble Sooting & User Hints
Problem Possible Cause Suggested Remedy
Chime does 1. Units are out of range Operate the Chime unit within the
not sound. (max. range 100m). operation range (100m).
2. Push Button and Chime Re-set the frequency coding
units are not on same (see Code Selection) or select a
frequency coding. different tone (see Tone Selection).
3. Flat Push Button battery. Change the battery.
4. Wrong polarity of battery Re-insert battery with polarity to
in Push Button. match markings.
5. Power outage, surge or Re-set unit according to
unstable main power 'Resetting the Unit'
supply.
Chime sounds 1. A power interruption A. Switch off the Chime Unit for at
without Push to the Door Chime unit least 1 minute. Switch on again.
Button being plus a similar door chime It should beep twice. Press
pressed product operating nearby the Push Button to operate the
has caused the chime unit chime. This re-sets the House
to reset to the incorrect Code in the Chime Unit or;
House Code
B. Re-set the frequency coding
(see Code Selection
2. A similar Wireless Re-set the House Code
Door Chime product is
(see Code Selection).
operating nearby on the
same House Code
3. Interference from CBs, Re-set the House Code
Taxis or remote control
(see Code Selection).
toys operating on the
same frequency.
5
DC687_CPIN002309.indd 1-3
Warranty
Arlec guarantees this product in accordance with the Australian Consumer Law.
Arlec also warrants to the original first purchaser of this product ("you") from a retailer that
this product will be free of defects in materials and workmanship for a period of 12 months
from the date of purchase; provided the product is not used other than for the purpose,
or in a manner not within the scope of the recommendations and limitations, specified by
Arlec, is new and not damaged at the time of purchase, has not been subjected to abuse,
misuse, neglect or damage, has not been modified or repaired without the approval of
Arlec and has not been used for commercial purposes ("Warranty").
If you wish to claim on the Warranty, you must, at your own expense, return the product,
and provide proof of original purchase and your name, address and telephone number,
to Arlec at the address below or the retailer from whom you originally purchased the
product within 12 months from the date of purchase.
Arlec will (or authorise the retailer to) assess any claim you may make on the Warranty in
the above manner and if, in Arlec's reasonable opinion, the Warranty applies, Arlec will
at its own option and expense (or authorise the retailer to) replace the product with the
same or similar product or repair the product and return it to you or refund the price you
paid for the product. Arlec will bear its own expenses of doing those things, and you must
bear any other expenses of claiming on the Warranty.
The Warranty is in addition to other rights and remedies you may have under a law in
relation to the product to which the Warranty relates.
Our goods come with guarantees that cannot be excluded under the Australian Consumer
Law. You are entitled to a replacement or refund for a major failure and for compensation
for any other reasonably foreseeable loss or damage. You are also entitled to have the
goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Arlec Australia Pty. Ltd. ACN 009 322 105 ("Arlec") gives the Warranty.
Arlec's telephone number, address and email address are:
Customer Service: (03) 9982 5111
Building 3, 31 – 41 Joseph Street, Blackburn North, Victoria, 3130
Blackburn North LPO, P.O. Box 1065, Blackburn North, 3130
Email: custservice@arlec.com.au
6
Plug-In Wireless Door Chime
with Power Socket
Installation & Operating
Instructions
Introduction

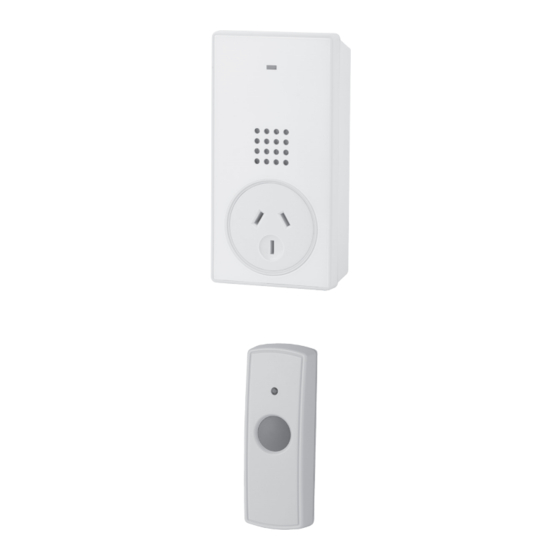

The Wireless Door Chime (DC687)
consists of two separate units:-
1. Push Button Unit
(Transmitter)
2. Chime Unit
(Receiver)
These units are completely
self-contained and no wiring between
them is necessary.
Range
Up to 100 metres.
NOTE: Range depends on location,
temperature, and battery condition.
Socket Outlet Output
230-240v a.c. 10amp 2400w max.
CPIN002309
CPIN002309
DC687
